BKG Ntrip Client (BNC) User Manual
Version 2.12.0

Software by
Leos Mervart(1), Andrea Stürze(2), Georg Weber(2), Axel Rülke(2), Dirk Stöcker(3)

(1) Czech Technical University (CTU), Department of Geomatics, Prague, Czech Republic
(2) Federal Agency for Cartography and Geodesy (BKG), Frankfurt, Germany
(3) Alberding GmbH, Wildau, Germany

Documentation by
Georg Weber(2)

Copyright
©  2005-2015 Federal Agency for Cartography and Geodesy (BKG), Frankfurt, Germany

Citation
To help justify funding the development of BNC, we kindly ask users to include a citation when applying the software results in a publication. We suggest:

Mervart, Leos, Andrea Stürze, Georg Weber, Axel Rülke and Dirk Stöcker:
            BKG Ntrip Client, Version 2.12.0. Mitteilungen des Bundesamtes
            für Kartographie und Geodäsie, Vol. 49, Frankfurt am Main, 2016.

Table of Contents

1.
General Information

      1.1 Purpose
      1.2 Supported Systems
      1.3 Data Flow
      1.4 Handling
      1.5 Configuration
            1.5.1 Management
            1.5.2 Examples
      1.6 Limitations
      1.7 Looking Back

2. Settings Details

      2.1 Top Menu Bar
            2.1.1 File
            2.1.2 Help
      2.2 Network
            2.2.1 Proxy
            2.2.2 SSL
      2.3 General
            2.3.1 Logfile
            2.3.2 Append Files
            2.3.3 Reread Configuration
            2.3.4 Auto Start
            2.3.5 Raw Output File
      2.4 RINEX Observations
            2.4.1 Filenames
            2.4.2 Directory
            2.4.3 File Interval
            2.4.4 Sampling
            2.4.5 Skeleton Extension
            2.4.6 Skeleton Mandatory
            2.4.7 Script
            2.4.8 Version 2
            2.4.9 Version 3
            2.4.10 Version 3 Filenames
      2.5 RINEX Ephemeris
            2.5.1 Directory
            2.5.2 Interval
            2.5.3 Port
            2.5.4 Version
            2.5.5 Version 3 Filenames
      2.6 RINEX Editing & QC
            2.6.1 Action
            2.6.2 Input Files
            2.6.3 Output Files
            2.6.4 Logfiles
            2.6.5 Plots for Signals
            2.6.6 Directory for Plots
            2.6.7 Set Edit Options
            2.6.8 Command Line, No Window
      2.7 SP3 Comparison
            2.7.1 Input SP3 Files
            2.7.2 Exclude Satellites
            2.7.3 Logfile
      2.8 Broadcast Corrections
            2.8.1 Directory, ASCII
            2.8.2 Interval
            2.8.3 Port
            2.8.4 Wait for Full Corr Epoch
      2.9 Feed Engine
            2.9.1 Port
            2.9.2 Wait for Full Obs Epoch
            2.9.3 Sampling
            2.9.4 File
            2.9.5 Port (unsynchronized)
      2.10 Serial Output
            2.10.1 Mountpoint
            2.10.2 Port Name
            2.10.3 Baud Rate
            2.10.4 Flow Control
            2.10.5 Parity
            2.10.6 Data Bits
            2.10.7 Stop Bits
            2.10.8 NMEA
            2.10.9 File
            2.10.10 Height
            2.10.11 Sampling
      2.11 Outages
            2.11.1. Observation Rate
            2.11.2. Failure Threshold
            2.11.3. Recovery Threshold
            2.11.4. Script
      2.12 Miscellaneous
            2.12.1. Mountpoint
            2.12.2. Log Latency
            2.12.3. Scan RTCM
            2.12.4. Port
      2.13 PPP Client
            2.13.1 PPP (1): Input and Output
                  2.13.1.1 Data Source
                  2.13.1.2 RINEX Observation File
                  2.13.1.3 RINEX Navigation File
                  2.13.1.4 Corrections Stream
                  2.13.1.5 Corrections File
                  2.13.1.6 ANTEX File
                  2.13.1.7 Coordinates
                  2.13.1.8 Version 3 Filenames
                  2.13.1.9 Logfile Directory
                  2.13.1.10 NMEA Directory
                  2.13.1.11 SNX TRO Directory
                      2.13.1.11.1 Interval
                      2.13.1.11.2 Sampling
            2.13.2 PPP (2): Processed Stations
                  2.13.2.1 Station
                  2.13.2.2 Sigma North/East/Up
                  2.13.2.3 Noise North/East/Up
                  2.13.2.4 Tropo Sigma
                  2.13.2.5 Tropo Noise
                  2.13.2.6 NMEA Port
            2.13.3 PPP (3): Processing Options
                  2.13.3.1 Linear Combinations
                  2.13.3.2 Code Observations
                  2.13.3.3 Phase Observations
                  2.13.3.4 Elevation Dependent Weighting
                  2.13.3.5 Minimum Number of Observations
                  2.13.3.6 Minimum Elevation
                  2.13.3.7 Wait for Clock Corrections
                  2.13.3.8 Seeding
            2.13.4 PPP (4): Plots
                  2.13.4.1 PPP Plot
                  2.13.4.2 Audio Response
                  2.13.4.3 Track Map
                      2.13.4.3.1 Google/OSM
                  2.13.4.4 Dot-properties
                      2.13.4.4.1 Size
                      2.13.4.4.2 Color
                  2.13.4.5 Post Processing Speed
      2.14 Combine Corrections
            2.14.1 Combine Corrections Table
                  2.14.1.1 Add Row, Delete
                  2.14.1.2 Method
                  2.14.1.3 Maximal Residuum
                  2.14.1.4 Sampling
                  2.14.1.5 Use GLONASS
      2.15 Upload Corrections
            2.15.1 Add, Delete Row
            2.15.2 Host, Port, Mountpoint, Password
            2.15.3 System
            2.15.4 Center of Mass
            2.15.5 SP3 File
            2.15.6 RNX File
            2.15.7 Interval
            2.15.8 Sampling
                  2.15.8.1 Orbits
                  2.15.8.2 SP3
                  2.15.8.3 RINEX
            2.15.9 Custom Trafo
            2.15.10 ANTEX File
      2.16 Upload Ephemeris
            2.16.1 Host & Port
            2.16.2 Mountpoint & Password
            2.16.3 Sampling
      2.17 Streams Canvas
            2.17.1 Edit Streams
            2.17.2 Delete Stream
            2.17.3 Reconfigure Stream Selection On-the-fly
      2.18 Logging Canvas
            2.18.1 Log
            2.18.2 Throughput
            2.18.3 Latency
            2.18.4 PPP Plot
      2.19 Bottom Menu Bar
            2.19.1 Add Stream
                  2.19.1.1 Add Stream - Coming from Caster
                        2.19.1.1.1 Caster Host and Port
                        2.19.1.1.2 Casters Table
                        2.19.1.1.3 User and Password
                        2.19.1.1.4 Get Table
                        2.19.1.1.5 Ntrip Version
                        2.19.1.1.6 Map
                  2.19.1.2 Add Stream - Coming from TCP/IP Port
                  2.19.1.3 Add Stream - Coming from UDP Port
                  2.19.1.4 Add Stream - Coming from Serial Port
            2.19.2 Delete Stream
            2.19.3 Map
            2.19.4 Start
            2.19.5 Stop
            2.19.6 Help? = Shift+F1
      2.20 Command Line Options
            2.20.1 Version
            2.20.2 Display
            2.20.3 No Window Mode
            2.20.4 File Mode
            2.20.5 Configuration File
            2.20.6 Configuration Options

3. Annex

      3.1. Revision History
      3.2. RTCM Standards
            3.2.1 Ntrip Version 1
            3.2.2 Ntrip Version 2
            3.2.3 RTCM Version 2
            3.2.4 RTCM Version 3
      3.3. Command Line Help
      3.4. Further Reading

List of Figures

Fig.  TitleChapter
1Flowchart, BNC connected to a GNSS rover for Precise Point Positioning1.3
2Flowchart, BNC converting RTCM streams to RINEX batches1.3
3Flowchart, BNC feeding a real-time GNSS engine and uploading encoded Broadcast Corrections1.3
4Flowchart, BNC combining Broadcast Correction streams1.3
5Sections on BNC's main window1.4
6Management of configuration options in BNC1.5.1
7BNC's 'Network' panel configured to ignore eventually occurring SSL error messages2.2.2
8BNC translating incoming streams to 15 min RINEX Version 3 files2.4
9Converting Broadcast Ephemeris stream to RINEX Version 3 Navigation file2.5.5
10Example for 'RINEX Editing Options' window2.6.7
11Example for RINEX file concatenation with BNC2.6.7
12Example for creating RINEX quality check analysis graphics output with BNC2.6.7
13Example for satellite availability, elevation and PDOP plots as a result of a RINEX quality check analysis with BNC2.6.7
14Sky plot examples for multipath, part of RINEX quality check analysis with BNC2.6.7
15Sky plot examples for signal-to-noise ratio, part of RINEX quality check analysis with BNC2.6.7
16BNC configuration example for comparing two SP3 files with satellite orbit and clock data2.7.3
17BNC configuration example for pulling, saving and output of Broadcast Corrections2.8.3
18Synchronized BNC output via IP port to feed a GNSS real-time engine2.9
19Flowcharts, BNC forwarding a stream to a serial connected receiver; sending NMEA sentences is mandatory for VRS streams2.10
20BNC pulling a VRS stream to feed a serial connected RTK rover2.10
21RTCM message numbers, latencies and observation types2.12
22Real-time Precise Point Positioning with BNC, PPP Panel 12.13.1
23Precise Point Positioning with BNC, PPP Panel 2, using RTKPLOT for visualization2.13.2
24Precise Point Positioning with BNC, PPP Panel 32.13.3
25BNC in 'Quick-Start' mode (PPP, Panel 2)2.13.3.8
26Track of positions from BNC with Google Maps in the background2.13.4.3
27Example for a background map from Google Maps and OpenStreetMap (OSM) resources2.13.4.3.1
28BNC combining Broadcast Correction streams2.14.1.1
29BNC uploading the combined Broadcast Corrections stream2.14.1.1
30'INTERNAL' PPP with BNC using combined Broadcast Corrections stream2.14.1.1

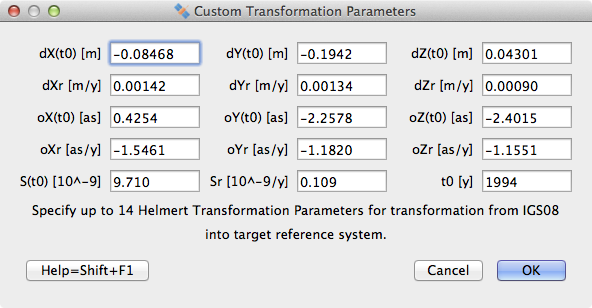

31Setting Custom Transformation Parameters window, example for 'ITRF2008->GDA94'2.15.3
32Producing Broadcast Corrections from incoming precise orbits and clocks and uploading them to an Ntrip Broadcaster2.15.9
33Producing a Broadcast Ephemeris stream from navigation messages of globally distributed RTCM streams and uploading them in RTCM Version 3 format to an Ntrip Broadcaster2.16.3
34Bandwidth consumption of incoming streams2.18.2

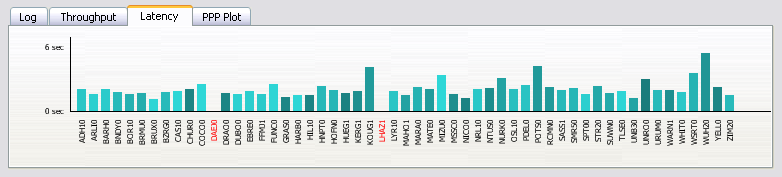

35Latency of incoming streams2.18.3
36Time series plot of PPP session showing displacements2.18.4
37Steam input communication links2.19
38Casters table2.19.1.1.2
39Broadcaster source-table2.19.1.1.4
40Stream distribution map derived from Ntrip Broadcaster source-table2.19.1.1.6
41BNC setup for pulling a stream via serial port2.19.1.4

List of Tables

Tab.  TitleChapter
1Status of RTCM Version 3 message implementations in BNC supporting various GNSS systems1.2

1. General Information

The BKG Ntrip Client (BNC) is a program for simultaneously retrieving, decoding, converting and processing or analyzing real-time GNSS data streams applying the 'Networked Transport of RTCM via Internet Protocol' (Ntrip) standard. It has been developed within the framework of the IAG sub-commission for Europe (EUREF) and the International GNSS Service (IGS). Although meant as a real-time tool, it comes with some Post Processing functionality. You may like to use it for data coming from Ntrip Broadcasters like

BNC has been written under GNU General Public License (GPL). Source code is available from Subversion software archive http://software.rtcm-ntrip.org/svn/trunk/BNC. Binaries for BNC are available for Windows, Linux, and Mac OS X systems. We used the MinGW Version 4.4.0 compiler to create the Windows binaries. It is likely that BNC can be compiled on other systems where a GNU compiler and Qt Version 4.8.4 or any later version are installed. Please ensure that you always use the latest precompiled version of BNC available from http://igs.bkg.bund.de/ntrip/download. Note that static and shared builds of BNC are made available. A static build would be sufficient in case you don't want BNC to trace PPP results using Google Map (GM) or OpenStreetMap (OSM). However, GM/OSM usage requires the QtWebKit library which can only be part of BNC builds from shared libraries. Using a shared library BNC build requires that you first install your own shared Qt library. The 'README.txt' file which comes with the BNC source code describes how to install Qt on Windows, Linux and Mac systems.

Feel free to send us comments, suggestions or bug reports. Any contribution would be appreciated.

Authors

The BKG Ntrip Client (BNC) with a Qt Graphical User Interface (GUI) and a Command Line Interface (CLI) has been developed for

   Federal Agency for Cartography and Geodesy (BKG)
   c/o Dr. Axel Rülke
   Department of Geodesy, Section Navigation
   Frankfurt, Germany
   [axel.ruelke@bkg.bund.de]
The software has been written by
   Prof. Dr. Leos Mervart
   Czech Technical University (CTU)
   Department of Geodesy
   Prague, Czech Republic

Prof. Mervart started working on BNC in 2005. His sole responsibility for writing the program code ended February 2015. Since March 2015 the expert in charge at BKG for further BNC programming is Dipl.-Ing. Andrea Stürze [andrea.stuerze@bkg.bund.de].

BNC provides context-sensitive help (What's This) related to specific objects. It furthermore comes with the here presented documentation, available as part of the software and as a PDF file. Responsible for online and offline documentation, example configurations (and till February 2014 the overall BNC policy concept) is Dr. Georg Weber [georg.weber@bkg.bund.de].

BNC includes the following GNU GPL software components:

Note that some figures presented in this documentation may show screenshots from earlier versions of BNC. If so then there is either no relevant change compared to the current appearance of the program or no change at all.

Acknowledgements

1.1 Purpose

Promoting Open RTCM Standards for streaming GNSS data over the Internet has been a major aspect in developing BNC as Open Source real-time software. Basically, the tool enables the test, validation and further evolution of new RTCM messages for precise satellite navigation. With high-level source code at hand, it also allows university education to catch up with comprehensive state-of-the-art positioning and potentially contribute fresh ideas which are free from any licensing.

BNC was designed to serve the following purposes:

BNC supports the following GNSS stream formats and message types:

BNC supports the following GNSS file formats:

Note that BNC allows to by-pass decoding and conversion algorithms for incoming streams, leave whatever is received untouched to save it in files or output it through local TCP/IP port.

1.2 Supported Systems

BNC is permanently completed to finally support all existing GNSS systems throughout all features of the program. The table below shows in detail which GNSS systems are so far supported by particular applications when using the latest BNC version. Application areas named here are:

The table mentions if a message implementation in BNC could so far only be based on a 'RTCM Proposal'.

Table 1: Status of RTCM Version 3 message implementations in BNC supporting various GNSS systems

Message
Type #
Description GNSS
System
RTCM
Proposal
Decoding   RINEX/
 SP3
Encoding  Upload   PPP      Combin.

General
1005,1006 Station x
1007,1008 Antenna x
1033 Receiver, Antenna x
1013 System Parameters x

Navigation
1019 Ephemeris GPS x x x x x x
1020 Ephemeris GLONASS x x x x x x
1045 Ephemeris Galileo F/Nav x x x x
1046 Ephemeris Galileo I/Nav x x x x x x
1043 Ephemeris SBAS x x x x x
1044 Ephemeris QZSS x x x x
63 Ephemeris BDS x x x x x x

Observation
1001-4 Conventional Messages GPS x x x
1009-12 Conventional Messages GLONASS x x x

Observation
1071-77 Multiple Signal Message GPS x x x
1081-87 Multiple Signal Message GLONASS x x x
1091-97 Multiple Signal Message Galileo x x x
1101-07 Multiple Signal Message SBAS x x x
1111-17 Multiple Signal Message QZSS x x
1121-27 Multiple Signal Message BDS x x x x

SSR I
1057 Orbit Corrections GPS x x x x x x
1063 Orbit Corrections GLONASS x x x x x x
1240 Orbit Corrections Galileo x x x x x x
1246 Orbit Corrections SBAS x x x x x
1252 Orbit Corrections QZSS x x x x x
1258 Orbit Corrections BDS x x x x x x
1058 Clock Corrections GPS x x x x x x
1064 Clock Corrections GLONASS x x x x x x
1241 Clock Corrections Galileo x x x x x x
1247 Clock Corrections SBAS x x x x x
1253 Clock Corrections QZSS x x x x x
1259 Clock Corrections BDS x x x x x x
1059 Code Biases GPS x x x x x
1065 Code Biases GLONASS x x x x x
1242 Code Biases Galileo x x x x x x
1248 Code Biases SBAS x x x x x
1254 Code Biases QZSS x x x x x
1260 Code Biases BDS x x x x x x
1061, 1062 User Range Accuracy, HR  GPS x
1067, 1068 User Range Accuracy, HR  GLONASS x
1244, 1245 User Range Accuracy, HR  Galileo x x
1250, 1251 User Range Accuracy, HR  SBAS x x
1256, 1257 User Range Accuracy, HR  QZSS x x
1262, 1263 User Range Accuracy, HR  BDS x x
1060 Comb. Orbits & Clocks GPS x x x x x x
1066 Comb. Orbits & Clocks GLONASS x x x x x x
1243 Comb. Orbits & Clocks Galileo x x x x x x
1249 Comb. Orbits & Clocks SBAS x x x x x
1255 Comb. Orbits & Clocks QZSS x x x x x
1261 Comb. Orbits & Clocks BDS x x x x x x

SSR II
1264 VTEC GNSS x x x x x
1265 Phase Biases GPS x x x x x
1266 Phase Biases GLONASS x x x x x
1267 Phase Biases Galileo x x x x x
1268 Phase Biases SBAS x x x x x
1269 Phase Biases QZSS x x x x x
1270 Phase Biases BDS x x x x x

1.3 Data Flow

BNC can be used in different contexts with varying data flows. Typical real-time communication follows the Ntrip protocol over TCP/IP (probably via SSL), RTSP/RTP or UDP, plain TCP/IP protocol, or serial communication links. Stream contents could be observations, ephemeris, satellite orbit/clock products or NMEA sentences.

The first of the following figures shows a flow chart of BNC connected to a GNSS receiver providing observations via serial or TCP communication link for the purpose of Precise Point Positioning. The second figure shows the conversion of RTCM streams to RINEX files. The third figure shows a flow chart of BNC feeding a real-time GNSS engine which estimates precise orbits and clocks. BNC is used in this scenario to encode correctors to RTCM Version 3 and upload them to an Ntrip Broadcaster. The fourth figure shows BNC combining several Broadcast Correction streams to disseminate the combination product while saving results in SP3 and Clock RINEX files.

Figure 1: Flowchart, BNC connected to a GNSS rover for Precise Point Positioning.

Figure 2: Flowchart, BNC converting RTCM streams to RINEX batches.

Figure 3: Flowchart, BNC feeding a real-time GNSS engine and uploading encoded Broadcast Corrections.

Figure 4: Flowchart, BNC combining Broadcast Correction streams.

1.4 Handling

Although BNC is mainly a real-time tool to be operated online, it can be run offline

Furthermore, apart from its regular window mode, BNC can be run as a batch/background job in a 'no window' mode using processing options from a previously saved configuration or from command line.

Unless it runs offline, BNC

The main window of BNC shows a 'Top menu bar' section, a 'Settings' sections with panels to set processing options, a 'Streams' section, a section for 'Log' tabs, and a 'Bottom menu bar' section, see figure below.

Figure 5: Sections on BNC's main window.

Running BNC in interactive mode requires graphics support. This is also required in batch mode when producing plots. Windows and Mac OS X systems always support graphics. However, when using BNC in batch mode on Linux systems for producing plots, you need to make sure that at least a virtual X-Server like 'Xvfb' is installed and the '-display' command-line option is used.

The usual handling of BNC is that you first select a number of streams ('Add Stream'). Any stream configured to BNC shows up on the 'Streams' canvas in the middle of BNC's main window. You then go through BNC's various configuration panels to set a combination of input, processing and output options before you start the program ('Start'). Most configuration panels are dedicated to a certain functionality of BNC. If the first option field on such a configuration panel is empty, the affected functionality is deactivated.

Records of BNC's activities are shown in the 'Log' tab which is part of the 'Log' canvas. The bandwidth consumption per stream, the latency of incoming observations and a PPP time series for coordinate displacements are also part of that canvas and shown in the 'Throughput', 'Latency' and 'PPP Plot' tabs.

1.5 Configuration

The following sections present information on how the BNC configuration works and provide configuration examples which can be adjusted according to specific user needs.

1.5.1 Management

As a default, configuration files for running BNC on Unix/Linux/Mac OS X systems are saved in directory '${HOME}/.config/BKG'. On Windows systems, they are typically saved in directory 'C:/Documents and Settings/Username/.config/BKG'. The default configuration filename is 'BNC.bnc'.

The default filename 'BNC.bnc' can be changed and the file contents can easily be edited. On graphical user interfaces it is possible to Drag & Drop a configuration file icon to start BNC (not on Mac OS X systems). It is also possible to start and configure BNC via command line. Some configuration options can be changed on-the-fly. See annexed 'Command Line Help' for a complete set of configuration options.

BNC maintains configuration options at three different levels:

  1. GUI, input fields level
  2. Active configuration level
  3. Configuration file, disk level

Figure 6: Management of configuration options in BNC:
                Left:BNC in graphics mode; active configuration options are introduced through GUI input fields and finally saved on disk.
                Middle:BNC in 'no window' mode; active configuration options are read from disk.
                Right:BNC in 'no window' mode without configuration file; default configuration options can be replaced via command line options.

Configuration options are usually specified using GUI input fields (1) after launching BNC. When hitting the 'Start' button, configuration options are transferred one level down to become BNC's active configuration (2), allowing the program to begin its operation. Pushing the 'Stop' button ends data processing so that the user can finally terminate BNC through 'File'->'Quit'->'Save Options' which saves processing options in a configuration file to disk (3). It is important to understand that:

1.5.2 Examples

BNC comes with a number of configuration examples which can be used on all operating systems. Copy the complete directory 'Example_Configs' which comes with the software including sub-directories 'Input' and 'Output' to your disc. There are several ways to start BNC using one of the example configurations:

Although it's not a must, we suggest that you always create BNC configuration files with the filename extension '.bnc'.

We furthermore suggest for convenience reasons that you configure your system to automatically start BNC when you double-click a file with the filename extension '.bnc'. The following describes what to do on Windows systems to associate the BNC program to such configuration files:

  1. Right-click a file that has the extension '.bnc' and then click 'Open'. If the 'Open' command is not available, click 'Open With' or double-click the file.
  2. Windows displays a dialog box that says that the system cannot open this file. The dialog box offers several options for selecting a program.
  3. Click 'Select the program from a list', and then click 'OK'.
  4. The 'Open With' dialog box is displayed. Click 'Browse', locate and then click the BNC program, and then click 'Open'.
  5. Click to select the 'Always use the selected program to open this kind of file' check box.
  6. Click 'OK'.

Some of the presented example configuration files contain a user ID 'Example' with a password 'Configs' for accessing a few GNSS streams from public Ntrip Broadcasters. This generic account is arranged for convenience reasons only. Please be so kind as to replace the generic account details as well as the place holders 'User' and 'Pass' by the personal user ID and password you receive following an online registration through http://register.rtcm-ntrip.org.

Note that the account for an Ntrip Broadcaster is usually limited to pulling a specified maximum number of streams at the same time. As running some of the example configurations requires pulling several streams, it is suggested to make sure that you don't exceed your account's limits.

Make also sure that sub-directories 'Input' and 'Output' which are part of the example configurations exist on your system or adjust the affected example configuration options according to your needs.

Some BNC options require antenna phase center variations as made available from IGS through so-called ANTEX files at ftp://igs.org/pub/station/general. An example ANTEX file 'igs08.atx' is part of the BNC package for convenience.

The example configurations assume that no proxy protects your BNC host. Should a proxy be operated in front of BNC then you need to introduce its name or IP and port number in the 'Network' panel.

You should be able to run all configuration examples without changing their options. However, configurations 'Upload.bnc' and 'UploadPPP.bnc' are exceptions because they require an input stream from a connected network engine.

  1. File 'RinexObs.bnc'
    The purpose of this configuration is showing how to convert RTCM streams to RINEX Observation files. The configuration pulls streams from Ntrip Broadcasters using Ntrip Version 1 to generate 15min 1Hz RINEX Version 3 Observation files. See http://igs.bkg.bund.de/ntrip/observations for observation stream resources.

  2. File 'RinexEph.bnc'
    The purpose of this configuration is showing how to convert a RTCM stream carrying navigation messages to a RINEX Navigation file. The configuration pulls a RTCM Version 3 stream with Broadcast Ephemeris coming from the real-time EUREF and IGS networks. It saves hourly RINEX Version 3 Navigation files. See http://igs.bkg.bund.de/ntrip/ephemeris for further real-time Broadcast Ephemeris resources.

  3. File 'BrdcCorr.bnc'
    The purpose of this configuration is to save Broadcast Corrections from RTCM SSR messages in a plain ASCII format as hourly files. See http://igs.bkg.bund.de/ntrip/orbits for further real-time IGS or EUREF orbit/clock products.

  4. File 'RinexConcat.bnc'
    The purpose of this configuration is to concatenate RINEX Version 3 files to produce a concatenated file and edit the marker name in the file header. The sampling interval is set to 30 seconds. See section 'RINEX Editing & QC' in the documentation for examples on how to call BNC from command line in 'no window' mode for RINEX file editing, concatenation and quality checks.

  5. File 'RinexQC.bnc'
    The purpose of this configuration is to check the quality of a RINEX Version 3 file through a multipath analysis. Results are saved on disk in terms of a plot in PNG format. See section 'RINEX Editing & QC' in the documentation for examples on how to call BNC from command line in 'no window' mode for RINEX file editing, concatenation and quality checks.

  6. File 'RTK.bnc'
    The purpose of this configuration is to feed a serial connected receiver with observations from a reference station for conventional RTK. The stream is scanned for RTCM messages. Message type numbers and latencies of incoming observation are reported in BNC's logfile.

  7. File 'FeedEngine.bnc'
    The purpose of this configuration is to feed a real-time GNSS engine with observations from remote reference stations. The configuration pulls a single stream from an Ntrip Broadcaster. It would of course be possible to pull several streams from different casters. Incoming observations are decoded, synchronized and output through a local IP port and saved into a file. Failure and recovery thresholds are specified to inform about outages.

  8. File 'PPP.bnc'
    The purpose of this configuration is Precise Point Positioning from observations of a rover receiver. The configuration reads RTCM Version 3 observations, a Broadcast Ephemeris stream and a stream with Broadcast Corrections. Positions are saved in the logfile.

  9. File 'PPPNet.bnc'
    The purpose of this configuration is to demonstrate simultaneous Precise Point Positioning for several rovers or several receivers from a network of reference stations in one BNC job. The possible maximum number of PPP solutions per job depends on the processing power of the hosting computer. This example configuration reads two RTCM Version 3 observation streams, a Broadcast Ephemeris stream and a stream with Broadcast Corrections. PPP Results for the two stations are saved in PPP logfiles.

  10. File 'PPPQuickStart.bnc'
    The purpose of this configuration is Precise Point Positioning in Quick-Start mode from observations of a static receiver with precisely known position. The configuration reads RTCM Version 3 observations, Broadcast Corrections and a Broadcast Ephemeris stream. Positions are saved in NMEA format on disc. Positions are also output through IP port for real-time visualization with tools like RTKPLOT. Positions are also saved in the logfile.

  11. File 'PPPPostProc.bnc'
    The purpose of this configuration is Precise Point Positioning in Post Processing mode. BNC reads a RINEX Observation and a RINEX Version 3 Navigation files and a Broadcast Corrections file. PPP processing options are set to support the Quick-Start mode. The output is saved in a specific Post Processing logfile and contains the coordinates derived over time following the implemented PPP filter algorithm.

  12. File 'PPPGoogleMaps.bnc'
    The purpose of this configuration is to track BNC's point positioning solution using Google Maps or OpenStreetMap as background. BNC reads a RINEX Observation file and a RINEX Navigation file to carry out a 'Standard Point Positioning' solution in post-processing mode. Although this is not a real-time application it requires the BNC host to be connected to the Internet. Specify a computation speed, then hit button 'Open Map' to open the track map, then hit 'Start' to visualize receiver positions on top of GM/OSM maps.

  13. File 'SPPQuickStartGal.bnc'
    The purpose of this configuration is Single Point Positioning in Quick-Start mode from observations of a static receiver with precisely known position. The configuration uses GPS, GLONASS and Galileo observations and a Broadcast Ephemeris stream.

  14. File 'SaveSp3.bnc'
    The purpose of this configuration is to produce SP3 files from a Broadcast Ephemeris stream and a Broadcast Corrections stream. The Broadcast Corrections stream is formally introduced in BNC's 'Combine Corrections' table. Note that producing SP3 requires an ANTEX file because SP3 file contents should be referred to CoM.

  15. File 'Sp3ETRF2000PPP.bnc'
    The purpose of this configuration is to produce SP3 files from a Broadcast Ephemeris stream and a stream carrying ETRF2000 Broadcast Corrections. The Broadcast Corrections stream is formally introduced in BNC's 'Combine Corrections' table. This leads to an SP3 file containing orbits referred also to ETRF2000. Pulling in addition observations from a reference station at precisely known ETRF2000 position allows comparing an 'INTERNAL' PPP solution with ETRF2000 reference coordinates.

  16. File 'Upload.bnc'
    The purpose of this configuration is to upload orbits and clocks from a real-time GNSS engine to an Ntrip Broadcaster. For that the configuration reads precise orbits and clocks in RTNET format. It also reads a stream carrying Broadcast Ephemeris. BNC converts the orbits and clocks into Broadcast Corrections and encodes them in RTCM Version 3 SSR messages to upload them to an Ntrip Broadcaster. The Broadcast Corrections stream is referred to satellite Antenna Phase Center (APC) and IGS08. Orbits are saved on disk in SP3 format and clocks in Clock RINEX format.

  17. File 'Combi.bnc'
    The purpose of this configuration is to pull several streams carrying Broadcast Corrections and a Broadcast Ephemeris stream from an Ntrip Broadcaster to produce a combined Broadcast Corrections stream. BNC encodes the combination product in RTCM Version 3 SSR messages and uploads that to an Ntrip Broadcaster. The Broadcast Corrections stream is not referred to satellite Center of Mass (CoM). It is referred to IGS08. Orbits are saved in SP3 format and clocks in Clock RINEX format.

  18. File 'CombiPPP.bnc'
    This configuration equals the 'Combi.bnc' configuration. However, the combined Broadcast Corrections are in addition used for an 'INTERNAL' PPP solutions based on observations from a static reference station with known precise coordinates. This allows a continuous quality check of the combination product through observing coordinate displacements.

  19. File 'UploadEph.bnc'
    The purpose of this configuration is to pull a number of streams from reference stations to get hold of contained Broadcast Ephemeris messages. These are encoded then in a RTCM Version 3 stream which only provides Broadcast Ephemeris with an update rate of 5 seconds.

  20. File 'CompareSp3.bnc'
    The purpose of this configuration is to compare two SP3 files to calculate RMS values for orbit and clock differences. GPS satellite G05 and GLONASS satellite R18 are excluded from this comparison. Comparison results are saved in a logfile.

  21. File 'Empty.bnc'
    The purpose of this example is to provide an empty configuration file for BNC which only contains the default settings.

1.6 Limitations

1.7 Looking Back

A basic function of BNC is streaming GNSS data over the open Internet using the Ntrip transport protocol. Employing IP streaming for satellite positioning goes back to the beginning of our century. Wolfgang Rupprecht has been the first who developed TCP/IP server software under the acronym of DGPS-IP (Rupprecht 2000) and published it under GNU General Public License (GPL). While connecting marine beacon receivers to PCs with permanent access to the Internet he transmitted DGPS corrections in RTCM format to support Differential GPS positioning over North America. With approximately 200 bits/sec the bandwidth requirement for disseminating beacon data was comparatively small. Each stream was transmitted over a unique combination of IP address and port. Websites informed about existing streams and corresponding receiver positions.

To cope with an increasing number of transmitting GNSS reference stations, the Federal Agency for Cartography and Geodesy (BKG) together with the Informatik Centrum Dortmund (ICD) in Germany developed a streaming protocol for satellite navigation data called 'Networked Transport of RTCM via Internet Protocol' (Ntrip). The protocol was built on top of the HTTP standard and included the provision of meta data describing the stream contents. Any stream could now be globally transmitted over just one IP port: HTTP port 80. Stream availability and content details became part of the transport protocol. The concept was first published in 2003 (Weber et al. 2003) and based on three software components, namely an NtripServer pushing data from a reference station to an NtripCaster and an NtripClient pulling data from the stream splitting caster to support a rover receiver. (Note that from a socket-programmers perspective NtripServer and NtripClient both act as clients; only the NtripCaster operates as socket-server.) Ntrip could essentially benefit from Internet Radio developments. It was the ICECAST multimedia server which provided the bases for BKG's 'Professional Ntrip Broadcaster' with software published first in 2003 and of course again as Open Source under GPL.

For BKG as a governmental agency, making Ntrip an Open Industry Standard has been an objective from the very beginning. The 'Radio Technical Commission for Maritime Services' (RTCM) accepted 'Ntrip Version 1' in 2004 as 'RTCM Recommended Standard' (Weber et al. 2005). Nowadays there is almost no geodetic GNSS receiver which does not come with integrated NtripClient and NtripServer functionality as part of the firmware. Hundreds of NtripCaster implementations are operated world-wide for highly accurate satellite navigation through RTK networks. Thousands of reference stations upload observations via NtripServer to central computing facilities for any kind of NtripClient application. In 2011 'Ntrip Version 2' was released (RTCM SC-104 2011) which cleared and fixed some design problems and HTTP protocol violations. It also supports TCP/IP via SSL and adds optional communication over RTSP/RTP and UDP.

With the advent of Ntrip as open streaming standard, BKG's interest turned towards taking advantage from free real-time access to GNSS observations. NGOs such as the IAG Reference Frame Sub Commissions for Africa (AFREF), Asia & Pacific (APREF), Europe (EUREF), North America (NAREF) Latin America & Caribbean (SIRGAS), and the International GNSS Service (IGS) maintain continental or even global GNSS networks with the majority of modern receivers supporting Ntrip stream upload. Through operating BKG's NtripCaster software, these networks became extremely valuable sources of real-time GNSS information. In 2005 this was the starting point for developing the 'BKG Ntrip Client' (BNC) as a multi-stream Open Source NtripClient which allows pulling hundreds of streams simultaneously from any number of NtripCaster installations world-wide. Decoding incoming RTCM streams and output observations epoch by epoch through IP port to feed a real-time GNSS network engine became BNC's first and foremost ability. Converting decoded streams to short high-rate RINEX files to assist near real-time applications became a welcome by-product right from the start of this development.

Adding real-time Precise Point Positioning (PPP) support to BNC began in 2010 as an important completion in view of developing an Open RTCM Standard for that. According to the State Space Representation (SSR) model, new Version 3 messages are proposed to provide e.g. satellite orbit and clock corrections and ionospheric corrections as well as biases for code and phase data. The ultimate goal for SSR standardization is to reach centimeter level accuracy within seconds as an alternative to Network RTK methods like VRS, FKP, and MAC. Because of interoperability aspects, an Open Standard in this area is of particular interest for clients. Regarding stand-alone PPP in BNC it is worth mentioning that the program is not and can never be in competition with a receiver manufacturer's proprietary solution. Only software or services which are part of a receiver firmware could have the potential of becoming a thread for commercial interests. However, implementing or not implementing an Open PPP approach in a firmware is and always remains a manufacturer's decision.

Implementing some post processing capability is essential for debugging real-time software in case of problems. So certain real-time options in BNC were complemented to work offline through reading data from files. Moreover, beginning in 2012 the software was extended to support Galileo, BeiDou, and QZSS besides GPS and GLONASS. With that the Open Source tool BNC could be used for RINEX Version 3 file editing, concatenation and quality checks, a post processing functionality demanded by the IGS Multi-GNSS Experiment and not really covered at that time by UNAVCO's famous TEQC program with its limitation on GPS.

Over the years, the BNC Subversion (SVN) software archive received over seven thousand commits made by 11 contributors representing about one hundred thirty thousand lines of code. The well established, mature codebase is mostly written in C++ language. Its publication under GNU GPL is thought to be well-suited for test, validation and demonstration of new approaches in precise real-time satellite navigation when IP streaming is involved. Commissioned by a German governmental agency, the overall intention has been to push the development of RTCM Recommended Standards to the benefit of IAG institutions and services such as IGS and the interested public in general.

2. Settings Details

The following chapters describe how to set BNC program options. They explain the 'Top Menu Bar', the 'Settings Canvas' with the processing options, the contents of the 'Streams Canvas' and 'Logging Canvas', and the 'Bottom Menu Bar'.

2.1 Top Menu Bar

The top menu bar allows selecting a font for the BNC windows, save configured options, or quit the program execution. It also provides access to the program's documentation.

2.1.1 File

The 'File' button lets you

2.1.2 Help

The 'Help' button provides access to

2.2 Network

You may need to specify a proxy when running BNC in a protected network. You may also like to use the Transport Layer Security (TLS) and its predecessor, Secure Sockets Layer (SSL) cryptographic protocols for secure Ntrip communication over the Internet.

2.2.1 Proxy - Usage in a protected LAN

If you are running BNC within a protected Local Area Network (LAN), you might need to use a proxy server to access the Internet. Enter your proxy server IP and port number in case one is operated in front of BNC. If you don't know the IP and port of your proxy server, check the proxy server settings in your Internet browser or ask your network administrator.

Note that IP streaming is often not allowed in a LAN. In this case you need to ask your network administrator for an appropriate modification of the local security policy or for the installation of a TCP relay to the Ntrip Broadcasters. If these are not possible, you might need to run BNC outside your LAN on a host that has unobstructed connection to the Internet.

2.2.2 SSL - Transport Layer Security

Communication with an Ntrip Broadcaster over Secure Sockets Layer (SSL) as well as the download of RINEX skeleton files when available from HTTPS websites requires the exchange of client and/or server certificates. Specify the path to a directory where you save certificates on your system. You may like to check out http://software.rtcm-ntrip.org/wiki/Certificates for a list of known Ntrip Server certificates. You may also just try communication via SSL to check out whether this is supported by the involved Ntrip Broadcaster.

SSL communication may involve queries coming from the Ntrip Broadcaster or from a HTTPS website hosting RINEX skeletons. Such a query could show up under BNC's 'Log' tab as follows:

   SSL Error
   Server Certificate Issued by:
   GNSS Data Center
   BKG (Bundesamt für Geodäsie und Kartographie)
   Cannot be verified

   The issuer certificate of a locally looked up certificate could not be found
   The root CA certificate is not trusted for this purpose
   No certificates could be verified
Tick 'Ignore SSL authorization errors' if you generally trust the server and don't want to be bothered with this. Note that SSL communication is usually done over port 443.

Figure 7: BNC's 'Network' panel configured to ignore eventually occurring SSL error messages.

2.3 General

The following defines general settings for BNC's logfile, file handling, reconfiguration on-the-fly, and auto-start.

2.3.1 Logfile - optional

Records of BNC's activities are shown in the 'Log' tab on the bottom of the main window. These logs can be saved into a file when a valid path is specified in the 'Logfile (full path)' field. The logfile name will automatically be extended by a string '_YYMMDD' carrying the current date. This leads to series of daily logfiles when running BNC continuously for extended. Message logs cover the communication status between BNC and the Ntrip Broadcaster as well as problems that may occur in the communication link, stream availability, stream delay, stream conversion etc. All times are given in UTC. The default value for 'Logfile (full path)' is an empty option field, meaning that BNC logs will not be saved into a file.

The following is an example for the contents of a logfile written by BNC when operated in Single Point Positioning (SPP) mode:

15-06-30 11:40:17 ========== Start BNC v2.12 (MAC) ==========
15-06-30 11:40:17 Panel 'PPP' active
15-06-30 11:40:17 CUT07: Get data in RTCM 3.x format
15-06-30 11:40:17 RTCM3EPH: Get data in RTCM 3.x format
15-06-30 11:40:17 Configuration read: PPP.conf, 2 stream(s)

15-06-30 11:40:21 2015-06-30_11:40:19.000 CUT07 X = -2364337.6814 Y = 4870283.8110 Z = -3360808.3085 NEU:  -0.0000  -0.0000  -0.0000 TRP:  +2.4026  -0.0001
15-06-30 11:40:22 2015-06-30_11:40:20.000 CUT07 X = -2364337.6853 Y = 4870283.8130 Z = -3360808.3082 NEU:  +1.1639  +0.6988  -2.1178 TRP:  +2.4018  +0.0003
15-06-30 11:40:23 2015-06-30_11:40:21.000 CUT07 X = -2364337.6862 Y = 4870283.8155 Z = -3360808.3107 NEU:  +0.1317  -0.4655  -4.4614 TRP:  +2.4009  +0.0009
15-06-30 11:40:24 2015-06-30_11:40:22.000 CUT07 X = -2364337.6864 Y = 4870283.8106 Z = -3360808.3099 NEU:  +0.1543  +0.2121  -1.0190 TRP:  +2.4022  +0.0009
15-06-30 11:40:25 2015-06-30_11:40:23.000 CUT07 X = -2364337.6861 Y = 4870283.8111 Z = -3360808.3105 NEU:  -0.9782  +0.0916  -2.3544 TRP:  +2.4017  +0.0013
15-06-30 11:40:26 2015-06-30_11:40:24.000 CUT07 X = -2364337.6884 Y = 4870283.8123 Z = -3360808.3103 NEU:  -0.5606  -0.0938  -1.9498 TRP:  +2.4018  +0.0016
15-06-30 11:40:27 2015-06-30_11:40:25.000 CUT07 X = -2364337.6913 Y = 4870283.8133 Z = -3360808.3122 NEU:  -0.1799  -0.1525  -4.8142 TRP:  +2.4007  +0.0025
15-06-30 11:40:28 2015-06-30_11:40:26.000 CUT07 X = -2364337.6919 Y = 4870283.8171 Z = -3360808.3184 NEU:  +0.7497  +0.7994  -2.0363 TRP:  +2.4018  +0.0032
15-06-30 11:40:29 2015-06-30_11:40:27.000 CUT07 X = -2364337.6923 Y = 4870283.8196 Z = -3360808.3230 NEU:  +0.8099  +0.5592  -2.8552 TRP:  +2.4015  +0.0039
15-06-30 11:40:30 2015-06-30_11:40:28.000 CUT07 X = -2364337.6960 Y = 4870283.8219 Z = -3360808.3222 NEU:  -0.2952  +1.9737  -4.5565 TRP:  +2.4008  +0.0047
15-06-30 11:40:31 2015-06-30_11:40:29.000 CUT07 X = -2364337.6982 Y = 4870283.8209 Z = -3360808.3209 NEU:  +0.3563  +2.1067  -5.5327 TRP:  +2.4005  +0.0057
...

2.3.2 Append Files - optional

When BNC is started, new files are created by default and any existing files with the same name will be overwritten. However, users might want to append existing files following a restart of BNC, a system crash or when BNC crashed. Tick 'Append files' to continue with existing files and keep what has been recorded so far. Note that option 'Append files' affects all types of files created by BNC.

2.3.3 Reread Configuration - optional

When operating BNC online in 'no window' mode (command line option -nw), some configuration options can nevertheless be changed on-the-fly without interrupting the running process. For that you force the program to reread parts of its configuration in pre-defined intervals from the disk. Select '1 min', '1 hour', or '1 day' to let BNC reread on-the-fly changeable configuration options every full minute, hour, or day. This lets in between edited options become effective without interrupting uninvolved threads.

Note that the following configuration options saved on disk can be changed/edited on-the-fly while BNC is already processing data:

2.3.4 Auto Start - optional

You may like to auto-start BNC at startup time in window mode with pre-assigned configuration options. This may be required i.e. immediately after booting your system. Tick 'Auto start' to supersede the usage of the 'Start' button. Make sure that you maintain a link to BNC for that in your Autostart directory (Windows systems) or call BNC in a script below directory /etc/init.d (Unix/Linux/Mac OS X systems).

See BNC's command line option '-nw' for an auto-start of BNC in 'no window' mode.

2.3.5 Raw Output File - optional

BNC can save all data coming in through various streams in one daily file. The information is recorded in the specified 'Raw output file' in the received order and format. This feature allows a BNC user to run the PPP option offline with observations, Broadcast Corrections, and Broadcast Ephemeris being read from a previously saved file. It supports the offline repetition of a real-time situation for debugging purposes and it is not meant for Post Processing.

Data will be saved in blocks in the received format separated by ASCII time stamps like (example):

   2010-08-03T18:05:28 RTCM3EPH RTCM_3 67

This example block header tells you that 67 bytes were saved in the data block following this time stamp. The information in this block is encoded in RTCM Version 3 format, comes from mountpoint RTCM3EPH and was received at 18:05:29 UTC on 2010-08-03. BNC adds its own time stamps in order to allow the reconstruction of a recorded real-time situation.

The default value for 'Raw output file' is an empty option field, meaning that BNC will not save all raw data into one single daily file.

2.4 RINEX Observations

Observations will be converted to RINEX if they come in either RTCM Version 2 or RTCM Version 3 format. Depending on the RINEX version and incoming RTCM message types, files generated by BNC may contain data from GPS, GLONASS, Galileo, SBAS, QZSS and/or BDS (BeiDou). In case an observation type is listed in the RINEX header but the corresponding observation is unavailable, its value is set to zero '0.000' or left blank. Note that the 'RINEX TYPE' field in the RINEX Version 3 Observation file header is always set to 'M(MIXED)' or 'Mixed' even if the file only contains data from one system.

It is important to understand that converting RTCM streams to RINEX files requires a priori information on observation types for specifying a complete RINEX header. Regarding the RINEX Version 2 file header, BNC simply introduces all observation types defined in the Version 2 standard and later reports "0.000" for all observations which are not received. However, following this approach is not possible for RINEX Version 3 files from RTCM Version 3 MSM streams because of the huge number of observation types which might in principle show up. The solution implemented in BNC is to start with RINEX Version 3 observation type records from skeleton files (see section 'Skeleton Extension' and 'Skeleton Mandatory') and switch to a default selection of observation types when such skeleton file is not available or does not contain the required information. The following is the default selection of observation types specified for a RINEX Version 3 file:

C    8 C1  C1P L1  S1  C2  C2P L2  S2                       SYS / # / OBS TYPES
E    8 C1  C1P L1  S1  C2  C2P L2  S2                       SYS / # / OBS TYPES
G    8 C1  C1W L1  S1  C2  C2W L2  S2                       SYS / # / OBS TYPES
J    8 C1  C1P L1  S1  C2  C2P L2  S2                       SYS / # / OBS TYPES
R    8 C1  C1P L1  S1  C2  C2P L2  S2                       SYS / # / OBS TYPES
S    8 C1  C1P L1  S1  C2  C2P L2  S2                       SYS / # / OBS TYPES

Please note that RTCM Version 3 messages 1084 for GLONASS observations don't contain the channel numbers. However, these messages can only be converted to RINEX when you add messages which include the channel numbers. This could be done though an additional stream carrying 1087 GLONASS observation messages or an additional stream carrying 1020 GLONASS ephemeris messages. You could also consider setting up a streams which contains both, the 1084 and the 1020 messages.

The screenshot below shows an example setup of BNC when converting streams to RINEX. Streams are coming from various Ntrip Broadcasters as well as from a serial communication link. Specifying a decoder string 'ZERO' means to not convert the affected stream but save its contents as received. The 'SSL Error' recorded in the 'Log' tab is caused by the fact that observation stream downloads from IGS and MGEX Broadcasters initiate the download of RINEX skeleton files from a HTTPS (TLS/SSL) website and BNC has been configured in this example to ignore SSL errors as shown in the preceding 'Network' panel screenshot.

Figure 8: BNC translating incoming observation streams to 15 min RINEX Version 3 Observation files.

2.4.1 RINEX Filenames

The default for RINEX filenames in BNC follows the convention of RINEX Version 2. However, the software provides options to alternatively follow the filename convention of RINEX Version 3. RINEX Version 2 filenames are derived by BNC from the first 4 characters of the corresponding stream's mountpoint (4Char Station ID). For example, data from mountpoints FRANKFURT and WETTZELL will have hourly RINEX Observation files named

   FRAN{ddd}{h}.{yy}O
   WETT{ddd}{h}.{yy}O

where 'ddd' is the day of year, 'h' is a letter which corresponds to an hour long UTC time block and 'yy' is the year.

If there is more than one stream with identical 4Char Station ID (same first 4 characters for their mountpoints), the mountpoint strings are split into two sub-strings and both become part of the RINEX filename. For example, when simultaneously retrieving data from mountpoints FRANKFURT and FRANCE, their hourly RINEX Version 2 Observation files are named as

   FRAN{ddd}{h}_KFURT.{yy}O
   FRAN{ddd}{h}_CE.{yy}O

If several streams show exactly the same mountpoint name (example: BRUS0 from www.euref-ip.net and BRUS0 from www.igs-ip.net), BNC adds an integer number to the filename leading i.e. to hourly RINEX Version 2 Observation files like

   BRUS{ddd}{h}_0.{yy}O
   BRUS{ddd}{h}_1.{yy}O

Note that RINEX Version 2 filenames for all intervals less than 1 hour follow the filename convention for 15 minutes RINEX Version 2 Observation files i.e.

   FRAN{ddd}{h}{mm}.{yy}O

where 'mm' is the starting minute within the hour.

In case of RINEX Version 3 filenames, the following convention holds:

Parameter  # Char.  Meaning
Name  9  Site, station and country code
S  1  Data source
Start Time  11  YYYYDDDHHMM
Period  3  File period
Obs. Freq.  3  Observation frequency
Content  2  Content type
Format  3  File format
Compression  2-3  Compression method (optional)

Example for Mixed RINEX Version 3 GNSS observation filename, file containing 1 hour of data, one observation every second, 'MO' standing for 'Mixed Observations':

   ALGO00CAN_R_20121601000_01H_01S_MO.rnx

Note that filename details are produced from the streams mountpoint as well as corresponding BNC settings and meta data from the Ntrip Broadcaster source-table.

2.4.2 Directory - optional

Here you can specify the path to where the RINEX Observation files will be stored. If the specified directory does not exist, BNC will not create RINEX Observation files. Default value for 'Directory' is an empty option field, meaning that no RINEX Observation files will be written.

2.4.3 File Interval - mandatory if 'Directory' is set

Select the length of the RINEX Observation file generated. The default value is 15 minutes.

2.4.4 Sampling - mandatory if 'Directory' is set

Select the RINEX Observation sampling interval in seconds. A value of zero '0' tells BNC to store all received epochs into RINEX. This is the default value.

2.4.5 Skeleton Extension - optional

Whenever BNC starts generating RINEX Observation files (and then once every day at midnight), it first tries to retrieve information needed for RINEX headers from so-called public RINEX header skeleton files which are derived from sitelogs. A HTTP or HTTPS link to a directory containing these skeleton files may be available through data field number 7 of the affected NET record in the source-table. See http://www.epncb.oma.be:80/stations/log/skl/brus.skl for an example of a public RINEX header skeleton file for EPN station Brussels. Note that the download of RINEX skeleton files from HTTPS websites requires the exchange of client and/or server certificates. Clarify 'SSL' options offered through panel 'Network' for details.

Sometimes public RINEX header skeleton files are not available, their contents is not up to date, or you need to put additional/optional records in the RINEX header. For that BNC allows using personal skeleton files that contain the header records you would like to include. You can derive a personal RINEX header skeleton file from the information given in an up to date sitelog. A file in the RINEX Observations 'Directory' with a 'Skeleton extension' suffix is interpreted by BNC as a personal RINEX header skeleton file for the corresponding stream.

When producing RINEX Observation files from mountpoints (examples) 'BRUS0', 'FRANKFURT'; and 'WETTZELL' the following skeleton filenames would be accepted

   BRUS.skl
   FRAN.skl
   WETT.skl

if 'Skeleton extension' is set to 'skl'.

Note the following regulations regarding personal RINEX header skeleton files:

If neither a public nor a personal RINEX header skeleton file is available for BNC, a default header will be used.

The following is a skeleton example for a RINEX file:

                    OBSERVATION DATA    M (MIXED)           RINEX VERSION / TYPE
                                                            PGM / RUN BY / DATE
CUT0                                                        MARKER NAME
59945M001                                                   MARKER NUMBER
5023K67889          TRIMBLE NETR9       5.01                REC # / TYPE / VERS
4928353386          TRM59800.00     SCIS                    ANT # / TYPE
 -2364337.2699  4870285.5624 -3360809.8398                  APPROX POSITION XYZ
        0.0000        0.0000        0.0000                  ANTENNA: DELTA H/E/N
gnss@curtin.edu.au  CUT                                     OBSERVER / AGENCY
C   10 C1I L1I D1I S1I C6I L6I S6I C7I L7I S7I              SYS / # / OBS TYPES
E   13 C1X L1X D1X S1X C5X L5X S5X C7X L7X S7X C8X L8X S8X  SYS / # / OBS TYPES
G   13 C1C L1C D1C S1C C2W L2W S2W C2X L2X S2X C5X L5X S5X  SYS / # / OBS TYPES
J   19 C1C L1C D1C S1C C1X L1X S1X C1Z L1Z S1Z C2X L2X S2X  SYS / # / OBS TYPES
       C5X L5X S5X C6L L6L S6L                              SYS / # / OBS TYPES
R   13 C1C L1C D1C S1C C1P L1P S1P C2C L2C S2C C2P L2P S2P  SYS / # / OBS TYPES
S    7 C1C L1C D1C S1C C5I L5I S5I                          SYS / # / OBS TYPES
PORTIONS OF THIS HEADER GENERATED BY THE IGS CB FROM        COMMENT
SITELOG cut0_20150507.log                                   COMMENT
                                                            END OF HEADER

2.4.6 Skeleton Mandatory - optional

Tick check box 'Skeleton mandatory' in case you want that RINEX files are only produced if skeleton files are available for BNC. If no skeleton file is available for a particular source then no RINEX observation file will be produced from the affected stream.

Note that a skeleton file contains RINEX header information such as receiver and antenna types. In case of stream conversion to RINEX Version 3 a skeleton file should also contain information on potentially available observation types. A missing skeleton file will therefore enforce BNC to only save a default set of RINEX 3 observation types.

2.4.7 Script - optional

Whenever a RINEX Observation file is saved, you might want to compress, copy or upload it immediately via FTP. BNC allows you to execute a script/batch file to carry out these operations. To do that, specify the full path of the script/batch file here. BNC will pass the RINEX Observation file path to the script as a command line parameter (%1 on Windows systems, $1 on Unix/Linux/Mac OS X systems).

The triggering event for calling the script or batch file is the end of a RINEX Observation file 'Interval'. If that is overridden by a stream outage, the triggering event is the stream reconnection.

As an alternative to initiating file uploads through BNC, you may like to call an upload script or batch file through your crontable or Task Scheduler (independent from BNC) once every one or two minutes after the end of each RINEX file 'Interval'.

2.4.8 Version 2 - optional

GNSS observation data are generally hold available within BNC according to attributes as defined in RINEX Version 3. These attributes describe the tracking mode or channel when generating the observation signals. Capital letters specifying signal generation attributes are A, B, C, D, I, L, M, N, P, Q, S, W, X, Y, and Z, see RINEX Version 3 documentation. Although RINEX Version 3 with its signal generation attributes is the internal default processing format for BNC, there are two applications where the program is explicitly required to produce data in RINEX Version 2 format:

  1. When saving the contents of incoming observation streams in RINEX Version 2 files as described in this section.
  2. When editing or concatenating RINEX 3 files to save them in Version 2 format, see section on 'RINEX Editing & QC'.
As the Version 2 format ignores signal generation attributes, BNC is forced to somehow map RINEX Version 3 to RINEX Version 2 although this can't be done in one-to-one correspondence. Hence we introduce a 'Signal priority' list of attributes (characters, forming a string) for mapping Version 3 to Version 2.

The default 'Signal priority' list is an empty option string meaning a priority sequence of 'CWPX_?' attributes when mapping RINEX 3 to RINEX 2. The meaning of this sequence of characters - take it as an example - is as follows:

Signal priorities can be specified either as equal for all systems or system specific. The following are example priority strings:

You may like to specify you own 'Signal priority' string(s) for producing RINEX Version 2 files. If you neither convert observation streams to RINEX Version 2 nor concatenate RINEX Version 3 to Version 2 files then the 'Version 2' option is meaningless.

2.4.9 Version 3 - optional

The default format for RINEX Observation files is RINEX Version 2.11. Select RINEX 'Version 3' if you would like to save RTCM Version 3 observation streams in RINEX Version 3 format.

Note that it is possible to force a RTCM Version 2 stream to be saved in RINEX Version 3 file format. However, this is not recommended because such stream cannot be precisely mapped to RINEX Version 3 as the required information on tracking modes (observation attributes) is not part of RTCM Version 2.

2.4.10 Version 3 Filenames - optional

Tick check box 'Version 3 filenames' to let BNC create so-called extended filenames following the RINEX Version 3 standard.

Default is an empty check box, meaning to still use filenames following the RINEX Version 2 standard although the file contents is saved in RINEX Version 3 format.

2.5 RINEX Ephemeris

Broadcast Ephemeris can be saved as RINEX Navigation files when received via RTCM Version 3 e.g. as message types 1019 (GPS) or 1020 (GLONASS) or 1044 (QZSS) or 1043 (SBAS) or 1045 and 1046 (Galileo) or 63 (tentative, BDS/BeiDou). The filename convention follows the details given in section 'RINEX Filenames' except that the first four characters are 'BRDC'.

For RINEX Version 2 Navigation files the last character is 'N' or 'G' for GPS or GLONASS ephemeris in two separate files.

Regarding RINEX Version 3 you will find all ephemeris data for GPS, GLONASS, Galileo, SBAS, QZSS, and BDS saved together in one Navigation file.

The following is an example for a RINEX Version 3 Navigation filename. The file contains one days data. 'MN' stands for 'Multi Constellation Navigation' data.

   BRDC00DEU_S_20121600000_01D_MN.rnx

Note that streams dedicated to carry Broadcast Ephemeris messages in RTCM Version 3 format in high repetition rates are listed on http://igs.bkg.bund.de/ntrip/ephemeris.

Note further that BNC will ignore incorrect or outdated Broadcast Ephemeris data when necessary, leaving a note 'WRONG EPHEMERIS' or 'OUTDATED EPHEMERIS' in the logfile.

2.5.1 Directory - optional

Specify a path for saving Broadcast Ephemeris data as RINEX Navigation files. If the specified directory does not exist, BNC will not create RINEX Navigation files. Default value for Ephemeris 'Directory' is an empty option field, meaning that no RINEX Navigation files will be created.

2.5.2 Interval - mandatory if 'Directory' is set

Select the length of RINEX Navigation files. The default value is '1 day'.

2.5.3 Port - optional

BNC can output Broadcast Ephemeris in RINEX Version 3 format on your local host (IP 127.0.0.1) through an IP 'Port'. Specify an IP port number to activate this function. The default is an empty option field, meaning that no ASCII ephemeris output via IP port is generated.

The source code for BNC comes with an example Perl script 'test_tcpip_client.pl' that allows you to read BNC's ASCII ephemeris output from the IP port.

2.5.4 Version - optional

Default format for RINEX Navigation files containing Broadcast Ephemeris is RINEX Version 2.11. Select 'Version 3' if you want to save the ephemeris data in RINEX Version 3 format.

Note that this does not concern the Broadcast Ephemeris output through IP port which is always in RINEX Version 3 format.

2.5.5 Version 3 Filenames - optional

Tick check box 'Version 3 filenames' to let BNC create so-called extended filenames following the RINEX Version 3 standard.

Default is an empty check box, meaning to still use filenames following the RINEX Version 2 standard although the file contents is saved in RINEX Version 3 format.

Figure 9: Converting Broadcast Ephemeris stream to RINEX Version 3 Navigation file.

2.6 RINEX Editing & QC

Besides stream conversion from RTCM to RINEX, BNC allows editing RINEX files or concatenate their contents. RINEX Observation and Navigation files can be handled. BNC can also carry out a RINEX file Quality Check. In summary and besides Stream Translation this functionality in BNC covers

and hence follows UNAVCO's famous TEQC program (see Estey and Meertens 1999). The remarkable thing about BNC in this context is that it supports RINEX Version 3 under GNU General Public License with full GUI support and instant graphics output.

2.6.1 Action - optional

Select an action. Options are 'Edit/Concatenate' and 'Analyze'.

2.6.2 Input Files - mandatory

Specify full path to input RINEX Observation file(s), and
specify full path to input RINEX Navigation file(s).

When specifying several input files BNC will concatenate their contents. In case of RINEX Observation input files with different observation type header records, BNC will output only one specific set of adjusted observation type records in the RINEX header which fits to the whole file contents.

Note that you may specify several RINEX Version 2 Navigation files for GPS and GLONASS.

2.6.3 Output Files - optional if 'Action' is set to 'Edit/Concatenate'

If 'Edit/Concatenate' is selected, specifying the full path to output RINEX Observation file(s) and specifying the full path to output RINEX Navigation file(s) is optional. Default are empty option fields, meaning that no RINEX files will be saved on disk.

2.6.4 Logfile - optional

Specify the name of a logfile to save information on RINEX file Editing/Concatenation or Analysis. Default is an empty option field, meaning that no logfile will be saved.

Note that logfiles from analyzing RINEX files may become quite large. Hence BNC provides an option 'Summary only' to limit this logfile contents to some essential information in case 'Action' is set to 'Analyze'. The following is an example for a RINEX quality check analysis logfile:

QC Format Version  : 1.0

Navigation File(s) : BRDC2520.15P
Ephemeris          : 2985 OK   0 BAD

Observation File   : CUT02520.15O
RINEX Version      : 3.03
Marker Name        : CUT0
Marker Number      : 59945M001
Receiver           : TRIMBLE NETR9
Antenna            : TRM59800.00     SCIS
Position XYZ       :  -2364337.2699   4870285.5624  -3360809.8398
Antenna dH/dE/dN   :   0.0000   0.0000   0.0000
Start Time         : 2015-09-09 13.04.50.0
End Time           : 2015-09-09 23.59.58.0
Interval           : 1
Navigation Systems : 6    C E G J R S
Observation Types C: C2I L2I D2I S2I C6I L6I S6I C7I L7I S7I
Observation Types E: C1X L1X D1X S1X C5X L5X S5X C7X L7X S7X C8X L8X S8X
Observation Types G: C1C L1C D1C S1C C2W L2W S2W C2X L2X S2X C5X L5X S5X
Observation Types J: C1C L1C D1C S1C C1X L1X S1X C1Z L1Z S1Z C2X L2X S2X C5X L5X S5X C6L L6L S6L
Observation Types R: C1C L1C D1C S1C C1P L1P S1P C2C L2C S2C C2P L2P S2P
Observation Types S: C1C L1C D1C S1C C5I L5I S5I

  C: Satellites: 13
  C: Signals   : 3    2I 6I 7I

      C:   2I: Observations      : 396567
      C:   2I: Slips (file+found):      0 +     0
      C:   2I: Gaps              :   8676
      C:   2I: Mean SNR          :   41.7
      C:   2I: Mean Multipath    :   0.42

      C:   6I: Observations      : 396233
      C:   6I: Slips (file+found):      0 +     0
      C:   6I: Gaps              :   8761
      C:   6I: Mean SNR          :   44.4
      C:   6I: Mean Multipath    :   0.00

      C:   7I: Observations      : 396233
      C:   7I: Slips (file+found):      0 +     0
      C:   7I: Gaps              :   8761
      C:   7I: Mean SNR          :   43.6
      C:   7I: Mean Multipath    :   0.30

  E: Satellites: 5
  E: Signals   : 4    1X 5X 7X 8X

      E:   1X: Observations      :  74468
      E:   1X: Slips (file+found):      0 +     2
      E:   1X: Gaps              :   2758
      E:   1X: Mean SNR          :   45.1
      E:   1X: Mean Multipath    :   0.37

      E:   5X: Observations      :  74422
      E:   5X: Slips (file+found):      0 +     2
      E:   5X: Gaps              :   2785
      E:   5X: Mean SNR          :   45.2
      E:   5X: Mean Multipath    :   0.32

      E:   7X: Observations      :  74422
      E:   7X: Slips (file+found):      0 +     0
      E:   7X: Gaps              :   2785
      E:   7X: Mean SNR          :   44.2
      E:   7X: Mean Multipath    :   0.00

      E:   8X: Observations      :  74429
      E:   8X: Slips (file+found):      0 +     0
      E:   8X: Gaps              :   2784
      E:   8X: Mean SNR          :   49.9
      E:   8X: Mean Multipath    :   0.00

  G: Satellites: 28
  G: Signals   : 4    1C 2W 2X 5X

      G:   1C: Observations      : 439952
      G:   1C: Slips (file+found):      0 +    21
      G:   1C: Gaps              :  10901
      G:   1C: Mean SNR          :   44.0
      G:   1C: Mean Multipath    :   0.63

      G:   2W: Observations      : 422560
      G:   2W: Slips (file+found):      0 +    19
      G:   2W: Gaps              :  11133
      G:   2W: Mean SNR          :   31.1
      G:   2W: Mean Multipath    :   0.42

      G:   2X: Observations      : 205305
      G:   2X: Slips (file+found):      0 +    10
      G:   2X: Gaps              :   7269
      G:   2X: Mean SNR          :   43.3
      G:   2X: Mean Multipath    :   0.47

      G:   5X: Observations      : 120638
      G:   5X: Slips (file+found):      0 +     0
      G:   5X: Gaps              :   3330
      G:   5X: Mean SNR          :   49.9
      G:   5X: Mean Multipath    :   0.00

  J: Satellites: 1
  J: Signals   : 6    1C 1X 1Z 2X 5X 6L

      J:   1C: Observations      :  38040
      J:   1C: Slips (file+found):      0 +     0
      J:   1C: Gaps              :   1003
      J:   1C: Mean SNR          :   49.0
      J:   1C: Mean Multipath    :   0.33

      J:   1X: Observations      :  38040
      J:   1X: Slips (file+found):      0 +     0
      J:   1X: Gaps              :   1003
      J:   1X: Mean SNR          :   51.5
      J:   1X: Mean Multipath    :   0.32

      J:   1Z: Observations      :  38040
      J:   1Z: Slips (file+found):      0 +     0
      J:   1Z: Gaps              :   1003
      J:   1Z: Mean SNR          :   48.4
      J:   1Z: Mean Multipath    :   0.40

      J:   2X: Observations      :  38040
      J:   2X: Slips (file+found):      0 +     0
      J:   2X: Gaps              :   1003
      J:   2X: Mean SNR          :   48.7
      J:   2X: Mean Multipath    :   0.31

      J:   5X: Observations      :  38040
      J:   5X: Slips (file+found):      0 +     0
      J:   5X: Gaps              :   1003
      J:   5X: Mean SNR          :   53.0
      J:   5X: Mean Multipath    :   0.00

      J:   6L: Observations      :  38040
      J:   6L: Slips (file+found):      0 +     0
      J:   6L: Gaps              :   1003
      J:   6L: Mean SNR          :   50.6
      J:   6L: Mean Multipath    :   0.00

  R: Satellites: 23
  R: Signals   : 4    1C 1P 2C 2P

      R:   1C: Observations      : 323918
      R:   1C: Slips (file+found):      0 +    44
      R:   1C: Gaps              :   7295
      R:   1C: Mean SNR          :   44.9
      R:   1C: Mean Multipath    :   0.77

      R:   1P: Observations      : 323761
      R:   1P: Slips (file+found):      0 +    44
      R:   1P: Gaps              :   7305
      R:   1P: Mean SNR          :   43.4
      R:   1P: Mean Multipath    :   0.58

      R:   2C: Observations      : 323521
      R:   2C: Slips (file+found):      0 +    44
      R:   2C: Gaps              :   7305
      R:   2C: Mean SNR          :   40.8
      R:   2C: Mean Multipath    :   0.56

      R:   2P: Observations      : 321751
      R:   2P: Slips (file+found):      0 +    37
      R:   2P: Gaps              :   7317
      R:   2P: Mean SNR          :   40.3
      R:   2P: Mean Multipath    :   0.49

  S: Satellites: 4
  S: Signals   : 2    1C 5I

      S:   1C: Observations      : 152158
      S:   1C: Slips (file+found):      0 +     1
      S:   1C: Gaps              :   4013
      S:   1C: Mean SNR          :   40.4
      S:   1C: Mean Multipath    :   0.75

      S:   5I: Observations      :  76078
      S:   5I: Slips (file+found):      0 +     1
      S:   5I: Gaps              :   2007
      S:   5I: Mean SNR          :   44.1
      S:   5I: Mean Multipath    :   0.47

> 2015 09 09 13 04 50.0000000 23  1.2
R09   1.46   36.90   8  L1C s. 34.3  C1C  . 0.00  L1P s. 33.2  C1P  . 0.00  L2C s. 26.4  C2C  . 0.00  L2P s. 22.1  C2P  . 0.00
R10  49.67   46.84   8  L1C .. 52.3  C1C  . 0.62  L1P .. 51.2  C1P  . 0.52  L2C .. 42.9  C2C  . 0.51  L2P .. 42.4  C2P  . 0.40
R11  68.25 -168.71   8  L1C .. 52.1  C1C  . 0.32  L1P .. 50.2  C1P  . 0.38  L2C .. 44.6  C2C  . 0.40  L2P .. 43.4  C2P  . 0.36
R12  15.62 -148.75   8  L1C .. 40.6  C1C  . 0.94  L1P .. 38.9  C1P  . 0.51  L2C .. 41.1  C2C  . 0.61  L2P .. 40.7  C2P  . 0.45
R20  26.26  150.44   8  L1C .. 40.2  C1C  . 0.90  L1P .. 38.8  C1P  . 0.63  L2C .. 44.8  C2C  . 0.57  L2P .. 44.4  C2P  . 0.46
R21  71.53 -163.80   8  L1C .. 53.3  C1C  . 0.32  L1P .. 51.6  C1P  . 0.40  L2C .. 50.3  C2C  . 0.43  L2P .. 49.3  C2P  . 0.39
R22  40.38  -54.63   8  L1C .. 50.0  C1C  . 0.44  L1P .. 48.7  C1P  . 0.46  L2C .. 47.1  C2C  . 0.49  L2P .. 46.7  C2P  . 0.44
E11   0.00    0.00   8  L1X .. 49.9  C1X  . 0.22  L5X .. 49.8  C5X  . 0.19  L7X .. 49.1  C7X  . 0.00  L8X .. 55.3  C8X  . 0.00
E12   0.00    0.00   8  L1X .. 50.0  C1X  . 0.14  L5X .. 49.4  C5X  . 0.21  L7X .. 48.2  C7X  . 0.00  L8X .. 55.1  C8X  . 0.00
E18   0.00    0.00   8  L1X .. 53.5  C1X  . 0.11  L5X .. 51.0  C5X  . 0.15  L7X .. 50.1  C7X  . 0.00  L8X .. 56.5  C8X  . 0.00
J01  21.34   23.40  12  L1C .. 41.2  C1C  . 0.59  L1X .. 43.2  C1X  . 0.38  L1Z .. 41.3  C1Z  . 0.58  L2X .. 40.0  C2X  . 0.47  L5X .. 44.7  C5X  . 0.00  L6L .. 41.6  C6L  . 0.00
S27  16.04  -73.53   4  L1C .. 37.8  C1C  . 0.81  L5I .. 39.9  C5I  . 0.41
S28  38.63  -50.63   4  L1C .. 45.5  C1C  . 0.49  L5I .. 47.4  C5I  . 0.48
S29  41.28   46.44   2  L1C .. 43.2  C1C  . 0.00
S37  41.28   46.44   2  L1C .. 42.1  C1C  . 0.00
C01  45.38   41.07   6  L2I .. 42.1  C2I  . 0.20  L6I .. 45.1  C6I  . 0.00  L7I .. 46.0  C7I  . 0.22
C02  36.53  -53.83   6  L2I .. 37.1  C2I  . 0.31  L6I .. 42.6  C6I  . 0.00  L7I .. 41.3  C7I  . 0.24
C03  53.80  -10.40   6  L2I .. 42.8  C2I  . 0.19  L6I .. 47.3  C6I  . 0.00  L7I .. 46.0  C7I  . 0.21
C04  30.52   62.20   6  L2I .. 37.3  C2I  . 0.33  L6I .. 42.4  C6I  . 0.00  L7I .. 41.3  C7I  . 0.25
C05  19.48  -71.66   6  L2I .. 36.6  C2I  . 0.40  L6I .. 40.0  C6I  . 0.00  L7I .. 38.5  C7I  . 0.37
C07  63.30   26.64   6  L2I .. 48.5  C2I  . 0.41  L6I .. 49.3  C6I  . 0.00  L7I .. 48.1  C7I  . 0.25
C08  76.83 -113.07   6  L2I .. 48.9  C2I  . 0.22  L6I .. 50.5  C6I  . 0.00  L7I .. 48.7  C7I  . 0.24
C10  83.00  -66.65   6  L2I .. 48.8  C2I  . 0.20  L6I .. 50.0  C6I  . 0.00  L7I .. 48.1  C7I  . 0.23
> 2015 09 09 13 04 52.0000000 33  0.9
...

Note that in addition to cycle slips recorded in the RINEX 'file', cycle slips identified by BNC are reported as 'found'.

2.6.5 Plots for Signals - mandatory if 'Action' is set to 'Analyze'

Multipath and signal-to-noise sky plots as well as plots for satellite availability, elevation and PDOP are produced per GNSS system and frequency with the multipath analysis based on CnC observation types (n = band / frequency). The 'Plots for signals' option lets you exactly specify the observation signals to be used for that and also enables the plot production. You can specify the navigation system (C = BDS, E = Galileo, G = GPS, J = QZSS, R = GLONASS, S = SBAS), the frequency, and the tracking mode or channel as defined in RINEX Version 3. Specifications for frequency and tracking mode or channel must be separated by ampersand character '&'. Specifications for each navigation systems must be separated by blank character ' '. The following string is an example for option field 'Plots of signals': It lets you exactly specify the observation signals to be used and also enables the plot generation. You can specify the navigation system, the frequency, and the tracking mode or channel as defined in RINEX Version 3. Specifications for frequency and tracking mode or channel must be separated by ampersand character '&'. Specifications for each navigation systems must be separated by blank character ' '.

   C:2&7 E:1&5 G:1&2 J:1&2 R:1&2 S:1&5
This default configuration will present:

2.6.6 Directory for Plots - optional if 'Action' is set to 'Analyze'

If 'Analyze' is selected, specifying the path to a directory where plot files will be saved is optional. Filenames will be composed from the RINEX input filename(s) plus suffix 'PNG' to indicate the plot file format in use. Default is an empty option field, meaning that plots will not be saved on disk.

2.6.7 Set Edit Options - mandatory if 'Action' is set to 'Edit/Concatenate'

Once the 'Edit/Concatenate' action is selected, you have to 'Set Edit Options'. BNC lets you specify the RINEX version, a signal priority list when mapping RINEX Version 3 to Version 2, the sampling interval, begin and end of file, operator, observation types, comment lines, and marker, antenna, receiver details. Note that some of the specifications for editing and concatenation are only meaningful for RINEX Observation files but not for RINEX Navigation files.

A note on converting RINEX Version 3 to RINEX Version 2 and vice versa:

Optionally you may specify a 'RUN BY' string to be included in the emerging new RINEX file header. Default is an empty option field, meaning the operator's ID is automatically used as 'RUN BY' string.

You can specify a list of observation codes in field 'Use Obs. Types' to limit the output file contents to specific observation codes. GNSS system characters in that list are followed by a colon and a two or three characters observation code. A two characters observation code would mean that all available tracking modes of the affected observation type and frequency will be accepted as part of the RINEX output file. Observation codes are separated by a blank character. Default is an empty option field, meaning that any input observation code will become part of the RINEX output file.

Specifying comment line text to be added to the emerging new RINEX file header is another option. Any introduction of a newline through '\n' in this enforces the beginning of a further comment line. Comment line(s) will be added to the header immediately after the 'PGM / RUN BY / DATE' record. Default is an empty option field, meaning that no additional comment line will be added to the RINEX header.

If you specify a 'New' but no 'Old' marker/antenna/receiver name, the corresponding data field in the emerging new RINEX Observation file will be filled accordingly. If you in addition specify an 'Old' marker/antenna/receiver name, the corresponding data field in the emerging new RINEX Observation file will only be filled accordingly where 'Old' specifications match existing file contents.

Figure 10: Example for 'RINEX Editing Options' window.

Figure 11: Example for RINEX file concatenation with BNC.

Figure 12: Example for creating RINEX quality check analysis graphics output with BNC.

Figure 13: Example for satellite availability, elevation and PDOP plots as a result of a RINEX quality check analysis with BNC.

Figure 14: Sky plot examples for multipath, part of RINEX quality check analysis with BNC.

Figure 15: Sky plot examples for signal-to-noise ratio, part of RINEX quality check analysis with BNC.

2.6.8 Command Line, No Window - optional

BNC applies options from the configuration file but allows updating every one of them on the command line while the contents of the configuration file remains unchanged, see section on 'Command Line Options'. Note the following syntax for Command Line Interface (CLI) options:

   --key <keyName> <keyValue>

Parameter <keyName> stands for the name of an option contained in the configuration file and <keyValue> stands for the value you want to assign to it. This functionality may be helpful in the 'RINEX Editing & QC' context when running BNC on a routine basis for maintaining a RINEX file archive.

The following example for a Linux platform calls BNC in 'no window' mode with a local configuration file 'rnx.conf' for concatenating four 15min RINEX files from station TLSE residing in the local directory to produce an hourly RINEX Version 3 file with 30 seconds sampling interval:

   ./bnc --nw --conf rnx.conf --key reqcAction Edit/Concatenate --key reqcObsFile
   "tlse119b00.12o,tlse119b15.12o,tlse119b30.12o,tlse119b45.12o" --key
   reqcOutObsFile tlse119b.12o --key reqcRnxVersion 3 --key reqcSampling 30

You may use asterisk '*' and/or question mark '?' wildcard characters as shown with the following globbing command line option to specify a selection of files in a local directory:

   --key reqcObsFile "tlse*"
or:
   --key reqcObsFile tlse\*

The following Linux command line produces RINEX QC plots (see Estey and Meertens 1999) offline in 'no window' mode and saves them in directory '/home/user'. Introducing a dummy configuration file /dev/null makes sure that no configuration options previously saved on disc are used:

   /home/user/bnc --conf /dev/null --key reqcAction Analyze --key reqcObsFile
   CUT02070.12O --key reqcNavFile BRDC2070.12P --key reqcOutLogFile CUT0.txt --key
   reqcPlotDir /home/user --nw

The following Linux command line produces the same RINEX QC plots in interactive autoStart mode:

   /home/user/bnc --conf /dev/null --key reqcAction Analyze --key reqcObsFile
   CUT02070.12O --key reqcNavFile BRDC2070.12P --key reqcOutLogFile CUT0.txt --key
   --key startTab 4 --key autoStart 2

The following is a list of available key names for 'RINEX Editing & QC' (short: REQC, pronounced 'rek') options and their meaning, cf. section 'Configuration Examples':

KeynameMeaning
reqcActionRINEX Editing & QC action
reqcObsFileRINEX Observation input file(s)
reqcNavFileRINEX Navigation input files(s)
reqcOutObsFileRINEX Observation output file
reqcOutNavFileRINEX Navigation output file
reqcOutLogFileLogfile
reqcLogSummaryOnlySummary of Logfile
reqcSkyPlotSignalsPlots for signals
reqcPlotDirRINEX QC plot directory
reqcRnxVersionRINEX version of emerging new file
reqcSamplingSampling interval of emerging new RINEX file
reqcV2PriorityVersion 2 Signal Priority
reqcStartDateTimeBegin of emerging new RINEX file
reqcEndDateTimeEnd of emerging new RINEX file
reqcRunByOperator name
reqcUseObsTypesGNSS systems and observation types
reqcCommentAdditional comment lines
reqcOldMarkerNameOld marker name
reqcNewMarkerNameNew marker name
reqcOldAntennaNameOld antenna name
reqcNewAntennaNameNew antenna name
reqcOldAntennaNumberOld antenna number
reqcNewAntennaNumberNew antenna number
reqcOldAntennadNOld component of north eccentricity
reqcOldAntennadEOld component of east eccentricity
reqcOldAntennadUOld component of up eccentricity
reqcNewAntennadNNew component of north eccentricity
reqcNewAntennadENew component of east eccentricity
reqcNewAntennadUNew component of up eccentricity
reqcOldReceiverNameOld receiver name
reqcNewReceiverNameNew receiver name
reqcOldReceiverNumberOld receiver number
reqcNewReceiverNumberNew receiver number

2.7 SP3 Comparison

BNC allows to compare the contents of two files containing GNSS orbit and clock data in SP3 format. SP3 ASCII files basically contain a list of records over a certain period of time. Each record carries a time tag, the XYZ position of the satellite's Center of Mass at that time and the corresponding satellite clock value. Both SP3 files may contain some records for different epochs. If so then BNC only compares records for identical epochs. BNC accepts that a specific GNSS system or a specific satellite is only available from one of the SP3 files. Note that BNC does not interpolate orbits when comparing SP3 files.

To compare satellite clocks provided by the two files BNC first converts coordinate differences dX,dY,dZ into along track, out-of-plane and radial components. It then corrects the clock differences for the radial components of coordinate differences. RMS values of clock differences are finally calculated after introducing at first one offset 'per epoch for all satellites' and secondly one offset 'per satellite for all epochs'.

2.7.1 Input SP3 Files - optional

Specify the full path of two SP3 files separated by a comma.

2.7.2 Exclude Satellites - optional

You may want to exclude one or more satellites in your SP3 files from the comparison. Or you may like to exclude all satellites of a specific GNSS system from the comparison. The following are example strings to be entered for excluding satellites from the comparison.

Default is an empty option field, meaning that no satellite will be excluded from the comparison.

2.7.3 Logfile - mandatory if 'Input SP3 Files' is set

Specify a logfile name to save results of the SP3 file comparison.

The following is an example for a SP3 Comparison logfile:


! SP3 File 1: esr18283.sp3
! SP3 File 2: rt218283.sp3
!
!  MJD       PRN  radial   along   out        clk    clkRed   iPRN
! ----------------------------------------------------------------
57043.000000 G01 -0.0001 -0.0318 -0.0354     0.0266  0.0267     1
57043.000000 G02 -0.0062 -0.0198  0.0111     0.0082  0.0143     2
57043.000000 G03  0.0052  0.0060  0.0032     0.0386  0.0334     3
57043.000000 G04 -0.0049 -0.0193 -0.0071    -0.1696 -0.1648     4
57043.000000 G05  0.0027  0.0154  0.0275     0.0345  0.0318     5
57043.000000 G06  0.0247 -0.0398 -0.0111     0.0483  0.0236     6
57043.000000 G07 -0.0052  0.2854 -0.0975    -0.0940 -0.0888     7
57043.000000 G08 -0.0247  0.0937 -0.0184    -0.1563 -0.1316     8
57043.000000 G09  0.0152  0.0583  0.0086    -0.0144 -0.0296     9
...
...
...
!
! RMS[m]
!
!   PRN  radial   along   out     nOrb    clk   clkRed   nClk    Offset
! ---------------------------------------------------------------------
!   G01  0.0151  0.0377  0.0196     96  0.0157  0.0154     96    0.0152
!   G02  0.0083  0.0278  0.0228     96  0.0097  0.0124     96   -0.0626
!   G03  0.0105  0.0311  0.0307     96  0.0352  0.0309     96    0.0898
!   G04  0.0113  0.0334  0.0154     94  0.0725  0.0707     94   -0.5087
!   G05  0.0103  0.0319  0.0299     96  0.0417  0.0403     96    0.1185
!   G06  0.0182  0.0509  0.0302     96  0.0218  0.0166     96    0.0040
!   G07  0.0337  0.1632  0.0463     96  0.0483  0.0435     96    0.3031
!   G08  0.0228  0.0741  0.0321     88  0.0616  0.0561     88   -0.2232
...
...
...
!   R20  0.0637  0.2115  0.1131     96  0.1580  0.1345     96    0.7371
!   R21  0.0475  0.1657  0.0880     96  0.1123  0.0840     96   -0.4133
!   R22  0.0125  0.1249  0.0646     96  0.0414  0.0444     96   -0.7375
!   R23  0.0435  0.1503  0.0573     96  0.0987  0.1099     96    0.6620
!   R24  0.0278  0.2026  0.1186     96  0.1446  0.1303     96   -1.1470
!
! Total  0.0262  0.0938  0.0492   5268  0.0620  0.0561   5268

The first part in this uses the following abbreviations:

'MJD'  Modified Julian Date
'PRN'  Satellite specification
'radial'  Radial component of orbit coordinate difference [m]
'along'  Along track component of orbit coordinate difference [m]
'out'  Out-of-plane component of orbit coordinate difference [m]
'clk'  Clock difference [m]
'clkRed'  Clock difference reduced by radial component of orbit coordinate difference [m]
'iPRN'  BNC internal sequence number

The second part following string 'RMS' provides a summary of the comparison using the following abbreviations:

'PRN'  Satellite specification
'radial'  RMS of radial component of orbit coordinate differences [m]
'along'  RMS of along track component of orbit coordinate differences [m]
'out'  RMS of out-of-plane component of orbit coordinate differences [m]
'nOrb'  Number of epochs used in in orbit comparison
'clk'  RMS of clock differences [m]
'clkRed'  RMS of clock differences after reduction of radial orbit differences [m]
'nClk'  Number of epochs use in clock comparisons
'Offset'  Clock offset [m]

Figure 16: BNC configuration example for comparing two SP3 files with satellite orbit and clock data.

2.8 Broadcast Corrections

Differential GNSS and RTK operation using RTCM streams is currently based on corrections and/or raw measurements from single or multiple reference stations. This approach to differential positioning is using 'observation space' information. The representation with the RTCM standard can be called 'Observation Space Representation' (OSR).

An alternative to the observation space approach is the so called 'sate space' approach. The principle here is to provide information on individual error sources. It can be called 'State Space Representation' (SSR). For a rover position, state space information concerning precise satellite clocks, orbits, ionosphere, troposphere et cetera can be converted into observation space and used to correct the rover observables for more accurate positioning. Alternatively the state information can directly be used in the rover's processing or adjustment model.

RTCM is currently developing Version 3 messages to transport SSR corrections in real-time. They refer to satellite Antenna Phase Center (APC). SSR messages adopted or recently proposed concern:

RTCM Version 3 streams carrying these messages may be used i.e. to support real-time Precise Point Positioning (PPP) applications.

When using clocks from Broadcast Ephemeris (with or without applied corrections) or clocks from SP3 files, it may be important to understand that they are not corrected for the conventional periodic relativistic effect. Chapter 10 of the IERS Conventions 2003 mentions that the conventional periodic relativistic correction to the satellite clock (to be added to the broadcast clock) is computed as dt = -2 (R * V) / c^2 where R * V is the scalar product of the satellite position and velocity and c is the speed of light. This can also be found in the GPS Interface Specification, IS-GPS-200, Revision D, 7 March 2006.

Orbit corrections are provided in along-track, cross-track and radial components. These components are defined in the Earth-centered, Earth-fixed reference frame of the broadcast ephemerides. For an observer in this frame, the along-track component is aligned in both direction and sign with the velocity vector, the cross-track component is perpendicular to the plane defined by the satellite position and velocity vectors, and the radial direction is perpendicular to the along track and cross-track ones. The three components form a right-handed orthogonal system.

After applying corrections, the satellite position and clock is referred to the 'ionospheric free' phase center of the antenna which is compatible with the broadcast orbit reference.

The orbit and clock corrections do not include local effects like Ocean Loading, Solid Earth Tides or tropospheric delays. However, accurate single frequency applications can be correct for global ionospheric effects using so-call VTEC messages for global ionospheric state parameters.

While we have a plain ASCII standard for saving broadcast ephemeris in RINEX Navigation files, we don't have an equivalent standard for corrections to broadcast ephemeris. Hence BNC saves Broadcast Correction files following its own format definition. The filename convention for Broadcast Correction files follows the convention for RINEX Version 2 files except for the last character of the filename suffix which is set to 'C'.

BNC's Broadcast Correction files contain blocks of records in plain ASCII format. Each block covers information about one specific topic and starts with an 'Epoch Record'.

The 'Epoch Record' of a Broadcast Corrections block

The leading 'Epoch Record' of each block in a Broadcast Corrections file contains 11 parameters. Example:

> ORBIT 2015 06 17 11 43 35.0 2 53 CLK93

Their meaning is as follows:

  1. Special character '>' is the first character in each 'Epoch Record' (as we have it in RINEX Version 3)
  2. SSR message or topic descriptor, valid descriptors are:
    ORBIT, CLOCK, CODE_BIAS, PHASE_BIAS, or VTEC
  3. Year, GPS time
  4. Month, GPS time
  5. Day, GPS time
  6. Hour, GPS time
  7. Minute, GPS time
  8. Second, GPS time
  9. SSR message update interval indicator
  10. Number of following records in this block
  11. Mountpoint, source/stream indicator
Each of the following 'satellite records' in such a block carries information for one specific satellite. Undefined parameters in the 'satellite records' could be set to zero "0.000".

Example for block 'ORBIT' carrying orbit corrections

> ORBIT 2015 06 17 11 43 35.0 2 53 CLK93
G01   9     0.5134     0.3692     0.6784        0.0000    -0.0000    -0.0000
G02  25    57.6817   139.0492   -91.3456        0.5436    -0.6931     1.0173
G03  79   -32.1768   191.8368  -121.6540        0.2695     0.2296     0.4879
...
G32  82     1.8174     1.1704     0.2200       -0.0002    -0.0000    -0.0001
R01  59     0.7819    -0.6968     0.7388       -0.0001     0.0004     0.0004
R02  59     0.5816    -0.5800    -0.2004        0.0001    -0.0006     0.0001
R03  59     0.4635    -0.9104    -0.3832        0.0001     0.0001     0.0005
...
R24  59     0.5935     2.0732    -0.6884       -0.0000     0.0004     0.0003

Records in this block provide the following satellite specific information:

Example for block 'CLOCK' carrying clock corrections

> CLOCK 2015 06 17 11 43 35.0 2 53 CLK93
G01   9     0.5412     0.0000     0.0000
G02  25    11.1811     0.0000     0.0000
G03  79    45.0228     0.0000     0.0000
...
G32  82    -1.5324     0.0000     0.0000
R01  59     4.2194     0.0000     0.0000
R02  59     2.0535     0.0000     0.0000
R03  59     1.8130     0.0000     0.0000
...
R24  59     2.7409     0.0000     0.0000

Records in this block provide the following satellite specific information:

Example for block 'CODE_BIAS' carrying code biases

> CODE_BIAS 2015 06 17 11 43 35.0 2 53 CLK93
G01    5   1C    -3.3100   1W    -3.7500   2W    -6.1900   2X    -5.7800   5I    -5.4200
G02    5   1C     3.6000   1W     3.9300   2W     6.4800   2X     0.0000   5I     0.0000
G03    5   1C    -2.1600   1W    -2.6500   2W    -4.3600   2X    -4.4800   5I    -5.3400
...
G32    5   1C    -1.5800   1W    -1.1000   2W    -1.8200   2X     0.0000   5I     0.0000
R01    4   1C    -2.4900   1P    -2.4900   2C    -3.1500   2P    -4.1200
R02    4   1C     0.3900   1P     0.2100   2C     0.4000   2P     0.3400
R03    4   1C     2.4800   1P     2.2800   2C     3.7800   2P     3.7700
...
R24    4   1C     2.7000   1P     2.7800   2C     3.9800   2P     4.6000

Records in this block provide the following satellite specific information:

Example for block 'PHASE_BIAS' carrying phase biases

> PHASE_BIAS 2015 06 17 11 43 35.0 2 31 CLK93
 0   1
G01 245.39062500   0.00000000    3   1C     3.9518   1   2   6   2W     6.3177   1   2   6   5I     6.8059   1   2   6
G02 250.31250000   0.00000000    3   1C    -4.0900   1   2   5   2W    -6.7044   1   2   5   5I     0.0000   1   2   5
G03 281.95312500   0.00000000    3   1C     2.9327   1   2   4   2W     4.6382   1   2   4   5I     5.4120   1   2   4
...
G32 290.39062500   0.00000000    3   1C     1.2520   1   2   5   2W     2.0554   1   2   5   5I     0.0000   1   2   5

The second record in this block provides the following consistency information:

Following records provide satellite specific information:

Example for block 'VTEC' carrying ionospheric corrections

> VTEC 2015 06 17 11 43 35.0 6 1 CLK93
 1  6  6   450000.0
   17.6800     0.0000     0.0000     0.0000     0.0000     0.0000     0.0000
    4.5200     8.8700     0.0000     0.0000     0.0000     0.0000     0.0000
   -4.6850    -0.3050     1.1700     0.0000     0.0000     0.0000     0.0000
   -2.2250    -1.3900    -1.0250    -0.1300     0.0000     0.0000     0.0000
    0.8750    -0.3800     0.2700    -0.1300     0.0400     0.0000     0.0000
    1.2150     0.9050    -1.0100     0.3700    -0.1450    -0.2450     0.0000
   -0.8200     0.4850     0.2300    -0.1750     0.3400    -0.0900    -0.0400
    0.0000     0.0000     0.0000     0.0000     0.0000     0.0000     0.0000
    0.0000    -0.0700     0.0000     0.0000     0.0000     0.0000     0.0000
    0.0000     0.5800    -1.4150     0.0000     0.0000     0.0000     0.0000
    0.0000    -0.6200    -0.1500     0.2600     0.0000     0.0000     0.0000
    0.0000     0.0700    -0.0900    -0.0550     0.1700     0.0000     0.0000
    0.0000     0.5000     0.3050    -0.5700    -0.5250    -0.2750     0.0000
    0.0000     0.0850    -0.4700     0.0600     0.0700     0.1600     0.0400

The second record in this block provides four parameters:

Subsequent records in this block provide the following information:

2.8.1 Directory, ASCII - optional

Specify a directory for saving Broadcast Corrections in files. If the specified directory does not exist, BNC will not create Broadcast Correction files. Default value for Broadcast Corrections 'Directory' is an empty option field, meaning that no Broadcast Correction files will be created.

2.8.2 Interval - mandatory if 'Directory, ASCII' is set

Select the length of the Broadcast Correction files. The default value is 1 day.

2.8.3 Port - optional

BNC can output epoch by epoch synchronized Broadcast Corrections in ASCII format on your local host (IP 127.0.0.1) through an IP 'Port'. Specify an IP port number to activate this function. The default is an empty option field, meaning that no Broadcast Correction output via IP port is generated.

The output format is similar to the format used for saving Broadcast Corrections in a file.

The following is an example output for the stream from mountpoint CLK93:

> ORBIT 2015 06 19 16 41 00.0 2 53 CLK93
G01  85     0.5891    -0.5124    -0.0216       -0.0001    -0.0002     0.0000
G02  25  -150.1820    11.4676    84.5216        0.4130    -0.6932     1.0159
G03  79    15.1999   141.9932  -156.4244        0.6782    -0.8607    -0.8211
...
G32  39     1.8454     0.4888    -0.3876       -0.0001    -0.0001     0.0001
R01  79    -0.0506     1.9024    -0.0120        0.0004     0.0002    -0.0000
R02  79     0.1623     0.9012     0.3984        0.0001     0.0001     0.0002
R03  79     0.3247    -2.6704    -0.0240        0.0005    -0.0002     0.0002
...
R24  79     0.7046    -0.5088    -0.0160       -0.0000     0.0000    -0.0002
> CLOCK 2015 06 19 16 41 00.0 2 53 CLK93
G01  85  -116.9441     0.0000     0.0000
G02  25  -110.4472     0.0000     0.0000
G03  79   -96.8299     0.0000     0.0000
...
G32  39  -119.2757     0.0000     0.0000
R01  79     1.5703     0.0000     0.0000
R02  79    -1.4181     0.0000     0.0000
R03  79     0.2072     0.0000     0.0000
...
R24  79     1.1292     0.0000     0.0000
> CODE_BIAS 2015 06 19 16 41 00.0 0 56 CLK93
E11    3   1B     1.3800   5Q     2.4800   7Q     2.5000
E12    3   1B     0.3900   5Q     0.6900   7Q     0.5300
E19    3   1B    -1.7800   5Q    -3.1900   7Q    -3.0700
G01    5   1C    -3.3100   1W    -3.7500   2W    -6.1900   2X    -5.7800   5I    -5.4200
G02    5   1C     3.6000   1W     3.9300   2W     6.4800   2X     0.0000   5I     0.0000
G03    5   1C    -2.1600   1W    -2.6500   2W    -4.3600   2X    -4.4800   5I    -5.3400
...
G32    5   1C    -1.5800   1W    -1.1000   2W    -1.8200   2X     0.0000   5I     0.0000
R01    4   1C    -2.4900   1P    -2.4900   2C    -3.1500   2P    -4.1200
R02    4   1C     0.3900   1P     0.2100   2C     0.4000   2P     0.3400
R03    4   1C     2.4800   1P     2.2800   2C     3.7800   2P     3.7700
...
R24    4   1C     2.7000   1P     2.7800   2C     3.9800   2P     4.6000
> PHASE_BIAS 2015 06 19 16 41 00.0 2 31 CLK93
 0   1
G01 309.37500000   0.00000000    3   1C     3.9922   1   2   6   2W     6.3568   1   2   6   5I     6.8726   1   2   6
G02 263.67187500   0.00000000    3   1C    -4.0317   1   2   7   2W    -6.6295   1   2   7   5I     0.0000   1   2   7
G03 267.89062500   0.00000000    3   1C     3.1267   1   2   4   2W     4.9126   1   2   4   5I     5.6478   1   2   4
...
G32 255.93750000   0.00000000    3   1C     1.3194   1   2   5   2W     2.1448   1   2   5   5I     0.0000   1   2   5
> VTEC 2015 06 19 16 41 00.0 6 1 CLK93
 1  6  6   450000.0
   16.7450     0.0000     0.0000     0.0000     0.0000     0.0000     0.0000
    4.9300     8.1600     0.0000     0.0000     0.0000     0.0000     0.0000
   -4.4900     0.2550     1.0950     0.0000     0.0000     0.0000     0.0000
   -2.2450    -1.9500    -0.7950    -0.4700     0.0000     0.0000     0.0000
    1.0250    -0.9000    -0.0900     0.1050     0.1450     0.0000     0.0000
    1.5500     0.9750    -0.8150     0.3600     0.0350    -0.0900     0.0000
   -0.4050     0.8300     0.0800    -0.0650     0.2200     0.0150    -0.1600
    0.0000     0.0000     0.0000     0.0000     0.0000     0.0000     0.0000
    0.0000    -0.1250     0.0000     0.0000     0.0000     0.0000     0.0000
    0.0000     1.0050    -0.7750     0.0000     0.0000     0.0000     0.0000
    0.0000    -0.2300     0.7150     0.7550     0.0000     0.0000     0.0000
    0.0000    -0.4100    -0.1250     0.2400     0.2700     0.0000     0.0000
    0.0000     0.0850    -0.3400    -0.0500    -0.2200    -0.0750     0.0000
    0.0000     0.2000    -0.2850    -0.0150    -0.0250     0.0900     0.0650

The source code for BNC comes with an example Perl script 'test_tcpip_client.pl' that allows you to read BNC's Broadcast Corrections from the IP port.

Figure 17: BNC configuration example for pulling, saving and output of Broadcast Corrections.

2.9 Feed Engine

BNC can generate synchronized or unsynchronized observations epoch by epoch from all stations and satellites to feed a real-time GNSS network engine. Observations can be streamed out through an IP port and/or saved in a local file. The output is always in plain ASCII format and sorted per incoming stream.

Any epoch in the output begins with a line containing the GPS week number and the seconds within the GPS week. Following lines begin with the mountpoint string of the stream which provides the observations followed by a satellite ID. Observation types are specified by the three character observation code defined in RINEX Version 3. In case of phase observations a Slip Count is added which is put to "-1" if it is not set. The end of an epoch in indicated by an empty line.

Note on 'Slip Count':
It is the current understanding of BNC's authors that different Slip Counts could be referred to different phase measurements (i.e. L1C and L1P). The 'loss-of-lock' flags in RINEX are an example for making such kind of information available per phase measurement. However, it looks like we do have only one Slip Count in RTCM Version 3 for all phase measurements. As it could be that a receiver generates different Slip Counts for different phase measurements, we output one Slip Count per phase measurement to a listening real-time GNSS network engine.

The following is an example for file and IP port output which presents observations from GPS, GLONASS, Galileo, BDS (BeiDou), QZSS, and SBAS satellites as collected through streams WTZR0, CUT07, and COCO0:

> 1850 120556.0000000
WTZR0 G01  C1C   25394034.112 L1C  133446552.870 127 S1C   43.000 C2W   25394040.832 L2W  103984354.397 127 S2W   34.750
WTZR0 G12  C1C   21452585.278 L1C  112734165.968 127 S1C   50.500 C2W   21452584.578 L2W   87844835.675 127 S2W   46.250
WTZR0 G13  C1C   24061255.720 L1C  126442693.941 127 S1C   45.750 C2W   24061259.860 L2W   98526745.844 127 S2W   35.500
...
WTZR0 G28  C1C   25200320.952 L1C  132428507.619 127 S1C   43.500 C2W   25200323.952 L2W  103191035.510 127 S2W   35.000
WTZR0 R01  C1C   21380903.420 L1C  114293200.377 127 S1C   48.750 C2P   21380907.340 L2P   88894741.570 127 S2P   41.500
WTZR0 R02  C1C   22644814.432 L1C  120837082.440 127 S1C   46.500 C2P   22644817.592 L2P   93984421.793 127 S2P   42.500
WTZR0 R08  C1C   23068202.108 L1C  123529160.309 127 S1C   46.500 C2P   23068204.988 L2P   96078225.806 127 S2P   41.750
...
WTZR0 R21  C1C   23024132.668 L1C  123206823.917 127 S1C   47.250 C2P   23024137.748 L2P   95827547.481 127 S2P   42.000
CUT07 G02  C1C   23272399.734 L1C  122297070.388 597 D1C        -87.977 S1C   42.312 C2W   23272400.234 L2W   95297219.119 597 S2W   26.688
CUT07 G03  C1C   24110497.680 L1C  126701879.242 659 D1C      -3056.984 S1C   37.875 C2W   24110505.621 L2W   98728694.271 659 S2W   21.688 C2X   24110505.926 L2X   98728386.267 659 S2X   40.312 C5X   24110510.094 L5X   94614774.123 659 S5X   45.312
CUT07 G05  C1C   24944957.625 L1C  131087212.915 520 D1C       3895.703 S1C   37.625 C2W   24944962.168 L2W  102145324.192 520 S2W   20.875 C2X   24944962.004 L2X  102145177.172 520 S2X   36.125
...
CUT07 G30  C1C   20928146.555 L1C  109978415.517 606 D1C       2025.395 S1C   54.000 C2W   20928151.566 L2W   85697602.266 606 S2W   43.188 C2X   20928151.930 L2X   85697012.264 606 S2X   49.875 C5X   20928155.511 L5X   82126237.098 606 S5X   55.812
CUT07 R04  C1C   22160327.953 L1C  118666825.671 652 D1C      -2522.773 S1C   46.375 C1P   22160327.797 L1P  118667617.662 652 S1P   45.188 C2C   22160332.254 L2C   92297583.036 652 S2C   43.625 C2P   22160332.567 L2P   92297422.037 652 S2P   42.312
CUT07 R05  C1C   19447023.836 L1C  103954847.683 632 D1C        379.031 S1C   48.500 C1P   19447023.914 L1P  103954847.676 632 S1P   47.000 C2C   19447027.547 L2C   80853787.461 632 S2C   50.500 C2P   19447028.449 L2P   80853787.472 632 S2P   49.875
CUT07 R06  C1C   21207223.649 L1C  113165770.921 587 D1C       3560.348 S1C   50.875 C1P   21207223.375 L1P  113166378.915 587 S1P   49.125 C2C   21207227.008 L2C   88017617.177 587 S2C   46.000 C2P   21207228.262 L2P   88017377.180 587 S2P   45.500
...
CUT07 R16  C1C   19585043.860 L1C  104620582.766 598 D1C       2187.578 S1C   53.312 C1P   19585044.758 L1P  104620582.776 598 S1P   51.375 C2C   19585048.981 L2C   81371454.856 598 S2C   49.375 C2P   19585049.879 L2P   81371454.858 598 S2P   48.812
CUT07 E20  C1X   27365616.429 L1X  143807095.898 527 D1X       2876.149 S1X   35.000
CUT07 S27  C1C   39931452.594 L1C  209841056.112 679 D1C        406.422 S1C   39.000 C5I   39931443.285 L5I  156699444.322 679 S5I   42.375
CUT07 S28  C1C   37844752.406 L1C  198874711.984 683 D1C        407.059 S1C   46.625 C5I   37844741.785 L5I  148510882.534 704 S5I   45.000
CUT07 S29  C1C   37651158.016 L1C  197858052.600 683 D1C        403.512 S1C   43.000
CUT07 S37  C1C   37651147.828 L1C  197858448.618 683 D1C        403.531 S1C   41.625
CUT07 J01  C1C   40048292.047 L1C  210455903.893 704 D1C      -1583.379 S1C   41.812 C1Z   40048289.996 L1Z  210455441.428 704 S1Z   40.875 C6L   40048292.316 L6L  170824217.096 704 S6L   37.000 C2X   40048298.183 L2X  163991247.082 704 S2X   40.688 C5X   40048303.817 L5X  157158277.377 704 S5X   46.375 C1X   40048292.351 L1X  210455442.883 704 S1X   44.000
CUT07 C01  C2I   37324042.141 L2I  194356552.952 704 D2I        440.996 S2I   42.688 C6I   37324028.519 L6I  157929660.388 704 S6I   45.875 C7I   37324033.363 L7I  150287901.788 704 S7I   46.312
CUT07 C02  C2I   38275575.024 L2I  199310999.358 704 D2I        404.117 S2I   37.875 C6I   38275566.211 L6I  161956457.229 704 S6I   43.000 C7I   38275569.942 L7I  154119870.634 704 S7I   42.312
CUT07 C03  C2I   37135200.797 L2I  193371988.170 692 D2I        431.973 S2I   43.312 C6I   37135190.051 L6I  157131416.391 692 S6I   48.000 C7I   37135194.422 L7I  149528282.423 692 S7I   46.812
...
CUT07 C10  C2I   36760375.289 L2I  191420952.281 640 D2I       1025.387 S2I   45.688 C6I   36760364.426 L6I  155545258.984 640 S6I   46.688 C7I   36760373.723 L7I  148018880.533 640 S7I   46.312
COCO0 G02  C1C   22476261.427 L1C  118113589.570 586 D1C       1412.187 S1C   44.938 C2W   22476260.826 L2W   92036575.260 586 D2W       1100.406 S2W   35.312
COCO0 G03  C1C   24341919.159 L1C  127917554.810 663 D1C      -2074.090 S1C   38.688 C2W   24341930.673 L2W   99676015.236 663 D2W      -1616.167 S2W   24.438 C2L   24341930.723 L2L   99676013.201 662 D2L      -1616.219 S2L   38.750 C5Q   24341933.159 L5Q   95522839.465 662 D5Q      -1548.741 S5Q   42.875
COCO0 G05  C1C   25474658.679 L1C  133870244.277 493 D1C       3159.081 S1C   39.438 C2W   25474663.398 L2W  104314491.669 491 D2W       2461.609 S2W   24.562
...
COCO0 G30  C1C   20331006.470 L1C  106840352.867 617 D1C       -212.495 S1C   52.188 C2W   20331010.207 L2W   83252324.005 617 D2W       -165.585 S2W   49.500 C2L   20331010.394 L2L   83252323.011 613 D2L       -165.567 S2L   50.250
COCO0 R04  C1C   23325683.508 L1C  124907994.343 660 D1C       -873.812 S1C   41.125 C2C   23325691.864 L2C   97150681.177 660 D2C       -679.608 S2C   42.312 C2P   23325691.726 L2P   97150688.171 660 D2P       -679.605 S2P   43.188
COCO0 R05  C1C   21328759.151 L1C  114014512.115 644 D1C       1069.493 S1C   42.812 C2C   21328765.687 L2C   88678051.219 647 D2C        831.814 S2C   47.812 C2P   21328765.883 L2P   88678030.225 645 D2P        831.850 S2P   47.438
COCO0 R09  C1C   21027128.207 L1C  112283840.462 555 D1C       3490.368 S1C   45.188
...
COCO0 R21  C1C   23445025.787 L1C  125459055.095 555 D1C       -765.275 S1C   42.688 C2C   23445033.733 L2C   97579294.654 555 D2C       -595.265 S2C   40.188 C2P   23445033.487 L2P   97579294.651 537 D2P       -595.197 S2P   40.875
COCO0 J01  C1C   39927130.880 L1C  209818564.350 704 D1C      -1175.392 S1C   41.562 C2L   39927135.634 L2L  163495064.612 704 D2L       -915.829 S2L   40.562 C5Q   39927138.784 L5Q  156682808.818 704 D5Q       -877.788 S5Q   44.375
COCO0 C01  C2I   37949052.545 L2I  197610628.940 704 D2I        179.818 S2I   44.500 C7I   37949047.569 L7I  152805027.848 704 D7I        139.094 S7I   46.812
COCO0 C02  C2I   36636436.522 L2I  190775621.693 704 D2I        166.143 S2I   48.188 C7I   36636433.422 L7I  147519844.394 704 D7I        128.449 S7I   50.625
COCO0 C03  C2I   36481125.870 L2I  189966778.019 666 D2I        178.936 S2I   48.688 C7I   36481123.342 L7I  146894352.298 653 D7I        138.364 S7I   50.312
...
COCO0 C10  C2I   35632229.616 L2I  185546695.648 704 D2I        327.212 S2I   49.625 C7I   35632229.807 L7I  143476633.351 704 D7I        252.998 S7I   50.812

> 1850 120557.0000000
...

The source code for BNC comes with a Perl script named 'test_tcpip_client.pl' that allows you to read BNC's (synchronized or unsynchronized) ASCII observation output from the IP port and print it on standard output.

Note that any socket connection of an application to BNC's synchronized or unsynchronized observations ports is recorded in the 'Log' tab on the bottom of the main window together with a connection counter, resulting in log records like 'New client connection on sync/usync port: # 1'.

The following figure shows the screenshot of a BNC configuration where a number of streams is pulled from different Ntrip Broadcasters to feed a GNSS engine via IP port output.

Figure 18: Synchronized BNC output via IP port to feed a GNSS real-time engine.

2.9.1 Port - optional

BNC can produce synchronized observations in ASCII format on your local host (IP 127.0.0.1) through an IP 'Port'. Synchronized means that BNC collects all observation data for any specific epoch which become available within a certain number of latency seconds (see 'Wait for Full Obs Epoch' option). It then - epoch by epoch - outputs whatever has been received. The output comes block wise per stream. Specify an IP port number here to activate this function. The default is an empty option field, meaning that no binary synchronized output is generated.

2.9.2 Wait for Full Obs Epoch - mandatory if 'Port' is set

When feeding a real-time GNSS network engine waiting for synchronized observations epoch by epoch, BNC drops whatever is received later than 'Wait for full obs epoch' seconds. A value of 3 to 5 seconds could be an appropriate choice for that, depending on the latency of the incoming streams and the delay acceptable for your real-time GNSS product. Default value for 'Wait for full obs epoch' is 5 seconds.

Note that 'Wait for full obs epoch' does not affect the RINEX Observation file content. Observations received later than 'Wait for full obs epoch' seconds will still be included in the RINEX Observation files.

2.9.3 Sampling - mandatory if 'File' or 'Port' is set

Select the synchronized observation output sampling interval in seconds. A value of zero '0' tells BNC to send/store all received epochs. This is the default value.

2.9.4 File - optional

Specify the full path to a 'File' where synchronized observations are saved in plain ASCII format. The default value is an empty option field, meaning that no ASCII output file is created.

Beware that the size of this file can rapidly increase depending on the number of incoming streams. The name of the file can be changed on-the-fly, to prevent it from becoming too large. This option is primarily meant for testing and evaluation.

2.9.5 Port (unsynchronized) - optional

BNC can produce unsynchronized observations from all configured streams in ASCII format on your local host (IP 127.0.0.1) through an IP 'Port'. Unsynchronized means that BNC immediately forwards any received observation to the port. Nevertheless, the output comes block wise per stream. Specify an IP port number here to activate this function. The default is an empty option field, meaning that no unsynchronized output is generated.

2.10 Serial Output

You may use BNC to feed a serial connected device like a GNSS receiver. For that an incoming stream can be forwarded to a serial port. Depending on the stream contents the receiver may use it for Differential GNSS, Precise Point Positioning or any other purpose supported by its firmware.

Note that receiving a VRS stream requires the receiver sending NMEA sentences (mode 'Manual' or 'Auto') to the Ntrip Broadcaster. The following figure shows the data flow when pulling a VRS stream or a physical (none-VRS) stream.

Figure 19: Flowcharts, BNC forwarding a stream to a serial connected receiver; sending NMEA sentences is mandatory for VRS streams.

The following figure shows the screenshot of an example situation where BNC pulls a VRS stream from an Ntrip Broadcaster to feed a serial connected RTK rover.

Figure 20: BNC pulling a VRS stream to feed a serial connected RTK rover.

2.10.1 Mountpoint - optional

Enter a 'Mountpoint' to forward its corresponding stream to a serial connected GNSS receiver.

When selecting one of the serial communication options listed below, make sure that you pick those configured to the serial connected receiver.

2.10.2 Port Name - mandatory if 'Mountpoint' is set

Enter the serial 'Port name' selected on your host for communication with the serial connected receiver. Valid port names are

   Windows:       COM1, COM2
   Linux:         /dev/ttyS0, /dev/ttyS1
   FreeBSD:       /dev/ttyd0, /dev/ttyd1
   Digital Unix:  /dev/tty01, /dev/tty02
   HP-UX:         /dev/tty1p0, /dev/tty2p0
   SGI/IRIX:      /dev/ttyf1, /dev/ttyf2
   SunOS/Solaris: /dev/ttya, /dev/ttyb

Note that you must plug a serial cable in the port defined here before you start BNC.

2.10.3 Baud Rate - mandatory if 'Mountpoint' is set

Select a 'Baud rate' for the serial output link. Note that using a high baud rate is recommended.

2.10.4 Flow Control - mandatory if 'Mountpoint' is set

Select a 'Flow control' for the serial output link. Note that your selection must equal the flow control configured to the serial connected device. Select 'OFF' if you don't know better.

2.10.5 Parity - mandatory if 'Mountpoint' is set

Select the 'Parity' for the serial output link. Note that parity is often set to 'NONE'.

2.10.6 Data Bits - mandatory if 'Mountpoint' is set

Select the number of 'Data bits' for the serial output link. Note that often '8' data bits are used.

2.10.7 Stop Bits - mandatory if 'Mountpoint' is set

Select the number of 'Stop bits' for the serial output link. Note that often '1' stop bit is used.

2.10.8 NMEA - mandatory if 'Mountpoint' is set

The 'NMEA' option supports the so-called 'Virtual Reference Station' (VRS) concept which requires the receiver to send approximate position information to the Ntrip Broadcaster. Select 'no' if you don't want BNC to forward or upload any NMEA message to the Ntrip broadcaster in support of VRS.

Select 'Auto' to automatically forward NMEA messages of type GGA from your serial connected receiver to the Ntrip broadcaster and/or save them in a file.

Select 'Manual GPGGA' or 'Manual GNGGA' if you want BNC to produce and upload GPGGA or GNGGA NMEA messages to the Ntrip broadcaster because your serial connected receiver doesn't generate these messages. A Talker ID 'GP' preceding the GGA string stands for GPS solutions while a Talker ID 'GN' stands for multi constellation solutions.

Note that selecting 'Auto' or 'Manual' works only for VRS streams which show up under the 'Streams' canvas on BNC's main window with 'nmea' stream attribute set to 'yes'. This attribute is either extracted from the Ntrip broadcaster's source-table or introduced by the user through editing the BNC configuration file.

2.10.9 File - optional if 'NMEA' is set to 'Auto'

Specify the full path to a file where NMEA messages coming from your serial connected receiver are saved. Default is an empty option field, meaning that no NMEA messages will be saved on disk.

2.10.10 Height - mandatory if 'NMEA' is set to 'Manual'

Specify an approximate 'Height' above mean sea level in meters for the reference station introduced through 'Mountpoint'. Together with the latitude and longitude from the Ntrip broadcaster source-table the height information is used to build GGA messages to be sent to the Ntrip broadcaster.

For adjusting latitude and longitude values of a VRS stream given in the 'Streams' canvas you can double click the latitude/longitude data fields, specify appropriate values and then hit Enter.

This option is only relevant when option 'NMEA' is set to 'Manual GPGGA' or 'Manual GNGGA' respectively.

2.10.11 Sampling - mandatory if 'NMEA' is set to 'Manual'

Select a sampling interval in seconds for manual generation and upload of NMEA GGA sentences.

A sampling rate of '0' means, that a GGA sentence will be send only once to initialize the requested VRS stream. Note that some VRS systems need GGA sentences at regular intervals.

2.11 Outages

At any time an incoming stream might become unavailable or corrupted. In such cases, it is important that the BNC operator and/or the stream providers become aware of the situation so that necessary measures can be taken to restore the stream. Furthermore, continuous attempts to decode a corrupted stream can generate unnecessary workload for BNC. Outages and corruptions are handled by BNC as follows:

Stream outages: BNC considers a connection to be broken when there are no incoming data detected for more than 20 seconds. When this occurs, BNC will attempt to reconnect at a decreasing rate. It will first try to reconnect with 1 second delay and again in 2 seconds if the previous attempt failed. If the attempt is still unsuccessful, it will try to reconnect within 4 seconds after the previous attempt and so on. The wait time doubles each time with a maximum wait time of 256 seconds.

Stream corruption: Not all bits chunk transfers to BNC's internal decoders return valid observations. Sometimes several chunks might be needed before the next observation can be properly decoded. BNC buffers all the outputs (both valid and invalid) from the decoder for a short time span (size derived from the expected 'Observation rate') and then determines whether a stream is valid or corrupted.

Outage and corruption events are reported in the 'Log' tab. They can also be passed on as parameters to a shell script or batch file to generate an advisory note to BNC operator or affected stream providers. This functionality lets users utilize BNC as a real-time performance monitor and alarm system for a network of GNSS reference stations.

2.11.1 Observation Rate - optional

BNC can collect all returns (success or failure) coming from a decoder within a certain short time span to then decide whether a stream has an outage or its content is corrupted. This procedure needs a rough a priori estimate of the expected observation rate of the incoming streams.

An empty option field (default) means that you don't want explicit information from BNC about stream outages and incoming streams that cannot be decoded.

2.11.2 Failure Threshold - mandatory if 'Observation rate' is set

Event 'Begin_Failure' will be reported if no data is received continuously for longer than the 'Failure threshold' time. Similarly, event 'Begin_Corrupted' will be reported when corrupted data is detected by the decoder continuously for longer than this 'Failure threshold' time. The default value is set to 15 minutes and is recommended so not to inundate user with too many event reports.

Note that specifying a value of zero '0' for the 'Failure threshold' will force BNC to report any stream failure immediately. Note also that for using this function you need to specify the 'Observation rate'.

2.11.3 Recovery Threshold - mandatory if 'Observation rate' is set

Once a 'Begin_Failure' or 'Begin_Corrupted' event has been reported, BNC will check for when the stream again becomes available or uncorrupted. Event 'End_Failure' or 'End_Corrupted' will be reported as soon as valid observations are again detected continuously throughout the 'Recovery threshold' time span. The default value is set to 5 minutes and is recommended so not to inundate users with too many event reports.

Note that specifying a value of zero '0' for the 'Recovery threshold' will force BNC to report any stream recovery immediately. Note also that for using this function you need to specify the 'Observation rate'.

2.11.4 Script - optional if 'Observation rate' is set

As mentioned previously, BNC can trigger a shell script or a batch file to be executed when one of the events described are reported. This script can be used to email an advisory note to network operator or stream providers. To enable this feature, specify the full path to the script or batch file in the 'Script' field. The affected stream's mountpoint and type of event reported ('Begin_Outage', 'End_Outage', 'Begin_Corrupted' or 'End_Corrupted') will then be passed on to the script as command line parameters (%1 and %2 on Windows systems or $1 and $2 on Unix/Linux/Mac OS X systems) together with date and time information.

Leave the 'Script' field empty if you do not wish to use this option. An invalid path will also disable this option.

Examples for command line parameter strings passed on to the advisory 'Script' are:

   FFMJ0 Begin_Outage 08-02-21 09:25:59
   FFMJ0 End_Outage 08-02-21 11:36:02 Begin was 08-02-21 09:25:59

Sample script for Unix/Linux/Mac OS X systems:

   #!/bin/bash
   sleep $((60*RANDOM/32767))
   cat > mail.txt <<EOF
   Advisory Note to BNC User,
   Please note the following advisory received from BNC.
   Stream: $*
   Regards, BNC
   EOF
   mail -s "NABU: $1" email@address < mail.txt

Note the sleep command in this script which causes the system to wait for a random period of up to 60 seconds before sending the email. This should avoid overloading your mail server in case of a simultaneous failure of many streams.

2.12 Miscellaneous

This section describes several miscellaneous options which can be applied to a single stream (mountpoint) or to all configured streams.

The following figure shows RTCM message numbers and observation types contained in stream 'CUT07' and the message latencies recorded every 2 seconds.

Figure 21: RTCM message numbers, latencies and observation types.

2.12.1 Mountpoint - optional

Specify a mountpoint to apply one or several of the 'Miscellaneous' options to the corresponding stream. Enter 'ALL' if you want to apply these options to all configured streams. An empty option field (default) means that you don't want BNC to apply any of these options.

2.12.2 Log Latency - optional

BNC can average latencies per stream over a certain period of GPS time, the 'Log latency' interval. Mean latencies are calculated from the individual latencies of one (first incoming) observation or Broadcast Correction per second. The mean latencies are then saved in BNC's logfile. Note that computing correct latencies requires the clock of the host computer to be properly synchronized. Note further that visualized latencies from the 'Latency' tab on the bottom of the main window represent individual latencies and not the mean latencies for the logfile.

Latency: Latency is defined in BNC by the following equation:

    UTC time provided by BNC's host
  - GPS time of currently processed epoch
  + Leap seconds between UTC and GPS time
  --------------
  = Latency

Statistics: BNC counts the number of GPS seconds covered by at least one observation. It also estimates an observation rate (independent from the a priori specified 'Observation rate') from all observations received throughout the first full 'Log latency' interval. Based on this rate, BNC estimates the number of data gaps when appearing in subsequent intervals.

Latencies of observations or corrections to Broadcast Ephemeris and statistical information can be recorded in the 'Log' tab at the end of each 'Log latency' interval. A typical output from a 1 hour 'Log latency' interval would be:

08-03-17 15:59:47 BRUS0: Mean latency 1.47 sec, min 0.66, max 3.02, rms 0.35, 3585 epochs, 15 gaps

Select a 'Log latency' interval to activate this function or select the empty option field if you do not want BNC to log latencies and statistical information.

2.12.3 Scan RTCM - optional

When configuring a GNSS receiver for RTCM stream generation, the firmware's setup interface may not provide details about RTCM message types and observation types. As reliable information concerning stream contents should be available i.e. for Ntrip Broadcaster operators to maintain the broadcaster's source-table, BNC allows to scan RTCM streams for incoming message types and printout some of the contained meta-data. Contained observation types are also printed because such information is required a priori for the conversion of RTCM Version 3 MSM streams to RINEX Version 3 files. The idea for this option arose from 'inspectRTCM', a comprehensive stream analyzing tool written by D. Stöcker.

Tick 'Scan RTCM' to scan RTCM Version 2 or 3 streams and log all contained

In case of RTCM Version 3 streams the output includes

Note that in RTCM Version 2 the message types 18 and 19 carry only the observables of one frequency. Hence it needs two type 18 and 19 messages per epoch to transport the observations from dual frequency receivers.

Please note further that RTCM Version 3 message types 1084 for GLONASS don't contain GLONASS channel numbers. Observations from these messages can only be decoded when you include 1020 GLONASS ephemeris messages to your stream which contain the channels. You could also consider adding a second stream carrying 1087 GLONASS observation messages or 1020 GLONASS ephemeris messages as both contain the GLONASS channel numbers.

Logged time stamps refer to message reception time and allow understanding repetition rates. Enter 'ALL' if you want to log this information from all configured streams. Beware that the size of the logfile can rapidly increase depending on the number of incoming RTCM streams.

This option is primarily meant for testing and evaluation. Use it to figure out what exactly is produced by a specific GNSS receiver's configuration. An empty option field (default) means that you don't want BNC to print the message type numbers and antenna information carried in RTCM streams.

2.12.4 Port - optional

BNC can output streams related to the above specified 'Mountpoint' through a TCP/IP port of your local host. Enter a port number to activate this function. The stream contents remains untouched. BNC does not decode or reformat the data.

Be careful when keyword 'ALL' is specified as 'Mountpoint' for involving all incoming streams together because the affiliation of data to certain streams gets lost in the output.

An empty option field (default) means that you don't want BNC to apply the TCP/IP port output option.

2.13 PPP Client

BNC can derive coordinates for rover positions following the Precise Point Positioning (PPP) approach. It uses code or code plus phase data from one or more GNSS systems in ionosphere-free linear combinations P3 or L3. Besides pulling streams of observations from dual frequency GNSS receiver, this also

Note that broadcast ephemeris parameters pass through a plausibility check in BNC which allows to ignore incorrect or outdated ephemeris data when necessary, leaving a note 'WRONG EPHEMERIS' or 'OUTDATED EPHEMERIS' in the logfile.

When using the PPP option, it is important to understand which effects are corrected by BNC.

The provider of an orbit/clock corrections stream may switch with his service at any time from a duty to a backup server installation. This shall be noted in the SSR stream through a change of the Issue Of Data (IOD SSR) parameter. The PPP option in BNC will immediately reset all ambiguities in such a situation.

PPP options are specified in BNC through the following four panels.

2.13.1 PPP (1): Input and Output

This panel provides options for specifying the input and output streams and files required by BNC for real-time or post processing PPP.

Figure 22: Real-time Precise Point Positioning with BNC, PPP Panel 1.

2.13.1.1 Data Source - optional

Choose between input from 'Real-time Streams' or 'RINEX Files' for PPP with BNC in real-time or post processing mode.

Real-time Streams
When choosing 'Real-time Streams' BNC will do PPP solutions in real-time. This requires pulling GNSS observation streams, Broadcast Ephemeris messages and a stream containing corrections to Broadcast Ephemeris. Streams must come in RTCM Version 2 or RTCM Version 3 format.

If you don't pull Broadcast Corrections BNC will switch with its solution to 'Single Point Positioning' (SPP) mode.

RINEX Files
This input mode allows you to specify RINEX Observation, RINEX Navigation and Broadcast Correction files. BNC accepts RINEX Version 2 as well as RINEX Version 3 Observation or Navigation file formats. Files carrying Broadcast Corrections must have the format produced by BNC through the 'Broadcast Corrections' panel.

Specifying only a RINEX Observation and a RINEX Navigation file and no Broadcast Corrections file leads BNC to a 'Single Point Positioning' (SPP) solution.

Debugging
Note that for debugging purposes BNC's real-time PPP functionality can also be used offline. Apply the 'File Mode' 'Command Line' option for that to read a file containing synchronized observations, orbit and clock correctors, and Broadcast Ephemeris. Example:

   bnc.exe --conf c:\temp\PPP.bnc --file c:\temp\RAW
Such a file (here: 'RAW') must be saved beforehand using BNC's 'Raw output file' option.

2.13.1.2 RINEX Observation File - mandatory if 'Data source' is set to 'RINEX Files'

Specify a RINEX Observation file. The file format can be RINEX Version 2 or RINEX Version 3.

2.13.1.3 RINEX Navigation File - mandatory if 'Data source' is set to 'RINEX Files'

Specify a RINEX Navigation file. The file format can be RINEX Version 2 or RINEX Version 3.

2.13.1.4 Corrections Stream - optional if 'Data source' is set to 'Real-Time Streams'

Specify a Broadcast 'Corrections stream' from the list of selected 'Streams' you are pulling if you want BNC to correct your satellite ephemeris accordingly. Note that the stream's orbit and clock corrections must refer to the satellite Antenna Phase Center (APC). Streams providing such corrections are made available e.g. through the International GNSS Service (IGS) and listed on http://igs.bkg.bund.de/ntrip/orbits. The stream format must be RTCM Version 3 containing so-called SSR messages. Streams 'IGS03' and 'CLK11' supporting GPS plus GLONASS are examples.

If you don't specify a 'Corrections stream' BNC will fall back from a PPP solution to a Single Point Positioning (SPP) solution.

2.13.1.5 Corrections File - optional if 'Data source' is set to 'RINEX Files'

Specify a Broadcast 'Corrections file' as saved beforehand using BNC. The file contents is basically the ASCII representation of a RTCM Version 3 Broadcast Correction (SSR) stream.

If you don't specify a 'Correction file' BNC will fall back from a PPP solution to a Single Point Positioning (SPP) solution.

2.13.1.6 ANTEX File - optional

IGS provides a file containing absolute phase center corrections for GNSS satellite and receiver antennas in ANTEX format. Entering the full path to such an ANTEX file is required for correcting observations in PPP for antenna phase center offsets and variations. Note that for applying such corrections you need to specify the receiver's antenna name and radome in BNC's 'Coordinates' file.

Default value for 'ANTEX file' is an empty option field, meaning that you don't want to correct observations for antenna phase center offsets and variations.

2.13.1.7 Coordinates - optional

Enter the full path to an ASCII file which specifies all streams or files from stationary or mobile receivers you potentially may want to process. Specifying a 'Coordinates' file is optional. If it exists, it should contain one record per stream or file with the following parameters separated by blank characters:

Records in the 'Coordinates' file with exclamation mark '!' in the first column or blank records will be understood as comment lines and ignored.

The following is an example contents for a 'Coordinates' file. Here each record describes the mountpoint of a stream available from the global IGS real-time reference station network. A priori coordinates are followed by North/East/Up eccentricity components of the ARP followed by the antenna name and radome in use.

!
! Station    X[m]          Y[m]          Z[m] North[m]  EAST[m]  UP[m]  Antenna--------Radom Receiver
! -----------------------------------------------------------------------------------------------------
ADIS0  4913652.6612  3945922.7678   995383.4359  0.0000  0.0000  0.0010 TRM29659.00     NONE JPS LEGACY
ALIC0 -4052052.5593  4212836.0078 -2545104.8289  0.0000  0.0000  0.0015 LEIAR25.R3      NONE LEICA GRX1200GGPRO
BELF0  3685257.8823  -382908.8992  5174311.1067  0.0000  0.0000  0.0000 LEIAT504GG      LEIS LEICA GRX1200GGPRO
BNDY0 -5125977.4106  2688801.2966 -2669890.4345  0.0000  0.0000  0.0000 ASH701945E_M    NONE TRIMBLE NETR5
BRAZ0  4115014.0678 -4550641.6105 -1741443.8244  0.0000  0.0000  0.0080 LEIAR10         NONE LEICA GR25
CTWN0  5023564.4285  1677795.7211 -3542025.8392  0.0000  0.0000  0.0000 ASH701941.B     NONE TRIMBLE NETR5
CUT07 -2364337.4408  4870285.6055 -3360809.6280  0.0000  0.0000  0.0000 TRM59800.00     SCIS TRIMBLE NETR9
GANP0  3929181.3480  1455236.9105  4793653.9880  0.0000  0.0000  0.3830 TRM55971.00     NONE TRIMBLE NETR9
HLFX0  2018905.6037 -4069070.5095  4462415.4771  0.0000  0.0000  0.1000 TPSCR.G3        NONE TPS NET-G3A
LHAZ0  -106941.9272  5549269.8041  3139215.1564  0.0000  0.0000  0.1330 ASH701941.B     NONE TPS E_GGD
LMMF7  2993387.3587 -5399363.8649  1596748.0983  0.0000  0.0000  0.0000 TRM57971.00     NONE TRIMBLE NETR9
MAO07 -5466067.0979 -2404333.0198  2242123.1929  0.0000  0.0000  0.0000 LEIAR25.R3      LEIT JAVAD TRE_G3TH DELTA
NICO0  4359415.5252  2874117.1872  3650777.9614  0.0000  0.0000  0.0650 LEIAR25.R4      LEIT LEICA GR25
NKLG7  6287385.7320  1071574.7606    39133.1088 -0.0015 -0.0025  3.0430 TRM59800.00     SCIS TRIMBLE NETR9
NURK7  5516756.5103  3196624.9684  -215027.1315  0.0000  0.0000  0.1300 TPSCR3_GGD      NONE JAVAD TRE_G3TH DELTA
ONSA0  3370658.3928   711877.2903  5349787.0603  0.0000  0.0000  0.9950 AOAD/M_B        OSOD JAVAD TRE_G3TH DELTA
PDEL0  4551595.9072 -2186892.9495  3883410.9685  0.0000  0.0000  0.0000 LEIAT504GG      NONE LEICA GRX1200GGPRO
RCMN0  5101056.6270  3829074.4206  -135016.1589  0.0000  0.0000  0.0000 LEIAT504GG      LEIS LEICA GRX1200GGPRO
REUN0  3364098.9668  4907944.6121 -2293466.7379  0.0000  0.0000  0.0610 TRM55971.00     NONE TRIMBLE NETR9
REYK7  2587384.0890 -1043033.5433  5716564.1301  0.0000  0.0000  0.0570 LEIAR25.R4      LEIT LEICA GR25
RIO27  1429907.8578 -3495354.8953 -5122698.5595  0.0000  0.0000  0.0350 ASH700936C_M    SNOW JAVAD TRE_G3TH DELTA
SMR50   927077.1096 -2195043.5597 -5896521.1344  0.0000  0.0000  0.0000 TRM41249.00     TZGD TRIMBLE NETR5
SUWN0 -3062023.1604  4055447.8946  3841818.1684  0.0000  0.0000  1.5700 TRM29659.00     DOME TRIMBLE NETR9
TASH7  1695944.9208  4487138.6220  4190140.7391  0.0000  0.0000  0.1206 JAV_RINGANT_G3T NONE JAVAD TRE_G3TH DELTA
UFPR0  3763751.6731 -4365113.9039 -2724404.5331  0.0000  0.0000  0.1000 TRM55971.00     NONE TRIMBLE NETR5
UNB30  1761287.9724 -4078238.5659  4561417.8448  0.0000  0.0000  0.3145 TRM57971.00     NONE TRIMBLE NETR9
WIND7  5633708.8016  1732017.9297 -2433985.5795  0.0000  0.0000  0.0460 ASH700936C_M    SNOW JAVAD TRE_G3TH DELTA
WTZR0  4075580.3797   931853.9767  4801568.2360  0.0000  0.0000  0.0710 LEIAR25.R3      LEIT LEICA GR25
WUH27 -2267749.9761  5009154.5504  3221294.4429  0.0000  0.0000  0.1206 JAV_RINGANT_G3T NONE JAVAD TRE_G3TH DELTA
YELL7 -1224452.8796 -2689216.1863  5633638.2832  0.0000  0.0000  0.1000 AOAD/M_T        NONE JAVAD TRE_G3TH DELTA

Note that the only mandatory parameters in this file are the 'Station' parameters in the first column, each standing for an observation stream's mountpoint or the 4-character station ID of a RINEX filename. The following shows further valid examples for records of a 'Coordinates' file.

!
! Station     X[m]         Y[m]          Z[m]    N[m]   E[m]   U[m]  Antenna--------Radom Receiver
! --------------------------------------------------------------------------------------------------
WTZR0   4075580.3797  931853.9767  4801568.2360  0.000  0.000  0.071 LEIAR25.R3      LEIT LEICA GR25
CUT07  -2364337.4408 4870285.6055 -3360809.6280  0.000  0.000  0.000 TRM59800.00     SCIS
FFMJ1   4053455.7384  617729.8393  4869395.8214  0.000  0.000  0.045
TITZ1   3993780.4501  450206.8969  4936136.9886
WARN
SASS1         0.0          0.0           0.0     0.000  0.000  0.031 TPSCR3_GGD      CONE TRIMBLE NETR5

In this file

2.13.1.8 Version 3 Filenames - optional

Tick 'Version 3 filenames' to let BNC create so-called extended filenames for PPP logfiles, NMEA files and SINEX Troposphere files to follow the RINEX Version 3 standard, see section 'RINEX Filenames' for details.

Default is an empty check box, meaning to create filenames following the RINEX Version 2 standard. The file content is not affected by this option. It only concerns the filename notation.

The following are examples for Version 2 filenames:

  CUT018671.nmea    NMEA filename, suffix 'nmea'
  CUT018671.ppp    PPP logfile name, suffix 'ppp'
  CUT018671J30.tro    SINEX Troposphere filename, suffix 'tro'

The following are examples for Version 3 filenames:

  CUT000AUS_U_20152920000_01D_01S.nmea    NMEA filename, suffix 'nmea'
  CUT000AUS_U_20152920000_01D_01S.ppp    PPP logfile name, suffix 'ppp'
  CUT000AUS_U_20152920945_15M_01S.tra    SINEX Troposphere filename, suffix 'tra'

2.13.1.9 Logfile Directory - optional

Essential PPP results are shown in the 'Log' tab on the bottom of BNC's main window. Depending on the processing options, the following values are presented about once per second (example):

...
15-10-21 13:23:38 2015-10-21_13:23:38.000 CUT07 X = -2364337.4505 Y = 4870285.6269 Z = -3360809.6481 NEU:  -0.0046  -0.0006  +0.0306 TRP:  +2.4018  +0.1006
15-10-21 13:23:39 2015-10-21_13:23:39.000 CUT07 X = -2364337.4468 Y = 4870285.6244 Z = -3360809.6453 NEU:  -0.0043  -0.0029  +0.0258 TRP:  +2.4018  +0.0993
15-10-21 13:23:40 2015-10-21_13:23:40.000 CUT07 X = -2364337.4455 Y = 4870285.6215 Z = -3360809.6466 NEU:  -0.0070  -0.0027  +0.0238 TRP:  +2.4018  +0.0978
15-10-21 13:23:41 2015-10-21_13:23:41.000 CUT07 X = -2364337.4447 Y = 4870285.6248 Z = -3360809.6445 NEU:  -0.0039  -0.0049  +0.0249 TRP:  +2.4018  +0.0962
15-10-21 13:23:42 2015-10-21_13:23:42.000 CUT07 X = -2364337.4426 Y = 4870285.6238 Z = -3360809.6424 NEU:  -0.0031  -0.0063  +0.0223 TRP:  +2.4018  +0.0950
15-10-21 13:23:43 2015-10-21_13:23:43.000 CUT07 X = -2364337.4453 Y = 4870285.6386 Z = -3360809.6518 NEU:  -0.0033  -0.0104  +0.0395 TRP:  +2.4018  +0.0927
15-10-21 13:23:44 2015-10-21_13:23:44.000 CUT07 X = -2364337.4435 Y = 4870285.6354 Z = -3360809.6487 NEU:  -0.0027  -0.0106  +0.0348 TRP:  +2.4018  +0.0908
15-10-21 13:23:45 2015-10-21_13:23:45.000 CUT07 X = -2364337.4445 Y = 4870285.6381 Z = -3360809.6532 NEU:  -0.0049  -0.0109  +0.0396 TRP:  +2.4018  +0.0884
15-10-21 13:23:46 2015-10-21_13:23:46.000 CUT07 X = -2364337.4437 Y = 4870285.6365 Z = -3360809.6548 NEU:  -0.0073  -0.0109  +0.0389 TRP:  +2.4018  +0.0855
15-10-21 13:23:47 2015-10-21_13:23:47.000 CUT07 X = -2364337.4498 Y = 4870285.6317 Z = -3360809.6395 NEU:  +0.0049  -0.0033  +0.0294 TRP:  +2.4018  +0.0833
...

Each row reports the PPP result of one epoch. It begins with a UTC time stamp (yy-mm-dd hh:mm:ss) which tells us when the result was produced. A second time stamp (yyyy-mm-dd_hh:mm:ss) describes the PPP's epoch in 'GPS Time'. It is followed by the derived XYZ position in [m], its North, East and Up displacement compared to an introduced a priori coordinate and the estimated tropospheric delay [m] (model plus correction).

If you require more information, you can specify a 'Logfile directory' to save daily logfiles per station (filename suffix 'ppp') with additional processing details on disk.

Precise Point Positioning of Epoch 2015-10-21_13:23:47.000
---------------------------------------------------------------
2015-10-21_13:23:47.000 SATNUM G  9
2015-10-21_13:23:47.000 SATNUM R  6
2015-10-21_13:23:47.000 SATNUM E  0
2015-10-21_13:23:47.000 SATNUM C  9
2015-10-21_13:23:47.000 RES C01   P3    0.3201
2015-10-21_13:23:47.000 RES C02   P3    0.3597
2015-10-21_13:23:47.000 RES C03   P3   -0.8003
2015-10-21_13:23:47.000 RES C04   P3    2.7684
2015-10-21_13:23:47.000 RES C05   P3    4.9738
2015-10-21_13:23:47.000 RES C06   P3    0.1888
2015-10-21_13:23:47.000 RES C07   P3   -2.8624
2015-10-21_13:23:47.000 RES C08   P3   -2.9075
2015-10-21_13:23:47.000 RES C10   P3   -1.5682
2015-10-21_13:23:47.000 RES G05   P3    0.3828
2015-10-21_13:23:47.000 RES G16   P3   -3.7602
2015-10-21_13:23:47.000 RES G18   P3    0.8424
2015-10-21_13:23:47.000 RES G20   P3    0.4062
2015-10-21_13:23:47.000 RES G21   P3    0.8683
2015-10-21_13:23:47.000 RES G25   P3   -1.3367
2015-10-21_13:23:47.000 RES G26   P3    1.4107
2015-10-21_13:23:47.000 RES G29   P3    1.1870
2015-10-21_13:23:47.000 RES G31   P3   -0.5605
2015-10-21_13:23:47.000 RES R01   P3   -0.1458
2015-10-21_13:23:47.000 RES R02   P3   -2.1184
2015-10-21_13:23:47.000 RES R14   P3    1.8634
2015-10-21_13:23:47.000 RES R15   P3   -1.3964
2015-10-21_13:23:47.000 RES R18   P3    0.5517
2015-10-21_13:23:47.000 RES R24   P3    1.5750
2015-10-21_13:23:47.000 RES C01   L3   -0.0040
2015-10-21_13:23:47.000 RES C02   L3    0.0070
2015-10-21_13:23:47.000 RES C03   L3    0.0093
2015-10-21_13:23:47.000 RES C04   L3   -0.0017
2015-10-21_13:23:47.000 RES C05   L3   -0.0008
2015-10-21_13:23:47.000 RES C06   L3   -0.0031
2015-10-21_13:23:47.000 RES C07   L3   -0.0016
2015-10-21_13:23:47.000 RES C08   L3   -0.0089
2015-10-21_13:23:47.000 RES C10   L3    0.0051
2015-10-21_13:23:47.000 RES G05   L3   -0.0408
2015-10-21_13:23:47.000 RES G16   L3    0.0043
2015-10-21_13:23:47.000 RES G18   L3    0.0017
2015-10-21_13:23:47.000 RES G20   L3   -0.0132
2015-10-21_13:23:47.000 RES G21   L3    0.0188
2015-10-21_13:23:47.000 RES G25   L3   -0.0059
2015-10-21_13:23:47.000 RES G26   L3    0.0028
2015-10-21_13:23:47.000 RES G29   L3    0.0062
2015-10-21_13:23:47.000 RES G31   L3    0.0012
2015-10-21_13:23:47.000 RES R01   L3    0.0260
2015-10-21_13:23:47.000 RES R02   L3   -0.0121
2015-10-21_13:23:47.000 RES R14   L3    0.0055
2015-10-21_13:23:47.000 RES R15   L3   -0.0488
2015-10-21_13:23:47.000 RES R18   L3    0.0475
2015-10-21_13:23:47.000 RES R24   L3    0.0103

2015-10-21_13:23:47.000 CLK      45386.971 +-  0.163
2015-10-21_13:23:47.000 TRP       2.402 +0.083 +-  0.013
2015-10-21_13:23:47.000 OFFGLO       1.766 +-  0.250
2015-10-21_13:23:47.000 OFFGAL       0.000 +- 1000.001
2015-10-21_13:23:47.000 OFFBDS      29.385 +-  0.218
2015-10-21_13:23:47.000 AMB C01    239.913 +-  0.149   epo = 180
2015-10-21_13:23:47.000 AMB C04    151.821 +-  0.149   epo = 180
2015-10-21_13:23:47.000 AMB C05    137.814 +-  0.150   epo = 180
2015-10-21_13:23:47.000 AMB C06   -368.848 +-  0.149   epo = 180
2015-10-21_13:23:47.000 AMB C07   -102.508 +-  0.149   epo = 180
2015-10-21_13:23:47.000 AMB C08   -145.358 +-  0.150   epo = 180
2015-10-21_13:23:47.000 AMB C10    195.732 +-  0.149   epo = 180
2015-10-21_13:23:47.000 AMB G25     58.320 +-  0.159   epo = 180
2015-10-21_13:23:47.000 AMB G26    110.077 +-  0.159   epo = 180
2015-10-21_13:23:47.000 AMB G29   -555.466 +-  0.159   epo = 180
2015-10-21_13:23:47.000 AMB G31    -47.938 +-  0.159   epo = 180
2015-10-21_13:23:47.000 AMB R01   -106.913 +-  0.193   epo = 180
2015-10-21_13:23:47.000 AMB R02    168.316 +-  0.194   epo = 180
2015-10-21_13:23:47.000 AMB R24    189.793 +-  0.193   epo = 180
2015-10-21_13:23:47.000 AMB C02    -50.146 +-  0.149   epo = 175
2015-10-21_13:23:47.000 AMB G05   -185.211 +-  0.173   epo = 175
2015-10-21_13:23:47.000 AMB R14   -509.359 +-  0.194   epo = 175
2015-10-21_13:23:47.000 AMB R15     65.355 +-  0.194   epo = 175
2015-10-21_13:23:47.000 AMB R18   -105.206 +-  0.204   epo = 170
2015-10-21_13:23:47.000 AMB G16    215.751 +-  0.160   epo = 165
2015-10-21_13:23:47.000 AMB G18   -168.240 +-  0.159   epo = 165
2015-10-21_13:23:47.000 AMB G20   -284.129 +-  0.159   epo = 165
2015-10-21_13:23:47.000 AMB G21    -99.245 +-  0.159   epo = 165
2015-10-21_13:23:47.000 AMB C03   -117.727 +-  0.149   epo = 30

2015-10-21_13:23:47.000 CUT07 X = -2364337.4498 +- 0.0279 Y = 4870285.6317 +- 0.0388 Z = -3360809.6395 +- 0.0313 dN = 0.0049 +- 0.0248 dE = -0.0033 +- 0.0239 dU = 0.0294 +- 0.0456

Depending on selected processing options you find 'GPS Time' stampes (yyyy-mm-dd_hh:mm:ss.sss) followed by

Estimated parameters are presented together with their formal errors as derived from the implemented filter. The PPP algorithm includes outlier and cycle slip detection.

Default value for 'Logfile directory' is an empty option field, meaning that you don't want to save daily PPP logfiles on disk. If a specified directory does not exist, BNC will not create PPP logfiles.

2.13.1.10 NMEA Directory - optional

You can specify a 'NMEA directory' to save daily NMEA files with Point Positioning results recorded as NMEA sentences. Such sentences are usually generated about once per second with pairs of

The following is an example for an NMEA output file from BNC.

$GPRMC,112348,A,3200.233,S,11553.688,E,,,300615,,*A
$GPGGA,112348,3200.2332035,S,11553.6880127,E,1,13,1.4,23.971,M,0.0,M,,*5D
$GPRMC,112349,A,3200.233,S,11553.688,E,,,300615,,*B
$GPGGA,112349,3200.2332035,S,11553.6880127,E,1,13,1.4,23.971,M,0.0,M,,*5C
$GPRMC,112350,A,3200.233,S,11553.688,E,,,300615,,*3
$GPGGA,112350,3200.2332035,S,11553.6880127,E,1,13,1.4,23.971,M,0.0,M,,*54
$GPRMC,112351,A,3200.233,S,11553.688,E,,,300615,,*2
$GPGGA,112351,3200.2332035,S,11553.6880127,E,1,13,1.4,23.971,M,0.0,M,,*55
$GPRMC,112352,A,3200.233,S,11553.688,E,,,300615,,*1
$GPGGA,112352,3200.2332035,S,11553.6880127,E,1,13,1.4,23.971,M,0.0,M,,*56
$GPRMC,112353,A,3200.233,S,11553.688,E,,,300615,,*0
$GPGGA,112353,3200.2332035,S,11553.6880127,E,1,13,1.4,23.971,M,0.0,M,,*57
$GPRMC,112354,A,3200.233,S,11553.688,E,,,300615,,*7
$GPGGA,112354,3200.2332035,S,11553.6880127,E,1,13,1.4,23.971,M,0.0,M,,*50
$GPRMC,112355,A,3200.233,S,11553.688,E,,,300615,,*6
$GPGGA,112355,3200.2332035,S,11553.6880127,E,1,13,1.4,23.971,M,0.0,M,,*51
$GPRMC,112356,A,3200.233,S,11553.688,E,,,300615,,*5
$GPGGA,112356,3200.2332035,S,11553.6880127,E,1,13,1.4,23.971,M,0.0,M,,*52
...

The default value for 'NMEA directory' is an empty option field, meaning that BNC will not save NMEA messages into files. If a specified directory does not exist, BNC will not create NMEA files.

Note that Tomoji Takasu has written a program named RTKPLOT for visualizing NMEA sentences from IP ports or files. It is available from http://www.rtklib.com and compatible with the 'NMEA Directory' and port output of BNC's 'PPP' client option.

2.13.1.11 SNX TRO Directory - optional

BNC estimates the tropospheric delay according to equation

   T(z) = T_apr(z) + dT / cos(z)
where T_apr is the a priori tropospheric delay derived from Saastamoinen model.

You can specify a 'SNX TRO Directory' for saving SINEX Troposphere files on disk, see https://igscb.jpl.nasa.gov/igscb/data/format/sinex_tropo.txt for a documentation of the file format. Note that receiver type information for these files must be provided through the coordinates file described in section 'Coordinates'. The following is an example for a troposphere file contents:

%=TRO 2.00 BNC 15:293:50333 BNC 15:293:50333 15:293:84600 P 00001 0  T
+FILE/REFERENCE
 DESCRIPTION        BNC generated SINEX TRO file
 OUTPUT             Total Troposphere Zenith Path Delay Product
 SOFTWARE           BNC 2.12
 INPUT              Orbit and Clock information used from BRDC and RTCM-SSR streams
-FILE/REFERENCE

+SITE/ID
-SITE/ID

+SITE/RECEIVER
*SITE PT SOLN T DATA_START__ DATA_END____ DESCRIPTION_________ S/N__ FIRMWARE___
 FFMJ  A    1 P 15:293:50333 15:293:84600 JAVAD TRE_G3TH DELTA
-SITE/RECEIVER

+SITE/ANTENNA
*SITE PT SOLN T DATA_START__ DATA_END____ DESCRIPTION_________ S/N__
 FFMJ  A    1 P 15:293:50333 15:293:84600 LEIAR25.R4      LEIT
-SITE/ANTENNA

+SITE/ECCENTRICITY
*                                             UP______ NORTH___ EAST____
*SITE PT SOLN T DATA_START__ DATA_END____ AXE ARP->BENCHMARK(M)_________
 FFMJ  A    1 P 15:293:50333 15:293:84600  UNE   0.0450   0.0000   0.0000
-SITE/ANTENNA

+TROP/COORDINATES
*SITE PT SOLN T __STA_X_____ __STA_Y_____ __STA_Z_____ SYSTEM REMRK
 FFMJ  A    1 P  4053455.738   617729.839  4869395.821 ITRF08
-TROP/COORDINATES

+TROP/DESCRIPTION
*KEYWORD______________________ VALUE(S)______________
 SAMPLING INTERVAL                                  1
 SAMPLING TROP                                      1
 ELEVATION CUTOFF ANGLE                             7
 TROP MAPPING FUNCTION         Saastamoinen
 SOLUTION_FIELDS_1             TROTOT STDEV
-TROP/DESCRIPTION

+TROP/SOLUTION
*SITE EPOCH_______ TROTOT STDEV
 FFMJ 15:293:50333 2346.2   0.0
 FFMJ 15:293:50334 2345.3   0.0
 FFMJ 15:293:50335 2345.4   0.0
 FFMJ 15:293:50336 2345.2   0.0
 FFMJ 15:293:50337 2344.7   0.0
 FFMJ 15:293:50338 2345.3   0.0
 FFMJ 15:293:50339 2345.4   0.0
 FFMJ 15:293:50340 2345.3   0.0
 FFMJ 15:293:50341 2345.6   0.0
 FFMJ 15:293:50342 2346.1   0.0
 FFMJ 15:293:50343 2347.6   0.0
 FFMJ 15:293:50344 2348.3   0.0
 FFMJ 15:293:50345 2349.2   0.0
...
...
-TROP/SOLUTION
%=ENDTROP

The default value for 'SNX TRO Directory' is an empty option field, meaning that BNC will not save SINEX Troposphere files. If a specified directory does not exist, BNC will not create SINEX Troposphere files.

2.13.1.11.1 Interval - mandatory if 'SINEX TRO File' is set

Select the length of SINEX Troposphere files.

Default 'Interval' for saving SINEX Troposphere files on disk is '1 day'.

2.13.1.11.2 Sampling - mandatory if 'SINEX TRO File' is set

Select a 'Sampling' rate in seconds for saving troposphere parameters.

Default 'Sampling' rate is '0', meaning that all troposphere estimates will be save on disk.

2.13.2 PPP (2): Processed Stations

This panel allows to enter parameters specific to each PPP process or thread. Individual sigmas for a priori coordinates and a noise for coordinate variations over time can be introduced. Furthermore, a sigma for model based troposphere estimates and the corresponding noise for troposphere variations can be specified. Finally, local IP server ports can be defined for output of NMEA streams carrying PPP results.

BNC offers to create a table with one line per PPP process or thread to specify station-specific parameters. Hit the 'Add Station' button to create a table or add a new line to it. To remove a line from the table, highlight it by clicking it and hit the 'Delete Station' button. You can also remove multiple lines simultaneously by highlighting them using +Shift and +Ctrl.

BNC will simultaneously produce PPP solutions for all stations listed in the 'Station' column of this table.

Figure 23: Precise Point Positioning with BNC, PPP Panel 2, using RTKPLOT for visualization.

2.13.2.1 Station - mandatory

Hit the 'Add Station' button, double click on the 'Station' field, then specify an observation's mountpoint from the 'Streams' section or introduce the 4-character Station ID of your RINEX observation file and hit Enter. BNC will only produce PPP solutions for stations listed in this table.

2.13.2.2 Sigma North/East/Up - mandatory

Enter a sigmas in meters for the initial coordinate components. A value of 100.0 (default) may be an appropriate choice. However, this value may be significantly smaller (i.e. 0.01) when starting for example from a station with well-known position - so-called Quick-Start mode.

2.13.2.3 Noise North/East/Up - mandatory

Enter a white 'Noise' in meters for estimated coordinate components. A value of 100.0 (default) may be appropriate when considering possible sudden movements of a rover.

2.13.2.4 Tropo Sigma - mandatory

Enter a sigma in meters for the a priori model based tropospheric delay estimation. A value of 0.1 (default) may be an appropriate choice.

2.13.2.5 Tropo Noise - mandatory

Enter a white 'Noise' in meters per second to describe the expected variation of the tropospheric effect. Supposing 1Hz observation data, a value of 3e-6 (default) would mean that the tropospheric effect may vary for 3600 * 3e-6 = 0.01 meters per hour.

2.13.2.6 NMEA Port - optional

Specify the IP port number of a local port where Point Positioning results become available as NMEA messages. The default value for 'NMEA Port' is an empty option field, meaning that BNC does not provide NMEA messages vi IP port. Note that the NMEA file output and the NMEA IP port output are the same.

Note that Tomoji Takasu has written a program named RTKPLOT for visualizing NMEA sentences from IP ports or files. It is available from http://www.rtklib.com and compatible with the NMEA file and port output of BNC's 'PPP' client option.

Furthermore, NASA's 'World Wind' software (see http://worldwindcentral.com/wiki/NASA_World_Wind_Download) can be used for real-time visualization of positions provided through BNC's NMEA IP output port. You need the 'GPS Tracker' plug-in available from http://worldwindcentral.com/wiki/GPS_Tracker for that. The 'Word Wind' map resolution is not meant for showing centimeter level details.

2.13.3 PPP (3): Processing Options

BNC allows using various Point Positioning processing options depending on the capability of the involved receiver and the application in mind. It also allows introducing specific sigmas for code and phase observations as well as for a priori coordinates and troposphere estimates. You may also like to carry out your PPP solution in Quick-Start mode or enforce BNC to restart a solution if the length of an outage exceeds a certain threshold.

The intention of this panel is to specify general processing options to be applied to all PPP threads in one BNC job.

Figure 24: Precise Point Positioning with BNC, PPP Panel 3.

2.13.3.1 Linear Combinations - mandatory

Specify on which ionosphere-free Linear Combinations (LCs) of observations you want to base ambiguity resolutions. This implicitly defines the kind of GNSS observations you want to use. The specification is to be done per GNSS system ('GPS LCs', 'GLONASS LCs', 'Galileo LCs', 'BDS LCs').

Note that most geodetic GPS receivers support the observation of both, code and phase data. Hence specifying 'P3&L3' would be a good choice for GPS when processing data from such a receiver. If multi-GNSS data processing is your intention, make sure your receiver supports GLONASS and/or Galileo and/or BDS observations besides GPS. Note also that the Broadcast Corrections stream or file which is required for PPP also supports all the systems you have in mind.

Specifying 'no' means that you don't at all want BNC to use observations from the affected GNSS system.

2.13.3.1 Code Observations - mandatory

Enter a 'Sigma C1' for C1 code observations in meters. The bigger the sigma you enter, the less the contribution of C1 code observations to a PPP solution based on a combination of code and phase data. '2.0' meters is likely to be an appropriate choice.

Specify a maximum for residuals 'Max Res C1' for C1 code observations in a PPP solution. '3.0' meters may be an appropriate choice for that. If the maximum is exceeded, contributions from the corresponding observation will be ignored in the PPP solution.

2.13.3.3 Phase Observations - mandatory

Enter a 'Sigma L1' for L1 phase observations in meters. The bigger the sigma you enter, the less the contribution of L1 phase observations to a PPP solutions based on a combination of code and phase data. '0.01' meters is likely to be an appropriate choice.

Specify a maximum for residuals 'Max Res L1' for L1 phase observations in a PPP solution. '0.03' meters may be an appropriate choice for that. If the maximum is exceeded, contributions from the corresponding observation will be ignored in the PPP solution.

As the convergence characteristic of a PPP solution can be influenced by the ratio of sigmas for code and phase, you may like to introduce sigmas which differ from the default values.

2.13.3.4 Elevation Dependent Weighting - mandatory

BNC allows elevation dependent weighting when processing GNSS observations. A weight function

      P = cos² * z

with 'z' being the zenith distance to the involved satellite can be applied instead of the simple weight function 'P = 1'.

Default is using the plain weight function 'P = 1' for code and phase observations.

2.13.3.5 Minimum Number of Observations - mandatory

Select the minimum number of observations you want to use per epoch. The minimum for parameter 'Min # of Obs' is '4'. This is also the default.

2.13.3.6 Minimum Elevation - mandatory

Select a minimum for satellite elevation angles. Selecting '10 deg' for option 'Min Elevation' may be an appropriate choice.

Default is '0 deg' meaning that any observation will be used regardless of the involved satellite elevation angle.

2.13.3.7 Wait for Clock Corrections - optional

Zero value (or 'no') for 'Wait for clock corr.' means that BNC processes each epoch of data immediately after its arrival using satellite clock corrections available at that time. Non-zero value means that epochs of data are buffered and the processing of each epoch is postponed till satellite clock corrections not older than 'Wait for clock corr.' are available. Specifying a value of half the update rate of the clock corrections (i.e. 5 sec) may be appropriate. Note that this causes an additional delay of the PPP solutions in the amount of half of the update rate.

Using observations in sync with the corrections can avoid a possible high frequency noise of PPP solutions. Such noise could result from processing observations regardless of how late after a clock correction they were received. Note that applying the 'Wait for clock corr.' option significantly reduces the PPP computation effort for BNC.

Default is an empty option field, meaning that you want BNC to process observations immediately after their arrival through applying the latest received clock correction.

2.13.3.8 Seeding - optional if a priori coordinates specified in 'Coordinates'

Enter the length of a startup period in seconds for which you want to fix the PPP solution to an known position, see option 'Coordinates'. Constraining a priori coordinates is done in BNC through setting their white 'Noise' temporarily to zero.

This so-called Quick-Start option allows the PPP solutions to rapidly converge after startup. It requires that the antenna remains unmoved on the known position throughout the defined period. A value of '60' seconds is likely to be an appropriate choice for 'Seeding'. Default is an empty option field, meaning that you don't want BNC to start in Quick-Start mode.

You may need to create your own reference coordinate beforehand through running BNC for an hour in normal mode before applying the 'Seeding' option. Don't forget to introduce realistic North/East/Up sigmas under panel 'PPP (2)' according to the coordinate's precision.

'Seeding' has also a function for bridging gaps in PPP solutions from failures caused i.e. by longer lasting outages. Should the time span between two consecutive solutions exceed the limit of 60 seconds (maximum solution gap, hard-wired), the algorithm fixes the latest derived coordinate for a period of 'Seeding' seconds. This option avoids time-consuming reconvergences and makes especially sense for stationary operated receivers where convergence can be enforced because a good approximation for the receiver position is known.

The following figure provides the screenshot of an example PPP session with BNC.

Figure 25: BNC in 'Quick-Start' mode, PPP Panel 4.

2.13.4 PPP (4): Plots

This panel presents options for visualizing PPP results as a time series plot or as a track map with PPP tracks on top of OSM or Google maps.

2.13.4.1 PPP Plot - optional

PPP time series of North (red), East (green) and Up (blue) displacements will be plotted under the 'PPP Plot' tab when this option is ticked. Values will be either referred to an XYZ reference coordinate (if specified, see 'Coordinates') or referred to the first estimated position. The sliding PPP time series window will cover the period of the latest 5 minutes.

Note that a PPP time series makes only sense for a stationary operated receiver.

2.13.4.2 Audio Response - optional

For natural hazard prediction and monitoring landslides it may be appropriate to generate audio alerts. For that you can specify an 'Audio response' threshold in meters. A beep is produced by BNC whenever a horizontal PPP coordinate component differs by more than the threshold value from the specified marker coordinate.

Default is an empty option field, meaning that you don't want BNC to produce acoustic warnings.

2.13.4.3 Track Map - optional

You may like to track your rover position using Google Maps or OpenStreetMap as a background map. Track maps can be produced with BNC in 'Real-time Streams' mode or in 'RINEX Files' post processing mode with data coming from files.

When in 'RINEX Files' post processing mode you should not forget to go online with your host and specify a proxy under the 'Network' panel if that is operated in front of BNC.

The 'Open Map' button opens a window showing a map according to the selected 'Google/OSM' option.

Figure 26: Track of positions from BNC with Google Maps in the background.

2.13.4.3.1 Google/OSM - mandatory before pushing 'Open Map'

Select either 'Google' or 'OSM' as the background map for your rover positions.

Figure 27: Example for a background map from Google Maps and OpenStreetMap (OSM).

2.13.4.4 Dot-properties - mandatory before pushing 'Open Map'

PPP tracks are presented on maps through plotting one colored dot per observation epoch.

2.13.4.4.1 Size - mandatory before pushing 'Open Map'

Specify the size of dots showing the rover position. A dot size of '3' may be appropriate. The maximum possible dot size is '10'. An empty option field or a size of '0' would mean that you don't want BNC to show the rover's track on the map.

2.13.4.4.2 Color - mandatory before pushing 'Open Map'

Select the color of dots showing the rover track.

2.13.4.5 Post Processing Speed - mandatory before pushing 'Open Map'

With BNC in 'RINEX File' post processing mode for PPP you can specify the speed of computations as appropriate for visualization. Note that you can adjust 'Post-processing speed' on-the-fly while BNC is already processing your observations.

2.14 Combine Corrections

BNC allows processing several orbit and clock correction streams in real-time to produce, encode, upload and save a combination of Broadcast Corrections from various providers. All corrections must refer to satellite Antenna Phase Centers (APC). It is so far only the satellite clock corrections which are combined while orbit corrections in the combination product as well as the product update rates are just taken over from one of the incoming Broadcast Correction streams. Combining only clock corrections using a fixed orbit reference has the possibility to introduce some analysis inconsistencies. We may therefore eventually consider improvements on this approach. The clock combination can be based either on a plain 'Single-Epoch' or on a Kalman 'Filter' approach.

In the Kalman Filter approach satellite clocks estimated by individual Analyses Centers (ACs) are used as pseudo observations within the adjustment process. Each observation is modeled as a linear function (actually a simple sum) of three estimated parameters: AC specific offset, satellite specific offset common to all ACs, and the actual satellite clock correction which represents the result of the combination. These three parameter types differ in their statistical properties. The satellite clock offsets are assumed to be static parameters while AC specific and satellite specific offsets are stochastic parameters with appropriate white noise. The solution is regularized by a set of minimal constraints. After a change of one of the three values 'SSR Provider ID', 'SSR Solution ID', or 'IOD SSR', the satellite clock offsets belonging to the corresponding analysis center are reset in the adjustment.

Removing the AC-dependent biases as well as possible is a major issue with clock combinations. Since they vary in time, it can be tricky to do this. Otherwise, there will be artificial jumps in the combined clock stream if one or more AC contributions drop out for certain epochs. Here the Kalman Filter approach is expected to do better than the Single-Epoch approach.

In view of IGS real-time products, the 'Combine Corrections' functionality has been integrated in BNC because

Note that the combination process requires real-time access to Broadcast Ephemeris. So, in addition to the orbit and clock correction streams BNC must pull a stream carrying Broadcast Ephemeris in the form of RTCM Version 3 messages. Stream 'RTCM3EPH' on caster products.igs-ip.net is an example for that. Note further that BNC will ignore incorrect or outdated Broadcast Ephemeris data when necessary, leaving a note 'WRONG EPHEMERIS' or 'OUTDATED EPHEMERIS' in the logfile.

A combination is carried out following a specified sampling interval. BNC waits for incoming Broadcast Corrections for the period of one such interval. Corrections received later than that will be ignored. If incoming streams have different rates, only epochs that correspond to the sampling interval are used.

With respect to IGS, it is important to understand that a major effect in the combination of GNSS orbit and clock correction streams is the selection of ACs to include. It is likely that a combination product could be improved in accuracy by using only the best two or three ACs. However, with only a few ACs to depend on, the reliability of the combination product could suffer and the risk of total failures increases. So there is an important tradeoff here that must be considered when selecting streams for a combination. The major strength of a combination product is its reliability and stable median performance which can be much better than that of any single AC product.

This comment applies in situations where we have a limited number of solutions to combine and their quality varies significantly. The situation may be different when the total number of ACs is larger and the range of AC variation is smaller. In that case, a standard full combination is probably the best.

The following recursive algorithm is used to detect orbit outliers in the Kalman Filter combination when Broadcast Corrections are provided by several ACs:
Step 1: We don't produce a combination for a certain satellite if only one AC provides corrections for it.
Step 2: A mean satellite position is calculated as the average of positions from all ACs.
Step 3: For each AC and satellite the 3D distance between individual and mean satellite position is calculated.
Step 4: We find the greatest difference between AC specific and mean satellite positions.
Step 5: If that is less than a threshold, the conclusion is that we don't have an outlier and can proceed to the next epoch.
Step 6: If that is greater than a threshold, then corrections of the affiliated AC are ignored for the affected epoch and the outlier detection restarts with step 1.

Note that BNC can produce an internal PPP solution from combined Broadcast Corrections. For that you have to specify the keyword 'INTERNAL' as 'Corrections' mountpoint in the PPP (1) panel.

The part of BNC which enables the combination of Broadcast Corrections is not intended for publication under GNU General Public License (GPL). However, pre-compiled BNC binaries which support the 'Combine Corrections' option are made available.

2.14.1 Combine Corrections Table - optional

Hit the 'Add Row' button, double click on the 'Mountpoint' field, enter a Broadcast Corrections mountpoint from the 'Streams' section and hit Enter. Then double click on the 'AC Name' field to enter your choice of an abbreviation for the Analysis Center (AC) providing the Antenna Phase Center (APC) related stream. Finally, double click on the 'Weight' field to enter a weight to be applied to this stream in the combination.

The sequence of entries in the 'Combine Corrections' table is not of importance. Note that the orbit information in the final combination stream is just copied from one of the incoming streams. The stream used for providing the orbits may vary over time: if the orbit providing stream has an outage then BNC switches to the next remaining stream for getting hold of the orbit information.

It is possible to specify only one Broadcast Ephemeris corrections stream in the 'Combine Corrections' table. Instead of combining corrections from several sources, BNC will then merge the single corrections stream with Broadcast Ephemeris to save results in SP3 and/or Clock RINEX format when specified accordingly under the 'Upload Corrections' panel. Note that in such a BNC application you must not pull more than one Broadcast Ephemeris corrections stream even if a second stream would provide the same corrections from a backup caster.

Default is an empty 'Combine Corrections' table meaning that you don't want BNC to combine orbit and clock correction streams.

2.14.1.1 Add Row, Delete - optional

Hit 'Add Row' button to add another row to the 'Combine Corrections' table or hit the 'Delete' button to delete the highlighted row(s).

The following screenshots describe an example setup of BNC when combining Broadcast Correction streams and uploading them to an Ntrip Broadcaster. Note that this application requires specifying options under panels 'Combine Corrections' and 'Upload Corrections'. The example uses the combination product to simultaneously carry out an 'INTERNAL' PPP solution which allows monitoring the quality of the combination product in the space domain.


Figure 28: BNC combining Broadcast Correction streams.

Figure 29: BNC uploading the combined Broadcast Corrections stream.

Figure 30: 'INTERNAL' PPP with BNC using combined Broadcast Corrections stream.

2.14.1.2 Method - mandatory if 'Combine Corrections' table is populated

Select a clock combination method. Available options are Kalman 'Filter' and 'Single-Epoch. It is suggested to use the Kalman Filter approach in case the combined stream of Broadcast Corrections is intended for Precise Point Positioning.

2.14.1.3 Maximal Residuum - mandatory if 'Combine Corrections' table is populated

BNC combines all incoming clocks according to specified weights. Individual clock estimates that differ by more than 'Maximal Residuum' meters from the average of all clocks will be ignored.

It is suggested to specify a value of about 0.2 m for the Kalman Filter combination approach and a value of about 3.0 meters for the Single-Epoch combination approach.

Default is a 'Maximal Residuum' of 999.0 meters

2.14.1.4 Sampling - mandatory if 'Combine Corrections' table is populated

Specify a combination sampling interval. Orbit and clock corrections will be produced following that interval. A value of 10 sec may be an appropriate choice.

2.14.1.5 Use GLONASS - optional

You may tick the 'Use GLONASS' option in case you want to produce a GPS plus GLONASS combination and both systems are supported by the Broadcast Correction streams participating in the combination.

2.15 Upload Corrections

BNC can upload streams carrying orbit and clock corrections to Broadcast Ephemeris in radial, along-track and cross-track components if they are

  1. either generated by BNC as a combination of several individual Broadcast Correction streams coming from an number of real-time Analysis Centers (ACs), see section 'Combine Corrections',
  2. or generated by BNC while the program receives an ASCII stream of precise satellite orbits and clocks via IP port from a connected real-time GNSS engine. Such a stream would be expected in a plain ASCII format and the associated 'decoder' string would have to be 'RTNET', see format description below.
The procedure taken by BNC to generate the orbit and clock corrections to Broadcast Ephemeris and upload them to an Ntrip Broadcaster is as follow: Then, epoch by epoch:

The orbit and clock corrections to Broadcast Ephemeris are usually referred to the latest set of broadcast messages, which are generally also received in real-time by a GNSS rover. However, the use of the latest broadcast message is delayed for a period of 60 seconds, measured from the time of complete reception of ephemeris and clock parameters, in order to accommodate rover applications to obtain the same set of broadcast orbital and clock parameters. This procedure is recommended in the RTCM SSR standard.

Because the stream delivery process may put a significant load on the communication link between BNC and the real-time GNSS engine, it is recommended to run both programs on the same host. However, doing so is not compulsory.

The usual handling of BNC when uploading a stream with Broadcast Corrections is that you first specify Broadcast Ephemeris and Broadcast Correction streams. You then specify an Ntrip Broadcaster for stream upload before you start the program.

'RTNET' Stream Format
When uploading an SSR stream generated according to b. then BNC requires precise GNSS orbits and clocks in the IGS Earth-Centered-Earth-Fixed (ECEF) reference system and in a specific ASCII format named 'RTNET' because the data may come from a real-time engine such as RTNET. The sampling interval for data transmission should not exceed 15 sec. Note that otherwise tools involved in IP streaming such as Ntrip Broadcasters or Ntrip Clients may respond with a timeout.

Below you find an example for the 'RTNET' ASCII format coming from a real-time GNSS engine. Each epoch begins with an asterisk character followed by the time as year, month, day of month, hour, minute and second. Subsequent records can provide

A set of parameters can be defined for each satellite as follows:

<SatelliteID> <key> <numValues> <value1 value2 ...> <key> <numValues>
<value1 value2 ...> ...

The following satellite specific keys and values are currently specified in BNC:

Key     Values
APCSatellite Antenna Phase Center coordinates in meters
ClkSatellite clock correction in meters, relativistic correction applied like in broadcast clocks
VelSatellite velocity in meters per second
CoMSatellite Center of Mass coordinates in meters
CodeBiasSatellite Code Biases in meters with two characters for frequency and tracking mode per bias as defined in RINEX 3 and preceded by total number of biases
YawAngleSatellite Yaw Angle in radian, restricted to be in [0, 2π], which shall be used for the computation of phase wind-up correction
YawRateSatellite Yaw Rate in radian per second, which is the rate of Yaw Angle
PhaseBiasSatellite Phase Biases in meters with two characters for frequency and tracking mode per bias as defined in RINEX 3, preceded by total number of biases and followed by Signal Wilde-Lane Integer Indicator as well as Signal Discontinuity Counter
The following non-satellite specific keys and values are currently specified in BNC:

Key     Values
INDStands for phase bias information and is followed by Dispersive Bias Consistency Indicator and MW Consistency Indicator
VTECStands for Vertical TEC information and is followed by Update Interval and Number of Ionospheric Layers

If the key VTEC is specified, a data set for each layer contains within its first line the Layers Number, followed by Maximum Degree, Maximum Order and Layer Height. After that follow Cosine and Sinus Spherical Harmonic Coefficients, one block each.

Because each keyword is associated to a certain number of values, an 'old' BNC could be operated with an incoming 'new' RTNET stream containing so far unknown keys - they would just be skipped in BNC.

Example for 'RTNET' stream contents and format:

* 2015 6 11 15 10 40.000000
VTEC 0 1 0 6 6 450000.0 20.4660 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 5.3590 9.6580 0.0000 0.0000 0.0000 0.0000 0.0000 -6.3610 -0.1210 1.1050 0.0000 0.0000 0.0000 0.0000 -2.7140 -1.8200 -0.9920 -0.6430 0.0000 0.0000 0.0000 1.9140 -0.5180 0.2530 0.0870 -0.0110 0.0000 0.0000 2.2950 1.0510 -0.9540 0.6220 -0.0720 -0.0810 0.0000 -0.9760 0.7570 0.2320 -0.2520 0.1970 -0.0680 -0.0280 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.2720 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 1.1100 -1.0170 0.0000 0.0000 0.0000 0.0000 0.0000 -1.1500 0.5440 0.9890 0.0000 0.0000 0.0000 0.0000 -0.3770 -0.1990 0.2670 -0.0470 0.0000 0.0000 0.0000 0.6550 -0.0130 -0.2310 -0.4810 -0.3510 0.0000 0.0000 0.2360 -0.0710 0.0280 0.1900 -0.0810 0.0710
IND 0 1
G01 APC 3   -14442611.532   -13311059.070   -18020998.395 Clk 1   -1426.920500 Vel 3  2274.647600   -28.980300 -1787.861900 CoM 3   -14442612.572   -13311059.518   -18020999.539 CodeBias 6 1W -3.760000 1C -3.320000 2W -6.200000 2X -5.780000 1H -3.350000 5I -5.430000 YawAngle 1 -0.315600 YawRate 1 0.0 PhaseBias 3 1C  3.9473 1 2 4 2W  6.3143 1 2 4 5I 6.7895 1 2 4
G02 APC 3    -8859103.160    14801278.856    20456920.800 Clk 1  171219.083500 Vel 3 -2532.296700  -161.275800 -1042.884100 CoM 3    -8859103.418    14801279.287    20456921.395 CodeBias 6 1W  3.930000 1C  3.610000 2W  6.480000 2X  0.000000 1H  3.580000 5I  0.000000 YawAngle 1 -0.693500 YawRate 1 0.0 PhaseBias 2 1C -4.0902 1 2 4 2W -6.7045 1 2 4
G03 APC 3   -13788295.679   -22525098.353     2644811.508 Clk 1  104212.074300 Vel 3   102.263400  -429.953400 -3150.231900 CoM 3   -13788296.829   -22525099.534     2644811.518 CodeBias 6 1W -2.650000 1C -2.160000 2W -4.360000 2X -4.480000 1H -2.070000 5I -5.340000 YawAngle 1 -0.428800 YawRate 1 0.0 PhaseBias 3 1C  2.9024 1 2 2 2W  4.6124 1 2 2 5I 5.3694 1 2 2
..
R01 APC 3    -6783489.153   -23668850.753     6699094.457 Clk 1 - 45875.658100 Vel 3  -267.103000  -885.983700 -3403.253200 CoM 3    -6783489.307   -23668853.173     6699095.274 CodeBias 4 1P -2.496400 1C -2.490700 2P -4.126600 2C -3.156200
R02 APC 3   -11292959.022   -10047039.425    20577343.288 Clk 1   41215.750900 Vel 3  -476.369400 -2768.936600 -1620.000600 CoM 3   -11292959.672   -10047040.710    20577345.344 CodeBias 4 1P  0.211200 1C  0.391300 2P  0.349100 2C  0.406300
R03 APC 3    -9226469.614     9363128.850    21908853.313 Clk 1   13090.322800 Vel 3  -369.088600 -2964.934500  1111.041000 CoM 3    -9226470.226     9363129.442    21908855.791 CodeBias 4 1P  2.283800 1C  2.483800 2P  3.775300 2C  3.785500
..
E11 APC 3     2965877.898    17754418.441    23503540.946 Clk 1   33955.329000 Vel 3 -1923.398100  1361.709200  -784.555800 CoM 3     2965878.082    17754418.669    23503541.507 CodeBias 3 1B  1.382100 5Q  2.478400 7Q  2.503300
E12 APC 3   -14807433.144    21753389.581    13577231.476 Clk 1 -389652.211900 Vel 3 -1082.464300   825.868400 -2503.982200 CoM 3   -14807433.366    21753389.966    13577231.926 CodeBias 3 1B  0.386600 5Q  0.693300 7Q  0.534700
E19 APC 3   -15922225.351     8097517.292    23611910.403 Clk 1   -2551.650800 Vel 3  -183.377800 -2359.143700   684.105100 CoM 3   -15922225.569     8097517.329    23611910.995 CodeBias 3 1B -1.777000 5Q -3.186600 7Q -3.069100
..
EOE

Note that the end of an epoch in the incoming stream is indicated by an ASCII string 'EOE' (for End Of Epoch).

When using clocks from Broadcast Ephemeris (with or without applied corrections) or clocks from SP3 files, it may be important to understand that they are not corrected for the conventional periodic relativistic effect. Chapter 10 of the IERS Conventions 2003 mentions that the conventional periodic relativistic correction to the satellite clock (to be added to the broadcast clock) is computed as dt = -2 (R * V) / c^2 where R *V is the scalar product of the satellite position and velocity and c is the speed of light. This can also be found in the GPS Interface Specification, IS-GPS-200, Revision D, 7 March 2006.

2.15.1 Add, Delete Row - optional

Hit 'Add Row' button to add a row to the stream 'Upload Table' or hit the 'Delete' button to delete the highlighted row(s).

Having an empty 'Upload Table' is default and means that you don't want BNC to upload orbit and clock correction streams to any Ntrip Broadcaster.

2.14.2 Host, Port, Mountpoint, Password - optional

Specify the domain name or IP number of an Ntrip Broadcaster for uploading the stream. Furthermore, specify the caster's listening IP port, an upload mountpoint and an upload password. Note that Ntrip Broadcasters are often configured to provide access through more than one port, usually ports 80 and 2101. If you experience communication problems on port 80, you should try to use the alternative port(s).

BNC uploads a stream to the Ntrip Broadcaster by referring to a dedicated mountpoint that has been set by its operator. Specify here the mountpoint based on the details you received for your stream from the operator. It is often a four character ID (capital letters) plus an integer number.

The stream upload may be protected through an upload 'Password'. Enter the password you received from the Ntrip Broadcaster operator along with the mountpoint(s).

If 'Host', 'Port', 'Mountpoint' and 'Password' are set, the stream will be encoded in RTCM's 'State Space Representation' (SSR) messages and uploaded to the specified broadcaster following the Ntrip Version 1 transport protocol.

2.15.3 System - mandatory if 'Host' is set

BNC allows configuring several Broadcast Correction streams for upload so that they refer to different reference systems and different Ntrip Broadcasters. You may use this functionality for parallel support of a backup Ntrip Broadcaster or for simultaneous support of various regional reference systems. Available options for transforming orbit and clock corrections to specific target reference systems are

Because a mathematically strict transformation to a regional reference system is not possible on the BNC server side when a scale factor is involved, the program follows an approximate solution. While orbits are transformed in full accordance with given equations, a transformed clock is derived through applying correction term

   dC = (s - 1) / s * ρ / c

where s is the transformation scale, c is the speed of light, and ρ are the topocentric distance between an (approximate) center of the transformation's validity area and the satellite.

From a theoretical point of view this kind of approximation leads to inconsistencies between orbits and clocks and is therefore not allowed. However, it has been proved that resulting errors in Precise Point Positioning are on millimeter level for horizontal components and below the one centimeter for height components. The Australian GDA94 transformation with its comparatively large scale parameter is an exception in this as discrepancies may reach up to two centimeters there.

IGS08: As the orbits and clocks coming from real-time GNSS engine are expected to be in the IGS08 system, no transformation is carried out if this option is selected.

ETRF2000: The formulas for the transformation 'ITRF2008->ETRF2000' are taken from 'Claude Boucher and Zuheir Altamimi 2008: Specifications for reference frame fixing in the analysis of EUREF GPS campaign', see http://etrs89.ensg.ign.fr/memo-V8.pdf. The following 14 Helmert Transformation Parameters were introduced:

Translation in X at epoch To:  0.0521 m
Translation in Y at epoch To:  0.0493 m
Translation in Z at epoch To: -0.0585 m
Translation rate in X:  0.0001 m/y
Translation rate in Y:  0.0001 m/y
Translation rate in Z: -0.0018 m/y
Rotation in X at epoch To:  0.891 mas
Rotation in Y at epoch To:  5.390 mas
Rotation in Z at epoch To: -8.712 mas
Rotation rate in X:  0.081 mas/y
Rotation rate in Y:  0.490 mas/y
Rotation rate in Z: -0.792 mas/y
Scale at epoch To : 0.00000000134
Scale rate: 0.00000000008 /y
To: 2000.0

NAD83: Formulas for the transformation 'ITRF2008->NAD83' are taken from 'Chris Pearson, Richard Snay 2013: Introducing HTDP 3.1 to transform coordinates across time and spatial reference frames', GPS Solutions, January 2013, Volume 17, Issue 1, pp 1-15.

Translation in X at epoch To:  0.99343 m
Translation in Y at epoch To: -1.90331 m
Translation in Z at epoch To: -0.52655 m
Translation rate in X:  0.00079 m/y
Translation rate in Y: -0.00060 m/y
Translation rate in Z: -0.00134 m/y
Rotation in X at epoch To: -25.91467 mas
Rotation in Y at epoch To:  -9.42645 mas
Rotation in Z at epoch To: -11.59935 mas
Rotation rate in X: -0.06667 mas/y
Rotation rate in Y:  0.75744 mas/y
Rotation rate in Z:  0.05133 mas/y
Scale at epoch To : 0.00000000171504
Scale rate: -0.00000000010201 /y
To: 1997.0

GDA94: The formulas for the transformation 'ITRF2008->GDA94' are taken from 'John Dawson, Alex Woods 2010: ITRF to GDA94 coordinate transformations', Journal of Applied Geodesy, 4 (2010), 189-199, de Gruyter 2010. DOI 10.1515/JAG.2010.019'.

Translation in X at epoch To: -0.08468 m
Translation in Y at epoch To: -0.01942 m
Translation in Z at epoch To:  0.03201 m
Translation rate in X:  0.00142 m/y
Translation rate in Y:  0.00134 m/y
Translation rate in Z:  0.00090 m/y
Rotation in X at epoch To:  0.4254 mas
Rotation in Y at epoch To: -2.2578 mas
Rotation in Z at epoch To: -2.4015 mas
Rotation rate in X: -1.5461 mas/y
Rotation rate in Y: -1.1820 mas/y
Rotation rate in Z: -1.1551 mas/y
Scale at epoch To : 0.000000009710
Scale rate: 0.000000000109 /y
To: 1994.0

SIRGAS2000: The formulas for the transformation 'ITRF2008->SIRGAS2000' were provided via personal communication from CGED-Coordenacao de Geodesia, IBGE/DGC - Diretoria de Geociencias, Brazil..

Translation in X at epoch To:  0.0020 m
Translation in Y at epoch To:  0.0041 m
Translation in Z at epoch To:  0.0039 m
Translation rate in X:  0.0000 m/y
Translation rate in Y:  0.0000 m/y
Translation rate in Z:  0.0000 m/y
Rotation in X at epoch To:  0.170 mas
Rotation in Y at epoch To: -0.030 mas
Rotation in Z at epoch To:  0.070 mas
Rotation rate in X:  0.000 mas/y
Rotation rate in Y:  0.000 mas/y
Rotation rate in Z:  0.000 mas/y
Scale at epoch To : -0.000000001000
Scale rate: 0.000000000000 /y
To: 0000.0

SIRGAS95: The formulas for the transformation 'ITRF2005->SIRGAS95' were provided via personal communication from Gustavo Acuha, Laboratorio de Geodesia Fisica y Satelital at Zulia University (LGFS-LUZ), parameters based on values from Table 4.1 of "Terrestrial Reference Frames (April 10, 2009), Chapter 4" in http://tai.bipm.org/iers/convupdt/convupdt_c4.html..

Translation in X at epoch To:  0.0077 m
Translation in Y at epoch To:  0.0058 m
Translation in Z at epoch To: -0.0138 m
Translation rate in X:  0.0000 m/y
Translation rate in Y:  0.0000 m/y
Translation rate in Z:  0.0000 m/y
Rotation in X at epoch To:  0.000 mas
Rotation in Y at epoch To:  0.000 mas
Rotation in Z at epoch To: -0.003 mas
Rotation rate in X:  0.000 mas/y
Rotation rate in Y:  0.000 mas/y
Rotation rate in Z:  0.000 mas/y
Scale at epoch To : 0.00000000157
Scale rate: -0.000000000000 /y
To: 1995.4

DREF91: 'Referenzkoordinaten fuer SAPOS, Empfehlungen der Projektgruppe SAPOS-Koordinatenmonitoring 2008', Personal communication with Peter Franke, BKG, Germany. The following 14 Helmert Transformation Parameters were introduced:

Translation in X at epoch To: -0.0118 m
Translation in Y at epoch To:  0.1432 m
Translation in Z at epoch To: -0.1117 m
Translation rate in X:  0.0001 m/y
Translation rate in Y:  0.0001 m/y
Translation rate in Z: -0.0018 m/y
Rotation in X at epoch To:   3.291 mas
Rotation in Y at epoch To:   6.190 mas
Rotation in Z at epoch To: -11.012 mas
Rotation rate in X:  0.081 mas/y
Rotation rate in Y:  0.490 mas/y
Rotation rate in Z: -0.792 mas/y
Scale at epoch To : 0.00000001224
Scale rate: 0.00000000008 /y
To: 2000.0

Custom: Feel free to specify your own 14 Helmert Transformation parameters for transformations from IGS08/ITRF2008 into your own target system.

Figure 31: Setting Custom Transformation Parameters window, example for 'ITRF2008->GDA94'.

2.15.4 Center of Mass - optional

BNC allows to either referring Broadcast Corrections to the satellite's Center of Mass (CoM) or to the satellite's Antenna Phase Center (APC). By default corrections refer to APC. Tick 'Center of Mass' to refer uploaded corrections to CoM.

2.15.5 SP3 File - optional

Specify a path for saving the generated orbit corrections as SP3 orbit files. If the specified directory does not exist, BNC will not create SP3 orbit files. The following is a path example for a Linux system:

   /home/user/BNC${GPSWD}.sp3
Note that '${GPSWD}' produces the GPS Week and Day number in the filename.

Default is an empty option field, meaning that you don't want BNC to save the uploaded stream contents in daily SP3 files.

As an SP3 file contents should be referred to the satellites Center of Mass (CoM) while Broadcast Corrections are referred to the satellites APC, an offset has to be applied which is available from an IGS ANTEX file (see option 'ANTEX File' below). Hence you should specify the 'ANTEX File' path there if you want to save the stream contents in SP3 format. If you don't specify an 'ANTEX File' path, the SP3 file contents will be referred to the satellites APCs.

The filenames for the daily SP3 files follow the convention for SP3 filenames. The first three characters of each filename are set to 'BNC'. Note that clocks in the SP3 orbit files are not corrected for the conventional periodic relativistic effect.

In case the 'Combine Corrections' table contains only one Broadcast Corrections stream, BNC will merge that stream with Broadcast Ephemeris to save results in files specified here through SP3 and/or Clock RINEX file path. In such a case you have to define only the SP3 and Clock RINEX file path and no further option in the 'Upload Corrections' table.

Note that BNC outputs a complete list of SP3 'Epoch Header Records' even if no 'Position and Clock Records' are available for certain epochs because of stream outages. Note further that the 'Number of Epochs' in the first SP3 header record may not be correct because that number is not available when the file is created. Depending on your processing software (e.g. Bernese GNSS Software, BSW) it could therefore be necessary to correct an incorrect 'Number of Epochs' in the file before you use in Post Processing.

2.15.6 RNX File - optional

The clock corrections generated by BNC for upload can be logged in Clock RINEX format. The file naming follows the RINEX convention.

Specify a path for saving the generated clock corrections as Clock RINEX files. If the specified directory does not exist, BNC will not create Clock RINEX files. The following is a path example for a Linux system:

   /home/user/BNC${GPSWD}.clk
Note that '${GPSWD}' produces the GPS Week and Day number in the filename.

Note further that clocks in the Clock RINEX files are not corrected for the conventional periodic relativistic effect.

2.15.7 Interval - mandatory if 'Upload Table' entries specified

Select the length of Clock RINEX files and SP3 Orbit files. The default value is 1 day.

2.15.8 Sampling

BNC requires an orbit corrections sampling interval for the stream to be uploaded and sampling intervals for SP3 and Clock RINEX files. The outgoing stream's clock correction sampling interval follows that of incoming corrections and is therefore nothing to be specified here.

2.15.8.1 Orbits (Orb) - mandatory if 'Upload Table' entries specified

Select the stream's orbit correction sampling interval in seconds. A value of 60 sec may be appropriate.

A value of zero '0' tells BNC to upload all orbit correction samples coming in from the real-time GNSS engine along with the clock correction samples to produce combined orbit and clock corrections to Broadcast Ephemeris (1060 for GPS, 1066 for GLONASS).

Configuration examples:

Let us suppose a real-time network engine supporting BNC every 5 sec with GPS Broadcast Corrections for orbits, clocks and code biases in 'RTNET' stream format.
Note that only when specifying a value of zero '0' (default) for 'Sampling Orb', BNC produces combined orbit and clock correction messages.

2.15.8.2 SP3 - mandatory if 'SP3 File' is specified

Select the SP3 orbit file sampling interval in minutes. A value of 15 min may be appropriate. A value of zero '0' tells BNC to store all available samples into SP3 orbit files.

2.15.8.3 RINEX (RNX) - mandatory if 'RNX File' is specified

Select the Clock RINEX file sampling interval in seconds. A value of 10 sec may be appropriate. A value of zero '0' tells BNC to store all available samples into Clock RINEX files.

2.15.9 Custom Trafo - optional if 'Upload Table' entries specified

Hit 'Custom Trafo' to specify your own 14 parameter Helmert Transformation instead of selecting a predefined transformation through 'System' button.

The following screenshot shows the encoding and uploading of a stream of precise orbits and clocks coming from a real-time engine in 'RTNET' ASCII format. The stream is uploaded to Ntrip Broadcaster 'products.igs-ip.net'. It is referred to APC and IGS08. Uploaded data are locally saved in SP3 and Clock RINEX format. The SSR Provider ID is set to 3. The SSR Solution ID is and the Issue of Data SSR are set to 1. Required Broadcast Ephemeris are received via stream 'RTCM3EPH'.

Figure 32: Producing Broadcast Corrections from incoming precise orbits and clocks and uploading them to an Ntrip Broadcaster.

2.15.10 ANTEX File - mandatory if 'SP3 File' is specified

IGS provides a file containing absolute phase center variations for GNSS satellite and receiver antennas in ANTEX format. Entering the full path to such an ANTEX file is required here for referring the SP3 file contents to the satellite's Center of Mass (CoM). If you don't specify a ANTEX file, the SP3 file will contain orbit information which is referred to Antenna Phase Center (APC) instead of CoM.

2.16 Upload Ephemeris

BNC can generate a stream carrying only Broadcast Ephemeris in RTCM Version 3 format and upload it to an Ntrip Broadcaster.

Note that broadcast ephemeris received in real-time have a system specific period of validity in BNC which is defined in accordance with the update rates of the navigation messages.

A note 'OUTDATED EPHEMERIS' will be given in the logfile and the data will be disregarded when necessary.

Furthermore, received broadcast ephemeris parameters pass through a plausibility check in BNC which allows to ignore incorrect ephemeris data when necessary, leaving a note 'WRONG EPHEMERIS' in the logfile.

2.16.1 Host & Port - optional

Specify the 'Host' IP number or URL of an Ntrip Broadcaster to upload the stream. An empty option field means that you don't want to upload Broadcast Ephemeris.

Enter the Ntrip Broadcaster's IP 'Port' number for stream upload. Note that Ntrip Broadcasters are often configured to provide access through more than one port, usually ports 80 and 2101. If you experience communication problems on port 80, you should try to use the alternative port(s).

2.16.2 Mountpoint & Password - mandatory if 'Host' is set

BNC uploads a stream to the Ntrip Broadcaster by referring to a dedicated mountpoint that has been set by its operator. Specify the mountpoint based on the details you received for your stream from the operator. It is often a four character ID (capital letters) plus an integer number.

The stream upload follows Ntrip Version 1 and may be protected through an upload 'Password'. Enter the password you received from the Ntrip Broadcaster operator along with the mountpoint.

2.16.3 Sampling - mandatory if 'Host' is set

Select the Broadcast Ephemeris repetition interval in seconds. Default is '5' meaning that a complete set of Broadcast Ephemeris is uploaded every 5 seconds.

Figure 33: Producing a Broadcast Ephemeris stream from navigation messages of globally distributed RTCM streams and uploading them in RTCM Version 3 format to an Ntrip Broadcaster.

2.17 Streams Canvas

Each stream on an Ntrip Broadcaster (and consequently on BNC) is defined using a unique source ID called mountpoint. An Ntrip Client like BNC accesses the desired stream by referring to its mountpoint. Information about streams and their mountpoints is available through the source-table maintained by the Ntrip Broadcaster.

Streams selected for retrieval are listed under the 'Streams' canvas on BNC's main window. The list provides the following information either extracted from source-table(s) produced by the Ntrip Broadcasters or introduced by BNC's user:

'resource loader'  Ntrip Broadcaster URL and port, or
TCP/IP host and port, or
UDP port, or
Serial input port specification.
'mountpoint'  Mountpoint introduced by Ntrip Broadcaster, or
Mountpoint introduced by BNC's user.
'decoder'  Name of decoder used to handle the incoming stream content according to its format; editable.
'lat'  Approximate latitude of reference station, in degrees, north; editable if 'nmea' = 'yes'.
'long'  Approximate longitude of reference station, in degrees, east; editable if 'nmea' = 'yes'.
'nmea'  Indicates whether or not streaming needs to be initiated by BNC through sending NMEA-GGA message carrying position coordinates in 'lat' and 'long'.
'ntrip'  Selected Ntrip transport protocol version (1, 2, 2s, R, or U), or
'N' for TCP/IP streams without Ntrip, or
'UN' for UDP streams without Ntrip, or
'S' for serial input streams without Ntrip.
'bytes'  Number of bytes received.

2.17.1 Edit Streams

2.17.2 Delete Stream

To remove a stream from the 'Streams' canvas in the main window, highlight it by clicking on it and hit the 'Delete Stream' button. You can also remove multiple streams simultaneously by highlighting them using +Shift and +Ctrl.

2.17.3 Reconfigure Stream Selection On-the-fly

The streams selection can be changed on-the-fly without interrupting uninvolved threads in the running BNC process.

Window mode: Hit 'Reread & Save Configuration' while BNC is in window mode and already processing data to let changes of your streams selection immediately become effective.

No window mode: When operating BNC online in 'no window' mode (command line option -nw), you force BNC to reread its 'mountPoints' configuration option from disk at pre-defined intervals. Select '1 min', '1 hour', or '1 day' as 'Reread configuration' option to reread the 'mountPoints' option every full minute, hour, or day. This lets a 'mountPoints' option edited in between in the configuration file become effective without terminating uninvolved threads. See section 'Configuration Examples' for a configuration file example and section 'Reread Configuration' for a list of other on-the-fly changeable options.

2.18 Logging Canvas

The 'Logging Canvas' above the bottom menu bar on the main window labeled 'Log', 'Throughput', 'Lacenty', and 'PPP Plot' provides control of BNC's activities. Tabs are available for continuously showing logfile contents, for a plot controlling the bandwidth consumption, for a plot showing stream latencies, and for time series plots of PPP results.

2.18.1 Log

Records of BNC's activities are shown in the 'Log' tab. They can be saved into a file when a valid path is specified in the 'Logfile (full path)' field.

2.18.2 Throughput

The bandwidth consumption per stream is shown in the 'Throughput' tab in bits per second (bps) or kilobits per second (kbps). The following figure shows an example for the bandwidth consumption of incoming streams.

Figure 34: Bandwidth consumption of incoming streams.

2.18.3 Latency

The latency of observations in each incoming stream is shown in the 'Latency' tab in milliseconds or seconds. Streams not carrying observations (i.e. those providing only Broadcast Ephemeris messages) or having an outage are not considered here and shown in red color. Note that the calculation of correct latencies requires the clock of the host computer to be properly synchronized. The next figure shows an example for the latency of incoming streams.

Figure 35: Latency of incoming streams.

2.18.4 PPP Plot

Precise Point Positioning time series of North (red), East (green) and Up (blue) coordinate components are shown in the 'PPP Plot' tab when a 'Origin' option is defined. Values are either referred to reference coordinates (if specified) or referred to the first estimated set of coordinate components. The time as given in format [hh:mm] refers to GPS Time. The sliding PPP time series window covers a period of 5 minutes. Note that it may take up to 30 seconds or more till the first PPP solutions becomes available. The following figure shows the screenshot of a PPP time series plot of North, East and Up coordinate components.

Figure 36: Time series plot of PPP session showing displacements.

2.19 Bottom Menu Bar

The bottom menu bar allows to add or delete streams to BNC's configuration and to start or stop it. It also provides access to BNC's online help function. The 'Add Stream' button opens a window that allows user to select one of several input communication links, see figure below.

Figure 37: Steam input communication links.

2.19.1 Add Stream

Button 'Add Stream' allows you to pull streams either from a Ntrip Broadcaster or from a TCP/IP port, UPD port, or serial port.

2.19.1.1 Add Stream - Coming from Caster

Button 'Add Stream' > 'Coming from Caster' then opens a window that allows user to select data streams from an Ntrip Broadcaster according to their mountpoints and show a distribution map of offered streams.

2.19.1.1.1 Caster Host and Port - mandatory

Enter the Ntrip Broadcaster host IP and port number. Note that EUREF and IGS operate Ntrip Broadcasters at http://www.euref-ip.net/home, http://www.igs-ip.net/home, http://www.products.igs-ip.net/home and http://mgex.igs-ip.net/home.

2.19.1.1.2 Casters Table - optional

It may be that you are not sure about your Ntrip Broadcasters host and port number or you are interested in other broadcaster installations operated elsewhere. Hit 'Show' for a table of known broadcasters maintained at www.rtcm-ntrip.org/home. A window opens which allows selecting a broadcaster for stream retrieval, see figure below.

Figure 38: Casters table.

2.19.1.1.3 User and Password - mandatory for protected streams

Streams on Ntrip Broadcasters may be protected. Enter a valid 'User' ID and 'Password' for access to protected streams. Accounts are usually provided per Ntrip Broadcaster through a registration procedure. Register through http://register.rtcm-ntrip.org for access to protected streams from EUREF and IGS.

2.19.1.1.4 Get Table

Use the 'Get Table' button to download the source-table from the Ntrip Broadcaster. Pay attention to data fields 'format' and 'format-details'. Keep in mind that BNC can only decode and convert streams that come in RTCM Version 2, RTCM Version 3, or RTNET format. For access to observations, Broadcast Ephemeris and Broadcast Corrections in RTCM format streams must contain a selection of appropriate message types as listed in the Annex, cf. data field 'format-details' for available message types and their repetition rates in brackets. Note that in order to produce RINEX Navigation files RTCM Version 3 streams containing message types 1019 (GPS) and 1020 (GLONASS) and 1043 (SBAS) and 1044 (QZSS) and 1045, 1046 (Galileo) and 63 (tentative, BDS/BeiDou) are required. Select your streams line by line, use +Shift and +Ctrl when necessary. The figure below provides an example source-table.

The contents of data field 'nmea' tells you whether a stream retrieval needs to be initiated by BNC through sending an NMEA-GGA message carrying approximate position coordinates (virtual reference station).

Hit 'OK' to return to the main window. If you wish you can click on 'Add Stream' and repeat the process again to retrieve streams from different casters.

Figure 39: Broadcaster source-table.

2.19.1.1.5 Ntrip Version - mandatory

Some limitations and deficiencies of the Ntrip Version 1 stream transport protocol are solved in Ntrip Version 2. Improvements mainly concern a full HTTP compatibility in view of requirements coming from proxy servers. Version 2 is backwards compatible to Version 1. Options implemented in BNC are:

Option     Meaning
    1Ntrip Version 1, TCP/IP
    2Ntrip Version 2 in TCP/IP mode
    2sNtrip Version 2 in TCP/IP mode via SSL
    RNtrip Version 2 in RTSP/RTP mode
    UNtrip Version 2 in UDP mode

If Ntrip Version 2 is supported by the broadcaster:

Select option '1' if you are not sure whether the broadcaster supports Ntrip Version 2.

2.19.1.1.6 Map - optional

Button 'Map' opens a window to show a distribution map of the caster's streams. You may like to zoom in or out using the mouse. Left button: draw a rectangle to zoom, right button: zoom out, middle button: zoom back.

Figure 40: Stream distribution map derived from Ntrip Broadcaster source-table.

2.19.1.2 Add Stream - Coming from TCP/IP Port

Button 'Add Stream' > 'Coming from TCP/IP Port' allows to retrieve streams via TCP directly from an IP address without using the Ntrip transport protocol. For that you:

Streams directly received from a TCP/IP port show up with an 'N' for 'No Ntrip' in the 'Streams' canvas on BNC's main window. Latitude and longitude are to be entered just for informal reasons.

Note that this option works only if no proxy server is involved in the communication link.

2.19.1.3 Add Stream - Coming from UDP Port

Button 'Add Stream' > 'Coming from UDP Port' allows to pick up streams arriving directly at one of the local host's UDP ports without using the Ntrip transport protocol. For that you:

Streams directly received at a UDP port show up with a 'UN' for 'UDP, No Ntrip' in the 'Streams' canvas section on BNC's main window. Latitude and longitude are to be entered just for informal reasons.

2.19.1.4 Add Stream - Coming from Serial Port

Button 'Add Stream' > 'Coming from Serial Port' allows to retrieve streams from a GNSS receiver via serial port without using the Ntrip transport protocol. For that you:

When selecting one of the serial communication options listed above, make sure that you pick those configured to the serial connected GNSS receiver.

Streams received from a serial connected GNSS receiver show up with an 'S' (for Serial Port, no Ntrip) in the 'Streams' canvas section on BNC's main window. Latitude and longitude are to be entered just for informal reasons.

The following figure shows a BNC example setup for pulling a stream via serial port on a Linux operating system.

Figure 41: BNC setup for pulling a stream via serial port.

2.19.2 Delete Stream

Button 'Delete Stream' allows you to delete streams previously selected for retrieval as listed under the 'Streams' canvas on BNC's main window.

2.19.3 Map

Button 'Map' opens a window to show a distribution map of the streams selected for retrieval as listed under the 'Streams' canvas. You may like to zoom in or out using the mouse. Left button: draw a rectangle to zoom, right button: zoom out, middle button: zoom back.

2.19.4 Start

Hit 'Start' to start retrieving, decoding or converting GNSS data streams in real-time. Note that 'Start' generally forces BNC to begin with fresh RINEX which might overwrite existing files when necessary unless the option 'Append files' is ticked.

2.19.5 Stop

Hit the 'Stop' button in order to stop BNC.

2.19.6 Help? = Shift+F1

BNC comes with a What's This help system providing online information about its functionality and usage. Short descriptions are available for any widget and program option. Focus to the relevant object and press Shift+F1 to request help information. A help text appears immediately; it disappears as soon as the user does something else. The dialogs on some operating systems may provide a '?' button that users can click; click the relevant widget to pop up the help text.

2.20 Command Line Options

Command line options are available to run BNC in 'no window' mode or let it read previously recorded input offline from one or several files for debugging purposes. It is also possible to introduce a specific configuration filename instead of using the default filename 'BNC.bnc'. The self-explaining contents of the configuration file can easily be edited.

In addition to reading processing options from the involved configuration file, BNC can optionally read any configuration option from command line. Running BNC with command line option 'help'

Example:

      bnc.exe --help

provides a list of all available command line options.

2.20.1 Version - optional

Command line option '--version' lets BNC print its version number.

Example:

      bnc.exe --version

2.20.2 Display - optional

On systems which support graphics command line option '--display' forces BNC to present the BNC window on the specified display.

Example:

      bnc.exe --display localhost:10.0

2.20.3 No Window Mode - optional

Apart from its regular windows mode, BNC can be started on all systems as a batch job with command line option '-nw'. BNC will then run in 'no window' mode, using processing options from its configuration file on disk. Terminate BNC using Windows Task Manager when running it in 'no window' mode on Windows systems.

Example:

      bnc.exe --nw

It is obvious that BNC requires graphics support when started in interactive mode. But, note that it also requires graphics support when producing plots in batch mode (option -nw). Windows and Mac OS X systems always support graphics. For producing plots in batch mode on Linux systems you must make sure that at least a virtual X-Server such as 'Xvfb' is installed and the '-display' option is used. The following is an example shell script to execute BNC in batch mode for producing QC plots from RINEX files. It could be used via 'crontab':

   #!/bin/bash

   # Save string localhost
   echo "localhost" > /home/user/hosts

   # Start virtual X-Server, save process ID
   /usr/bin/Xvfb :29 -auth /home/user/hosts -screen 0 1280x1024x8 &
   psID=`echo $!`

   # Run BNC application with defined display variable
   /home/user/BNC/bnc --conf /dev/null --key reqcAction Analyze --key reqcObsFile ons12090.12o --key reqcNavFile brdc2090.12p --key reqcOutLogFile multi.txt --key reqcPlotDir /home/user --display localhost:29 --nw

   # BNC done, kill X-server process
   kill $psID

2.20.4 File Mode - optional

Although BNC is primarily a real-time online tool, for debugging purposes it can be run offline to read data from a file previously saved through option 'Raw output file'. Enter the following command line option for that

      --file <inputFileName>

and specify the full path to an input file containing previously saved data. Example:

      ./bnc --file /home/user/raw.output_110301

Note that when running BNC offline, it will use options for file saving, interval, sampling, PPP etc. from its configuration file.

Note further that option '--file' forces BNC to apply the '-nw' option for running in 'no window' mode.

2.20.5 Configuration File - optional

The default configuration filename is 'BNC.bnc'. You may change this name at startup time using the command line option '--conf <confFileName>'. This allows running several BNC jobs in parallel on the same host using different sets of configuration options. confFileName stands either for the full path to a configuration file or just for a filename. If you introduce only a filename, the corresponding file will be saved in the current working directory from where BNC is started.

Example:

      ./bnc --conf MyConfig.bnc

This leads to a BNC job using configuration file 'MyConfig.bnc'. The configuration file will be saved in the current working directory.

2.20.6 Configuration Options - optional

BNC applies options from the configuration file but allows updating every one of them on the command line while the contents of the configuration file remains unchanged. Note the following syntax for Command Line Interface (CLI) options:

      --key <keyName> <keyValue>

Parameter <keyName> stands for the name of an option contained in the configuration file and <keyValue> stands for the value you want to assign to it. The following is a syntax example for a complete command line:

      bnc --nw --conf <confFileName> --key <keyName1> <keyValue1> --key <keyName2> <keyValue2> ...

Configuration options which are part of the configuration files PPP section must be prefixed by 'PPP/'. As an example, option 'minObs' from the PPP section of the BNC configuration file would be specified as 'PPP/minObs' on a command line.

Values for configuration options can be introduced via command line exactly as they show up in the configuration file. However, any value containing one or more blank characters must be enclosed by quotation marks when specified on command line.

3. Annex

3.1 Revision History

Dec 2006  Version 1.0b   [Add] First Beta Binaries published based on Qt 4.2.3.
Jan 2007  Version 1.1b   [Add] Observables C2, S1, and S2
[Add] Virtual reference station access
[Bug] RTCM2 decoder time tag fixed
[Mod] Small letters for public RINEX skeleton files
[Add] Online help through Shift+F1
Apr 2007  Version 1.2b   [Bug] Output only through IP port
[Bug] Method 'reconnecting' now thread-save
[Add] ZERO decoder added
[Mod] Download public RINEX skeletons once per day
[Mod] Upgrade to Qt Version 4.2.3
[Mod] Replace 'system' call for RINEX script by 'QProcess'
[Add] HTTP Host directive for skeleton file download
[Add] Percent encoding for user IDs and passwords
[Bug] Exit execution of calling thread for RTCM3 streams
[Bug] Signal-slot mechanism for threads
May 2007  Version 1.3   [Add] Source code published.
Jul 2007  Version 1.4   [Bug] Skip messages from proxy server
[Bug] Call RINEX script through 'nohup'
Apr 2008  Version 1.5   [Add] Handle ephemeris from RTCM Version 3 streams
[Add] Upgrade to Qt Version 4.3.2
[Add] Optional RINEX v3 output
[Add] SBAS support
[Bug] RINEX skeleton download following stream outage
[Add] Handle ephemeris from RTIGS streams
[Add] Monitor stream failure/recovery and latency
[Mod] Redesign of main window
[Bug] Freezing of About window on Mac OS X
[Bug] Fixed problem with PRN 32 in RTCM v2 decoder
[Bug] Fix for Trimble 4000SSI receivers in RTCM v2 decoder
[Mod] Major revision of input buffer in RTCM v2 decoder
Dec 2008  Version 1.6   [Mod] Fill blank columns in RINEX v3 with 0.000
[Add] RTCM v3 decoder for orbit and clock corrections
[Add] Check RTCM v3 streams for incoming message types
[Add] Decode RTCM v2 message types 3, 20, 21, and 22
[Add] Loss of lock and lock time indicator
[Bug] Rounding error in RTCM v3 decoder concerning GLONASS height
[Mod] Accept GLONASS in RTCM v3 when transmitted first
[Add] Leap second 1 January 2009
[Add] Offline mode, read data from file
[Add] Output antenna descriptor, coordinates and eccentricities from RTCM v3
[Add] Reconfiguration on-the-fly
[Mod] Binary output of synchronized observations
[Add] Binary output of unsynchronized observations
[Bug] Fixed problem with joined RTCM v3 blocks
Dec 2008  Version 1.6.1   [Mod] HTTP GET when no proxy in front
Nov 2009  Version 1.7   [Bug] RINEX Navigation file format
[Add] Upgrade to Qt Version 4.5.2
[Add] Support of Ntrip v2
[Add] Rover support via serial port
[Add] Show broadcaster table from www.rtcm-ntrip.org
[Add] Enable/disable panel widgets
[Add] User defined configuration filename
[Mod] Switch to configuration files in ini-Format
[Add] Daily logfile rotation
[Add] Read from TCP/IP port, by-pass Ntrip transport protocol
[Add] Save NMEA messages coming from rover
[Add] Auto start
[Add] Drag and drop ini files
[Add] Read from serial port, by-pass Ntrip transport protocol
[Mod] Update of SSR messages following RTCM 091-2009-SC104-542
[Add] Read from UPD port, by-pass Ntrip transport protocol
[Mod] Output format of Broadcast Corrections
[Add] Throughput plot
[Add] Latency plot
Nov 2009  Version 1.8   [Mod] On-the-fly reconfiguration of latency and throughput plots
Feb 2010  Version 2.0   [Mod] Change sign of Broadcast Corrections
[Add] Real-time PPP option
Jun 2010  Version 2.1   [Bug] SSR GLONASS message generation
[Add] PPP in Post Processing mode
[Mod] Update of SSR messages following draft dated 2010-04-12
[Mod] Generating error message when observation epoch is wrong
Jul 2010  Version 2.2   [Bug] GLONASS ephemeris time
Aug 2010  Version 2.3   [Mod] Internal format for saving raw streams
[Bug] Outlier detection in GLONASS ambiguity resolution
[Mod] Format of PPP logs in logfile
[Bug] Complete acceleration terms for GLONASS ephemeris
[Bug] Handling ephemeris IOD's in PPP mode
Dec 2010  Version 2.4   [Add] Output of averaged positions when in PPP mode
[Mod] Use always the latest received set of Broadcast Ephemeris
[Add] QuickStart PPP option
[Mod] Improvement of data sharing efficiency among different threads
[Mod] Design of PPP panel section
[Add] Sigmas for observations and parameters
[Add] Stream distribution map
[Bug] GPS Ephemeris in RINEX v3 format
Feb 2011  Version 2.5   [Add] PPP option for sync of clock observations and corrections
[Add] Drafted RTCM v3 Galileo ephemeris messages 1045
[Add] Drafted RTCM v3 Multiple Signal Messages
[Add] Optional specification of sigmas for coordinates and troposphere in PPP
[Add] Include Galileo in SPP
[Add] Include Galileo observations in output via IP port
[Add] Include Galileo observations in output via RINEX v3 files
[Mod] Interface format for feeding a real-time engine with observations
[Add] Correct observations for antenna phase center offsets
[Add] Combine orbit/clock correction streams
[Add] Specify corrections mountpoint in PPP panel
Apr 2011  Version 2.6   [Add] Complete integration of BNS in BNC
[Add] SP3 and Clock RINEX output
[Add] PPP in Post Processing Mode
[Add] Some RINEX editing & QC functionality
[Add] Threshold for orbit outliers in combination solution
[Add] Real-time engine becomes orbit/clock server instead of client
[Mod] 'EOE' added to orbit/clock stream from engine
[Add] Correction for antenna eccentricities
[Add] Quick start mode for PPP
[Mod] Design of format for feeding engine changed to follow RINEX v3
[Mod] Implementation of SSR message encoding modified according to standard
[Add] SSL/TLS Support of Ntrip Version 2
[Mod] Switch to Qt version 4.7.3
[Add] RINEX editing, concatenation and quality check
[Add] Reading all configuration options from command line
[Mod] RTCM v3 Galileo Broadcast Ephemeris message 1045
[Mod] Change default configuration file suffix from 'ini' to 'bnc'
[Add] Specific rates for orbits and clocks in streams and SP3/RNX files
May 2012  Version 2.6   [Add] Version 2.6 published
Sep 2012  Version 2.7   [Bug] Bug in L5 decoding fixed
[Bug] Bug in on-the-fly configuration fixed
[Add] Clock RINEX file header extended
[Add] Decoding/converting BeiDou and QZSS added
[Add] Work on RINEX v2 and v3 quality check started
[Mod] Source code completely re-arranged
[Add] QWT and QWTPOLAR graphics libraries added
[Add] RINEX QC through multipath analysis sky plot
[Add] RINEX QC through signal-to-noise ratio sky plot
[Add] RINEX QC through satellite availability plot
[Add] RINEX QC through satellite elevation plot
[Add RINEX QC through PDOP plot
[Bug] Short periodic outages in PPP time series when 'Sync Corr' set to zero
|Add] Log observation types contained in RTCM Version 3 MSM streams
[Add] Reading RINEX v3 observation type header records from RINEX skeleton files
[Add] Logfile for RINEX file editing and concatenation
[Add] Save PNG plot files on disk
[Mod] Plot stream distribution map from Ntrip Broadcaster source-table
[Add] Plot stream distribution map from selected sources
[Add] Version 2.7 published
Mar 2013  Version 2.8   [Mod] Started work on new version in Sep 2012
[Bug] Epoch special event flag in RINEX concatenation
[Bug] Limit RINEX v2 records length to 80 characters
[Bug] SSR message update interval indicator
[Bug] Fixed SSR stream encoding and upload
[Add] Concatenate RINEX v3 navigation files containing Galileo ephemeris
[Mod] Plausibility check of GLONASS ephemeris
[Add] Correcting clocks for scale factor involved in transformation
[Mod] Orbit/clock interpolation in SSR stream encoding and upload to caster
[Add] Version 2.8 published
Jul 2013  Version 2.9   [Add] Started work on new version in Mar 2013
[Bug] SSR stream upload buffering disabled
[Mod] Format for feeding a connected GNSS engine
[Mod] RTNET format for receiving data from a connected GNSS engine
[Add] Include Galileo in SPP
[Add] RINEX QC multipath an SNR sky plots for GLONASS and Galileo
[Add] Bias estimation for GLONASS clocks in PPP
[Add] Trace positions on GM or OSM maps
[Add] Version 2.9 published
Dec 2013  Version 2.10   [Add] Started work on new version in Aug 2013
[Bug] Clock RINEX und SP3 file generation on Windows systems
[Bug] Broadcast Ephemeris generation
[Add] Transformation ITRF2008 to NAD83 and DREF91
[Add] CodeBias added to RTNET stream format
[Bug] GPS L2 in 'Feed Engine' output
[Mod] Made C1 in BeiDou default observation type instead of C2
[Add] Feed engine output sorted per stream
[Add] Feed engine output filename change on-the-fly
[Add] 'Append files' option for RINEX observation files
[Mod] Broadcast Corrections ASCII file output for message 1058 & 1064 modified
[Bug] GPS L2 phase data in RINEX2
[Bug] GLONASS frequency numbers
[Add] RTCM v3 Galileo Broadcast Ephemeris message 1046
[Add] Reset ambiguities in PPP when orbit/clock correction IDs change
[Add] Satellite clock offsets are reset in adjustment for combination when orbit/clock correction IDs change
[Add] Version 2.10 published
Sep 2014  Version 2.11   [Add] Started work on new version in Dec 2013
[Mod] SIRGAS transformation parameters adjusted
[Mod] Antex file updated
[Mod] RTCM SSR messages updated
[Bug] GLONASS code biases
[Mod] Maximum number of GNSS observations increased
[Mod] Loss of lock handling changed
[Add] Raw stream output through TCP/IP port
[Add] Version 2.11.0 published
Sep 2014  Version 2.12   [Add] Started work on new version in Sep 2014
[Mod] RINEX file concatenation
[Add] Observation code selection in RINEX file editing
[Mod] Routine handling of data input and output in RINEX format re-written
[Mod] QC routines re-written with the goal of handling all signal types
[Add] Machine-readable output of RINEX QC
[Add] Additional PPP client for parallel processing of an arbitrary number of stations in separate threads
[Add] PPP processing of any number of linear combinations of GNSS measurements selected by user
[Add] Decoding RTCM SSR phase bias messages
[Add] Decoding RTCM SSR ionospheric model messages, single-layer model for total electron content
[Add] RTCM v3 QZSS Broadcast Ephemeris message 1044
[Add] Handle old-fashioned SNR values in RINEX
[Mod] SNR and MP visualization depending on RINEX observation attribute
[Bug] Saastamoinen tropospheric correction for very high elevation receivers
[Add] Comparison of SP3 files
[Add] RTCM v3 SBAS Broadcast Ephemeris message 1043
[Add] RTCM v3 BDS Broadcast Ephemeris message 63 (tentative)
[Bug] VRS support in sending NMEA in Auto/Manual mode to Ntrip Broadcaster
[Add] Forwarding NMEA GNGGA to Ntrip Broadcaster
[Bug] Stream failure/recovery reports
[Add] Compute IODs from CRC over broadcast ephemeris and clock parameters
[Mod] PPP default options
[Add] Example configuration for SP3 file comparison
[Add] Chose between code and phase observations when in PPP SSR I mode
[Bug] Reset time series plot when restarting PPP in post processing mode
[Add] Broadcast ephemeris check regarding allowed age of data sets
[Add] Code bias usage for PPP SSR I mode
[Add] Allow GPS-only and GLONASS-only RINEX v2 Navigation files
[Mod] SSR clock correction converted to seconds to be consistent with broadcast values
[Add] Support Galileo I/NAV broadcast ephemeris
[Add] Extended RINEX v3 filenames
[Add] Stream's country added to configuration string 'mountPoints'
[Add] Set TOE from BDS week and second
[Add] Use BDS observations in PPP SSR I mode
[Add] Considering that yaw angle restricted to -180 to +180 deg
[Mod] Read local RINEX skeleton files
[Add] Update interval for VTEC in RTNET stream format
[Bug] SBAS IODN
[Bug] Galileo week number
[Add] Phase shift records in RINEX v3 headers
[Add] Output GLONASS slot numbers from scanning stream contents
[Add] Decoder interface for PPP SSR I+II messages for Galileo/QZSS/SBAS/BDS
[Mod] Renaming BDS first frequency from '1' to '2'
[Add] RINEX QC, receiver/antenna information editable
[Add] Switch to port 443 for skeleton file download from https website
[Mod] Default observation types for RINEX v3 files
[Bug] RTCM v2 decoder
[Add] SINEX Troposphere file output
[Add] String for Operating System in logfile output
[Add] Full integration of 'rtcm3torinex'
[Add] Extended command line help

3.2 RTCM Standards

The Radio Technical Commission for Maritime Services (RTCM) is an international non-profit scientific, professional and educational organization. Special Committees provide a forum in which governmental and non-governmental members work together to develop technical standards and consensus recommendations in regard to issues of particular concern. RTCM is engaged in the development of international standards for maritime radionavigation and radiocommunication systems. The output documents and reports prepared by RTCM Committees are published as RTCM Recommended Standards. Topics concerning Differential Global Navigation Satellite Systems (DGNSS) are handled by the Special Committee SC 104.

Personal copies of RTCM Recommended Standards can be ordered through http://www.rtcm.org/orderinfo.php.

3.2.1 Ntrip Version 1

'Networked Transport of RTCM via Internet Protocol' Version 1.0 (Ntrip) stands for an application-level protocol streaming Global Navigation Satellite System (GNSS) data over the Internet. Ntrip is a generic, stateless protocol based on the Hypertext Transfer Protocol HTTP/1.1. The HTTP objects are enhanced to GNSS data streams.

Ntrip Version 1 is an RTCM standard designed for disseminating differential correction data (e.g. in the RTCM-104 format) or other kinds of GNSS streaming data to stationary or mobile users over the Internet, allowing simultaneous PC, Laptop, PDA, or receiver connections to a broadcasting host. Ntrip supports wireless Internet access through Mobile IP Networks like GSM, GPRS, EDGE, or UMTS.

Ntrip is implemented in three system software components: Ntrip Clients, Ntrip Servers and Ntrip Broadcasters. The Ntrip Broadcaster is the actual HTTP server program whereas Ntrip Client and Ntrip Server are acting as HTTP clients.

Ntrip is an open none-proprietary protocol. Major characteristics of Ntrip's dissemination technique are:

The Ntrip Broadcaster maintains a source-table containing information on available Ntrip streams, networks of Ntrip streams and Ntrip Broadcasters. The source-table is sent to an Ntrip Client on request. Source-table records are dedicated to one of the following: Data Streams (record type STR), Casters (record type CAS), or Networks of streams (record type NET).

Source-table records of type STR contain the following data fields: 'mountpoint', 'identifier', 'format', 'format-details', 'carrier', 'nav-system', 'network', 'country', 'latitude', 'longitude', 'nmea', 'solution', 'generator', 'compr-encryp', 'authentication', 'fee', 'bitrate', 'misc'.

Source-table records of type NET contain the following data fields: 'identifier', 'operator', 'authentication', 'fee', 'web-net', 'web-str', 'web-reg', 'misc'.

Source-table records of type CAS contain the following data fields: 'host', 'port', 'identifier', 'operator', 'nmea', 'country', 'latitude', 'longitude', 'misc'.

3.2.2 Ntrip Version 2

The major changes of Ntrip Version 2 compared to Version 1.0 are:

Ntrip Version 2 allows to either communicate in TCP/IP mode or in RTSP/RTP mode or in UDP mode whereas Version 1 is limited to TCP/IP only. It furthermore allows using the Transport Layer Security (TLS) and its predecessor, Secure Sockets Layer (SSL) cryptographic protocols for secure Ntrip communication over the Internet.

3.2.3 RTCM Version 2

Transmitting GNSS carrier phase data can be done through RTCM Version 2 messages. Please note that only RTCM Version 2.2 and 2.3 streams may include GLONASS data. Messages that may be of interest here are:

3.2.4 RTCM Version 3

RTCM Version 3 has been developed as a more efficient alternative to RTCM Version 2. Service providers and vendors have asked for a standard that would be more efficient, easy to use, and more easily adaptable to new situations. The main complaint was that the Version 2 parity scheme was wasteful of bandwidth. Another complaint was that the parity is not independent from word to word. Still another was that even with so many bits devoted to parity, the actual integrity of the message was not as high as it should be. Plus, 30-bit words are awkward to handle. The Version 3 standard is intended to correct these weaknesses.

RTCM Version 3 defines a number of message types. Messages that may be of interest here are:

The following are so-called 'State Space Representation' (SSR) messages:

The following are so-called 'Multiple Signal Messages' (MSM):

The following are proposed 'Multiple Signal Messages' (MSM) under discussion for standardization:

3.3 Command Line Help

Command line option '--help' provides a complete list of all configuration parameters which can be specified via BNC's Command Line Interface (CLI). Note that command line options overrule configuration options specified in the configuration file. The following is the output produced when running BNC with command line option '--help':

Usage:
   bnc --help
       --nw
       --version
       --display {name}
       --conf {confFileName}
       --file {rawFileName}
       --key  {keyName} {keyValue}

Network Panel keys:
   proxyHost       {Proxy host, name or IP address [character string]}
   proxyPort       {Proxy port [integer number]}
   sslCaCertPath   {Full path to SSL certificates [character string]}
   sslIgnoreErrors {Ignore SSL authorization errors [integer number: 0=no,2=yes]}

General Panel keys:
   logFile          {Logfile, full path [character string]}
   rnxAppend        {Append files [integer number: 0=no,2=yes]}
   onTheFlyInterval {Configuration reload interval [character string: 1 day|1 hour|5 min|1 min]}
   autoStart        {Auto start [integer number: 0=no,2=yes]}
   rawOutFile       {Raw output file, full path [character string]}

RINEX Observations Panel keys:
   rnxPath        {Directory [character string]}
   rnxIntr        {File interval [character string: 1 min|2 min|5 min|10 min|15 min|30 min|1 hour|1 day]}
   rnxSampl       {File sampling rate [integer number of seconds: 0,5|10|15|20|25|30|35|40|45|50|55|60]}
   rnxSkel        {RINEX skeleton file extension [character string]}
   rnxOnlyWithSKL {Using RINEX skeleton file is mandatory [integer number: 0=no,2=yes]}
   rnxScript      {File upload script, full path [character string]}
   rnxV2Priority  {Priority of signal attributes [character string, list separated by blank character, example: G:CWPX_? R:CP]}
   rnxV3          {Produce version 3 file contents [integer number: 0=no,2=yes]}
   rnxV3filenames {Produce version 3 filenames [integer number: 0=no,2=yes]}

RINEX Ephemeris Panel keys:
   ephPath        {Directory [character string]}
   ephIntr        {File interval [character string: 1 min|2 min|5 min|10 min|15 min|30 min|1 hour|1 day]}
   ephOutPort     {Output port [integer number]}
   ephV3          {Produce version 3 file contents [integer number: 0=no,2=yes]}
   ephV3filenames {Produce version 3 filenames [integer number: 0=no,2=yes]}

RINEX Editing and QC Panel keys:
   reqcAction            {Action specification [character string:  Blank|Edit/Concatenate|Analyze]}
   reqcObsFile           {Input observations file(s), full path [character string, comma separated list in quotation marks]}
   reqcNavFile           {Input navigation file(s), full path [character string, comma separated list in quotation marks]}
   reqcOutObsFile        {Output observations file, full path [character string]}
   reqcOutNavFile        {Output navigation file, full path [character string]}
   reqcOutLogFile        {Output logfile, full path [character string]}
   reqcLogSummaryOnly    {Output only summary of logfile [integer number: 0=no,2=yes]}
   reqcSkyPlotSignals    {Observation signals [character string, list separated by blank character, example: C:2&7 E:1&5 G:1&2 J:1&2 R:1&2 S:1&5]}
   reqcPlotDir           {QC plots directory [character string]}
   reqcRnxVersion        {RINEX version [integer number: 2|3]}
   reqcSampling          {RINEX output file sampling rate [integer number of seconds: 0|5|10|15|20|25|30|35|40|45|50|55|60]}
   reqcV2Priority        {Version 2 priority of signal attributes [character string, list separated by blank character, example: G:CWPX_? R:CP]}
   reqcStartDateTime     {Start time [character string, example: 1967-11-02T00:00:00]}
   reqcEndDateTime       {Stop time [character string, example: 2099-01-01T00:00:00 }
   reqcRunBy             {Operators name [character string]}
   reqcUseObsTypes       {Use observation types [character string, list separated by blank character, example: G:C1C G:L1C R:C1C RC1P]}
   reqcComment           {Additional comments [character string]}
   reqcOldMarkerName     {Old marker name [character string]}
   reqcNewMarkerName     {New marker name [character string]}
   reqcOldAntennaName    {Old antenna name [character string]}
   reqcNewAntennaName    {New antenna name [character string]}
   reqcOldAntennaNumber  {Old antenna number [character string]}
   reqcNewAntennaNumber  {New antenna number [character string]}
   reqcOldAntennadN      {Old north eccentricity [character string]}
   reqcNewAntennadN      {New north eccentricity [character string]}
   reqcOldAntennadE      {Old east eccentricity [character string]}
   reqcNewAntennadE      {New east eccentricity [character string]}
   reqcOldAntennadU      {Old up eccentricity [character string]}
   reqcNewAntennadU      {New up eccentricity [character string]}
   reqcOldReceiverName   {Old receiver name [character string]}
   reqcNewReceiverName   {New receiver name [character string]}
   reqcOldReceiverNumber {Old receiver number [character string]}
   reqcNewReceiverNumber {New receiver number [character string]}

SP3 Comparison Panel keys:
   sp3CompFile       {SP3 input files, full path [character string, comma separated list in quotation marks]}
   sp3CompExclude    {Satellite exclusion list [character string, comma separated list in quotation marks, example: "G04,G31,R"]}
   sp3CompOutLogFile {Output logfile, full path [character string]}

Broadcast Corrections Panel keys:
   corrPath {Directory for saving files in ASCII format [character string]}
   corrIntr {File interval [character string: 1 min|2 min|5 min|10 min|15 min|30 min|1 hour|1 day]}
   corrPort {Output port [integer number]}

Feed Engine Panel keys:
   outPort  {Output port, synchronized [integer number]}
   outWait  {Wait for full observation epoch [integer number of seconds: 1-30]}
   outSampl {Sampling rate [integer number of seconds: 0|5|10|15|20|25|30|35|40|45|50|55|60]}
   outFile  {Output file, full path [character string]}
   outUPort {Output port, unsynchronized [integer number]}

Serial Output Panel:
   serialMountPoint         {Mountpoint [character string]}
   serialPortName           {Port name [character string]}
   serialBaudRate           {Baud rate [integer number: 110|300|600|1200|2400|4800|9600|19200|38400|57600|115200]}
   serialFlowControl        {Flow control [character string: OFF|XONXOFF|HARDWARE}
   serialDataBits           {Data bits [integer number: 5|6|7|8]}
   serialParity             {Parity [character string: NONE|ODD|EVEN|SPACE]}
   serialStopBits           {Stop bits [integer number: 1|2]}
   serialAutoNMEA           {NMEA specification [character string: no|Auto|Manual GPGGA|Manual GNGGA]}
   serialFileNMEA           {NMEA filename, full path [character string]}
   serialHeightNMEA         {Height [floating-point number]}
   serialHeightNMEASampling {Sampling rate [integer number of seconds: 0|10|20|30|...|280|290|300]}

Outages Panel keys:
   adviseObsRate {Stream observation rate [character string: 0.1 Hz|0.2 Hz|0.5 Hz|1 Hz|5 Hz]}
   adviseFail    {Failure threshold [integer number of minutes: 0-60]}
   adviseReco    {Recovery threshold [integer number of minutes: 0-60]}
   adviseScript  {Advisory script, full path [character string]}

Miscellaneous Panel keys:
   miscMount    {Mountpoint [character string]}
   miscIntr     {Interval for logging latency [character string: Blank|2 sec|10 sec|1 min|5 min|15 min|1 hour|6 hours|1 day]}
   miscScanRTCM {Scan for RTCM message numbers [integer number: 0=no,2=yes]}
   miscPort     {Output port [integer number]}

PPP Client Panel 1 keys:
   PPP/dataSource  {Data source [character string: Blank|Real-Time Streams|RINEX Files]}
   PPP/rinexObs    {RINEX observation file, full path [character string]}
   PPP/rinexNav    {RINEX navigation file, full path [character string]}
   PPP/corrMount   {Corrections mountpoint [character string]}
   PPP/corrFile    {Corrections file, full path [character string]}
   PPP/antexFile   {ANTEX file, full path [character string]}
   PPP/crdFile     {Coordinates file, full path [character string]}
   PPP/v3filenames {Produce version 3 filenames, [integer number: 0=no,2=yes]}
   PPP/logPath     {Directory for PPP log files [character string]}
   PPP/nmeaPath    {Directory for NMEA output files [character string]}
   PPP/snxtroPath  {Directory for SINEX troposphere output files [character string]}
   PPP/snxtroIntr  {SINEX troposphere file interval [character string: 1 min|2 min|5 min|10 min|15 min|30 min|1 hour|1 day]}
   PPP/snxtroSampl {SINEX troposphere file sampling rate [integer number of seconds: 0|30|60|90|120|150|180|210|240|270|300]}

PPP Client Panel 2 keys:
   PPP/staTable {Station specifications table [character string, semicolon separated list, each element in quotation marks, example:
                "FFMJ1,100.0,100.0,100.0,100.0,100.0,100.0,0.1,3e-6,7777";"CUT07,100.0,100.0,100.0,100.0,100.0,100.0,0.1,3e-6,7778"]}

PPP Client Panel 3 keys:
   PPP/lcGPS        {Select linear combination from GPS code or phase data [character string; P3|P3&L3]}
   PPP/lcGLONASS    {Select linear combination from GLONASS code or phase data [character string: no|P3|L3|P3&L3]}
   PPP/lcGalileo    {Select linear combination from Galileo code or phase data [character string: no|P3|L3|P3&L3]}
   PPP/lcBDS        {Select linear combination from BDS code or phase data [character string: no|P3|L3|P3&L3]}
   PPP/sigmaC1      {Sigma for code observations in meters [floating-point number]}
   PPP/sigmaL1      {Sigma for phase observations in meters [floating-point number]}
   PPP/maxResC1     {Maximal residuum for code observations in meters [floating-point number]}
   PPP/maxResL1     {Maximal residuum for phase observations in meters [floating-point number]}
   PPP/eleWgtCode   {Elevation dependent waiting of code observations [integer number: 0=no,2=yes]}
   PPP/eleWgtPhase  {Elevation dependent waiting of phase observations [integer number: 0=no,2=yes]}
   PPP/minObs       {Minimum number of observations [integer number: 4|5|6]}
   PPP/minEle       {Minimum satellite elevation in degrees [integer number: 0-20]}
   PPP/corrWaitTime {Wait for clock corrections [integer number of seconds: no|1-20]}
   PPP/seedingTime  {Seeding time span for Quick Start [integer number of seconds]}

PPP Client Panel 4 keys:
   PPP/plotCoordinates  {Mountpoint for time series plot [character string]}
   PPP/audioResponse    {Audio response threshold in meters [floating-point number]}
   PPP/useOpenStreetMap {OSM track map [character string: true|false]}
   PPP/useGoogleMap     {Google track map [character string: true|false]}
   PPP/mapWinDotSize    {Size of dots on map [integer number: 0-10]}
   PPP/mapWinDotColor   {Color of dots and cross hair on map [character string: red|yellow]}
   PPP/mapSpeedSlider   {Offline processing speed for mapping [integer number: 1-100]}

Combine Corrections Panel keys:
   cmbStreams      {Correction streams table [character string, semicolon separated list, each element in quotation marks, example:
                   "IGS01 ESA 1.0";"IGS03 BKG 1.0"]}
   cmbMethodFilter {Combination approach [character string: Single-Epoch|Filter]
   cmbMaxres       {Clock outlier residuum threshold in meters [floating-point number]
   cmbSampl        {Clock sampling rate [integer number of seconds: 10|20|30|40|50|60]}
   cmbUseGlonass   {Use GLONASS in combination [integer number: 0=no,2=yes]

Upload Corrections Panel keys:
   uploadMountpointsOut   {Upload corrections table [character string, semicolon separated list, each element in quotation marks, example:
                          "www.igs-ip.net,2101,IGS01,pass,IGS08,0,/home/user/BNC$[GPSWD}.sp3,/home/user/BNC$[GPSWD}.clk,258,1,0,0 byte(s)";
                          "www.euref-ip.net,2101,EUREF01,pass,ETRF2000,0,,,258,2,0,0 byte(s)"]}
   uploadIntr             {Length of SP3 and Clock RINEX file interval [character string: 1 min|2 min|5 min|10 min|15 min|30 min|1 hour|1 day]}
   uploadSamplRtcmEphCorr {Orbit corrections stream sampling rate [integer number of seconds: 0|5|10|15|20|25|30|35|40|45|50|55|60]}
   uploadSamplSp3         {SP3 file sampling rate [integer number of minutes: 0-15]}
   uploadSamplClkRnx      {Clock RINEX file sampling rate [integer number of seconds: 0|5|10|15|20|25|30|35|40|45|50|55|60]}

Custom Trafo keys:
   trafo_dx  {Translation X in meters [floating-point number]
   trafo_dy  {Translation Y in meters [floating-point number]
   trafo_dz  {Translation Z in meters [floating-point number]
   trafo_dxr {Translation change X in meters per year [floating-point number]
   trafo_dyr {Translation change Y in meters per year [floating-point number]
   trafo_dzr {Translation change Z in meters per year [floating-point number]
   trafo_ox  {Rotation X in arcsec [floating-point number]}
   trafo_oy  {Rotation Y in arcsec [floating-point number]}
   trafo_oz  {Rotation Z in arcsec [floating-point number]}
   trafo_oxr {Rotation change X in arcsec per year [floating-point number]}
   trafo_oyr {Rotation change Y in arcsec per year [floating-point number]}
   trafo_ozr {Rotation change Z in arcsec per year [floating-point number]}
   trafo_sc  {Scale [10^-9, floating-point number]}
   trafo_scr {Scale change [10^-9 per year, floating-point number]}
   trafo_t0  {Reference year [integer number]}

Upload Ephemeris Panel keys:
   uploadEphHost       {Broadcaster host, name or IP address [character string]}
   uploadEphPort       {Broadcaster port [integer number]}
   uploadEphMountpoint {Mountpoint [character string]}
   uploadEphPassword   {Stream upload password [character string]}
   uploadEphSample     {Stream upload sampling rate [integer number of seconds: 5|10|15|20|25|30|35|40|45|50|55|60]}

Add Stream keys:
   mountPoints   {Mountpoints [character string, semicolon separated list, example:
                 //user:pass@www.igs-ip.net:2101/FFMJ1 RTCM_3.1 DEU 50.09 8.66 no 2;
                 //user:pass@www.igs-ip.net:2101/FFMJ2 RTCM_3.1 DEU 50.09 8.66 no 2}
   ntripVersion  {Ntrip Version [character string: 1|2|2s|R|U]}
   casterUrlList {Visited Broadcasters [character string, comma separated list]}

Appearance keys:
   startTab  {Index of top panel to be presented at start time [integer number: 0-17]}
   statusTab {Index of bottom panel to be presented at start time [integer number: 0-3]}
   font      {Font specification [character string in quotation marks, example: "Helvetica,14,-1,5,50,0,0,0,0,0"]}

Note:
Configuration options which contain one or more blank characters must be enclosed by quotation marks when specified on command line.

Example command lines:
(1) /home/weber/bin/bnc
(2) /Applications/bnc.app/Contents/MacOS/bnc
(3) /home/weber/bin/bnc --conf /home/weber/MyConfigFile.bnc
(4) bnc --conf /Users/weber/.config/BKG/BNC.bnc -nw
(5) bnc --conf /dev/null --key startTab 4 --key reqcAction Edit/Concatenate --key reqcObsFile AGAR.15O --key reqcOutObsFile AGAR_X.15O --key reqcRnxVersion 2 --key reqcSampling 30 --key reqcV2Priority CWPX_?
(6) bnc --key mountPoints "//user:pass@mgex.igs-ip.net:2101/CUT07 RTCM_3.0 ETH 9.03 38.74 no 2;//user:pass@www.igs-ip.net:2101/FFMJ1 RTCM_3.1 DEU 50.09 8.66 no 2"
(7) bnc --key cmbStreams "CLK11 BLG 1.0;CLK93 CNES 1.0"
(8) bnc --key PPP/staTable "FFMJ1,100.0,100.0,100.0,100.0,100.0,100.0,0.1,3e-6,7777;CUT07,100.0,100.0,100.0,100.0,100.0,100.0,0.1,3e-6,7778"

3.4 Further Reading

Links
Ntrip  http://igs.bkg.bund.de/ntrip/index
EUREF-IP Ntrip Broadcaster  http://www.euref-ip.net/home
IGS-IP Ntrip Broadcaster  http://www.igs-ip.net/home
IGS products Ntrip Broadcaster  http://products.igs-ip.net/home
IGS M-GEX Ntrip Broadcaster  http://mgex.igs-ip.net/home
IGS Central Bureau Ntrip Broadcaster  http://rt.igs.org
IGS Real-time Service  http://rts.igs.org
Distribution of IGS-IP streams  http://www.igs.oma.be/real_time/
Completeness and latency of IGS-IP data  http://www.igs.oma.be/highrate/
Ntrip Broadcaster overview  http://www.rtcm-ntrip.org/home
Ntrip Open Source software code  http://software.rtcm-ntrip.org
EUREF-IP Project  http://www.epncb.oma.be/euref_IP
Real-time IGS Pilot Project  http://www.rtigs.net/pilot
Radio Technical Commission
for Maritime Services
http://www.rtcm.org

Publications
Estey, Louis H. and Charles M. MeertensTEQC: The Multi-Purpose Toolkit for GPS/GLONASS Data, GPS Solutions, Vol. 3, No. 1, pp. 42-49, 1999.
Rupprecht, WolfgangDGPS-IP, http://www.wsrcc.com/wolfgang/gps/dgps-ip.html, 2000.
Weber, G., D. Dettmering and H. GebhardNetworked Transport of RTCM via Internet Protocol (NTRIP). In: Sanso F. (Ed.): A Window on the Future, Proceedings of the IAG General Assembly, Sapporo, Japan, 2003, Springer Verlag, Symposia Series, Vol. 128, p. 60-64, 2005.
Weber, G., D. Dettmering, H. Gebhard and R. Kalafus Networked Transport of RTCM via Internet Protocol (Ntrip), IP-Streaming for Real-Time GNSS Applications, ION GNSS 2005.
Weber, G, L. Mervart, Z. Lukes, C. Rocken and J. Dousa Real-time Clock and Orbit Corrections for Improved Point Positioning via Ntrip, ION GNSS 2007.
Mervart, L., Z. Lukes, C. Rocken and T. Iwabuchi Precise Point Positioning With Ambiguity Resolution in Real-Time, ION GNSS 2008.
Weber, G. and L. Mervart The BKG Ntrip Client (BNC), Report on EUREF Symposium 2007 in London, Mitteilungen des Bundesamtes fuer Kartographie und Geodaesie, Band 42, Frankfurt, 2009.
Weber, G. and L. Mervart Real-time Combination of GNSS Orbit and Clock Correction Streams Using a Kalman Filter Approach, ION GNSS 2010.
RTCM SC-104Amendment 1 to RTCM Standard 10410.1 Networked Transport of RTCM via Internet Protocol (Ntrip) - Version 2.0, RTCM Papter 139-2011-SC104-STD, 2011.
Huisman, L., P. Teunissen and C. Hu GNSS Precise Point Positioning in Regional Reference Frames Using Real-time Broadcast Corrections, Journal of Applied Geodesy, Vol. 6, pp15-23, 2012.
Mervart, L., A. Stürze, G. Weber, A. Rülke and D. StöckerBKG Ntrip Client, Version 2.12.0. Mitteilungen des Bundesamtes für Kartographie und Geodäsie, Vol. 49, Frankfurt am Main, 2016.
