BKG Ntrip Client (BNC) Version 2.9 Manual

The BKG Ntrip Client (BNC) is a program for simultaneously retrieving, decoding, converting and processing real-time GNSS data streams. It has been developed within the framework of the IAG sub-commission for Europe (EUREF) and the International GNSS Service (IGS). Although meant as a real-time tool, it comes with some Post Processing functionality. You may like to use it for data coming from NTRIP Broadcasters like http://www.euref-ip.net/home, http://www.igs-ip.net/home, http://products.igs-ip.net/home, or http://mgex.igs-ip.net/home.

BNC has been written under GNU General Public License (GPL). Source code is available from Subversion software archive http://software.rtcm-ntrip.org/svn/trunk/BNC. Binaries for BNC are available for Windows, Linux, Solaris, and Mac OS X systems. We used the MinGW Version 4.4.0 compiler to create the Windows binary. It is likely that BNC can be compiled on other systems where a GNU compiler and Qt Version 4.7.3 are installed. Please ensure that you have installed the latest version of BNC available from http://igs.bkg.bund.de/ntrip/download and feel free to send us your comments, suggestions or bug reports.

Contents
1. Purpose
2. Handling
3. Settings
4. Limitations
5. Annex

Authors
The BKG Ntrip Client (BNC) and its Qt graphic user interface has been developed for

Federal Agency for Cartography and Geodesy (BKG)
c/o Georg Weber
Department of Geodesy
Frankfurt, Germany
[euref-ip@bkg.bund.de] or [igs-ip@bkg.bund.de]

BNC has been written by

Leos Mervart
Czech Technical University (CTU)
Department of Geodesy
Prague, Czech Republic

BNC includes the following GNU GPL software components:

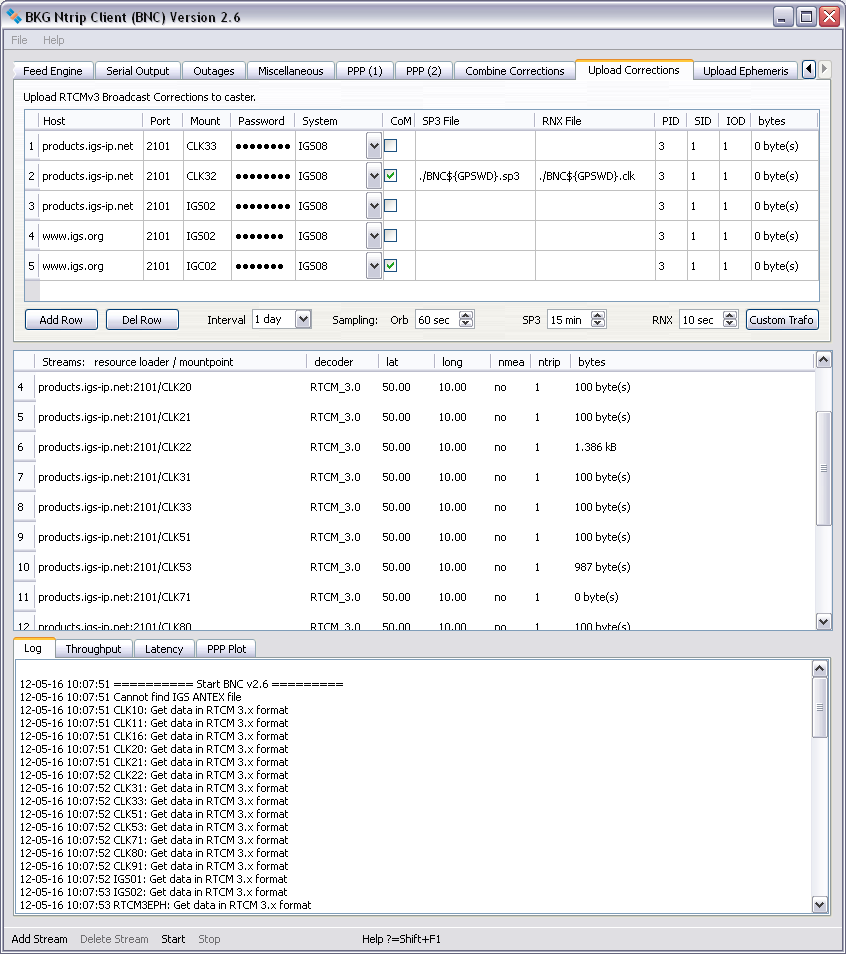

Note that some figures presented in this documentation show screenshots from earlier versions of BNC. If so then there was either no relevant change in the presented contents or no change at all.

Acknowledgements

1. Purpose

The purpose of BNC is to

BNC supports decoding the following GNSS stream formats and message types:

Note that while BNC decodes RTCM's MSM and HP MSM messages for GPS, GLONASS and Galileo, the implemented decoding of

Note also that BNC allows to by-pass its decoding and conversion algorithms, leave whatever is received untouched and save it in files.

The first of the following figures shows a flow chart of BNC connected to a GNSS receiver providing observations via serial or TCP communication link for the purpose of Precise Point Positioning. The second figure shows the conversion of RTCM streams to RINEX files. The third figure shows a flow chart of BNC feeding a real-time GNSS engine which estimates precise orbits and clocks. BNC is used in this scenario to encode correctors to RTCM Version 3 and upload them to an NTRIP Broadcaster. The fourth figure shows BNC combining several Broadcast Correction streams to disseminate the combination product while saving results in SP3 and Clock RINEX files.

Figure 1: Flowchart, BNC connected to a GNSS receiver for Precise Point Positioning.

Figure 2: Flowchart, BNC converting RTCM streams to RINEX batches.

Figure 3: Flowchart, BNC feeding a real-time GNSS engine and uploading encoded Broadcast Corrections.

Figure 4: Flowchart, BNC combining Broadcast Correction streams.

2. Handling

Although BNC is mainly a real-time tool to be operated online, it can be run offline

Furthermore, apart from its regular window mode, BNC can be run as a batch/background job in a 'no window' mode using processing options from a previously saved configuration or from command line.

Unless it runs offline, BNC

The main window of BNC shows a 'Top menu bar' section, a 'Settings' sections with tabs to set processing options, a 'Streams' section, a section for 'Log' tabs, and a 'Bottom menu bar' section, see figure below.

Figure 5: Sections on BNC's main window.

Running BNC in interactive mode requires graphics support. This is also required in batch mode when producing plots. Windows and Mac OS X systems always support graphics. However, when using BNC in batch mode on Linux systems for producing plots, you need to make sure that at least a virtual X-Server like 'Xvfb' is installed and the '-display' command-line option is used.

The usual handling of BNC is that you first select a number of streams ('Add Stream'). Any stream configured to BNC shows up on the 'Streams' canvas in the middle of BNC's main window. You then go through BNC's various configuration tabs to select a combination of input, processing and output options before you start the program ('Start'). Most configuration tabs are dedicated to a certain functionality of BNC. If the first option field on such a configuration tab is empty, the affected functionality is - apart from a few exceptions - deactivated.

Records of BNC's activities are shown in the 'Log' tab. The bandwidth consumption per stream, the latency of incoming observations and a PPP time series for coordinates are shown in the 'Throughput', 'Latency' and 'PPP Plot' tabs of the main window.

2.1 Configuration Management

As a default, configuration files for running BNC on Unix/Linux/Mac OS X systems are saved in directory '${HOME}/.config/BKG'. On Windows systems, they are typically saved in directory 'C:/Documents and Settings/Username/.config/BKG'. The default configuration file name is 'BNC.bnc'.

The default file name 'BNC.bnc' can be changed and the file contents can easily be edited. On graphical user interfaces it is possible to Drag & Drop a configuration file icon to start BNC (not on Mac OS X systems). Some configuration options can be changed on-the-fly. See annexed 'Configuration Examples' for a complete set of configuration options. It is also possible to start and configure BNC via command line.

BNC maintains configuration options at three different levels:

  1. GUI, input fields level
  2. Active configuration level
  3. Configuration file, disk level

Figure 6: Management of configuration options in BNC:
              Left: BNC in graphics mode where active configuration options are introduced through GUI input fields and finally saved on disk.
              Middle: BNC in 'no window' mode where active configuration options are read from disk.
              Right: BNC in 'no window' mode without configuration file where default configuration options can be replaced via command line options.

Configuration options are usually specified using GUI input fields (1) after launching BNC. When hitting the 'Start' button, configuration options are transferred one level down to become BNC's active configuration (2) allowing the program to begin its operation. Pushing the 'Stop' button ends data processing so that the user can finally terminate BNC through 'File'->'Quit'->'Save Options' which saves processing options in a configuration file to disk (3). It is important to understand that:

3. Settings

This chapter describes how to set the BNC program options. It explains the top menu bar, the processing options, the 'Streams' and 'Log' sections, and the bottom menu bar.

Top Menu Bar
3.1.
Top Menu Bar
3.1.1 File
3.1.2 Help

Settings Canvas
3.2. Network
3.2.1 Proxy
3.2.2 SSL
3.3. General
      3.3.1. Logfile
      3.3.2. Append Files
      3.3.3. Reread Configuration
      3.3.4. Auto Start
      3.3.5. Raw Output File
3.4. RINEX Observations
      3.4.1. File Names
      3.4.2. Directory
      3.4.3. File Interval
      3.4.4. Sampling
      3.4.5. Skeleton Extension
      3.4.6. Script
      3.4.7. Version
3.5. RINEX Ephemeris
      3.5.1. Directory
      3.5.2. Interval
      3.5.3. Port
      3.5.4. Version
3.6. RINEX Editing & QC
      3.6.1 Action
      3.6.2 Set Edit Options
      3.6.3 Input Files
      3.6.4 Output Files
      3.6.5 Directory for Plots
      3.6.6 Command Line, No Window
3.7. Broadcast Corrections
      3.7.1. Directory, ASCII
      3.7.2. Interval
      3.7.3. Port
      3.7.4. Wait for Full Corr Epoch
3.8. Feed Engine
      3.8.1. Port
      3.8.2. Wait for Full Obs Epoch
      3.8.3. Sampling
      3.8.4. File
      3.8.5. Port (unsynchronized)
3.9. Serial Output
      3.9.1. Mountpoint
      3.9.2. Port Name
      3.9.3. Baud Rate
      3.9.4. Flow Control
      3.9.5. Parity
      3.9.6. Data Bits
      3.9.7. Stop Bits
      3.9.8. NMEA
      3.9.9. File
      3.9.10. Height
3.10. Outages
      3.10.1. Observation Rate
      3.10.2. Failure Threshold
      3.10.3. Recovery Threshold
      3.10.4. Script
3.11. Miscellaneous
      3.11.1. Mountpoint
      3.11.2. Log Latency
      3.11.3. Scan RTCM
3.12. PPP Client
      3.12.1 Mode & Mountpoints
      3.12.1.1 Mode
      3.12.1.2 Obs Mountpoint
      3.12.1.3 Corr Mountpoint
      3.12.2 Marker Coordinates
      3.11.3 Antenna Eccentricity
      3.12.4 NMEA & Plot Output
      3.12.4.1 NMEA File
      3.12.4.2 NMEA Port
      3.12.4.3 PPP Plot
      3.12.5 Post Processing
      3.12.6 Antennas
      3.12.6.1 ANTEX File
      3.12.6.2 Antenna Name
      3.12.7 Basics
      3.12.7.1 Use Phase Obs
      3.12.7.2 Estimate Tropo
      3.12.7.3 Use GLONASS
      3.12.7.4 Use Galileo
      3.12.7.5 Sync Corr
      3.12.7.6 Averaging
      3.12.7.7 Quick-Start
      3.12.7.8 Maximal Solution Gap
      3.12.7.9 Audio Response
      3.12.8 Sigmas
      3.12.8.1 Code
      3.12.8.2 Phase
      3.12.8.3 XYZ Init
      3.12.8.4 XYZ White Noise
      3.12.8.5 Tropo Init
      3.12.8.6 Tropo White Noise
3.13. Combine Corrections
      3.13.1 Combine Corrections Table
      3.13.1.1 Add Row, Delete
      3.13.1.2 Method
      3.13.1.3 Maximal Residuum
      3.13.1.4 Sampling
3.14. Upload Corrections
      3.14.1 Add, Delete Row
      3.14.2 Host, Port, Mountpoint, Password
      3.14.3 System
      3.14.4 Center of Mass
      3.14.5 SP3 File
      3.14.6 RNX File
      3.14.7 Interval
      3.14.8 Sampling
      3.14.8.1 orbits
      3.14.8.2 SP3
      3.14.8.3 RINEX
      3.14.9 Custom Trafo
3.15. Upload Ephemeris
      3.15.1 Host & Port
      3.15.2 Mountpoint & Password
      3.15.3 Sampling

Streams Canvas
3.16. Streams
      3.16.1 Edit Streams
      3.16.2 Delete Stream
      3.16.3 Reconfigure Stream Selection On-the-fly

Logging Canvas
3.17. Logging
      3.17.1 Log
      3.17.2 Throughput
      3.17.3 Latency
      3.17.4 PPP Plot

Bottom Menu Bar
3.18. Bottom Menu Bar
      3.18.1. Add Stream
      3.18.1.1 Add Stream - Coming from Caster
            3.18.1.1.1 Caster Host and Port
            3.18.1.1.2 Casters Table
            3.18.1.1.3 User and Password
            3.18.1.1.4 Get Table
            3.18.1.1.5 NTRIP Version
            3.18.1.1.6 Map
      3.18.1.2 Add Stream - Coming from TCP/IP Port
      3.18.1.3 Add Stream - Coming from UDP Port
      3.18.1.4 Add Stream - Coming from Serial Port
      3.18.2. Delete Stream
      3.18.3. Map
      3.18.4 Start
      3.18.5 Stop

Command Line
3.19. Command Line Options
      3.19.1. No Window Mode
      3.19.2. File Mode
      3.19.3. Configuration File
      3.19.4. Configuration Options

3.1. Top Menu Bar

The top menu bar allows selecting a font for the BNC windows, save configured options, or quit the program execution. It also provides access to program documentation.

3.1.1 File

The 'File' button lets you

3.1.2 Help

The 'Help' button provides access to

BNC comes with a help system providing online information about its functionality and usage. Short descriptions are available for any widget. Focus to the relevant widget and press Shift+F1 to request help information. A help text appears immediately; it disappears as soon as the user does something else. The dialogs on some operating systems may provide a "?" button that users can click; click the relevant widget to pop up the help text.

3.2. Network

You may need to specify a proxy when running BNC in a protected network. You may also like to use the Transport Layer Security (TLS) and its predecessor, Secure Sockets Layer (SSL) cryptographic protocols for secure NTRIP communication over the Internet.

3.2.1 Proxy - Usage in a protected LAN

If you are running BNC within a protected Local Area Network (LAN), you might need to use a proxy server to access the Internet. Enter your proxy server IP and port number in case one is operated in front of BNC. If you don't know the IP and port of your proxy server, check the proxy server settings in your Internet browser or ask your network administrator.

Note that IP streaming is often not allowed in a LAN. In this case you need to ask your network administrator for an appropriate modification of the local security policy or for the installation of a TCP relay to the NTRIP Broadcasters. If these are not possible, you might need to run BNC outside your LAN on a host that has unobstructed connection to the Internet.

3.2.2 SSL - Transport Layer Security

Communication with an NTRIP Broadcaster over SSL requires the exchange of client and/or server certificates. Specify the path to a directory where you save certificates on your system. You may like to check out http://software.rtcm-ntrip.org/wiki/Certificates for a list of known NTRIP Server certificates. You may also just try communication via SSL to check out whether this is supported by the involved NTRIP Broadcaster.

SSL communication may involve queries coming from the NTRIP Broadcaster. Tick 'Ignore SSL authorization errors' if you don't want to be bothered with this. Note that SSL communication is usually done over port 443.

3.3. General

The following defines general settings for BNC's logfile, file handling, reconfiguration on-the-fly, and auto-start.

3.3.1 Logfile - optional

Records of BNC's activities are shown in the 'Log' tab on the bottom of the main window. These logs can be saved into a file when a valid path is specified in the 'Logfile (full path)' field. The logfile name will automatically be extended by a string '_YYMMDD' carrying the current date. This leads to series of daily logfiles when running BNC continuously for extended. Message logs cover the communication status between BNC and the NTRIP Broadcaster as well as problems that may occur in the communication link, stream availability, stream delay, stream conversion etc. All times are given in UTC. The default value for 'Logfile (full path)' is an empty option field, meaning that BNC logs will not be saved into a file.

3.3.2 Append Files - optional

When BNC is started, new files are created by default and any existing files with the same name will be overwritten. However, users might want to append existing files following a restart of BNC, a system crash or when BNC crashed. Tick 'Append files' to continue with existing files and keep what has been recorded so far. Note that option 'Append files' affects all types of files created by BNC.

3.3.3 Reread Configuration - optional

When operating BNC online in 'no window' mode (command line option -nw), some configuration options can nevertheless be changed on-the-fly without interrupting the running process. For that you force the program to reread parts of its configuration in pre-defined intervals from the disk. Select '1 min', '1 hour', or '1 day' to let BNC reread on-the-fly changeable configuration options every full minute, hour, or day. This lets in between edited options become effective without interrupting uninvolved threads. See annexed section 'Configuration Examples' for a configuration file example and a list of on-the-fly changeable options.

3.3.4 Auto Start - optional

You may like to auto-start BNC at startup time in window mode with pre-assigned configuration options. This may be required i.e. immediately after booting your system. Tick 'Auto start' to supersede the usage of the 'Start' button. Make sure that you maintain a link to BNC for that in your Autostart directory (Windows systems) or call BNC in a script below directory /etc/init.d (Unix/Linux/Mac OS X systems).

See BNC's command line option -nw for an auto-start of BNC in 'no window' mode.

3.3.5 Raw Output File - optional

BNC can save all data coming in through various streams in one daily file. The information is recorded in the specified 'Raw output file' in the received order and format. This feature allows a BNC user to run the PPP option offline with observations, Broadcast Corrections, and Broadcast Ephemeris being read from a previously saved file. It supports the offline repetition of a real-time situation for debugging purposes and it is not meant for Post Processing.

Data will be saved in blocks in the received format separated by ASCII time stamps like (example):

2010-08-03T18:05:28 RTCM3EPH RTCM_3 67

This example block header tells you that 67 bytes were saved in the data block following this time stamp. The information in this block is encoded in RTCM Version 3 format, comes from mountpoint RTCM3EPH and was received at 18:05:29 UTC on 2010-08-03. BNC adds its own time stamps in order to allow the reconstruction of a recorded real-time situation.

The default value for 'Raw output file' is an empty option field, meaning that BNC will not save all raw data into one single daily file.

3.4. RINEX Observations

Observations will be converted to RINEX if they come in either RTCM Version 2 or RTCM Version 3 format. Depending on the RINEX version and incoming RTCM message types, files generated by BNC may contain data from GPS, GLONASS, Galileo, SBAS, QZSS and BeiDou. In case an observation type is listed in the RINEX header but the corresponding observation is unavailable, its value is set to zero '0.000'. Note that the 'RINEX TYPE' field in the RINEX Version 3 Observation file header is always set to 'M(MIXED)' or 'Mixed' even if the file only contains data from one system.

It is important to understand that converting RTCM streams to RINEX files requires a-priori information on observation types for specifying a complete RINEX header. Regarding the RINEX Version 2 file header, BNC simply introduces all observation types defined in the Version 2 standard and later reports "0.000" for all observations which are not received. However, following this approach is not possible for RINEX Version 3 files from RTCM Version 3 MSM streams because of the huge number of observation types which might in principle show up. The solution implemented in BNC is to start with RINEX Version 3 observation type records from skeleton files (see section 'Skeleton Extension') and switch to a default selection of observation types when such skeleton file is not available or it does not contain the required information. The 'Default selection of observation types specified' for a RINEX Version 3 file would be as follows:

C   12 C2  L2  D2  S2  C6  L6  D6  S6  C7  L7  D7  S7       SYS / # / OBS TYPES
E   20 C1  L1  D1  S1  C5  L5  D5  S5  C6  L6  D6  S6  C7   SYS / # / OBS TYPES
       L7  D7  S7  C8  L8  D8  S8                           SYS / # / OBS TYPES
G   20 C1C L1C D1C S1C C1P L1P D1P S1P C2C L2C D2C S2C C2P  SYS / # / OBS TYPES
       L2P D2P S2P C5  D5  L5  S5                           SYS / # / OBS TYPES
J   16 C1  L1  D1  S1  C2  L2  D2  S2  C5  L5  D5  S5  C6   SYS / # / OBS TYPES
       D6  L6  S6                                           SYS / # / OBS TYPES
R   16 C1C L1C D1C S1C C1P L1P D1P S1P C2C L2C D2C S2C C2P  SYS / # / OBS TYPES
       L2P D2P S2P                                          SYS / # / OBS TYPES
S    8 C1  L1  D1  S1  C5  L5  D5  S5                       SYS / # / OBS TYPES

The screenshot below shows an example setup of BNC when converting streams to RINEX. Streams are coming from various NTRIP Broadcasters as well as from a serial communication link. Specifying a decoder string 'ZERO' means to not convert the affected stream contents but save its contents as received.

Figure 7: BNC translating incoming streams to 15 min RINEX Version 3 files.

3.4.1 RINEX File Names

RINEX file names are derived by BNC from the first 4 characters of the corresponding stream's mountpoint (4Char Station ID). For example, data from mountpoints FRANKFURT and WETTZELL will have hourly RINEX Observation files named

FRAN{ddd}{h}.{yy}O
WETT{ddd}{h}.{yy}O

where 'ddd' is the day of year, 'h' is a letter which corresponds to an hour long UTC time block and 'yy' is the year.

If there is more than one stream with identical 4Char Station ID (same first 4 characters for their mountpoints), the mountpoint strings are split into two sub-strings and both become part of the RINEX file name. For example, when simultaneously retrieving data from mountpoints FRANKFURT and FRANCE, their hourly RINEX Observation files are named as

FRAN{ddd}{h}_KFURT.{yy}O
FRAN{ddd}{h}_CE.{yy}O.

If several streams show exactly the same mountpoint name (example: BRUS0 from www.euref-ip.net and BRUS0 from www.igs-ip.net), BNC adds an integer number to the file name leading i.e. to hourly RINEX Observation files like

BRUS{ddd}{h}_0.{yy}O
BRUS{ddd}{h}_1.{yy}O.

Note that RINEX file names for all intervals less than 1 hour follow the file name convention for 15 minutes RINEX Observation files i.e.

FRAN{ddd}{h}{mm}.{yy}O

where 'mm' is the starting minute within the hour.

3.4.2 Directory - optional

Here you can specify the path to where the RINEX Observation files will be stored. If the specified directory does not exist, BNC will not create RINEX Observation files. Default value for 'Directory' is an empty option field, meaning that no RINEX Observation files will be written.

3.4.3 File Interval - mandatory if 'Directory' is set

Select the length of the RINEX Observation file generated. The default value is 15 minutes.

3.4.4 Sampling - mandatory if 'Directory' is set

Select the RINEX Observation sampling interval in seconds. A value of zero '0' tells BNC to store all received epochs into RINEX. This is the default value.

3.4.5 Skeleton Extension - optional

Whenever BNC starts generating RINEX Observation files (and then once every day at midnight), it first tries to retrieve information needed for RINEX headers from so-called public RINEX header skeleton files which are derived from sitelogs. A HTTP link to a directory containing these skeleton files may be available through data field number 7 of the affected NET record in the source-table. See http://www.epncb.oma.be:80/stations/log/skl/brus.skl for an example of a public RINEX header skeleton file for the Brussels EPN station.

However, sometimes public RINEX header skeleton files are not available, their contents is not up to date, or you need to put additional/optional records in the RINEX header. For that BNC allows using personal skeleton files that contain the header records you would like to include. You can derive a personal RINEX header skeleton file from the information given in an up to date sitelog. A file in the RINEX Observations 'Directory' with a 'Skeleton extension' suffix is interpreted by BNC as a personal RINEX header skeleton file for the corresponding stream.

Examples for personal skeleton file name convention: RINEX Observation files for mountpoints WETTZELL, FRANKFURT and FRANCE (same 4Char Station ID), BRUS0 from www.euref-ip.net and BRUS0 from www.igs-ip.net (same 4Char Station ID, identical mountpoint stings) would accept personal skeleton files named

WETT.skl
FRAN_KFURT.skl
FRAN_CE.skl
BRUS_0.skl
BRUS_1.skl

if 'Skeleton extension' is set to 'skl'.

Note the following regulations regarding personal RINEX header skeleton files:

If neither a public nor a personal RINEX header skeleton file is available for BNC, a default header will be used.

The following is a skeleton example for a RINEX file:

                    OBSERVATION DATA    M (Mixed)           RINEX VERSION / TYPE
DUND                                                        MARKER NAME
50212M003                                                   MARKER NUMBER
4635120796          TRIMBLE NETR9       1.15                REC # / TYPE / VERS
12626150            TRM41249.00     NONE                    ANT # / TYPE
 -4388121.1700   726671.0500 -4556535.6300                  APPROX POSITION XYZ
        0.0020        0.0000        0.0000                  ANTENNA: DELTA H/E/N
GeoNet Reception    GNS                                     OBSERVER / AGENCY
G   28 21C L1C D1C S1C C1W L1W D1W S1W C5X L5X D5X S5X C2W  SYS / # / OBS TYPES
       L2W D2W S2W C2X L2X D2X S2X                          SYS / # / OBS TYPES
R   16 C1C L1C D1C S1C C1P L1P D1P S1P C2P L2P D2P S2P C2C  SYS / # / OBS TYPES
       L2C D2C S2C                                          SYS / # / OBS TYPES
S   12 C1C L1C D1C S1C C1W L1W D1W S1W C5I L5I D5I S5I      SYS / # / OBS TYPES
E    8 C1  L1  D1  S1  C5  L5  D5  S5                       SYS / # / OBS TYPES
C    4 C2I L2I D2I S2I                                      SYS / # / OBS TYPES
J   12 C1C L1C D1C S1C C2  L2  D2  S2  C5  L5  D5  S5       SYS / # / OBS TYPES
PORTIONS OF THIS HEADER GENERATED BY BKG FROM               COMMENT
SITELOG dund_20070806.log                                   COMMENT

3.4.6 Script - optional

Whenever a RINEX Observation file is saved, you might want to compress copy or upload it immediately via FTP. BNC allows you to execute a script/batch file to carry out these operations. To do that, specify the full path of the script/batch file here. BNC will pass the RINEX Observation file path to the script as a command line parameter (%1 on Windows systems, $1 on Unix/Linux/Mac OS X systems).

The triggering event for calling the script or batch file is the end of a RINEX Observation file 'Interval'. If that is overridden by a stream outage, the triggering event is the stream reconnection.

As an alternative to initiating file uploads through BNC, you may like to call an upload script or batch file through your crontable or Task Scheduler (independent from BNC) once every one or two minutes after the end of each RINEX file 'Interval'.

3.4.7 Version - optional

The default format for RINEX Observation files is RINEX Version 2.11. Select 'Version 3' if you would like to save observations in RINEX Version 3 format.

3.5. RINEX Ephemeris

Broadcast Ephemeris can be saved as RINEX Navigation files when received via RTCM Version 3 e.g. as message types 1019 (GPS) or 1020 (GLONASS) or 1045 (Galileo). The file name convention follows the details given in section 'RINEX File Names' except that the first four characters are 'BRDC' and the last character is

Note that streams dedicated to carry Broadcast Ephemeris messages in RTCM Version 3 format in high repetition rates are listed on http://igs.bkg.bund.de/ntrip/ephemeris.

3.5.1 Directory - optional

Specify a path for saving Broadcast Ephemeris data as RINEX Navigation files. If the specified directory does not exist, BNC will not create RINEX Navigation files. Default value for Ephemeris 'Directory' is an empty option field, meaning that no RINEX Navigation files will be created.

3.5.2 Interval - mandatory if 'Directory' is set

Select the length of the RINEX Navigation file generated. The default value is 1 day.

3.5.3 Port - optional

BNC can output Broadcast Ephemeris in RINEX Version 3 format on your local host (IP 127.0.0.1) through an IP 'Port'. Specify an IP port number to activate this function. The default is an empty option field, meaning that no ASCII ephemeris output via IP port is generated.

The source code for BNC comes with an example perl script 'test_tcpip_client.pl' that allows you to read BNC's ASCII ephemeris output from the IP port.

3.5.4 Version - optional

Default format for RINEX Navigation files containing Broadcast Ephemeris is RINEX Version 2.11. Select 'Version 3' if you want to save the ephemeris in RINEX Version 3 format.

Note that this does not concern the Broadcast Ephemeris output through IP port which is always in RINEX Version 3 format.

3.6. RINEX Editing & QC

Besides stream conversion from RTCM to RINEX, BNC allows editing RINEX files or concatenate their contents. RINEX Observation and Navigation files can be handled. BNC can also carry out a RINEX file quality check. In summary this functionality in BNC covers

and hence follows UNAVCO's famous 'TEQC' program. The remarkable thing about BNC in this context is that it supports RINEX Version 3 under GNU General Public License.

3.6.1 Action - optional

Select an action. Options are 'Edit/Concatenate' and 'Analyze'.

3.6.2 Set Edit Options - mandatory if 'Edit/Concatenate' is set

Once the 'Edit/Concatenate' action is selected, you have to 'Set Edit Options'. BNC lets you specify the RINEX version, sampling interval, begin and end of file, operator, comment lines, and marker, antenna, receiver details. Note that sampling, begin/end and marker/antenna/receiver specification are only meaningful for RINEX Observation files.

When converting RINEX Version 2 to RINEX Version 3 Observation files, the tracking mode or channel information in the (last character out of the three characters) observation code is left blank if unknown. When converting RINEX Version 3 to RINEX Version 2 Observation files:

Optionally you may specify a comment line text to be added to the emerging new RINEX file header. Any introduction of a newline through '\n' in this enforces the beginning of a further comment line. Comment line(s) will be added to the header immediately after the 'PGM / RUN BY / DATE' record. Default is an empty option field, meaning that no additional comment line will be added to the RINEX header.

Specifying a 'RUN BY' string to be included in the emerging new RINEX file header is another option. Default is an empty option field meaning the operator's ID is automatically used as 'RUN BY' string.

If you specify a 'New' but no 'Old' marker/antenna/receiver name, the corresponding data field in the emerging new RINEX Observation file will be filled accordingly. If you in addition specify an 'Old' marker/antenna/receiver name, the corresponding data field in the emerging new RINEX Observation file will only be filled accordingly where 'Old' specifications match existing file contents.

Figure 8: Example for 'RINEX Editing Options' window.

3.6.3 Input Files - mandatory if 'Action' is set

Specify full path to input RINEX Observation file(s), and
specify full path to input RINEX Navigation file(s).

When specifying several input files BNC will concatenate their contents. Note that you may specify several RINEX Version 2 Navigation files for GPS and GLONASS.

3.6.4 Output Files - mandatory if 'Action' is set

If 'Edit/Concatenate' is selected, specifying the a path to output RINEX Observation file(s) and specifying a full path to output RINEX Navigation file(s) is mandatory.

Figure 9: Example for RINEX file editing with BNC in Post Processing mode.

If 'Analyze' is selected, specifying a 'Log' file to output analysis results is mandatory. The following is a RINEX quality check analysis logfile example:

Analyze File
------------
File:            cut02530.12o
Marker name:     CUT0
Receiver:        TRIMBLE NETR9
Antenna:         TRM59800.00     SCIS
Start time:      2012-09-09 00:00:00.000
End time:        2012-09-09 23:59:30.000
Interval:        30
# Sat.:          56
# Obs.:          54159
# Slips (file):  295
# Slips (found): 52
Mean MP1:        0.25382
Mean MP2:        0.163092
Mean SNR1:       4.83739
Mean SNR2:       5.09455

3.6.5 Directory for Plots - optional if 'Action' is set

If 'Analyze' is selected, specifying the path to a directory where plot files will be saved is optional. File names will be composed from the RINEX input file name(s) plus suffix 'PNG' to indicate the plot file format in use.

Figure 10: Example for RINEX quality check graphics output with BNC. A multipath and a signal-to-noise ratio analysis are presented in terms of a sky plot.

Figure 11: Example for satellite availability, elevation and PDOP plots as a result of a RINEX quality check with BNC.

3.6.6 Command Line, No Window - optional

BNC applies options from the configuration file but allows updating every one of them on the command line while the contents of the configuration file remains unchanged, see section on 'Command Line Options'. The syntax for that looks as follows

--key <keyName> <keyValue>

where <keyName> stands for the name of an option contained in the configuration file and <keyValue> stands for the value you want to assign to it. This functionality may be helpful in the 'RINEX Editing & QC' context when running BNC on a routine basis for maintaining a RINEX file archive.

The following example for a Linux platform calls BNC in 'no window' mode with a local configuration file 'rnx.conf' for concatenating four 15min RINEX files from station TLSE residing in the local directory to produce an hourly RINEX Version 3 file with 30 seconds sampling interval:

./bnc --nw --conf rnx.conf --key reqcAction Edit/Concatenate --key reqcObsFile "tlse119b00.12o,tlse119b15.12o,tlse119b30.12o,tlse119b45.12o" --key reqcOutObsFile tlse119b.12o --key reqcRnxVersion 3 --key reqcSampling 30

You may use asterisk '*' and/or question mark '?' wildcard characters as shown with the following globbing command line option to specify a selection of files in a local directory:

--key reqcObsFile "tlse*"
or:
--key reqcObsFile tlse\*

The following Linux command line produces RINEX QC plots (see Estey and Meertens 1999) offline in 'no window' mode and saves them in directory '/home/user'. Introducing a dummy configuration file /dev/null makes sure that no configuration options previously saved on disc are used:

/home/user/bnc --conf /dev/null --key reqcAction Analyze --key reqcObsFile CUT02070.12O --key reqcNavFile BRDC2070.12P --key reqcOutLogFile CUT0.txt --key reqcPlotDir /home/user --nw

The following Linux command line produces the same RINEX QC plots in interactive autoStart mode:

/home/user/bnc --conf /dev/null --key reqcAction Analyze --key reqcObsFile CUT02070.12O --key reqcNavFile BRDC2070.12P --key reqcOutLogFile CUT0.txt --key --key startTab 4 --key autoStart 2

The following is a list of available keynames for 'RINEX Editing & QC' (short: REQC, pronounced 'rek') options and their meaning, cf. section 'Configuration Examples':

KeynameMeaning
reqcActionRINEX Editing & QC action
reqcObsFileRINEX Observation input file(s)
reqcNavFileRINEX Navigation input files(s)
reqcOutObsFileRINEX Observation output file
reqcPlotDirRINEX QC plot directory
reqcOutNavFileRINEX Navigation output file
reqcOutLogFileLogfile
reqcPlotDirPlot file directory
reqcRnxVersionRINEX version of emerging new file
reqcSamplingSampling interval of emerging new RINEX file
reqcStartDateTimeBegin of emerging new RINEX file
reqcEndDateTimeEnd of emerging new RINEX file
reqcRunByOperator name
reqcCommentAdditional comment lines
reqcOldMarkerNameOld marker name
reqcNewMarkerNameNew marker name
reqcOldAntennaNameOld antenna name
reqcNewAntennaNameNew antenna name
reqcOldReceiverNameOld receiver name
reqcNewReceiverNameNew receiver name

3.7. Broadcast Corrections

Differential GNSS and RTK operation using RTCM streams is currently based on corrections and/or raw measurements from single or multiple reference stations. This approach to differential positioning is using 'observation space' information. The representation with the RTCM standard can be called 'ObservationSpace Representation' (OSR).

An alternative to the observation space approach is the so called 'sate space' approach. The principle here is to provide information on individual error sources. It can be called 'State Space Representation' (SSR). For a rover position, state space information concerning precise satellite clocks, orbits, ionosphere, troposphere et cetera can be converted into observation space and used to correct the rover observables for more accurate positioning. Alternatively the state information can directly be used in the rover's processing or adjustment model.

RTCM has developed Version 3 messages to transport satellite orbit and clock corrections in real-time. Note that corrections refer to satellite Antenna Phase Centers (APC). The current set of SSR messages concerns:

RTCM Version 3 streams carrying these messages may be used i.e. to support real-time Precise Point Positioning (PPP) applications.

When using clocks from Broadcast Ephemeris (with or without applied corrections) or clocks from SP3 files, it may be important to understand that they are not corrected for the conventional periodic relativistic effect. Chapter 10 of the IERS Conventions 2003 mentions that the conventional periodic relativistic correction to the satellite clock (to be added to the broadcast clock) is computed as dt = -2 (R * V) / c^2 where R * V is the scalar product of the satellite position and velocity and c is the speed of light. This can also be found in the GPS Interface Specification, IS-GPS-200, Revision D, 7 March 2006.

Orbit corrections are provided in along-track, cross-track and radial components. These components are defined in the Earth-centered, Earth-fixed reference frame of the broadcast ephemerides. For an observer in this frame, the along-track component is aligned in both direction and sign with the velocity vector, the cross-track component is perpendicular to the plane defined by the satellite position and velocity vectors, and the radial direction is perpendicular to the along track and cross-track ones. The three components form a right-handed orthogonal system.

After applying corrections, the satellite position and clock is referred to the 'ionospheric free' phase center of the antenna which is compatible with the broadcast orbit reference.

The orbit and clock corrections do not include local effects (like Ocean Loading or Solid Earth Tides) or atmospheric effects (Ionosphere and/or troposphere). Depending on the accuracy of your application you should correct for such effects by other means. There is currently no RTCM SSR message for ionospheric state parameters. Such messages are needed for accurate single frequency applications. The development of Iono messages will be the next step in the schedule of the RTCM State Space Representation Working Group.

Broadcast Corrections can be saved by BNC in files. The file name convention for Broadcast Correction files follows the convention for RINEX files except for the last character of the file name suffix which is set to "C".

Saved files contain blocks of records in plain ASCII format where - separate for each GNSS, message type, stream, and epoch - the begin of a block is indicated by a line like (examples):

! Orbits/Clocks: 30 GPS 0 Glonass CLK11
or
! Orbits/Clocks: 0 GPS 19 Glonass CLK11

Such line informs you about the number of records (here 30 and 19) carrying GPS or GLONASS related parameters you should receive next.

The first five parameters in each Broadcast Corrections record are:

In case of RTCM message types 1057 or 1063 (see Annex) these parameters are followed by

Undefined parameters would be set to zero "0.000".
Example:

...
1057 0 1686 283200.0 G02    21      1.062   -0.791    1.070     -0.00025   -0.00031   -0.00005
1057 0 1686 283200.0 G03    25      1.765   -2.438   -0.290     -0.00009   -0.00060    0.00028
1057 0 1686 283200.0 G04    14      1.311   -0.862    0.334      0.00005   -0.00038   -0.00015

...
1063 0 1686 283200.0 R01    39      0.347    1.976   -1.418      0.00048   -0.00091    0.00008
1063 0 1686 283200.0 R02    39      0.624   -2.092   -0.155      0.00005   -0.00054    0.00053
1063 0 1686 283200.0 R03    39      0.113    5.655   -1.540      0.00003   -0.00079   -0.00003
1063 0 1686 283200.0 R05    39      0.237    1.426   -1.282      0.00054   -0.00020    0.00027
...

In case of RTCM message types 1058 or 1064 (see Annex) the first five parameters in each record are followed by

Example:

...
1058 0 1538 211151.0 G18     0      1.846       0.000    0.000
1058 0 1538 211151.0 G16     0      0.376       0.000    0.000
1058 0 1538 211151.0 G22     0      2.727       0.000    0.000
...
1064 0 1538 211151.0 R08     0      8.956       0.000    0.000
1064 0 1538 211151.0 R07     0     14.457       0.000    0.000
1064 0 1538 211151.0 R23     0      6.436       0.000    0.000
...

In case of RTCM message types 1060 or 1066 (see Annex) the first five parameters in each record are followed by

Example:

...
1060 0 1538 211610.0 G30    82      2.533      0.635   -0.359   -0.598    0.000    0.000    0.000    0.000    0.000
1060 0 1538 211610.0 G31     5     -4.218     -0.208    0.022    0.002    0.000    0.000    0.000    0.000    0.000
1060 0 1538 211610.0 G32    28     -2.326      0.977   -0.576    0.142    0.000    0.000    0.000    0.000    0.000
...
1066 0 1538 211610.0 R22    27      1.585      2.024    2.615   -2.080    0.000    0.000    0.000    0.000    0.000
1066 0 1538 211610.0 R23    27      6.277      2.853    4.181    1.304    0.000    0.000    0.000    0.000    0.000
1066 0 1538 211610.0 R24    27      0.846      1.805   13.095    6.102    0.000    0.000    0.000    0.000    0.000
...

In case of RTCM message types 1059 or 1065 (see Annex) the first five parameters in each record are followed by

Example:

...
1059 0 1538 211151.0 G18 2 0   -0.010 11   -0.750
1059 0 1538 211151.0 G16 2 0   -0.040 11   -0.430
1059 0 1538 211151.0 G22 2 0   -0.630 11   -2.400
...

3.7.1 Directory, ASCII - optional

Specify a directory for saving Broadcast Corrections in files. If the specified directory does not exist, BNC will not create Broadcast Correction files. Default value for Broadcast Corrections 'Directory' is an empty option field, meaning that no Broadcast Correction files will be created.

3.7.2 Interval - mandatory if 'Directory, ASCII' is set

Select the length of the Broadcast Correction files. The default value is 1 day.

3.7.3 Port - optional

BNC can output epoch by epoch synchronized Broadcast Corrections in ASCII format on your local host (IP 127.0.0.1) through an IP 'Port'. Specify an IP port number to activate this function. The default is an empty option field, meaning that no Broadcast Correction output via IP port is generated.

The output format equals the format used for saving Broadcast Corrections in a file with the exception that the Mountpoint is added at each line's end.

The following is an example output for streams from mountpoints RTCMSSR, CLK10 and CLK11:

...
1057 0 1538 211151.0 G18     1      0.034    0.011   -0.064    0.000    0.000    0.000 RTCMSSR
1057 0 1538 211151.0 G16    33     -0.005    0.194   -0.091    0.000    0.000    0.000 RTCMSSR
1057 0 1538 211151.0 G22    50      0.008   -0.082   -0.001    0.000    0.000    0.000 RTCMSSR
...
1058 0 1538 211151.0 G18     0      1.846    0.000 RTCMSSR
1058 0 1538 211151.0 G16     0      0.376    0.000 RTCMSSR
1058 0 1538 211151.0 G22     0      2.727    0.000 RTCMSSR
...
1059 0 1538 211151.0 G18 2 0   -0.010 11   -0.750 RTCMSSR
1059 0 1538 211151.0 G16 2 0   -0.040 11   -0.430 RTCMSSR
1059 0 1538 211151.0 G22 2 0   -0.630 11   -2.400 RTCMSSR
...
1063 0 1538 211151.0 R09   111     -0.011   -0.014    0.005    0.0000    0.000    0.000 RTCMSSR
1063 0 1538 211151.0 R10    43      0.000   -0.009   -0.002    0.0000    0.000    0.000 RTCMSSR
1063 0 1538 211151.0 R21    75     -0.029    0.108    0.107    0.0000    0.000    0.000 RTCMSSR
...
1064 0 1538 211151.0 R08     0      8.956    0.000 RTCMSSR
1064 0 1538 211151.0 R07     0     14.457    0.000 RTCMSSR
1064 0 1538 211151.0 R23     0      6.436    0.000 RTCMSSR
...
1066 0 1538 211610.0 R24    27      0.846      1.805   13.095    6.102    0.000    0.000    0.000    0.000    0.000 CLK11
1066 0 1538 211610.0 R23    27      6.277      2.853    4.181    1.304    0.000    0.000    0.000    0.000    0.000 CLK11
1066 0 1538 211610.0 R22    27      1.585      2.024    2.615   -2.080    0.000    0.000    0.000    0.000    0.000 CLK11
...
1060 0 1538 211610.0 G32    28     -2.326      0.977   -0.576    0.142    0.000    0.000    0.000    0.000    0.000 CLK10
1060 0 1538 211610.0 G31     5     -4.218     -0.208    0.022    0.002    0.000    0.000    0.000    0.000    0.000 CLK10
1060 0 1538 211610.0 G30    82      2.533      0.635   -0.359   -0.598    0.000    0.000    0.000    0.000    0.000 CLK10
...

The source code for BNC comes with an example perl script 'test_tcpip_client.pl' that allows you to read BNC's Broadcast Corrections from the IP port.

3.7.4 Wait for Full Corr Epoch - mandatory if 'Port' is set

When feeding a real-time GNSS network engine (see 'Feed Engine') waiting epoch by epoch for synchronized Broadcast Corrections, or when you 'Combine Corrections' BNC drops (only concerning IP port output) whatever is received later than 'Wait for full corr epoch' seconds. A value of 2 to 5 seconds could be an appropriate choice for that, depending on the latency of the incoming Broadcast Corrections stream and the delay acceptable by your application. A message such as "COCK1: Correction over aged by 5 sec" shows up in BNC's logfile if 'Wait for full corr epoch' is exceeded.

Specifying a value of '0' means that BNC immediately outputs all incoming Broadcast Ephemeris Corrections and does not drop any of them for latency reasons.

3.8. Feed Engine

BNC can generate synchronized or unsynchronized observations epoch by epoch from all stations and satellites to feed a real-time GNSS network engine. Observations can be streamed out through an IP port and/or saved in a local file. The output is always in plain ASCII format.

Any epoch in the output begins with a line containing the GPS week number and the seconds within the GPS week. Following lines begin with the mountpoint string of the stream which provides the observations followed by a satellite ID and - in case of GLONASS - a channel number. Observation types are specified by the three character observation code defined in RINEX Version 3. In case of phase observations a Slip Count is added which is put to "-1" if it is not set. The end of an epoch in indicated by an empty line.

Note on 'Slip Count':
It is the current understanding of BNC's authors that different Slip Counts could be referred to different phase measurements (i.e. L1C and L1P). The 'loss-of-lock' flags in RINEX are an example for making such kind of information available per phase measurement. However, it looks like we do have only one Slip Count in RTCM Version 3 for all phase measurements. As it could be that a receiver generates different Slip Counts for different phase measurements, we output one Slip Count per phase measurement to a listening real-time GNSS network engine.

The following is an output example which presents observations from BeiDou, SBAS, Galileo, QZSS, GLONASS and GPS satellites as collected through streams UNBS7 and CUT07:

> 1732 593302.0000000
UNBS7 C14     C7I   25052046.546 L7I  100874271.744  0 D7I       1486.532 S7I   46.500
UNBS7 S38     C1C   39122425.353 L1C  205589229.175 -1 D1C         86.305 S1C   44.750
UNBS7 S35     C1C   40790275.076 L1C  214353819.664 16 D1C         86.396 S1C   40.000
UNBS7 S33     C1C   38444117.173 L1C  202025092.065 16 D1C        146.701 S1C   42.000
UNBS7 S20     C1C   39361772.796 L1C  206847552.895 -1 D1C         81.035 S1C   39.500
UNBS7 R24 -3  C1C   22718781.328 L1C  121275028.082 -1 D1C       3442.434 S1C   46.000 C2C   22718787.496 L2C   94325035.777 -1 D2C       2677.455 S2C   39.500 C2P   22718787.023 L2P   94325035.786 -1 D2P       2677.328 S2P   39.750
UNBS7 R23 -2  C1C   22423222.452 L1C  119739364.426 16 D1C        429.909 S1C   46.750 C2C   22423230.235 L2C   93130629.910 -1 D2C        334.321 S2C   44.000 C2P   22423229.861 L2P   93130630.899 -1 D2P        334.416 S2P   42.750
UNBS7 R22  6  C1C   24329473.162 L1C  130283179.927 10 D1C      -2789.020 S1C   38.250 C2C   24329479.274 L2C  101331552.779 10 D2C      -2169.209 S2C   30.750 C2P   24329479.101 L2P  101331552.861 10 D2P      -2169.287 S2P   32.500
UNBS7 R15  5  C1C   20871814.352 L1C  111729327.604 -1 D1C       2285.734 S1C   47.000 C2C   20871821.926 L2C   86900608.285 -1 D2C       1777.801 S2C   47.000 C2P   20871821.312 L2P   86900608.292 -1 D2P       1777.743 S2P   47.000
UNBS7 G32     C1C   22269376.201 L1C  117025713.468 -1 D1C       -895.284 S1C   47.500 C1W   22269375.437 S1W   35.500 C2W   22269376.328 L2W   91188879.803 -1 D2W       -697.623 S2W   35.500
UNBS7 G31     C1C   20329833.770 L1C  106833781.981 -1 D1C       -234.551 S1C   51.000 C2L   20329831.962 L2L   83246841.788 -1 D2L       -182.773 S2L   48.500 C1W   20329833.694 S1W   44.500 C2W   20329832.346 L2W   83246841.786 -1 D2W       -182.768 S2W   44.500
UNBS7 G30     C1C   21209171.329 L1C  111454457.690 -1 D1C       2716.975 S1C   50.000 C1W   21209170.435 S1W   39.000 C2W   21209171.093 L2W   86847652.883 -1 D2W       2117.122 S2W   39.000
UNBS7 G29     C1C   22801055.880 L1C  119820804.004 -1 D1C       1368.562 S1C   45.500 C2L   22801056.654 L2L   93366882.194 -1 D2L       1066.392 S2L   40.000 C1W   22801055.755 S1W   30.250 C2W   22801056.554 L2W   93366882.205 -1 D2W       1066.414 S2W   30.250
UNBS7 G25     C1C   23013893.698 L1C  120939208.651 -1 D1C      -3105.851 S1C   44.250 C2L   23013897.434 L2L   94238034.169 -1 D2L      -2420.224 S2L   41.500 C1W   23013893.198 S1W   29.250 C2W   23013898.030 L2W   94238292.170 -1 D2W      -2420.137 S2W   29.250 C5Q   23013898.880 L5Q   90311704.304 -1 D5Q      -2319.279 S5Q   46.250
UNBS7 G23     C1C   24711598.869 L1C  129860912.236 15 D1C       3635.708 S1C   44.500 C1W   24711598.302 S1W   25.500 C2W   24711599.100 L2W  101189889.915 -1 D2W       2833.013 S2W   25.500
UNBS7 G20     C1C   22693412.509 L1C  119254789.031 -1 D1C        345.848 S1C   44.500 C1W   22693411.651 S1W   30.250 C2W   22693412.822 L2W   92925615.674 -1 D2W        269.495 S2W   30.250
UNBS7 G16     C1C   23353606.131 L1C  122723608.709 15 D1C       3777.040 S1C   44.000 C1W   23353605.488 S1W   25.500 C2W   23353607.090 L2W   95629319.017 -1 D2W       2943.136 S2W   25.500
UNBS7 G14     C1C   22184760.935 L1C  116582179.095 15 D1C      -2720.563 S1C   46.000 C1W   22184760.444 S1W   30.750 C2W   22184760.626 L2W   90842916.546 -1 D2W      -2119.922 S2W   30.750
CUT07 C30     C6I   23552328.090 L6I   99658188.910  0 S6I   41.875 C7I   23552339.168 L7I   94836018.626  0 S7I   41.875
CUT07 C13     C6I   26550829.789 L6I  112344714.991  0 S6I   38.500 C7I   26550838.289 L7I  106908681.113  0 S7I   37.312
CUT07 C11     C6I   24441732.656 L6I  103420995.512  0 S6I   45.500 C7I   24441741.211 L7I   98416843.099  0 S7I   45.875
CUT07 C10     C6I   36878536.836 L6I  156044795.610  0 S6I   48.188 C7I   36878545.391 L7I  148494240.588  0 S7I   46.812
CUT07 C09     C6I   38776716.851 L6I  164077362.627  0 S6I   42.812 C7I   38776726.929 L7I  156138136.444  0 S7I   44.312
CUT07 C08     C6I   37904174.730 L6I  160384993.342  0 S6I   44.812 C7I   37904182.937 L7I  152624453.741  0 S7I   44.875
CUT07 C07     C6I   36491034.918 L6I  154405738.912  0 S6I   49.812 C7I   36491042.773 L7I  146934558.057  0 S7I   49.375
CUT07 C06     C6I   39838468.129 L6I  168569233.545  0 S6I   38.688 C7I   39838475.922 L7I  160412657.495  0 S7I   38.312
CUT07 C05     C6I   39489041.449 L6I  167090530.921  0 S6I   39.000 C7I   39489046.664 L7I  159005505.607  0 S7I   39.188
CUT07 C04     C6I   38503753.496 L6I  162921979.975  0 S6I   43.188 C7I   38503758.770 L7I  155038658.931  0 S7I   42.375
CUT07 C03     C6I   36740707.453 L6I  155461583.445  0 S6I   49.125 C7I   36740711.731 L7I  147939248.283  0 S7I   48.375
CUT07 C02     C6I   38014807.625 L6I  160853150.858  0 S6I   43.812 C7I   38014810.320 L7I  153069938.765  0 S7I   44.000
CUT07 C01     C6I   37257719.649 L6I  157649701.045  0 S6I   46.188 C7I   37257724.105 L7I  150021495.952  0 S7I   47.875
CUT07 J01     C1C   43881526.609 L1C  230598490.131 -1 D1C        -44.758 S1C   34.125 C2X   43881530.754 L2X  179687612.756 -1 S2X   35.375 C5X   43881536.680 L5X  172200662.527 -1 S5X   40.375 C6L   43881525.555 L6L  187174573.616  0 S6L   29.875 C1Z   43881519.262 L1Z  230598986.947 -1 S1Z   32.875 C1X   43881528.066 L1X  230598490.127 -1 S1X   38.000
CUT07 S37     C1C   37602298.469 L1C  197602164.710 -1 D1C        168.586 S1C   41.812
CUT07 S29     C1C   37367280.766 L1C  196366452.064 16 D1C        172.070 S1C   42.625
CUT07 S28     C1C   37813587.344 L1C  198711737.222 16 D1C        162.395 S1C   42.125
CUT07 S27     C1C   39891507.890 L1C  209631339.001 16 D1C        168.379 S1C   35.500
CUT07 E20     C5X   25169051.723 L5X   98768754.234 -1 S5X   49.188 C7X   25169049.472 L7X  101345326.261  0 S7X   48.625 C8X   25169050.110 L8X  100573783.320  0 S8X   53.500
CUT07 E19     C5X   28361979.223 L5X  111299065.507 -1 S5X   35.625 C7X   28361977.535 L7X  114202519.202  0 S7X   34.000 C8X   28361978.015 L8X  113333091.535  0 S8X   38.875
CUT07 R21  0  C1C   23802964.055 L1C  127196451.213 -1 D1C       3981.018 S1C   37.375 C2C   23802966.360 L2C   98929650.279 -1 S2C   31.875 C1P   23802962.137 L1P  127196451.240 -1 S1P   36.000 C2P   23802966.555 L2P   98929650.279 -1 S2P   32.000
CUT07 R20  5  C1C   22343638.078 L1C  119607514.243 -1 D1C       2865.940 S1C   41.000 C2C   22343644.137 L2C   93028226.213 -1 S2C   41.500 C1P   22343638.156 L1P  119607514.262 -1 S1P   39.188 C2P   22343643.864 L2P   93028226.216 -1 S2P   41.375
CUT07 R19  1  C1C   22867512.133 L1C  122239323.823 -1 D1C       -128.617 S1C   45.625 C2C   22867513.149 L2C   95076008.606 -1 S2C   40.000 C1P   22867511.508 L1P  122239322.823 -1 S1P   43.875 C2P   22867513.578 L2P   95075804.758 -1 S2P   39.875
CUT07 R09 -2  C1C   23348341.930 L1C  124678720.439 -1 D1C      -2371.129 S1C   43.125 C2C   23348346.816 L2C   96972337.490 -1 S2C   38.625 C1P   23348342.359 L1P  124678720.448 -1 S1P   41.875 C2P   23348347.949 L2P   96972021.497 -1 S2P   37.312
CUT07 R08  6  C1C   19789643.508 L1C  105973418.989 16 D1C      -1646.246 S1C   54.125 C2C   19789644.758 L2C   82423770.486 16 S2C   49.812 C1P   19789642.058 L1P  105973418.998 16 S1P   52.125 C2P   19789645.188 L2P   82423770.483 16 S2P   48.875
CUT07 G28     C1C   19876464.688 L1C  104452182.303 14 D1C       -925.301 S1C   50.375 C2W   19876465.715 L2W   81391310.427 14 S2W   43.812
CUT07 G26     C1C   21228880.773 L1C  111558728.212 -1 D1C       2146.406 S1C   50.812 C2W   21228883.324 L2W   86928571.609 -1 S2W   42.375
CUT07 G24     C1C   25532167.125 L1C  134172129.977 14 D1C       2546.594 S1C   32.812 C2X   25532172.324 L2X  104550408.875 -1 S2X   36.375 C2W   25532171.199 L2W  104549682.856 -1 S2W   13.875 C5X   25532177.137 L5X  100194136.711 -1 S5X   42.375
CUT07 G17     C1C   22982846.906 L1C  120775586.132 -1 D1C       3266.969 S1C   44.875 C2X   22982849.821 L2X   94111331.364 -1 S2X   42.312 C2W   22982850.219 L2W   94111214.362 -1 S2W   31.375
CUT07 G15     C1C   23470338.258 L1C  123337157.406 -1 D1C       3415.176 S1C   45.125 C2X   23470340.996 L2X   96106783.651 -1 S2X   42.312 C2W   23470341.101 L2W   96107522.655 -1 S2W   29.312
CUT07 G10     C1C   23714849.813 L1C  124621860.377 15 D1C      -3319.340 S1C   40.500 C2W   23714854.707 L2W   97107942.926 14 S2W   22.500
CUT07 G09     C1C   21719005.391 L1C  114134798.755 -1 D1C       1004.351 S1C   49.500 C2W   21719007.297 L2W   88936209.534 -1 S2W   40.188
CUT07 G08     C1C   22413796.969 L1C  117784586.324 -1 D1C      -1906.422 S1C   45.500 C2W   22413801.219 L2W   91780776.741 -1 S2W   33.688
CUT07 G07     C1C   24328207.219 L1C  127845525.401 -1 D1C      -2184.074 S1C   42.000 C2X   24328209.020 L2X   99619834.161 -1 S2X   37.375 C2W   24328209.770 L2W   99619888.148 -1 S2W   23.188
CUT07 G05     C1C   21955999.242 L1C  115378829.111 15 D1C      -1707.133 S1C   48.688 C2X   21956001.395 L2X   89906678.277 14 S2X   46.125 C2W   21956001.617 L2W   89906678.279 14 S2W   38.625

> 1732 593303.0000000
CUT07 C30     C6I   23551839.488 L6I   99656121.652  0 S6I   42.375 C7I   23551850.508 L7I   94834051.391  0 S7I   42.188
CUT07 C13     C6I   26551402.223 L6I  112347137.247  0 S6I   38.688 C7I   26551410.664 L7I  106910986.173  0 S7I   37.875
CUT07 C11     C6I   24441668.156 L6I  103420723.118  0 S6I   45.125 C7I   24441676.477 L7I   98416583.891  0 S7I   45.688
...
...

The source code for BNC comes with a perl script called 'test_tcpip_client.pl' that allows you to read BNC's (synchronized or unsynchronized) ASCII observation output from the IP port and print it on standard output.

Note that any socket connection of an application to BNC's synchronized or unsynchronized observations ports is recorded in the 'Log' tab on the bottom of the main window together with a connection counter, resulting in log records like 'New client connection on sync/usync port: # 1'.

The following figure shows the screenshot of a BNC configuration where a number of streams is pulled from different NTRIP Broadcasters to feed a GNSS engine via IP port output.

Figure 12: Synchronized BNC output via IP port to feed a GNSS real-time engine.

3.8.1 Port - optional

BNC can produce synchronized observations in ASCII format on your local host (IP 127.0.0.1) through an IP 'Port'. Synchronized means that BNC collects all observation data for any specific epoch which become available within a certain number of latency seconds (see 'Wait for Full Obs Epoch' option). It then - epoch by epoch - outputs whatever has been received. Specify an IP port number here to activate this function. The default is an empty option field, meaning that no binary synchronized output is generated.

3.8.2 Wait for Full Obs Epoch - mandatory if 'Port' is set

When feeding a real-time GNSS network engine waiting for synchronized observations epoch by epoch, BNC drops whatever is received later than 'Wait for full obs epoch' seconds. A value of 3 to 5 seconds could be an appropriate choice for that, depending on the latency of the incoming streams and the delay acceptable for your real-time GNSS product. Default value for 'Wait for full obs epoch' is 5 seconds.

Note that 'Wait for full obs epoch' does not affect the RINEX Observation file content. Observations received later than 'Wait for full obs epoch' seconds will still be included in the RINEX Observation files.

3.8.3 Sampling - mandatory if 'File' or 'Port' is set

Select the synchronized observation output sampling interval in seconds. A value of zero '0' tells BNC to send/store all received epochs. This is the default value.

3.8.4 File - optional

Specify the full path to a 'File' where synchronized observations are saved in plain ASCII format. The default value is an empty option field, meaning that no ASCII output file is created.

Beware that the size of this file can rapidly increase depending on the number of incoming streams. This option is primarily meant for testing and evaluation.

3.8.5 Port (unsynchronized) - optional

BNC can produce unsynchronized observations from all configured streams in ASCII format on your local host (IP 127.0.0.1) through an IP 'Port'. Unsynchronized means that BNC immediately forwards any received observation to the port. Specify an IP port number here to activate this function. The default is an empty option field, meaning that no unsynchronized output is generated.

3.9. Serial Output

You may use BNC to feed a serial connected device like a GNSS receiver. For that an incoming stream can be forwarded to a serial port. The following figure shows the screenshot of an example situation where BNC pulls a VRS stream from an NTRIP Broadcaster to feed a serial connected RTK rover.

Figure 13: BNC pulling a VRS stream to feed a serial connected RTK rover.

3.9.1 Mountpoint - optional

Enter a 'Mountpoint' to forward its corresponding stream to a serial connected GNSS receiver.

When selecting one of the serial communication options listed below, make sure that you pick those configured to the serial connected receiver.

3.9.2 Port Name - mandatory if 'Mountpoint' is set

Enter the serial 'Port name' selected on your host for communication with the serial connected receiver. Valid port names are

Windows:       COM1, COM2
Linux:         /dev/ttyS0, /dev/ttyS1
FreeBSD:       /dev/ttyd0, /dev/ttyd1
Digital Unix:  /dev/tty01, /dev/tty02
HP-UX:         /dev/tty1p0, /dev/tty2p0
SGI/IRIX:      /dev/ttyf1, /dev/ttyf2
SunOS/Solaris: /dev/ttya, /dev/ttyb

Note that you must plug a serial cable in the port defined here before you start BNC.

3.9.3 Baud Rate - mandatory if 'Mountpoint' is set

Select a 'Baud rate' for the serial output link. Note that using a high baud rate is recommended.

3.9.4 Flow Control - mandatory if 'Mountpoint' is set

Select a 'Flow control' for the serial output link. Note that your selection must equal the flow control configured to the serial connected device. Select 'OFF' if you don't know better.

3.9.5 Parity - mandatory if 'Mountpoint' is set

Select the 'Parity' for the serial output link. Note that parity is often set to 'NONE'.

3.9.6 Data Bits - mandatory if 'Mountpoint' is set

Select the number of 'Data bits' for the serial output link. Note that often '8' data bits are used.

3.9.7 Stop Bits - mandatory if 'Mountpoint' is set

Select the number of 'Stop bits' for the serial output link. Note that often '1' stop bit is used.

3.9.8 NMEA - mandatory for VRS streams

Select 'Auto' to automatically forward all NMEA-GGA messages coming from your serial connected GNSS receiver to the NTRIP Broadcaster and/or save them in a file.

Forwarding valid NMEA-GGA messages to the NTRIP Broadcaster is required for receiving 'Virtual Reference Station' (VRS) streams. Thus, in case your serial connected receiver is not capable to provide them, the alternative for VRS streams is a 'Manual' simulation of an initial NMEA-GGA message. Its content is based on the approximate (editable) latitude/longitude from the broadcaster's source-table and an approximate VRS height to be specified.

In summary: select 'Manual' only when handling a VRS stream and your serial connected GNSS receiver doesn't generate NMEA-GGA messages. Select 'Auto' otherwise.

3.9.9 File - optional if 'Auto' NMEA is set

Specify the full path to a file where NMEA messages coming from your serial connected receiver are saved.

3.9.10 Height - mandatory if 'Manual' NMEA is set

Specify an approximate 'Height' above mean sea level in meter for your VRS to simulate an initial NMEA-GGA message. Latitude and longitude for that (editable) are taken from the broadcaster's source-table.

This option concerns only 'Virtual Reference Stations' (VRS). Its setting is ignored in case of streams coming from physical reference stations.

3.10. Outages

At any time an incoming stream might become unavailable or corrupted. In such cases, it is important that the BNC operator and/or the stream providers become aware of the situation so that necessary measures can be taken to restore the stream. Furthermore, continuous attempts to decode a corrupted stream can generate unnecessary workload for BNC. Outages and corruptions are handled by BNC as follows:

Stream outages: BNC considers a connection to be broken when there are no incoming data detected for more than 20 seconds. When this occurs, BNC will attempt to reconnect at a decreasing rate. It will first try to reconnect with 1 second delay and again in 2 seconds if the previous attempt failed. If the attempt is still unsuccessful, it will try to reconnect within 4 seconds after the previous attempt and so on. The wait time doubles each time with a maximum wait time of 256 seconds.

Stream corruption: Not all bits chunk transfers to BNC's internal decoders return valid observations. Sometimes several chunks might be needed before the next observation can be properly decoded. BNC buffers all the outputs (both valid and invalid) from the decoder for a short time span (size derived from the expected 'Observation rate') and then determines whether a stream is valid or corrupted.

Outage and corruption events are reported in the 'Log' tab. They can also be passed on as parameters to a shell script or batch file to generate an advisory note to BNC operator or affected stream providers. This functionality lets users utilize BNC as a real-time performance monitor and alarm system for a network of GNSS reference stations.

3.10.1 Observation Rate - mandatory if 'Failure threshold', 'Recovery threshold' and 'Script' is set

BNC can collect all returns (success or failure) coming from a decoder within a certain short time span to then decide whether a stream has an outage or its content is corrupted. This procedure needs a rough a priory estimate of the expected observation rate of the incoming streams.

An empty option field (default) means that you don't want explicit information from BNC about stream outages and incoming streams that cannot be decoded.

3.10.2 Failure Threshold - optional

Event 'Begin_Failure' will be reported if no data is received continuously for longer than the 'Failure threshold' time. Similarly, event 'Begin_Corrupted' will be reported when corrupted data is detected by the decoder continuously for longer than this 'Failure threshold' time. The default value is set to 15 minutes and is recommended so not to inundate user with too many event reports.

Note that specifying a value of zero '0' for the 'Failure threshold' will force BNC to report any stream failure immediately. Note also that for using this function you need to specify the 'Observation rate'.

3.10.3 Recovery Threshold - optional

Once a 'Begin_Failure' or 'Begin_Corrupted' event has been reported, BNC will check for when the stream again becomes available or uncorrupted. Event 'End_Failure' or 'End_Corrupted' will be reported as soon as valid observations are again detected continuously throughout the 'Recovery threshold' time span. The default value is set to 5 minutes and is recommended so not to inundate users with too many event reports.

Note that specifying a value of zero '0' for the 'Recovery threshold' will force BNC to report any stream recovery immediately. Note also that for using this function you need to specify the 'Observation rate'.

3.10.4 Script - optional

As mentioned previously, BNC can trigger a shell script or a batch file to be executed when one of the events described are reported. This script can be used to email an advisory note to network operator or stream providers. To enable this feature, specify the full path to the script or batch file in the 'Script' field. The affected stream's mountpoint and type of event reported ('Begin_Outage', 'End_Outage', 'Begin_Corrupted' or 'End_Corrupted') will then be passed on to the script as command line parameters (%1 and %2 on Windows systems or $1 and $2 on Unix/Linux/Mac OS X systems) together with date and time information.

Leave the 'Script' field empty if you do not wish to use this option. An invalid path will also disable this option.

Examples for command line parameter strings passed on to the advisory 'Script' are:

FFMJ0 Begin_Outage 08-02-21 09:25:59
FFMJ0 End_Outage 08-02-21 11:36:02 Begin was 08-02-21 09:25:59

Sample script for Unix/Linux/Mac OS X systems:

#!/bin/bash
sleep $((60*RANDOM/32767))
cat | mail -s "NABU: $1" email@address <<!
Advisory Note to BNC User,
Please note the following advisory received from BNC.
Stream: $*
Regards, BNC
!

Note the sleep command in this script which causes the system to wait for a random period of up to 60 seconds before sending the email. This should avoid overloading your mail server in case of a simultaneous failure of many streams.

3.11. Miscellaneous

This section describes several miscellaneous options which can be applied for a single stream (mountpoint) or for all configured streams.

The following figure shows RTCM message numbers and observation types contained in stream 'CUT07' and the message latencies recorded every 2 seconds.

Figure 14: RTCM message numbers, latencies and observation types.

3.11.1 Mountpoint - optional

Specify a mountpoint to apply one or several of the 'Miscellaneous' options to the corresponding stream. Enter 'ALL' if you want to apply these options to all configured streams. An empty option field (default) means that you don't want BNC to apply any of these options.

3.11.2 Log Latency - optional

BNC can average latencies per stream over a certain period of GPS time, the 'Log latency' interval. Mean latencies are calculated from the individual latencies of one (first incoming) observation or Broadcast Correction per second. The mean latencies are then saved in BNC's logfile. Note that computing correct latencies requires the clock of the host computer to be properly synchronized. Note further that visualized latencies from the 'Latency' tab on the bottom of the main window represent individual latencies and not the mean latencies for the logfile.

Latency: Latency is defined in BNC by the following equation:

    UTC time provided by BNC's host
  - GPS time of currently processed epoch
  + Leap seconds between UTC and GPS time
  --------------
  = Latency

Statistics: BNC counts the number of GPS seconds covered by at least one observation. It also estimates an observation rate (independent from the a priory specified 'Observation rate') from all observations received throughout the first full 'Log latency' interval. Based on this rate, BNC estimates the number of data gaps when appearing in subsequent intervals.

Latencies of observations or corrections to Broadcast Ephemeris and statistical information can be recorded in the 'Log' tab at the end of each 'Log latency' interval. A typical output from a 1 hour 'Log latency' interval would be:

08-03-17 15:59:47 BRUS0: Mean latency 1.47 sec, min 0.66, max 3.02, rms 0.35, 3585 epochs, 15 gaps

Select a 'Log latency' interval to activate this function or select the empty option field if you do not want BNC to log latencies and statistical information.

3.11.3 Scan RTCM - optional

When configuring a GNSS receiver for RTCM stream generation, the firmware's setup interface may not provide details about RTCM message types observation types. As reliable information concerning stream contents should be available i.e. for NTRIP Broadcaster operators to maintain the broadcaster's source-table, BNC allows to scan RTCM streams for incoming message types and printout some of the contained meta-data. Contained observation types are also printed because such information is required a-priori to the conversion of RTCM Version 3 MSM streams to RINEX Version 3 files. The idea for this option arose from 'InspectRTCM', a comprehensive stream analyzing tool written by D. Stoecker.

Tick 'Scan RTCM' to scan RTCM Version 2 or 3 streams and log all contained

In case of RTCM Version 3 MSM streams the output includes

Note that in RTCM Version 2 the message types 18 and 19 carry only the observables of one frequency. Hence it needs two type 18 and 19 messages per epoch to transport the observations from dual frequency receivers.

Logged time stamps refer to message reception time and allow understanding repetition rates. Enter 'ALL' if you want to log this information from all configured streams. Beware that the size of the logfile can rapidly increase depending on the number of incoming RTCM streams.

This option is primarily meant for testing and evaluation. Use it to figure out what exactly is produced by a specific GNSS receiver's configuration. An empty option field (default) means that you don't want BNC to print the message type numbers and antenna information carried in RTCM streams.

3.12. PPP Client

BNC can derive coordinates for a rover position following the Precise Point Positioning (PPP) approach. It uses either code or code plus phase data in ionosphere free linear combinations P3 or L3. Besides pulling a stream of observations from a dual frequency receiver, this also

The following figure provides the screenshot of an example PPP session with BNC.

Figure 15: Precise Point Positioning with BNC, PPP Panel 1.

Figure 16: Precise Point Positioning with BNC, PPP Panel 2.

PPP results are shown in the 'Log' tab on the bottom of BNC's main window. Depending on the processing options, the following values are shown about once per second (example):

10-09-08 09:14:06 FFMJ1  PPP 09:14:04.0 12    4053457.429 +-  2.323     617730.551 +-  1.630    4869395.266 +-  2.951

The selected mountpoint in that is followed by a PPP time stamp in GPS Time, the number of processed satellites, and XYZ coordinates with their formal errors as derived from the implemented filter in [m]. The implemented algorithm includes outlier and cycle slip detection. The maximum for accepted residuals is hard coded to 10 meters for code observations and 10 centimeters for phase observations.

More detailed PPP results are saved in BNC's logfile. Depending on the selected processing options you find

These parameters are saved together with their standard deviation. The following is an example extract from a log file when BNC was in 'Single Point Positioning' (SPP) mode:

10-12-06 18:10:50 Single Point Positioning of Epoch 18:10:48.0
--------------------------------------------------------------
18:10:48.0 RES G04   L3    0.0165   P3   -0.1250
18:10:48.0 RES G11   L3    0.0150   P3    0.7904
18:10:48.0 RES G13   L3    0.0533   P3    0.4854
18:10:48.0 RES G17   L3   -0.0277   P3    1.2920
18:10:48.0 RES G20   L3   -0.0860   P3   -0.1186
18:10:48.0 RES G23   L3    0.0491   P3   -0.1052
18:10:48.0 RES G31   L3    0.0095   P3   -3.2929
18:10:48.0 RES G32   L3    0.0183   P3   -3.8800
18:10:48.0 RES R05   L3   -0.0077
18:10:48.0 RES R06   L3    0.0223
18:10:48.0 RES R15   L3   -0.0020
18:10:48.0 RES R16   L3    0.0156
18:10:48.0 RES R20   L3   -0.0247
18:10:48.0 RES R21   L3    0.0014
18:10:48.0 RES R22   L3   -0.0072
18:10:48.0 RES E52   L3   -0.0475   P3   -0.1628
18:10:48.0 RES G04   L3    0.0166   P3   -0.1250
18:10:48.0 RES G11   L3    0.0154   P3    0.7910
18:10:48.0 RES G13   L3    0.0535   P3    0.4855
18:10:48.0 RES G17   L3   -0.0272   P3    1.2925
18:10:48.0 RES G20   L3   -0.0861   P3   -0.1188
18:10:48.0 RES G23   L3    0.0489   P3   -0.1055
18:10:48.0 RES G31   L3    0.0094   P3   -3.2930
18:10:48.0 RES G32   L3    0.0183   P3   -3.8800
18:10:48.0 RES R05   L3   -0.0079
18:10:48.0 RES R06   L3    0.0223
18:10:48.0 RES R15   L3   -0.0020
18:10:48.0 RES R16   L3    0.0160
18:10:48.0 RES R20   L3   -0.0242
18:10:48.0 RES R21   L3    0.0016
18:10:48.0 RES R22   L3   -0.0072
18:10:48.0 RES E52   L3   -0.0474   P3    0.1385

    clk     =  64394.754 +-  0.045
    trp     =   2.185 +0.391 +-  0.001
    offset  =   -415.400 +-  0.137
    amb G17 =     11.942 +-  0.045
    amb G23 =    248.892 +-  0.044
    amb G31 =    254.200 +-  0.045
    amb G11 =    -12.098 +-  0.044
    amb G20 =   -367.765 +-  0.044
    amb G04 =    259.588 +-  0.044
    amb E52 =      6.124 +-  0.130
    amb G32 =    201.496 +-  0.045
    amb G13 =   -265.658 +-  0.044
    amb R22 =   -106.246 +-  0.044
    amb R21 =   -119.605 +-  0.045
    amb R06 =     41.328 +-  0.044
    amb R15 =    163.453 +-  0.044
    amb R20 =   -532.746 +-  0.045
    amb R05 =   -106.603 +-  0.044
    amb R16 =   -107.830 +-  0.044

Note that for debugging or Post Processing purposes BNC's 'PPP' functionality option can also be used offline.

When using the PPP option, it is important to understand which effects are corrected by BNC.

3.12.1 Mode & Mountpoints - optional

Specify the Point Positioning mode you want to apply and the mountpoints for observations and Broadcast Corrections.

3.12.1.1 Mode - optional

Choose between plain Single Point Positioning (SPP) and Precise Point Positioning (PPP) in 'Realtime' or 'Post-Processing' mode. Options are 'Realtime-PPP', 'Realtime-SPP', and 'Post-Processing'.

3.12.1.2 Obs Mountpoint - optional

Specify an 'Observations Mountpoint' from the list of selected 'Streams' you are pulling if you want BNC to derive coordinates for the affected rover position through a Point Positioning solution.

3.12.1.3 Corr Mountpoint - optional

Specify a Broadcast Ephemeris 'Corrections Mountpoint' from the list of selected 'Streams' you are pulling if you want BNC to correct your positioning solution accordingly. Not that the stream's corrections must refer to the satellite Antenna Phase Center (APC).

3.12.2 Marker Coordinates - optional

Enter the reference coordinate XYZ of the receiver's position in meters if known. This option makes only sense for static observations. Defaults are empty option fields, meaning that the antenna's XYZ position is unknown.

Once a XYZ coordinate is defined, the 'PPP' line in BNC's logfile is extended by North, East and Up displacements to (example):

10-08-09 06:01:56 FFMJ1  PPP 06:02:09.0 11    4053457.628 +-  2.639     617729.438 +-  1.180    4869396.447 +-  1.921  NEU   -0.908   -0.571    1.629

The parameters following the 'NEU' string provide North, East and Up components of the current coordinate displacement in meters.

3.12.3 Antenna Eccentricity - optional

You may like to specify North, East and Up components of an antenna eccentricity which is the difference between a nearby marker position and the antenna phase center. If you do so BNC will produce coordinates referring to the marker position and not referring to the antenna phase center.

3.12.4 NMEA & Plot Output - optional

BNC allows to output results from Precise Point Positioning in NMEA format. It can also plot a time series of North, East and UP displacements.

3.12.4.1 NMEA File - optional

The NMEA sentences generated about once per second are pairs of

Specify the full path to a file where Point Positioning results are saved as NMEA messages. The default value for 'NMEA file' is an empty option field, meaning that BNC will not saved NMEA messages into a file.

Note that Tomoji Takasu has written a program called RTKPLOT for visualizing NMEA strings. It is available from http://gpspp.sakura.ne.jp/rtklib/rtklib.htm and compatible with the NMEA file and port output of BNC's 'PPP' client option.

3.12.4.2 NMEA Port - optional

Specify the IP port number of a local port where Point Positioning results become available as NMEA messages. The default value for 'NMEA Port' is an empty option field, meaning that BNC does not provide NMEA messages vi IP port. Note that the NMEA file output and the NMEA IP port output are the same.

NASA's 'World Wind' software (see http://worldwindcentral.com/wiki/NASA_World_Wind_Download) can be used for real-time visualization of positions provided through BNC's NMEA IP output port. You need the 'GPS Tracker' plug-in available from http://worldwindcentral.com/wiki/GPS_Tracker for that. The 'Word Wind' map resolution is not meant for showing centimeter level details.

3.12.4.3 PPP Plot - optional

PPP time series of North (red), East (green) and Up (blue) displacements will be plotted in the 'PPP Plot' tab when this option is ticked. Values will be either referred to an XYZ reference coordinate (if specified) or referred to the first estimated XYZ coordinate. The sliding PPP time series window will cover the period of the latest 5 minutes.

Note that a PPP time series makes only sense for a stationary operated receiver.

3.12.5 Post Processing - optional

When in 'Post-Processing' mode

BNC accepts RINEX Version 2 as well as RINEX Version 3 Observation or Navigation file formats. Files carrying Broadcast Corrections must have the format produced by BNC through the 'Broadcast Corrections' tab.

Post Processing PPP results can be saved in a specific output file.

3.12.6 Antennas - optional

BNC allows correcting observations for antenna phase center offsets and variations.

3.12.6.1 ANTEX File - optional

IGS provides a file containing absolute phase center corrections for GNSS satellite and receiver antennas in ANTEX format. Entering the full path to such an ANTEX file is required for correcting observations for antenna phase center offsets and variations. It allows you to specify the name of your receiver's antenna (as contained in the ANTEX file) to apply such corrections.

Default is an empty option field, meaning that you don't want to correct observations for antenna phase center offsets and variations.

3.12.6.2 Receiver Antenna Name - optional if 'ANTEX File' is set

Specify the receiver's antenna name as defined in your ANTEX file. Observations will be corrected for the antenna phase center's offset which may result in a reduction of a few centimeters at max. Corrections for phase center variations are not yet applied by BNC. The specified name must consist of 20 characters. Add trailing blanks if the antenna name has less than 20 characters. Examples:

'JPSREGANT_SD_E      ' (no radome)
'LEIAT504        NONE' (no radome)
'LEIAR25.R3      LEIT' (radome)

Default is an empty option field, meaning that you don't want to correct observations for antenna phase center offsets.

3.12.7 Basics

BNC allows using different Point Positioning processing options depending on the capability of the involved receiver and the application in mind. It also allows introducing specific sigmas for code and phase observations as well as for reference coordinates and troposphere estimates. You may also like to carry out your PPP solution in Quick-Start mode or enforce BNC to restart a solution if the length of an outage exceeds a certain threshold.

3.12.7.1 Use Phase Obs - optional

By default BNC applies a Point Positioning solution using an ionosphere free P3 linear combination of code observations. Tick 'Use phase obs' for an ionosphere free L3 linear combination of phase observations.

3.12.7.2 Estimate Tropo - optional

BNC estimates the tropospheric delay according to equation

T(z) = T_apr(z) + dT / cos(z)
where T_apr is the a-priori tropospheric delay derived from Saastamoinen model.

By default BNC does not estimate troposphere parameters. Tick 'Estimate tropo' to estimate troposphere parameters together with the coordinates and save T_apr and dT/cos(z) in BNC's log file.

3.12.7.3 Use GLONASS - optional

By default BNC does not process GLONASS but only GPS observations when in Point Positioning mode. Tick 'Use GLONASS' to use GLONASS observations in addition to GPS (and Galileo if specified) for estimating coordinates in Point Positioning mode.

3.12.7.4 Use Galileo - optional

By default BNC does not process Galileo but only GPS observations when in Point Positioning mode. Tick 'Use Galileo' to use Galileo observations in addition to GPS (and GLONASS if specified) for estimating coordinates in Point Positioning mode.

3.12.7.5 Sync Corr - optional

Zero value (or empty field) means that BNC processes each epoch of data immediately after its arrival using satellite clock corrections available at that time. Non-zero value 'Sync Corr' means that the epochs of data are buffered and the processing of each epoch is postponed till the satellite clock corrections not older than 'Sync Corr' are available. Specifying a value of half the update rate of the clock corrections as 'Sync Corr' (i.e. 5 sec) may be appropriate. Note that this causes an additional delay of the PPP solutions in the amount of half of the update rate.

Using observations in sync with the corrections can avoid a possible high frequency noise of PPP solutions. Such noise could result from processing observations regardless of how late after a clock correction they were received. Note that applying the 'Sync Corr' option significantly reduces the PPP computation effort for BNC.

Default is an empty option field, meaning that you want BNC to process observations immediately after their arrival through applying the latest received clock correction.

3.12.7.6 Averaging - optional if XYZ is set

Enter the length of a sliding time window in minutes. BNC will continuously output moving average values and their RMS as computed from those individual values obtained most recently throughout this period. RMS values presented for XYZ coordinates and tropospheric zenith path delays are bias reduced while RMS values for North/East/Up (NEU) displacements are not. Averaged values for XYZ coordinates and their RMS are marked with string "AVE-XYZ" in BNC's log file and 'Log' section while averaged values for NEU displacements and their RMS are marked with string "AVE-NEU" and averaged values for the tropospheric delays and their RMS are marked with string "AVE-TRP". Example:

10-09-08 09:13:05 FFMJ1  AVE-XYZ 09:13:04.0   4053455.948 +-  0.284     617730.422 +-  0.504    4869397.692 +-  0.089
10-09-08 09:13:05 FFMJ1  AVE-NEU 09:13:04.0    1.043 +-  0.179    0.640 +-  0.456    1.624 +-  0.331
10-09-08 09:13:05 FFMJ1  AVE-TRP 09:13:04.0         2.336 +-  0.002

Entering any positive value up to 1440 (24h mean value) is allowed. An empty option field (default) means that you don't want BNC to output moving average positions into the log file and the 'Log' section. Note that averaging positions makes only sense for a stationary receiver.

3.12.7.7 Quick-Start - optional if XYZ is set

Enter the length of a startup period in seconds for which you want to fix the PPP solution to a known XYZ coordinate. Constraining coordinates is done in BNC through setting the 'XYZ White Noise' temporarily to zero.

This so-called Quick-Start option allows the PPP solutions to rapidly converge after startup. It requires that the antenna remains unmoved on the know position throughout the defined period. A value of 60 is likely to be an appropriate choice for 'Quick-Start'. Default is an empty option field, meaning that you don't want BNC to start in 'Quick-Start' mode.

You may need to create your own reference coordinate through running BNC for an hour in normal mode before applying the 'Quick-Start' option. Don't forget to introduce a realistic sigma 'XYZ Ini' according to the coordinate's precision.

Figure 17: BNC in 'Quick-Start' mode (PPP, Panel 1)

Figure 18: BNC in 'Quick-Start' mode (PPP, Panel 2)

3.12.7.8 Maximal Solution Gap - optional if Quick-Start is set

Specify a 'Maximum Solution Gap' in seconds. Should the time span between two consecutive solutions exceed this limit, the algorithm returns into the 'Quick-Start' mode and fixes the introduced reference coordinate for the specified 'Quick-Start' period. A value of '60' seconds could be an appropriate choice.

This option makes only sense for a stationary operated receiver where solution convergence can be enforced because a good approximation for the rover position is known. Default is an empty option field, meaning that you don't want BNC to return into the 'Quick-Start' mode after failures caused i.e. by longer lasting outages.

3.12.7.9 Audio Response - optional if Quick-Start is set

For natural hazard prediction and monitoring it may be appropriate to generate audio alerts. For that you can specify an 'Audio response' threshold in meters. A beep is produced by BNC whenever a horizontal PPP coordinate component differs by more than the threshold value from the specified marker coordinate.

Default is an empty option field, meaning that you don't want BNC to produce acoustic warning signals.

3.12.8 Sigmas

You may like to introduce specific sigmas for code and phase observations and for the estimation of troposphere parameters.

3.12.8.1 Code - mandatory if 'Use Phase Obs' is set

When 'Use phase obs' is set in BNC, the PPP solution will be carried out using both, code and phase observations. A sigma of 10.0 m for code observations and a sigma of 0.02 m for phase observations (defaults) are used to combine both types of observations. As the convergence characteristic of a PPP solution can be influenced by the ratio of the sigmas for code and phase, you may like to introduce you own sigmas for code and phase observations which differ from the default values.

Specify a sigma for code observations. Default is 10.0 m.

3.12.8.2 Phase - mandatory if 'Use Phase Obs' is set

Specify a sigma for phase observations. Default is 0.02 m.

3.12.8.3 XYZ Init - mandatory

Enter a sigma in meters for the initial XYZ coordinate. A value of 100.0 (default) may be an appropriate choice. However, this value may be significantly smaller (i.e. 0.01) when starting for example from a station with known XZY position in Quick-Start mode.

3.12.8.4 XYZ White Noise - mandatory

Enter a sigma in meters for the 'White Noise' of estimated XYZ coordinate components. A value of 100.0 (default) may be appropriate when considering possible sudden movements of a rover.

3.12.8.5 Tropo Init - mandatory if 'Estimate tropo' is set

Enter a sigma in meters for the a-priory model based tropospheric delay estimation. A value of 0.1 (default) may be an appropriate choice.

3.12.8.6 Tropo White Noise - mandatory if 'Estimate tropo' is set

Enter a sigma in meters per second to describe the expected variation of the tropospheric effect. Supposing 1Hz observation data, a value of 3e-6 (default) would mean that the tropospheric effect may vary for 3600 * 3e-6 = 0.01 meters per hour.

3.13. Combine Corrections

BNC allows processing several orbit and clock correction streams in real-time to produce, encode, upload and save a combination of Broadcast Corrections from various providers. All corrections must refer to satellite Antenna Phase Centers (APC). It is so far only the satellite clock corrections which are combined while orbit corrections in the combination product as well as the product update rates are just taken over from one of the incoming Broadcast Correction streams. Combining only clock corrections using a fixed orbit reference has the possibility to introduce some analysis inconsistencies. We may therefore eventually consider improvements on this approach. The clock combination can be based either on a plain 'Single-Epoch' or on a 'Kalman' Filter approach.

In the Kalman Filter approach satellite clocks estimated by individual Analyses Centers (ACs) are used as pseudo observations within the adjustment process. Each observation is modeled as a linear function (actually a simple sum) of three estimated parameters: AC specific offset, satellite specific offset common to all ACs, and the actual satellite clock correction which represents the result of the combination. These three parameter types differ in their statistical properties. The satellite clock offsets are assumed to be static parameters while AC specific and satellite specific offsets are stochastic parameters with appropriate white noise. The solution is regularized by a set of minimal constraints.

Removing the AC-dependent biases as well as possible is a major issue with clock combinations. Since they vary in time, it can be tricky to do this. Otherwise, there will be artificial jumps in the combined clock stream if one or more AC contributions drop out for certain epochs. Here the Kalman Filter approach is expected to do better than the Single-Epoch approach.

In view of IGS real-time products, the 'Combine Corrections' functionality has been integrated in BNC because

Note that the combination process requires real-time access to Broadcast Ephemeris. So, in addition to the orbit and clock correction streams BNC must pull a stream carrying Broadcast Ephemeris in the form of RTCM Version 3 messages. Stream 'RTCM3EPH' on caster products.igs-ip.net is an example for that.

Note further that you need to tick the 'Use GLONASS' option which is part of the 'PPP (2)' panel in case you want to produce an GPS plus GLONASS combination.

A combination is carried out following a specified sampling interval. If incoming streams have different rates, only epochs that correspond to the sampling interval are used.

With respect to IGS, it is important to understand that a major effect in the combination of GNSS orbit and clock correction streams is the selection of ACs to include. It is likely that a combination product could be improved in accuracy by using only the best two or three ACs. However, with only a few ACs to depend on, the reliability of the combination product could suffer and the risk of total failures increases. So there is an important tradeoff here that must be considered when selecting streams for a combination. The major strength of a combination product is its reliability and stable median performance which can be much better than that of any single AC product.

This comment applies in situations where we have a limited number of solutions to combine and their quality varies significantly. The situation may be different when the total number of ACs is larger and the range of AC variation is smaller. In that case, a standard full combination is probably the best.

The following recursive algorithm is used to detect orbit outliers in the Kalman Filter combination when Broadcast Corrections are provided by several ACs:
Step 1: We don't produce a combination for a certain satellite if only one AC provides corrections for it.
Step 2: A mean satellite position is calculated as the average of positions from all ACs.
Step 3: For each AC and satellite the 3D distance between individual and mean satellite position is calculated.
Step 4: We find the greatest difference between AC specific and mean satellite positions.
Step 5: If that is less than a threshold, the conclusion is that we don't have an outlier and can proceed to the next epoch.
Step 6: If that is greater than a threshold, then corrections of the affiliated AC are ignored for the affected epoch and the outlier detection restarts with step 1.

Note that BNC can produce an internal PPP solution from combined Broadcast Corrections. For that you have to specify the keyword 'INTERNAL' as 'Corrections Mountpoint' in the PPP (1) panel.

The part of BNC which enables the combination of Broadcast Corrections is not intended for publication under GNU General Public License (GPL). However, pre-compiled BNC binaries which support the 'Combine Corrections' option are made available.

3.13.1 Combine Corrections Table - optional

Hit the 'Add Row' button, double click on the 'Mountpoint' field, enter a Broadcast Corrections mountpoint from the 'Streams' section and hit Enter. Then double click on the 'AC Name' field to enter your choice of an abbreviation for the Analysis Center (AC) providing the Antenna Phase Center (APC) related stream. Finally, double click on the 'Weight' field to enter a weight to be applied to this stream in the combination. The stream processing can already be started with only one corrections stream configured for combination.

Note that an appropriate 'Wait for full corr epoch' value needs to be specified for the combination under the 'Broadcast Corrections' tab. To give an example: a value of 15 sec would make sense if the update rate of incoming clock corrections is 10 sec.

The sequence of entries in the 'Combine Corrections' table is not of importance. Note that the orbit information in the final combination stream is just copied from one of the incoming streams. The stream used for providing the orbits may vary over time: if the orbit providing stream has an outage then BNC switches to the next remaining stream for getting hold of the orbit information.

Default is an empty 'Combine Corrections' table meaning that you don't want BNC to combine orbit and clock correction streams.

It is possible to specify only one Broadcast Ephemeris corrections stream in the 'Combine Corrections' table. Instead of combining corrections from several sources BNC will then merge the single corrections stream with Broadcast Ephemeris to save results in SP3 and/or Clock RINEX format when specified accordingly under the 'Upload Corrections' tab.

3.13.1.1 Add Row, Delete - optional

Hit 'Add Row' button to add another row to the 'Combine Corrections' table or hit the 'Delete' button to delete the highlighted row(s).

The following screenshots describe an example setup of BNC when combining Broadcast Correction streams and uploading them to an NTRIP Broadcaster. Note that it requires specifying options under tabs 'Combine Corrections' and 'Upload Corrections'. The example uses the combination product to simultaneously carry out an 'INTERNAL' PPP solution in 'Quick-Start' mode which allows monitoring the quality of the combination product in the space domain.


Figure 19: BNC combining Broadcast Correction streams.


Figure 20: BNC uploading the combined Broadcast Corrections stream.

Figure 21: 'INTERNAL' PPP with BNC using combined Broadcast Corrections stream.

3.13.1.2 Method - mandatory if 'Combine Corrections' table is populated

Select a clock combination method. Available options are Kalman 'Filter' and 'Single-Epoch. It is suggested to use the Kalman Filter approach in case the combined stream of Broadcast Corrections is intended for Precise Point Positioning.

3.13.1.3 Maximal Residuum - mandatory if 'Combine Corrections' table is populated

BNC combines all incoming clocks according to specified weights. Individual clock estimates that differ by more than 'Maximal Residuum' meters from the average of all clocks will be ignored.

It is suggested to specify a value of about 0.2 m for the Kalman filter combination approach and a value of about 3.0 meters for the Single-Epoch combination approach.

Default is a 'Maximal Residuum' of 999.0 meters

3.13.1.4 Sampling - mandatory if 'Combine Corrections' table is populated

Specify a combination sampling interval. Orbit and clock corrections will be produced following that interval. A value of 10 sec may be an appropriate choice.

3.14. Upload Corrections

BNC can upload streams carrying orbit and clock corrections to Broadcast Ephemeris in radial, along-track and cross-track components if they are

  1. either generated by BNC as a combination of several individual Broadcast Correction streams coming from an number of real-time Analysis Centers (ACs), see section 'Combine Corrections',
  2. or generated by BNC while the program receives an ASCII stream of precise satellite orbits and clocks via IP port from a connected real-time GNSS engine. Such a stream would be expected in a plain ASCII format and the associated 'decoder' string would have to be 'RTNET', see format description below.
The procedure taken by BNC to generate the orbit and clock corrections to Broadcast Ephemeris and upload them to an NTRIP Broadcaster is as follow: Then, epoch by epoch:

The orbit and clock corrections to Broadcast Ephemeris are usually referred to the latest set of broadcast messages, which are generally also received in real-time by a GNSS rover. However, the use of the latest broadcast message is delayed for a period of 60 seconds, measured from the time of complete reception of ephemeris and clock parameters, in order to accommodate rover applications to obtain the same set of broadcast orbital and clock parameters. This procedure is recommended in the RTCM SSR standard.

Because the encoding process may put a significant load on the communication link between BNC and the real-time GNSS engine, it is recommended to run both programs on the same host. However, doing so is not compulsory.

The usual handling of BNC when uploading a stream with Broadcast Corrections is that you first specify Broadcast Ephemeris and Broadcast Correction streams. You then specify an NTRIP Broadcaster for stream upload before you start the program.

'RTNET' Stream Format
When uploading an SSR stream generated according to b. then BNC requires precise GNSS orbits and clocks in the IGS Earth-Centered-Earth-Fixed (ECEF) reference system and in a specific ASCII format named 'RTNET' because the data may come from a real-time engine such as RTNet. The sampling interval for data transmission should not exceed 15 sec. Note that otherwise tools involved in IP streaming such as NTRIP Broadcasters or NTRIP Clients may respond with a timeout.

Below you find an example for the 'RTNET' ASCII format coming from a real-time GNSS engine. Each epoch begins with an asterisk character followed by the time as year, month, day of month, hour, minute and second. Subsequent records provide the following set of parameters for each satellite:

<SatelliteID> <key> <numValues> <value1 value2 ...> <key> <numValues> <value1 value2 ...> ...

The following keys and values are currently specified in BNC:

Key     Values
APCSatellite Antenna Phase Center coordinates in meters
ClkSatellite clock correction in meters, relativistic correction applied like in broadcast clocks
VelSatellite velocity in meters per second
CoMSatellite Center of Mass coordinates in meters

Because each keyword is associated to a certain number of values, an 'old' BNC could be operated with an incoming 'new' RTNET stream containing so far unknown keys - they would just be skipped in BNC.

Example for 'RTNET' stream contents and format:

*  2013  3 21  7 19 55.00000000
G01 APC 3   19869258.4381   9158001.1526  15095321.8460 Clk 1       2755.5447 Vel 3        977.3298      1661.2202     -2283.9009 CoM 3   19869259.6565   9158001.3302  15095322.8837
G02 APC 3  -13043930.7341 -22955958.1832   4995469.3779 Clk 1     126894.0959 Vel 3        601.6561       298.3845      3009.2928 CoM 3  -13043931.1120 -22955958.8484   4995469.5227
G03 APC 3   13851298.3819  11694861.0159 -19987853.3966 Clk 1      55007.9399 Vel 3      -2324.2934       726.4814     -1194.1615 CoM 3   13851299.8073  11694861.9880 -19987855.6102
...
G29 APC 3  -25369875.6774   5450979.1186  -5498874.2923 Clk 1     125546.6568 Vel 3       -721.4418      -217.8014      3085.5017 CoM 3  -25369876.4972   5450979.2947  -5498874.4700
G31 APC 3    4557628.7816  22320564.7677  13588043.6852 Clk 1      92143.1903 Vel 3      -1131.5857     -1287.0559      2553.6555 CoM 3    4557628.9485  22320565.5851  13588044.1828
G32 APC 3   12930439.3226   8685237.4669  21670974.7431 Clk 1    -163317.4919 Vel 3      -1292.6073      2393.9556      -138.1822 CoM 3   12930440.6397   8685238.1194  21670977.1159
R01 APC 3   -3814353.2138  18413537.6447  17242362.8036 Clk 1     -52077.3861 Vel 3      -1372.0183      1923.0403     -2354.6867 CoM 3   -3814353.2950  18413539.7944  17242364.1896
R02 APC 3   10258656.7268   4879144.7080  22835835.8517 Clk 1    -111012.6585 Vel 3      -1918.7777      2467.7616       336.1703 CoM 3   10258657.8278   4879145.6898  22835837.9019
R03 APC 3   17433868.5658 -10441288.0804  15458488.7196 Clk 1     -35553.9312 Vel 3      -1394.4972      1587.8467      2649.6173 CoM 3   17433870.5544 -10441288.6421  15458490.3309
...
R04 APC 3   15129778.1437 -20496855.9071  -1285420.7894 Clk 1       9829.4493 Vel 3        -22.5415      -241.9958      3566.2367 CoM 3   15129779.9938 -20496857.4962  -1285420.9249
R05 APC 3    3891203.2705 -18477936.6471 -17158415.7654 Clk 1     -51351.8469 Vel 3       1362.4084     -1912.5526      2371.0748 CoM 3    3891203.9447 -18477938.1061 -17158417.7428
R06 APC 3   -9778050.0154  -5421735.2196 -22945142.5344 Clk 1       7950.7063 Vel 3       1930.2638     -2471.0432      -241.4578 CoM 3   -9778050.8478  -5421735.2350 -22945144.9123
...
R22 APC 3  -13369019.8840   7674786.2487 -20266888.3543 Clk 1      23397.9930 Vel 3      -2765.5953      -321.7786      1715.1396 CoM 3  -13369020.9431   7674787.4768 -20266890.2198
R23 APC 3    6011527.0765  11338911.0638 -22044448.4214 Clk 1    -148199.1269 Vel 3      -2980.2013      -485.6643     -1062.5898 CoM 3    6011527.7482  11338912.5512 -22044450.1556
R24 APC 3   21300823.5162   8426171.8952 -11241665.2306 Clk 1     -27112.9305 Vel 3      -1498.4393      -376.6107     -3125.3066 CoM 3   21300825.4800   8426173.2206 -11241666.1521
EOE
*  2013  3 21  7 20  0.00000000
G01 APC 3   19874144.1634   9166303.6499  15083898.3374 Clk 1       2755.5498 Vel 3        976.9602      1659.7789     -2285.5025 CoM 3   19874145.3821   9166303.8281  15083899.3746
G02 APC 3  -13040919.4263 -22954462.9892   5010514.5569 Clk 1     126894.1080 Vel 3        602.8672       299.6930      3008.7787 CoM 3  -13040919.8041 -22954463.6543   5010514.7021
G03 APC 3   13839675.6507  11698495.4721 -19993819.1341 Clk 1      55007.9600 Vel 3      -2324.7994       727.3013     -1192.1337 CoM 3   13839677.0746  11698496.4446 -19993821.3483
...

Note that the end of an epoch in the incoming stream is indicated by an ASCII string 'EOE' (for End Of Epoch).

When using clocks from Broadcast Ephemeris (with or without applied corrections) or clocks from SP3 files, it may be important to understand that they are not corrected for the conventional periodic relativistic effect. Chapter 10 of the IERS Conventions 2003 mentions that the conventional periodic relativistic correction to the satellite clock (to be added to the broadcast clock) is computed as dt = -2 (R * V) / c^2 where R *V is the scalar product of the satellite position and velocity and c is the speed of light. This can also be found in the GPS Interface Specification, IS-GPS-200, Revision D, 7 March 2006.

3.14.1 Add, Delete Row - optional

Hit 'Add Row' button to add another row to the stream 'Upload Table' or hit the 'Delete' button to delete the highlighted row(s).

Having an empty 'Upload Table' is default and means that you don't want BNC to upload orbit and clock correction streams to any NTRIP Broadcaster.

3.14.2 Host, Port, Mountpoint, Password - mandatory if 'Upload Table' entries specified

Specify the domain name or IP number of an NTRIP Broadcaster for uploading the stream. Furthermore, specify the caster's listening IP port, an upload mountpoint and an upload password. Note that NTRIP Broadcasters are often configured to provide access on more than one port, usually port 80 and 2101. If you experience communication problems on port 80, you should try to use the alternative port(s).

BNC uploads a stream to the NNTRIP Broadcaster by referring to a dedicated mountpoint that has been set by its operator. Specify here the mountpoint based on the details you received for your stream from the operator. It is often a four character ID (capital letters) plus an integer number.

The stream upload may be protected through an upload 'Password'. Enter the password you received from the NTRIP Broadcaster operator along with the mountpoint(s).

If 'Host', 'Port', 'Mountpoint' and 'Password' are set, the stream will be encoded in RTCM's 'State Space Representation' (SSR) messages and uploaded to the specified broadcaster following the NTRIP Version 1 transport protocol.

3.14.3 System - mandatory if 'Host' is set

BNC allows configuring several Broadcast Correction streams for upload so that they refer to different reference systems and different NTRIP Broadcasters. You may use this functionality for parallel support of a backup NTRIP Broadcaster or for simultaneous support of various regional reference systems. Available options for transforming orbit and clock corrections to specific target reference systems are

Because a mathematically strict transformation to a regional reference system is not possible on the BNC server side when a scale factor is involved, the program follows an approximate solution. While orbits are transformed in full accordance with given equations, a transformed clock is derived through applying correction term

dC = (s - 1) / s * ρ / c

where s is the transformation scale, c is the speed of light, and ρ are the topocentric distance between an (approximate) center of the transformation's validity area and the satellite.

From a theoretical point of view this kind of approximation leads to inconsistencies between orbits and clocks and is therefore not allowed. However, it has been proved that resulting errors in Precise Point Positioning are on millimeter level for horizontal components and below the one centimeter for height components. The Australian GDA94 transformation with its comparatively large scale parameter is an exception in this as descrepancies may reach up to two centimeters there.

IGS08: As the orbits and clocks coming from real-time GNSS engine are expected to be in the IGS08 system, no transformation is carried out if this option is selected.

ETRF2000: The formulas for the transformation 'ITRF2008->ETRF2000' are taken from 'Claude Boucher and Zuheir Altamimi 2008: Specifications for reference frame fixing in the analysis of EUREF GPS campaign', see http://etrs89.ensg.ign.fr/memo-V8.pdf. The following 14 Helmert Transformation Parameters were introduced:

Translation in X at epoch To:  0.0521 m
Translation in Y at epoch To:  0.0493 m
Translation in Z at epoch To: -0.0585 m
Translation rate in X:  0.0001 m/y
Translation rate in Y:  0.0001 m/y
Translation rate in Z: -0.0018 m/y
Rotation in X at epoch To:  0.891 mas
Rotation in Y at epoch To:  5.390 mas
Rotation in Z at epoch To: -8.712 mas
Rotation rate in X:  0.081 mas/y
Rotation rate in Y:  0.490 mas/y
Rotation rate in Z: -0.792 mas/y
Scale at epoch To : 0.00000000134
Scale rate: 0.00000000008 /y
To: 2000.0

NAD83: Formulas for the transformation 'ITRF2005->NAD83' are taken from 'Chris Pearson, Robert McCaffrey, Julie L. Elliott, Richard Snay 2010: HTDP 3.0: Software for Coping with the Coordinate Changes Associated with Crustal Motion, Journal of Surveying Engineering'.

Translation in X at epoch To:  0.9963 m
Translation in Y at epoch To: -1.9024 m
Translation in Z at epoch To: -0.5219 m
Translation rate in X:  0.0005 m/y
Translation rate in Y: -0.0006 m/y
Translation rate in Z: -0.0013 m/y
Rotation in X at epoch To: 25.915 mas
Rotation in Y at epoch To:  9.426 mas
Rotation in Z at epoch To: 11.599 mas
Rotation rate in X:  0.067 mas/y
Rotation rate in Y: -0.757 mas/y
Rotation rate in Z: -0.051 mas/y
Scale at epoch To : 0.00000000078
Scale rate: -0.00000000010 /y
To: 1997.0

GDA94: The formulas for the transformation 'ITRF2008->GDA94' are taken from 'John Dawson, Alex Woods 2010: ITRF to GDA94 coordinate transformations', Journal of Applied Geodesy, 4 (2010), 189-199, de Gruyter 2010. DOI 10.1515/JAG.2010.019'.

Translation in X at epoch To: -0.08468 m
Translation in Y at epoch To: -0.01942 m
Translation in Z at epoch To:  0.03201 m
Translation rate in X:  0.00142 m/y
Translation rate in Y:  0.00134 m/y
Translation rate in Z:  0.00090 m/y
Rotation in X at epoch To:  0.4254 mas
Rotation in Y at epoch To: -2.2578 mas
Rotation in Z at epoch To: -2.4015 mas
Rotation rate in X: -1.5461 mas/y
Rotation rate in Y: -1.1820 mas/y
Rotation rate in Z: -1.1551 mas/y
Scale at epoch To : 0.000000009710
Scale rate: 0.000000000109 /y
To: 1994.0

SIRGAS2000: The formulas for the transformation 'ITRF2008->SIRGAS2000' were provided via personal communication from CGED-Coordenacao de Geodesia, IBGE/DGC - Diretoria de Geociencias, Brazil..

Translation in X at epoch To:  0.0020 m
Translation in Y at epoch To:  0.0041 m
Translation in Z at epoch To:  0.0039 m
Translation rate in X:  0.0000 m/y
Translation rate in Y:  0.0000 m/y
Translation rate in Z:  0.0000 m/y
Rotation in X at epoch To:  0.170 mas
Rotation in Y at epoch To: -0.030 mas
Rotation in Z at epoch To:  0.070 mas
Rotation rate in X:  0.000 mas/y
Rotation rate in Y:  0.000 mas/y
Rotation rate in Z:  0.000 mas/y
Scale at epoch To : 0.000000000000
Scale rate: 0.000000000000 /y
To: 0000.0

SIRGAS95: The formulas for the transformation 'ITRF2005->SIRGAS95' were provided via personal communication from Gustavo Acuha, Laboratorio de Geodesia Fisica y Satelital at Zulia University (LGFS-LUZ), parameters based on values from Table 4.1 of "Terrestrial Reference Frames (April 10, 2009), Chapter 4" in http://tai.bipm.org/iers/convupdt/convupdt_c4.html..

Translation in X at epoch To:  0.0077 m
Translation in Y at epoch To:  0.0058 m
Translation in Z at epoch To: -0.0138 m
Translation rate in X:  0.0000 m/y
Translation rate in Y:  0.0000 m/y
Translation rate in Z:  0.0000 m/y
Rotation in X at epoch To:  0.000 mas
Rotation in Y at epoch To:  0.000 mas
Rotation in Z at epoch To: -0.003 mas
Rotation rate in X:  0.000 mas/y
Rotation rate in Y:  0.000 mas/y
Rotation rate in Z:  0.000 mas/y
Scale at epoch To : 0.00000000157
Scale rate: -0.000000000000 /y
To: 1995.4

Custom: Feel free to specify your own 14 Helmert Transformation parameters for transformations from IGS08/ITRF2008 into your own target system.

3.14.4 Center of Mass - optional

BNC allows to either referring Broadcast Corrections to the satellite's Center of Mass (CoM) or to the satellite's Antenna Phase Center (APC). By default corrections refer to APC. Tick 'Center of Mass' to refer uploaded corrections to CoM.

3.14.5 SP3 File - optional

Specify a path for saving the generated orbit corrections as SP3 orbit files. If the specified directory does not exist, BNC will not create SP3 orbit files. The following is a path example for a Linux system:
/home/user/BNC${GPSWD}.sp3
Note that '${GPSWD}' produces the GPS Week and Day number in the file name.

Default is an empty option field, meaning that you don't want BNC to save the uploaded stream contents in daily SP3 files.

As an SP3 file contents should be referred to the satellites Center of Mass (CoM) while Broadcast Corrections are referred to the satellites APC, an offset has to be applied which is available from an IGS ANTEX file (see section 'ANTEX File'). You should therefore specify the 'ANTEX File' path under tab 'PPP (2)' if you want to save the stream contents in SP3 format. If you don't specify an 'ANTEX File' path there, the SP3 file contents will be referred to the satellites APCs.

The file names for the daily SP3 files follow the convention for SP3 file names. The first three characters of each file name are set to 'BNC'. Note that clocks in the SP3 orbit files are not corrected for the conventional periodic relativistic effect.

In case the 'Combine Corrections' table contains only one Broadcast Corrections stream, BNC will merge that stream with Broadcast Ephemeris to save results in files specified here through SP3 and/or Clock RINEX file path. In such a case you have to define only the SP3 and Clock RINEX file path and no further option in the 'Upload Corrections' table.

Note that BNC outputs a complete list of SP3 'Epoch Header Records' even if no 'Position and Clock Records' are available for certain epochs because of stream outages. Note further that the 'Number of Epochs' in the first SP3 header record may not be correct because that number is not available when the file is created. Depending on your processing software (e.g. Bernese GNSS Software, BSW) it could therefore be necessary to correct an incorrect 'Number of Epochs' in the file before you use in Post Processing.

3.14.6 RNX File - optional

The clock corrections generated by BNC for upload can be logged in Clock RINEX format. The file naming follows the RINEX convention.

Specify a path for saving the generated clock corrections as Clock RINEX files. If the specified directory does not exist, BNC will not create Clock RINEX files. The following is a path example for a Linux system:
/home/user/BNC${GPSWD}.clk
Note that '${GPSWD}' produces the GPS Week and Day number in the file name.

Note further that clocks in the Clock RINEX files are not corrected for the conventional periodic relativistic effect.

3.14.7 Interval - mandatory if 'Upload Table' entries specified

Select the length of Clock RINEX files and SP3 Orbit files. The default value is 1 day.

3.14.8 Sampling - mandatory if 'Upload Table' entries specified

BNC requires an orbit corrections sampling interval for the stream to be uploaded and sampling intervals for SP3 and Clock RINEX files. The outgoing stream's clock correction sampling interval follows that of incoming corrections and is therefore nothing to be specified here.

3.14.8.1 Orbits - mandatory if 'Upload Table' entries specified

Select the stream's orbit correction sampling interval in seconds. A value of 60 sec may be appropriate.

A value of zero '0' tells BNC to upload all orbit correction samples coming in from the real-time GNSS engine along with the clock correction samples to produce combined orbit and clock corrections to Broadcast Ephemeris (1060 for GPS, 1066 for GLONASS).

3.14.8.2 SP3 - mandatory if 'SP3 File' is specified

Select the SP3 orbit file sampling interval in minutes. A value of 15 min may be appropriate. A value of zero '0' tells BNC to store all available samples into SP3 orbit files.

3.14.8.3 RINEX - mandatory if 'RNX File' is specified

Select the Clock RINEX file sampling interval in seconds. A value of 10 sec may be appropriate. A value of zero '0' tells BNC to store all available samples into Clock RINEX files.

3.14.9 Custom Trafo - optional if 'Upload Table' entries specified

Hit 'Custom Trafo' to specify your own 14 parameter Helmert Transformation instead of selecting a predefined transformation through 'System' button.

The following screenshot shows the encoding and uploading of a stream of precise orbits and clocks coming from a real-time engine in 'RTNET' ASCII format. The stream is uploaded to NTRIP Broadcaster 'products.igs-ip.net'. It is referred to APC and IGS08. Uploaded data are locally saved in SP3 and Clock RINEX format. The SSR Provider ID is set to 3. The SSR Solution ID is and the Issue of Data SSR are set to 1. Required Broadcast Ephemeris are received via stream 'RTCM3EPH'.

Figure 22: Producing Broadcast Corrections from incoming precise orbits and clocks and uploading them to an NTRIP Broadcaster.

3.15. Upload Ephemeris

BNC can upload a stream carrying Broadcast Ephemeris in RTCM Version 3 format to an NTRIP Broadcaster.

3.15.1 Host & Port - optional

Specify the 'Host' IP name or number of an NTRIP Broadcaster to upload the stream. An empty option field means that you don't want to upload Broadcast Ephemeris.

Enter the NTRIP Broadcaster's IP 'Port' number for stream upload. Note that NTRIP Broadcasters are often configured to provide access on more than one port, usually port 80 and 2101. If you experience communication problems on port 80, you should try to use the alternative port(s).

3.15.2 Mountpoint & Password - mandatory if 'Host' is set

BNC uploads a stream to the NTRIP Broadcaster by referring to a dedicated mountpoint that has been set by its operator. Specify the mountpoint based on the details you received for your stream from the operator. It is often a four character ID (capital letters) plus an integer number.

The stream upload may be protected through an upload 'Password'. Enter the password you received from the NTRIP Broadcaster operator along with the mountpoint.

3.15.3 Sampling - mandatory if 'Host' is set

Select the Broadcast Ephemeris repetition interval in seconds. Default is '5' meaning that a complete set of Broadcast Ephemeris is uploaded every 5 seconds.

Figure 23: Producing a Broadcast Ephemeris stream from navigation messages of globally distributed RTCM streams and uploading them in RTCM Version 3 format to an NTRIP Broadcaster.

3.16. Streams

Each stream on an NTRIP Broadcaster (and consequently on BNC) is defined using a unique source ID called mountpoint. An NTRIP Client like BNC accesses the desired stream by referring to its mountpoint. Information about streams and their mountpoints is available through the source-table maintained by the NTRIP Broadcaster. Note that mountpoints could show up in BNC more than once when retrieving streams from several NTRIP Broadcasters.

Streams selected for retrieval are listed under the 'Streams' canvas on BNC's main window. The list provides the following information either extracted from source-table(s) produced by the NTRIP Broadcasters or introduced by BNC's user:

'resource loader'  NTRIP Broadcaster URL and port, or
TCP/IP host and port, or
UDP port, or
Serial input port specification.
'mountpoint'  Mountpoint introduced by NTRIP Broadcaster, or
Mountpoint introduced by BNC's user.
'decoder'  Name of decoder used to handle the incoming stream content according to its format; editable.
'lat'  Approximate latitude of reference station, in degrees, north; editable if 'nmea' = 'yes'.
'long'  Approximate longitude of reference station, in degrees, east; editable if 'nmea' = 'yes'.
'nmea'  Indicates whether or not streaming needs to be initiated by BNC through sending NMEA-GGA message carrying position coordinates in 'lat' and 'long'.
'ntrip'  Selected NTRIP transport protocol version (1, 2, 2s, R, or U), or
'N' for TCP/IP streams without NTRIP, or
'UN' for UDP streams without NTRIP, or
'S' for serial input streams without NTRIP.
'bytes'  Number of bytes received.

3.16.1 Edit Streams

3.16.2 Delete Stream

To remove a stream from the 'Streams' canvas in the main window, highlight it by clicking on it and hit the 'Delete Stream' button. You can also remove multiple streams simultaneously by highlighting them using +Shift and +Ctrl.

3.16.3 Reconfigure Stream Selection On-the-fly

The streams selection can be changed on-the-fly without interrupting uninvolved threads in the running BNC process.

Window mode: Hit 'Save & Reread Configuration' while BNC is in window mode and already processing data to let changes of your streams selection immediately become effective.

No window mode: When operating BNC online in 'no window' mode (command line option -nw), you force BNC to reread its 'mountPoints' configuration option from disk at pre-defined intervals. Select '1 min', '1 hour', or '1 day' as 'Reread configuration' option to reread the 'mountPoints' option every full minute, hour, or day. This lets a 'mountPoints' option edited in between in the configuration file become effective without terminating uninvolved threads. See annexed section 'Configuration Examples' for a configuration file example and a list of other on-the-fly changeable options.

3.17. Logging

A tabs section on the bottom of the main window provides online control of BNC's activities. Tabs are available to show the records saved in a logfile, for a plot to control the bandwidth consumption, for a plot showing stream latencies, and for time series plots of PPP results.

3.17.1 Log

Records of BNC's activities are shown in the 'Log' tab. They can be saved into a file when a valid path is specified in the 'Logfile (full path)' field.

3.17.2 Throughput

The bandwidth consumption per stream is shown in the 'Throughput' tab in bits per second (bps) or kilo bits per second (kbps). The following figure shows an example for the bandwidth consumption of incoming streams.

Figure 24: Bandwidth consumption of incoming streams.

3.17.3 Latency

The latency of observations in each incoming stream is shown in the 'Latency' tab in milliseconds or seconds. Streams not carrying observations (i.e. those providing only Broadcast Ephemeris messages) or having an outage are not considered here and shown in red color. Note that the calculation of correct latencies requires the clock of the host computer to be properly synchronized. The next figure shows an example for the latency of incoming streams.

Figure 25: Latency of incoming streams.

3.17.4 PPP Plot

Precise Point Positioning time series of North (red), East (green) and Up (blue) coordinate components are shown in the 'PPP Plot' tab when a 'Origin' option is defined. Values are either referred to reference coordinates (if specified) or referred to the first estimated set of coordinate components. The time as given in format [hh:mm] refers to GPS Time. The sliding PPP time series window covers a period of 5 minutes. Note that it may take up to 30 seconds or more till the first PPP solutions becomes available. The following figure shows the screenshot of a PPP time series plot of North, East and Up coordinate components.

Figure 26: Time series plot of PPP session.

3.18. Bottom Menu Bar

The bottom menu bar allows to add or delete streams to BNC's configuration and to start or stop it. It also provides access to BNC's online help function. The 'Add Stream' button opens a window that allows user to select one of several input communication links, see figure below.

Figure 27: Steam input communication links.

3.18.1 Add Stream

Button 'Add Stream' allows you to pull streams either from an NTRIP Broadcaster or from a TCP/IP port, a UPD port, or a serial port.

3.18.1.1 Add Stream - Coming from Caster

Button 'Add Stream' > 'Coming from Caster' then opens a window that allows user to select data streams from an NTRIP Broadcaster according to their mountpoints and show a distribution map of offered streams.

3.18.1.1.1 Caster Host and Port - mandatory

Enter the NTRIP Broadcaster host IP and port number. Note that EUREF and IGS operate NTRIP Broadcasters at http://www.euref-ip.net/home, http://www.igs-ip.net/home, http://www.products.igs-ip.net/home and http://mgex.igs-ip.net/home.

3.18.1.1.2 Casters Table - optional

It may be that you are not sure about your NTRIP Broadcasters host and port number or you are interested in other broadcaster installations operated elsewhere. Hit 'Show' for a table of known broadcasters maintained at www.rtcm-ntrip.org/home. A window opens which allows selecting a broadcaster for stream retrieval, see figure below.

Figure 28: Casters table.

3.18.1.1.3 User and Password - mandatory for protected streams

Some streams on NTRIP Broadcasters may be restricted. Enter a valid 'User' ID and 'Password' for access to protected streams. Accounts are usually provided per NTRIP Broadcaster through a registration procedure. Register through http://igs.bkg.bund.de/ntrip/registeruser for access to protected streams from EUREF and IGS.

3.18.1.1.4 Get Table

Use the 'Get Table' button to download the source-table from the NTRIP Broadcaster. Pay attention to data fields 'format' and 'format-details'. Keep in mind that BNC can only decode and convert streams that come in RTCM Version 2, RTCM Version 3, or RTNET format. For access to observations, Broadcast Ephemeris and Broadcast Corrections in RTCM format streams must contain a selection of appropriate message types as listed in the Annex, cf. data field 'format-details' for available message types and their repetition rates in brackets. Note that in order to produce RINEX Navigation files RTCM Version 3 streams containing message types 1019 (GPS) and 1020 (GLONASS) and 1045 (Galileo) are required. Select your streams line by line, use +Shift and +Ctrl when necessary. The figure below provides an example source-table.

The contents of data field 'nmea' tells you whether a stream retrieval needs to be initiated by BNC through sending an NMEA-GGA message carrying approximate position coordinates (virtual reference station).

Hit 'OK' to return to the main window. If you wish you can click on 'Add Stream' and repeat the process again to retrieve streams from different casters.

Figure 29: Broadcaster source-table.

3.18.1.1.5 NTRIP Version - mandatory

Some limitations and deficiencies of the NTRIP Version 1 stream transport protocol are solved in NTRIP Version 2. Improvements mainly concern a full HTTP compatibility in view of requirements coming from proxy servers. Version 2 is backwards compatible to Version 1. Options implemented in BNC are:

  1:  NTRIP Version 1, TCP/IP.
  2:  NTRIP Version 2 in TCP/IP mode.
  2s:  NTRIP Version 2 in TCP/IP mode via SSL.
  R:  NTRIP Version 2 in RTSP/RTP mode.
  U:  NTRIP Version 2 in UDP mode.

If NTRIP Version 2 is supported by the broadcaster:

Select option '1' if you are not sure whether the broadcaster supports NTRIP Version 2.

3.18.1.1.6 Map - optional

Button 'Map' opens a window to show a distribution map of the caster's streams. You may like to zoom in or out using the mouse. Left button: draw a rectangle to zoom, right button: zoom out, middle button: zoom back.

Figure 30: Stream distribution map derived from NTRIP Broadcaster source-table.

3.18.1.2 Add Stream - Coming from TCP/IP Port

Button 'Add Stream' > 'Coming from TCP/IP Port' allows to retrieve streams via TCP directly from an IP address without using the NTRIP transport protocol. For that you:

Streams directly received from a TCP/IP port show up with an 'N' for 'No NTRIP' in the 'Streams' canvas on BNC's main window. Latitude and longitude are to be entered just for informal reasons.

Note that this option works only if no proxy server is involved in the communication link.

3.18.1.3 Add Stream - Coming from UDP Port

Button 'Add Stream' > 'Coming from UDP Port' allows to pick up streams arriving directly at one of the local host's UDP ports without using the NTRIP transport protocol. For that you:

Streams directly received at a UDP port show up with a 'UN' for 'UDP, No NTRIP' in the 'Streams' canvas section on BNC's main window. Latitude and longitude are to be entered just for informal reasons.

3.18.1.4 Add Stream - Coming from Serial Port

Button 'Add Stream' > 'Coming from Serial Port' allows to retrieve streams from a GNSS receiver via serial port without using the NTRIP transport protocol. For that you:

When selecting one of the serial communication options listed above, make sure that you pick those configured to the serial connected GNSS receiver.

Streams received from a serial connected GNSS receiver show up with an 'S' (for Serial Port, no NTRIP) in the 'Streams' canvas section on BNC's main window. Latitude and longitude are to be entered just for informal reasons.

The following figure shows a BNC example setup for pulling a stream via serial port on a Linux operating system.

Figure 31: BNC setup for pulling a stream via serial port.

3.18.2 Delete Stream

Button 'Delete Stream' allows you to delete streams previously selected for retrieval as listed under the 'Streams' canvas on BNC's main window.

3.18.3 Map

Button 'Map' opens a window to show a distribution map of the streams selected for retrieval as listed under the 'Streams' canvas. You may like to zoom in or out using the mouse. Left button: draw a rectangle to zoom, right button: zoom out, middle button: zoom back.

3.18.4 Start

Hit 'Start' to start retrieving, decoding or converting GNSS data streams in real-time. Note that 'Start' generally forces BNC to begin with fresh RINEX which might overwrite existing files when necessary unless the option 'Append files' is ticked.

3.18.5 Stop

Hit the 'Stop' button in order to stop BNC.

3.19. Command Line Options

Command line options are available to run BNC in 'no window' mode or let it read data offline from one or several files for debugging or Post Processing purposes. BNC will then use processing options from the involved configuration file. Note that the self-explaining contents of the configuration file can easily be edited. It is possible to introduce a specific configuration file name instead of using the default name 'BNC.bnc'.

3.19.1 No Window Mode - optional

Apart from its regular windows mode, BNC can be started on all systems as a batch job with command line option '-nw'. BNC will then run in 'no window' mode, using processing options from its configuration file on disk. Terminate BNC using Windows Task Manager when running it in 'no window' mode on Windows systems.

Example:

bnc.exe -nw

It is obvious that BNC requires graphics support when started in interactive mode. But, note that it also requires graphics support when producing plots in batch mode (option -nw). Windows and Mac OS X systems always support graphics. For producing plots in batch mode on Linux systems you must make sure that at least a virtual X-Server such as 'Xvfb' is installed and the '-display' option is used. The following is an example shell script to execute BNC in batch mode for producing QC plots from RINEX files. It could be used via 'crontab':

#!/bin/bash

# Save string localhost
echo "localhost" > /home/user/hosts

# Start virtual X-Server, save process ID
/usr/bin/Xvfb :29 -auth /home/user/hosts -screen 0 1280x1024x8 &
psID=`echo $!`

# Run BNC application with defined display variable
/home/user/BNC/bnc --conf /dev/null --key reqcAction Analyze --key reqcObsFile ons12090.12o --key reqcNavFile brdc2090.12p --key reqcOutLogFile multi.txt --key reqcPlotDir /home/user --display localhost:29 --nw

# BNC done, kill X-server process
kill $psID

3.19.2 File Mode - optional

Although BNC is primarily a real-time online tool, for debugging purposes it can be run offline to read data from a file previously saved through option 'Raw output file'. Enter the following command line option for that

--file <inputFileName>

and specify the full path to an input file containing previously saved data. Example:

./bnc --file /home/user/raw.output_110301

Note that when running BNC offline, it will use options for file saving, interval, sampling, PPP etc. from its configuration file.

Note further that option '--file' forces BNC to appy the '-nw' option for running in 'no window' mode.

3.19.3 Configuration File - optional

The default configuration file name is 'BNC.bnc'. You may change this name at startup time using the command line option '--conf <confFileName>'. This allows running several BNC jobs in parallel on the same host using different sets of configuration options. confFileName stands either for the full path to a configuration file or just for a file name. If you introduce only a filename, the corresponding file will be saved in the current working directory from where BNC is started.

Example:

./bnc --conf MyConfig.bnc

This leads to a BNC job using configuration file 'MyConfig.bnc'. The configuration file will be saved in the current working directory.

3.19.4 Configuration Options - optional

BNC applies options from the configuration file but allows updating every one of them on the command line while the contents of the configuration file remains unchanged. The command line syntax for that looks as follows

--key <keyName> <keyValue>

where <keyName> stands for the name of an option contained in the configuration file and <keyValue> stands for the value you want to assign to it. The following is a syntax example for a complete command line:

bnc --nw --conf <confFileName> --key <keyName1> <keyValue1> --key <keyName2> <keyValue2> ...

Example:

./bnc --conf CONFIG.bnc --key proxyPort 8001 --key rnxIntr "1 day"

4. Limitations

5. Annex

5.1. Revision History
5.2. RTCM
      5.2.1 NTRIP Version 1
      5.2.2 NTRIP Version 2
      5.2.3 RTCM Version 2
      5.2.4 RTCM Version 3
5.3. Configuration Examples
5.4. Further Reading

5.1 Revision History

Dec 2006  Version 1.0b   [Add] First Beta Binaries published based on Qt 4.2.3.
Jan 2007  Version 1.1b   [Add] Observables C2, S1, and S2
[Add] Virtual reference station access
[Bug] RTCM2 decoder time tag fixed
[Mod] Small letters for public RINEX skeleton files
[Add] Online help through Shift+F1
Apr 2007  Version 1.2b   [Bug] Output only through IP port
[Bug] Method 'reconnecting' now thread-save
[Add] ZERO decoder added
[Mod] Download public RINEX skeletons once per day
[Mod] Upgrade to Qt Version 4.2.3
[Mod] Replace 'system' call for RINEX script by 'QProcess'
[Add] HTTP Host directive for skeleton file download
[Add] Percent encoding for user IDs and passwords
[Bug] Exit execution of calling thread for RTCM3 streams
[Bug] Signal-slot mechanism for threads
May 2007  Version 1.3   [Add] Source code published.
Jul 2007  Version 1.4   [Bug] Skip messages from proxy server
[Bug] Call RINEX script through 'nohup'
Apr 2008  Version 1.5   [Add] Handle ephemeris from RTCM Version 3 streams
[Add] Upgrade to Qt Version 4.3.2
[Add] Optional RINEX v3 output
[Add] SBAS support
[Bug] RINEX skeleton download following stream outage
[Add] Handle ephemeris from RTIGS streams
[Add] Monitor stream failure/recovery and latency
[Mod] Redesign of main window
[Bug] Freezing of About window on Mac OS X
[Bug] Fixed problem with PRN 32 in RTCMv2 decoder
[Bug] Fix for Trimble 4000SSI receivers in RTCMv2 decoder
[Mod] Major revision of input buffer in RTCMv2 decoder
Dec 2008  Version 1.6   [Mod] Fill blank columns in RINEXv3 with 0.000
[Add] RTCMv3 decoder for orbit and clock corrections
[Add] Check RTCMv3 streams for incoming message types
[Add] Decode RTCMv2 message types 3, 20, 21, and 22
[Add] Loss of lock and lock time indicator
[Bug] Rounding error in RTCMv3 decoder concerning GLONASS height
[Mod] Accept GLONASS in RTCMv3 when transmitted first
[Add] Leap second 1 January 2009
[Add] Offline mode, read data from file
[Add] Output antenna descriptor, coordinates and eccentricities from RTCMv3
[Add] Reconfiguration on-the-fly
[Mod] Binary output of synchronized observations
[Add] Binary output of unsynchronized observations
[Bug] Fixed problem with joined RTCMv3 blocks
Dec 2008  Version 1.6.1   [Mod] HTTP GET when no proxy in front
Nov 2009  Version 1.7   [Bug] RINEX Navigation file format
[Add] Upgrade to Qt Version 4.5.2
[Add] Support of NTRIP v2
[Add] Rover support via serial port
[Add] Show broadcaster table from www.rtcm-ntrip.org
[Add] Enable/disable tab widgets
[Add] User defined configuration file name
[Mod] Switch to configuration files in ini-Format
[Add] Daily logfile rotation
[Add] Read from TCP/IP port, by-pass NTRIP transport protocol
[Add] Save NMEA messages coming from rover
[Add] Auto start
[Add] Drag and drop ini files
[Add] Read from serial port, by-pass NTRIP transport protocol
[Mod] Update of SSR messages following RTCM 091-2009-SC104-542
[Add] Read from UPD port, by-pass NTRIP transport protocol
[Mod] Output format of Broadcast Corrections
[Add] Throughput plot
[Add] Latency plot
Nov 2009  Version 1.8   [Mod] On-the-fly reconfiguration of latency and throughput plots
Feb 2010  Version 2.0   [Mod] Change sign of Broadcast Corrections
[Add] Real-time PPP option
Jun 2010  Version 2.1   [Bug] SSR GLONASS message generation
[Add] PPP in Post Processing mode
[Mod] Update of SSR messages following draft dated 2010-04-12
[Mod] Generating error message when observation epoch is wrong
Jul 2010  Version 2.2   [Bug] GLONASS ephemeris time
Aug 2010  Version 2.3   [Mod] Internal format for saving raw streams
[Bug] Outlier detection in GLONASS ambiguity resolution
[Mod] Format of PPP logs in logfile
[Bug] Complete acceleration terms for GLONASS ephemeris
[Bug] Handling ephemeris IOD's in PPP mode
Dec 2010  Version 2.4   [Add] Output of averaged positions when in PPP mode
[Mod] Use always the latest received set of Broadcast Ephemeris
[Add] QuickStart PPP option
[Mod] Improvement of data sharing efficiency among different threads
[Mod] Design of PPP tab section
[Add] Sigmas for observations and parameters
[Add] Stream distribution map
[Bug] GPS Ephemeris in RINEX v3 format
Feb 2011  Version 2.5   [Add] PPP option for sync of clock observations and corrections
[Add] Drafted RTCMv3 Galileo ephemeris messages 1045
[Add] Drafted RTCMv3 Multiple Signal Messages
[Add] Optional specification of sigmas for coordinates and troposphere in PPP
[Add] Include Galileo in SPP
[Add] Include Galileo observations in output via IP port
[Add] Include Galileo observations in output via RINEXv3 files
[Mod] Interface format for feeding a real-time engine with observations
[Add] Correct observations for antenna phase center offsets
[Add] Combine orbit/clock correction streams
[Add] Specify corrections mountpoint in PPP tab
Apr 2011  Version 2.6   [Add] Complete integration of BNS in BNC
[Add] SP3 and Clock RINEX output
[Add] PPP in Post Processing Mode
[Add] Some RINEX editing & QC functionality
[Add] Threshold for orbit outliers in combination solution
[Add] Real-time engine becomes orbit/clock server instead of client
[Mod] 'EOE' added to orbit/clock stream from engine
[Add] Correction for antenna eccentricities
[Add] Quick start mode for PPP
[Mod] Design of format for feeding engine changed to follow RINEX v3
[Mod] Implementation of SSR message encoding modified according to standard
[Add] SSL/TLS Support of NTRIP Version 2
[Mod] Switch to Qt version 4.7.3
[Add] RINEX editing, concatenation and quality check
[Add] Reading all configuration options from command line
[Mod] RTCMv3 Galileo Broadcast Ephemeris message 1045
[Mod] Change default configuration file suffix from 'ini' to 'bnc'
[Add] Specific rates for orbits and clocks in streams and SP3/RNX files
May 2012  Version 2.6   [Add] Version 2.6 published
Sep 2012  Version 2.7   [Bug] Bug in L5 decoding fixed
[Bug] Bug in on-the-fly configuration fixed
[Add] Clock RINEX file header extended
[Add] Decoding/converting BeiDou and QZSS added
[Add] Work on RINEX v2 and v3 quality check started
[Mod] Source code completely re-arranged
[Add] QWT and QWTPOLAR graphics libraries added
[Add] RINEX QC through multipath analysis sky plot
[Add] RINEX QC through signal-to-noise sky plot
[Add] RINEX QC through satellite availability plot
[Add] RINEX QC through satellite elevation plot
[Add RINEX QC through PDOP plot
[Bug] Short periodic outages in PPP time series when operated when 'Sync Corr' set to zero
|Add] Log observation types contained in RTCM Version 3 MSM streams
[Add] Reading RINEX v3 observation type header records from RINEX skeleton files
[Add] Logfile for RINEX file editing and concatenation
[Add] Save PNG plot files on disk
[Mod] Plot stream distribution map from NTRIP Broadcaster source-table
[Add] Plot stream distribution map from selected sources
[Add] Version 2.7 published
Mar 2013  Version 2.8   [Mod] Started work on new version in Sep 2012
[Bug] Epoch special event flag in RINEX concatenation
[Bug] Limit RINEX v2 records length to 80 characters
[Bug] SSR message update interval indicator
[Bug] Fixed SSR stream encoding and upload
[Add] Concatenate RINEX v3 navigation files containing Galileo ephemeris
[Mod] Plausibility check of GLONASS ephemeris
[Add] Correcting clocks for scale factor involved in transformation
[Mod] Orbit/clock interpolation in SSR stream encoding and upload to caster
[Add] Version 2.8 publisched
Mar 2013  Version 2.9   [Add] Started work on new version in Mar 2013
[Bug] SSR stream upload buffering disabled
[Mod] Format for feeding a connected GNSS engine
[Mod] RTNET format for receiving data from a connected GNSS engine

5.2. RTCM

The Radio Technical Commission for Maritime Services (RTCM) is an international non-profit scientific, professional and educational organization. Special Committees provide a forum in which governmental and non-governmental members work together to develop technical standards and consensus recommendations in regard to issues of particular concern. RTCM is engaged in the development of international standards for maritime radionavigation and radiocommunication systems. The output documents and reports prepared by RTCM Committees are published as RTCM Recommended Standards. Topics concerning Differential Global Navigation Satellite Systems (DGNSS) are handled by the Special Committee SC 104.

Personal copies of RTCM Recommended Standards can be ordered through http://www.rtcm.org/orderinfo.php.

5.2.1 NTRIP Version 1

'Networked Transport of RTCM via Internet Protocol' Version 1.0 (NTRIP) stands for an application-level protocol streaming Global Navigation Satellite System (GNSS) data over the Internet. NTRIP is a generic, stateless protocol based on the Hypertext Transfer Protocol HTTP/1.1. The HTTP objects are enhanced to GNSS data streams.

NTRIP Version 1 is an RTCM standard designed for disseminating differential correction data (e.g. in the RTCM-104 format) or other kinds of GNSS streaming data to stationary or mobile users over the Internet, allowing simultaneous PC, Laptop, PDA, or receiver connections to a broadcasting host. NTRIP supports wireless Internet access through Mobile IP Networks like GSM, GPRS, EDGE, or UMTS.

NTRIP is implemented in three system software components: NTRIP Clients, NTRIP Servers and NTRIP Broadcasters. The NTRIP Broadcaster is the actual HTTP server program whereas NTRIP Client and NTRIP Server are acting as HTTP clients.

NTRIP is an open none-proprietary protocol. Major characteristics of NTRIP's dissemination technique are:

The NTRIP Broadcaster maintains a source-table containing information on available NTRIP streams, networks of NTRIP streams and NTRIP Broadcasters. The source-table is sent to an NTRIP Client on request. Source-table records are dedicated to one of the following: Data Streams (record type STR), Casters (record type CAS), or Networks of streams (record type NET).

Source-table records of type STR contain the following data fields: 'mountpoint', 'identifier', 'format', 'format-details', 'carrier', 'nav-system', 'network', 'country', 'latitude', 'longitude', 'nmea', 'solution', 'generator', 'compr-encryp', 'authentication', 'fee', 'bitrate', 'misc'.

Source-table records of type NET contain the following data fields: 'identifiey', 'operator', 'authentication', 'fee', 'web-net', 'web-str', 'web-reg', 'misc'.

Source-table records of type CAS contain the following data fields: 'host', 'port', 'identifier', 'operator', 'nmea', 'country', 'latitude', 'longitude', 'misc'.

5.2.2 NTRIP Version 2

The major changes of NTRIP Version 2 compared to Version 1.0 are:

NTRIP Version 2 allows to either communicate in TCP/IP mode or in RTSP/RTP mode or in UDP mode whereas Version 1 is limited to TCP/IP only. It furthermore allows using the Transport Layer Security (TLS) and its predecessor, Secure Sockets Layer (SSL) cryptographic protocols for secure NTRIP communication over the Internet.

5.2.3 RTCM Version 2

Transmitting GNSS carrier phase data can be done through RTCM Version 2 messages. Please note that only RTCM Version 2.2 and 2.3 streams may include GLONASS data. Messages that may be of interest here are:

5.2.4 RTCM Version 3

RTCM Version 3 has been developed as a more efficient alternative to RTCM Version 2. Service providers and vendors have asked for a standard that would be more efficient, easy to use, and more easily adaptable to new situations. The main complaint was that the Version 2 parity scheme was wasteful of bandwidth. Another complaint was that the parity is not independent from word to word. Still another was that even with so many bits devoted to parity, the actual integrity of the message was not as high as it should be. Plus, 30-bit words are awkward to handle. The Version 3 standard is intended to correct these weaknesses.

RTCM Version 3 defines a number of message types. Messages that may be of interest here are:

The following is a proposed Galileo Navigation Message under discussion for standardization:

The following are so-called 'State Space Representation' (SSR) messages:

The following are so-called 'Multiple Signal Messages' (MSM):

The following are proposed 'Multiple Signal Messages' (MSM) under discussion for standardization:

5.3. Configuration Examples

BNC comes with a number of configuration examples which can be used on all operating systems. Copy the complete directory 'Example_Configs' which comes with the software including sub-directories 'Input' and 'Output' to your disc. There are two ways to start BNC using one of the example configurations:

Although it's not a must, we suggest that you always create BNC configuration files with the file name extension '.bnc'.

We furthermore suggest for convenience reasons that you configure your system to automatically start BNC when you double-click a file with the file name extension '.bnc'. The following describes what to do on Windows systems to associate the BNC program to such configuration files:

  1. Right-click a file that has the extension '.bnc' and then click 'Open'. If the 'Open' command is not available, click 'Open With' or double-click the file.
  2. Windows displays a dialog box that says that the system cannot open this file. The dialog box offers several options for selecting a program.
  3. Click 'Select the program from a list', and then click 'OK'.
  4. The 'Open With' dialog box is displayed. Click 'Browse', locate and then click the BNC program, and then click 'Open'.
  5. Click to select the 'Always use the selected program to open this kind of file' check box.
  6. Click 'OK'.

Some of the presented example configuration files contain a user ID 'Example' with a password 'Configs' for accessing a few GNSS streams from public Ntrip Broadcasters. This generic account is arranged for convenience reasons only. Please be so kind as to replace the generic account details as well as the place holders 'User' and 'Pass' by the personal user ID and password you receive following an online registration through http://register.rtcm-ntrip.org.

Note that the account for an Ntrip Broadcaster is usually limited to pulling a specified maximum number of streams at the same time. As running some of the example configurations requires pulling several streams, it is suggested to make sure that you don't exceed your account's limits.

Make also sure that sub-directories 'Input' and 'Output' which are part of the example configurations exist on your system or adjust the affected example configuration options according to your needs.

Some BNC options require antenna phase center variations as made available from IGS through so-called ANTEX files at ftp://igs.org/pub/station/general. An example ANTEX file 'igs08.atx' is part of the BNC package for convenience.

The example configurations assume that no proxy protects your BNC host. Should a proxy be operated in front of BNC then you need to introduce its IP and port in the 'Network' tab.

You should be able to run all configuration examples without changing their options. However, configurations 'Upload.bnc' and 'UploadPPP.bnc' are exceptions because they require an input stream from a connected network engine.

  1. File 'RinexObs.bnc'
    The purpose of this configuration is showing how to convert RTCM streams to RINEX Observation files. The configuration pulls one stream from an Ntrip Broadcasters using Ntrip version 1 to generate a 15min 1Hz RINEX Version 3 Observation file. See http://igs.bkg.bund.de/ntrip/observations for observation stream resources.

  2. File 'RinexEph.bnc'
    The purpose of this configuration is showing how to convert a RTCM stream carrying navigation messages to a RINEX Navigation files. The configuration pulls an RTCM Version 3 stream with Broadcast Ephemeris coming from the real-time EUREF and IGS networks. It saves hourly RINEX Version 3 Navigation files. See http://igs.bkg.bund.de/ntrip/ephemeris for further real-time Broadcast Ephemeris resources.

  3. File 'SSR.bnc'
    The purpose of this configuration is to save Broadcast Corrections from RTCM SSR messages in a plain ASCII format as hourly files. See http://igs.bkg.bund.de/ntrip/orbits for further real-time IGS or EUREF orbit/clock products.

  4. File 'RinexConcat.bnc'
    The purpose of this configuration is to concatenate RINEX Version 3 files to produce a concatenated file and edit the marker name in the file header. The sampling interval is set to 30 seconds. See section 'RINEX Editing & QC' in the documentation for examples on how to call BNC from command line in 'no window' mode for RINEX file editing, concatenation and quality checks.

  5. File 'RinexQC.bnc'
    The purpose of this configuration is to check the quality of a RINEX Version 3 file through a multipath analysis. The results is saved in disk in terms of a plot in PNG format. See section 'RINEX Editing & QC' in the documentation for examples on how to call BNC from command line in 'no window' mode for RINEX file editing, concatenation and quality checks.

  6. File 'RTK.bnc'
    The purpose of this configuration is to feed a serial connected receiver with observations from a reference station for conventional RTK. The stream is scanned for RTCM messages. Message type numbers and latencies of incoming observation are reported in BNC's logfile.

  7. File 'FeedEngine.bnc'
    The purpose of this configuration is to feed a real-time GNSS engine with observations from a remote reference stations. The configuration pulls a single stream from an NTRIP Broadcasters. It would of course be possible to pull several streams from different casters. Incoming observations are decoded, synchronized and output through a local IP port and saved into a file. Failure and recovery thresholds are specified to inform about outages.

  8. File 'PPP.bnc'
    The purpose of this configuration is Precise Point Positioning from observations of a rover receiver. The configuration reads RTCM Version 3 observations, a Broadcast Ephemeris stream and a stream with Broadcast Corrections. Positions are saved in the logfile.

  9. File 'PPPQuickStart.bnc'
    The purpose of this configuration is Precise Point Positioning in Quick-Start mode from observations of a static receiver with precisely known position. The configuration reads RTCM Version 3 observations, Broadcast Corrections and a Broadcast Ephemeris stream. Positions are saved in NMEA format on disc. Positions are also output through IP port for real-time visualization with tools like RTKPLOT. Positions are also saved in the logfile.

  10. File 'PPPPostProc.bnc'
    The purpose of this configuration is Precise Point Positioning in Post Processing mode. BNC reads a RINEX Observation and a RINEX Version 3 Navigation files and a Broadcast Corrections files. PPP processing options are set to support the Quick-Start mode. The output is saved in a specific Post Processing logfile and contains the coordinates derived over time following the implemented PPP filter algorithm.

  11. File 'SPPQuickStartGal.bnc'
    The purpose of this configuration is Single Point Positioning in Quick-Start mode from observations of a static receiver with precisely known position. The configuration uses GPS, GLONASS and Galileo observations and a Broadcast Ephemeris stream.

  12. File 'Sp3.bnc'
    The purpose of this configuration is to produce SP3 files from a Broadcast Ephemeris stream and a Broadcast Corrections stream. The Broadcast Corrections stream is formally introduced in BNC's 'Combine Corrections' table. Note that producing SP3 requires an ANTEX file because SP3 file contents should be referred to CoM.

  13. File 'Sp3ETRF2000PPP.bnc'
    The purpose of this configuration is to produce SP3 files from a Broadcast Ephemeris stream and a stream carrying ETRF2000 Broadcast Corrections. The Broadcast Corrections stream is formally introduced in BNC's 'Combine Corrections' table. This leads to an SP3 file containing orbits referred also to ETRF2000. Pulling in addition observations from a reference station at precisely known ETRF2000 position allows comparing an 'INTERNAL' PPP solution with ETRF2000 reference coordinates.

  14. File 'Upload.bnc'
    The purpose of this configuration is to upload orbits and clocks from a real-time GNSS engine to an NTRIP Broadcaster. For that the configuration reads precise orbits and clocks in RTNET format. It also reads a stream carrying Broadcast Ephemeris. BNC converts the orbits and clocks into Broadcast Corrections and encodes them in RTCM Version 3 SSR messages to upload them to an NTRIP Broadcaster. The Broadcast Corrections stream is referred to satellite Antenna Phase Center (APC) and IGS08. Orbits are saved on disk in SP3 format and clocks in Clock RINEX format.

  15. File 'UploadPPP.bnc'
    This configuration equals the 'Upload.bnc' configuration. However, the Broadcast Corrections are in addition used for an 'INTERNAL' PPP solution based on observations from a static reference station with known precise coordinates. This allows a continuous quality check of the Broadcast Corrections through observing coordinate displacements.

  16. File 'Combi.bnc'
    The purpose of this configuration is to pull several streams carrying Broadcast Corrections and a Broadcast Ephemeris stream from an NTRIP Broadcaster to produce a combined Broadcast Corrections stream. BNC encodes the combination product in RTCM Version 3 SSR messages and uploads that to an Ntrip Broadcaster. The Broadcast Corrections stream is not referred to satellite Center of Mass (CoM). It is referred to IGS08. Orbits are saved in SP3 format and clocks in Clock RINEX format.

  17. File 'CombiPPP.bnc'
    This configuration equals the 'Combi.bnc' configuration. However, the combined Broadcast Corrections are in addition used for an 'INTERNAL' PPP solutions based on observations from a static reference station with known precise coordinates. This allows a continuous quality check of the combination product through observing coordinate displacements.

  18. File 'UploadEph.bnc'
    The purpose of this configuration is to pull a number of streams from reference stations to get hold of contained Broadcast Ephemeris messages. These are encoded then in a RTCM Version 3 stream which only provides Broadcast Ephemeris with an update rate of 5 seconds.

The following table's left column is a list options as contained in BNC's configuration files (default: BNC.bnc).

OptionAffiliation
[General]Settings: Group
startTab=Internal: Top tab index
statusTab=Internal: Bottom tab index
font=Internal: Used font
casterUrlList=Internal: Visited URLs
mountPoints=Add Streams: broadcaster:port/mountpoint
ntripVersion=Add Stream: NTRIP Version
proxyHost=Network: Proxy host
proxyPort=Network: Proxy port
sslCaCertPath=Network: Path to SSL certificates
ignoreSslErrors=Network: Ignore ssl authorization errors
logFile=General: Logfile (full path)
rnxAppend=General: Append files
onTheFlyInterval=General: Reread configuration
autoStart=General: Auto start
rawOutFile=General: Raw output file (full path)
rnxPath=RINEX Observations: Directory
rnxIntr=RINEX Observations: Interval
rnxSample=RINEX Observations: Sampling
rnxSkel=RINEX Observations: Skeleton extension
rnxScript=RINEX Observations: Uplod script
rnxV3=RINEX Observation: Version 3
ephPath=RINEX Ephemeris: Directory
ephIntr=RINEX Ephemeris: Interval
outEphPort=RINEX Ephemeris: Port
ephV3=RINEX Ephemeris: Version 3
corrPath=Broadcast Corrections: Directory, ASCII
corrIntr=Broadcast Corrections: Interval
corrPort=Broadcast Corrections: Port
corrTime=Broadcast Corrections: Wait for full corr epoch
outPort=Feed Engine: Port
waitTime=Feed Engine: Wait for full obs epoch
binSampl=Feed Engine: Sampling
outFile=Feed Engine: File (full path)
outUPort=Feed Engine: Port (unsynchronized)
serialMountPoint=Serial Output: Mountpoint
serialPortName=Serial Output: Port name
serialBaudRate=Serial Output: Baud rate
serialFlowControl=Serial Output: Flow control
serialDataBits=Serial Output: Data bits
serialParity=Serial Output: Parity
serialStopBits=Serial Output: Stop bits
serialAutoNMEA=Serial Output: NMEA
serialFileNMEA=Serial Output: NMEA file name
serialHeightNMEA=Serial Output: Height
obsRate=Outages: Observation rate
adviseFail=Outages: Failure threshold
adviseReco=Outages: Recovery threshold
adviseScript=Outages: Script (full path)
miscMount=Miscellaneous: Mountpoint
perfIntr=Miscellaneous: Log latency
scanRTCM=Miscellaneous: Scan RTCM
pppSPP=PPP Client: PPP/SPP
pppMount=PPP Client: Observations Mountpoint
pppCorrMount=PPP Client: Corrections Mountpoint
pppRefCrdX=PPP Client: X coordinate of plot origin
pppRefCrdY=PPP Client: Y coordinate of plot origin
pppRefCrdZ=PPP Client: Z coordinate of plot origin
pppRefdN=PPP Client: North eccentricity
pppRefdE=PPP Client: East eccentricity
pppRefdU=PPP Client: Up eccentricity
nmeaFile=PPP Client: NMEA outputfile
nmeaPort=PPP Client: NMEA IP output port
pppPlotCoordinates=PPP Client: Plot NEU time series
postObsFile=PPP Client: Observations file
postNavFile=PPP Client: Navigation file
postCorrFile=PPP Client: Corrections file
postOutFile=PPP Client: Output file
pppAntenna=PPP Client: Antenna name
pppAntex=PPP Client: Path to ANTEX file
pppUsePhase=PPP Client: Use phase data
pppEstTropo=PPP Client: Estimate troposphere
pppGLONASS=PPP Client: Use GLONASS
pppGalileo=PPP Client: Use Galileo
pppSync=PPP Client: Sync observations and corrections
pppAverage=PPP Client: Lenght of time window for moving average
pppQuickStart=PPP Client: Quick-Start period
pppMaxSolGap=PPP Client: Maximal Solution Gap
pppSigmaCode=PPP Client: Sigma for Code observations
pppSigmaPhase=PPP Client: Sigma for Phase observations
pppSigmaCrd0=PPP Client: Sigma for initial XYZ coordinate
pppSigmaCrdP=PPP Client: White noise for XYZ
pppSigmaTrp0=PPP Client: Sigma for initial tropospheric delay
pppSigmaTrpP=PPP Client: White noise for tropospheric delay
reqcAction=Reqc: Action
reqcObsFile=Reqc: Observations file
reqcNavFile=Reqc: Navigation file
reqcOutObsFile=Reqc: Output observations file
reqcOutNavFile=Reqc: Output navigation file
reqcPlotDirReqc: QC plots directory
reqcOutLogFile=Reqc: Output logfile
reqcPlotDir=Reqc: Plot file directory
reqcRnxVersion=Reqc: RINEX version
reqcSampling=Reqc: RINEX sampling
reqcStartDateTime=Reqc: Start time
reqcEndDateTime=Reqc: Stop time
reqcRunBy=Reqc: Operators name
reqcComment=Reqc: Additional comments
reqcOldMarkerName=Reqc: Old marker
reqcNewMarkerName=Reqc: New marker
reqcOldAntennaName=Reqc: Old antenna
reqcNewAntennaName=Reqc: New antenna
reqcOldReceiverName=Reqc: Old receiver
reqcNewReceiverName=Reqc: New receiver
combineStreams=Combination: List of correction streams
cmbMethod=FilterCombination: Approach
cmbMaxres=Combination: Clock outlier threshold
cmbSampl=Combination: Orbit and clock sampling
uploadIntr=Upload Corrections: File interval
uploadMountpointsOut=Upload Corrections: Upload streams
uploadSamplClkRnx=Upload Corrections: Clock sampling
uploadSamplSp3=Upload Corrections: Orbit sampling
uploadSamplRtcmEphCorr=Upload Corrections: Orbit sampling
trafo_dx=Upload Corrections: Translation X
trafo_dy=Upload Corrections: Translation Y
trafo_dz=Upload Corrections: Translation Z
trafo_dxr=Upload Corrections: Translation change X
trafo_dyr=Upload Corrections: Translation change Y
trafo_dzr=Upload Corrections: Translation change Z
trafo_ox=Upload Corrections: Rotation X
trafo_oy=Upload Corrections: Rotation Y
trafo_oz=Upload Corrections: Rotation Z
trafo_oxr=Upload Corrections: Rotation change X
trafo_oyr=Upload Corrections: Rotation change Y
trafo_ozr=Upload Corrections: Rotation change Z
trafo_sc=Upload Corrections: Scale
trafo_scr=Upload Corrections: Scale change
trafo_t0=Upload Corrections: Reference year
uploadEphHost=Upload Ephemeris: Host
uploadEphPort=Upload Ephemeris: Port
uploadEphMountpoint=Upload Ephemeris: Moutpoint
uploadEphPassword=Upload Ephemeris: Password
uploadEphSample=Upload Ephemeris: Samplig

Note that the following configuration options saved on disk can be changed/edited on-the-fly while BNC is already processing data:

5.4 Futher Reading

Links
NTRIP  http://igs.bkg.bund.de/ntrip/index
EUREF-IP NTRIP Broadcaster  http://www.euref-ip.net/home
IGS-IP NTRIP Broadcaster  http://www.igs-ip.net/home
IGS products NTRIP Broadcaster  http://products.igs-ip.net/home
IGS M-GEX NTRIP Broadcaster  http://mgex.igs-ip.net/home
Distribution of IGS-IP streams  http://www.igs.oma.be/real_time/
Completeness and latency of IGS-IP data  http://www.igs.oma.be/highrate/
NTRIP Broadcaster overview  http://www.rtcm-ntrip.org/home
NTRIP Open Source software code  http://software.rtcm-ntrip.org
EUREF-IP Project  http://www.epncb.oma.be/euref_IP
Real-time IGS Pilot Project  http://www.rtigs.net/pilot
Radio Technical Commission
for Maritime Services
http://www.rtcm.org

Publications
Weber, G., D. Dettmering, H. Gebhard and R. Kalafus Networked Transport of RTCM via Internet Protocol (Ntrip), IP-Streaming for Real-Time GNSS Applications, ION GNSS 2005.
Weber, G, L. Mervart, Z. Lukes, C. Rocken and J. Dousa Real-time Clock and Orbit Corrections for Improved Point Positioning via NTRIP, ION GNSS 2007.
Mervart, L., Z. Lukes, C. Rocken and T. Iwabuchi Precise Point Positioning With Ambiguity Resolution in Real-Time, ION GNSS 2008.
Weber, G. and L. Mervart The BKG Ntrip Client (BNC), Report on EUREF Symposium 2007 in London, Mitteilungen des Bundesamtes fuer Kartographie und Geodaesie, Band 42, Frankfurt, 2009.
Weber, G. and L. Mervart Real-time Combination of GNSS Orbit and Clock Correction Streams Using a Kalman Filter Approach, ION GNSS 2010.
Huisman, L., P. Teunissen and C. Hu GNSS Precise Point Positioning in Regional Reference Frames Using Real-time Broadcast Corrections, Journal of Applied Geodesy, Vol. 6, pp15-23, 2012.
Louis H. Estey and Charles M. MeertensTEQC: The Multi-Purpose Toolkit for GPS/GLONASS Data, GPS Solutions, Vol. 3, No. 1, pp. 42-49, 1999.
